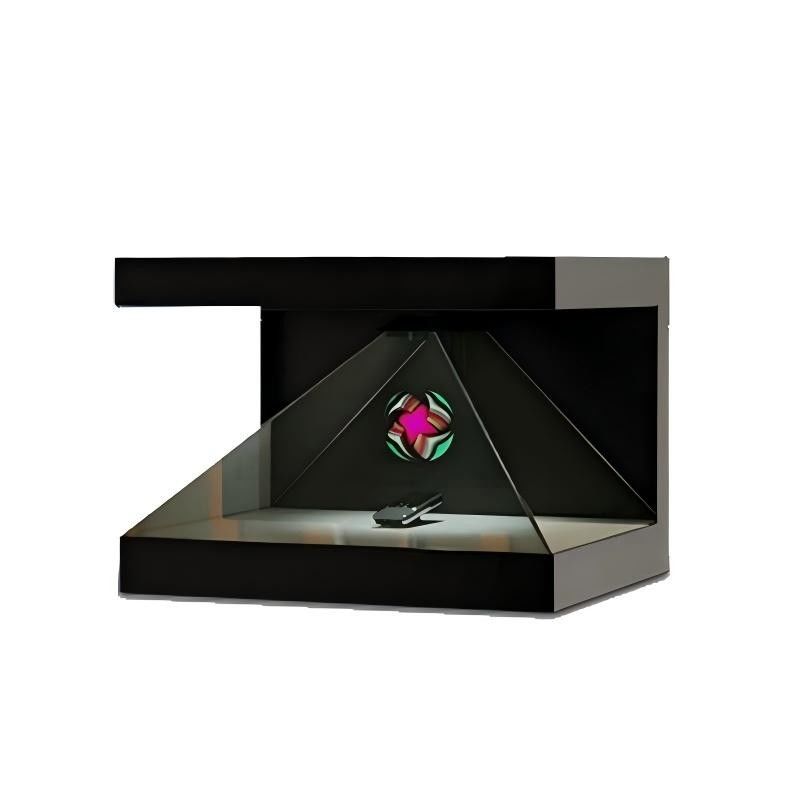

180-Degree And 360-Degree 3D Holographic Showcase Cabinets Customizable Transparent 3D Hologram Touch Screen

Two Viewing Geometries, Two Different Experiences

Offering 180° and 360° options does not mean one cabinet should be expected to perform both roles without redesign. A 180° showcase directs attention toward a front control position and fits wall-side or counter layouts. A 360° showcase invites circulation and needs interaction that remains understandable to viewers on other sides. The project team should select the geometry from the audience behavior first, then develop the cabinet, touch surface and media around that decision.

Choose the Interaction Model Before the Touch Technology

Infrared and capacitive touch can both support multi-touch input, but the better choice depends on the interface, bezel, glass, environment and cleaning routine. Product configuration may need accurate single-finger selection; a public discovery exhibit may benefit from larger targets and robust infrared sensing. The control surface can be integrated into the cabinet or placed separately. In either case, touching should produce an immediate, visible result in the holographic image so visitors understand the connection.

Prototype the User Journey in Plain Screens First

Before rendering expensive holographic assets, build a simple clickable prototype. Test whether visitors understand the starting state, complete a selection and recover from mistakes. Limit the top-level choices and avoid asking users to type. Once the flow works, map each state to a holographic scene and define transitions that do not create long loading pauses. This workflow protects the content budget: it is cheaper to change a wireframe than to remake multiple 3D animations after installation.

Mechanical Integration Is Part of Interaction Design

The touch height must work for the intended audience, including wheelchair users where applicable. The controller cannot block the principal view or create a narrow passage. Fingerprints, cleaning chemicals and public impact need to be considered when selecting surface materials. Provide ventilation for the computer and a staff-only method to reach ports. If the unit is built into custom furniture, preserve the removal path for the largest display and optical-glass component.

Define Scope Across Four Suppliers

Interactive projects often involve the cabinet manufacturer, software developer, 3D studio and AV integrator. The order should name who supplies the touch hardware, computer, operating system, application, holographic media, network configuration and commissioning. Agree on screen coordinates, media formats, API behavior and acceptance tests. A single end-to-end demonstration using final hardware is essential; testing each component independently does not prove that the visitor experience will work as a complete system.

When Interaction Should Be External

An external control screen is often preferable when the holographic glass must remain visually clean, several people need to observe, or the interface includes detailed choices. Integrated touch can suit a self-contained kiosk, but it may encourage visitors to stand directly in the main sightline. During prototyping, compare both arrangements using cardboard screens and real visitor positions. The least visually impressive prototype can reveal the most important ergonomic problem before hardware is ordered.

Frequently Asked Questions

Can the same interface be used for 180° and 360° cabinets?

The software may be adapted, but layout, observer positions and media mapping should be redesigned for the chosen geometry.

Which touch technology is better?

Neither is universally better; decide from accuracy, bezel design, environment, durability and cleaning requirements.

Who should own final integration testing?

One named integrator should be responsible for demonstrating the complete hardware, software and content workflow.

Project Inquiry

For an accurate proposal, send the intended venue, viewing directions, installation drawings, operating schedule, content concept and required control method. Final dimensions, resolution, imaging area, player, touch options, power and packing must be confirmed in the quotation and approved technical drawing before production.
