Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO651F
In high-end retail spaces, brand showrooms, museums, and themed exhibitions, holographic display equipment not only requires outstanding visual performance but also systematic integration in terms of form fusion, safety protection, and scene adaptation. The Holofan Z3+ 65CM holographic fan system, with 1522 high-brightness LEDs, splicing expansion capabilities, and a dual carrier of floor stand and acrylic protective cover, provides users with a comprehensive suspended visual solution from independent display to scene integration.
The equipment is equipped with 1522 high-quality LED beads, combined with a multi-layer optical structure and precise imaging algorithms, to present high-brightness, high-contrast, and color-realistic suspended images. The image has distinct layers, outstanding naked-eye 3D effect, and is suitable for main visual displays in medium to large spaces.
The system features splicing expansion capabilities, supporting horizontal, vertical, or matrix combinations of multiple devices to create a coherent and complete visual experience. Users can freely construct visual walls, circular arrays, or art installations according to site and content requirements, achieving a more impactful spatial narrative.

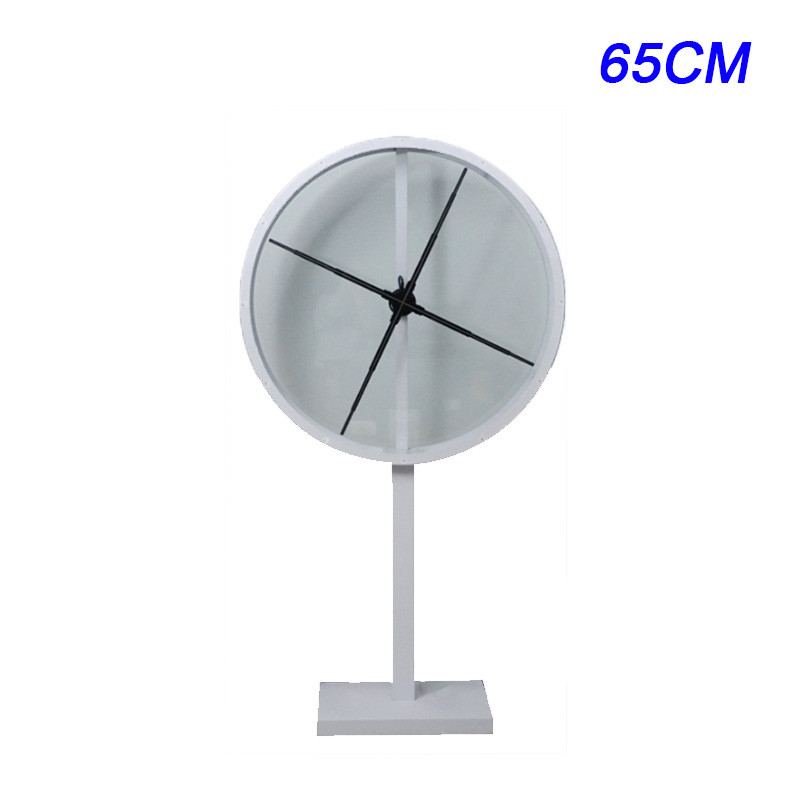

1. Floor Stand (Circular)
Material: Tempered glass + metal frame, high-end feel
Function: Built-in 65cm main unit, dustproof and theft-proof, safe and quiet
Features: Good light transmission, clear image, sturdy and durable structure
Applicable Scenarios: Shopping mall atrium, prime exhibition hall location, brand flagship store entrance

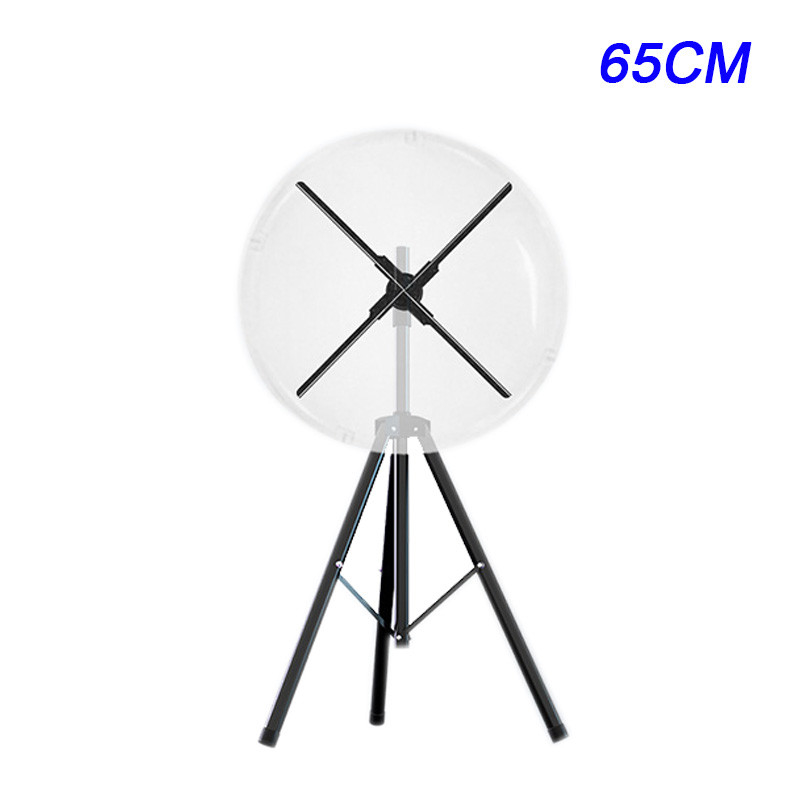

2. Acrylic Circular Protective Cover
Size: Diameter 68cm, thickness 8.2cm, compatible with 65cm main unit
Features: High-transparency acrylic, dustproof and impact-resistant, lightweight and portable
Extended Functions: Optional Bluetooth speaker for synchronized audio and video
A continuously updated 3D material library is included, covering multiple categories such as holiday marketing, brand promotion, technology demonstration, and artistic creation. Users can directly access or edit these materials, significantly improving content creation efficiency.
|
Product Model |
ZXTLCD--S6L |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
Allwinner A40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*704 |
|
Number of LED Chips |
704 |
|
Viewing Angle |
176° |
|
Rated Power |
165W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
2450cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
The 65cm holographic fan system, through the organic combination of high-specification optical hardware, flexible splicing capabilities, and diverse display formats, not only enhances the expressive dimension of the suspended visual experience but also transforms the device from a "feature device" to a "scene-specific accessory" through its dual-carrier design of a bracket and protective cover. It is not merely a visual display tool but also a comprehensive carrier of spatial aesthetics, brand narrative, and interactive experience, helping users build a distinctive and impactful visual system in high-end settings.
