Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO301F

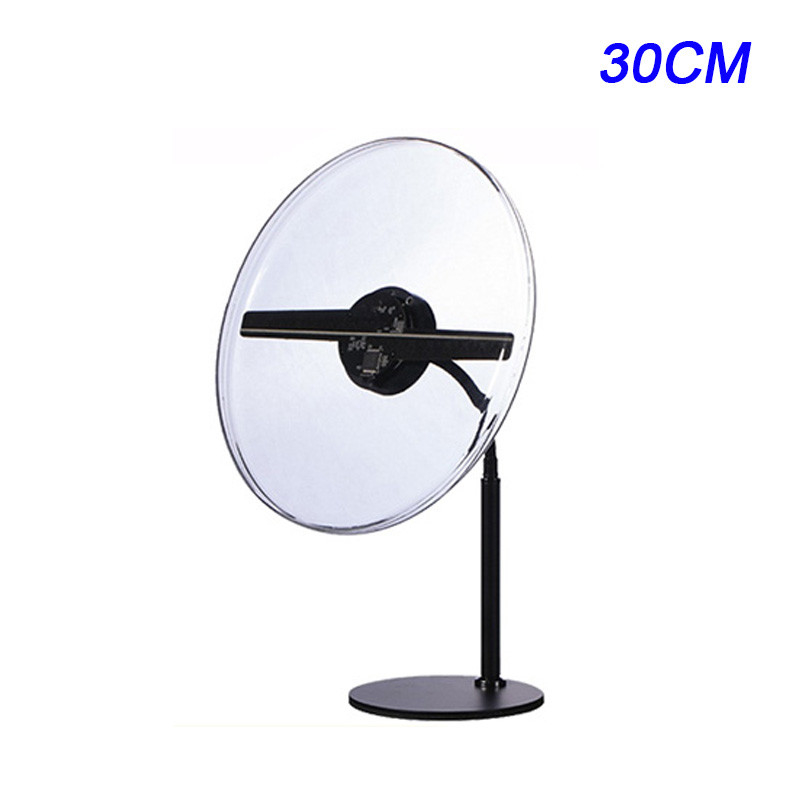

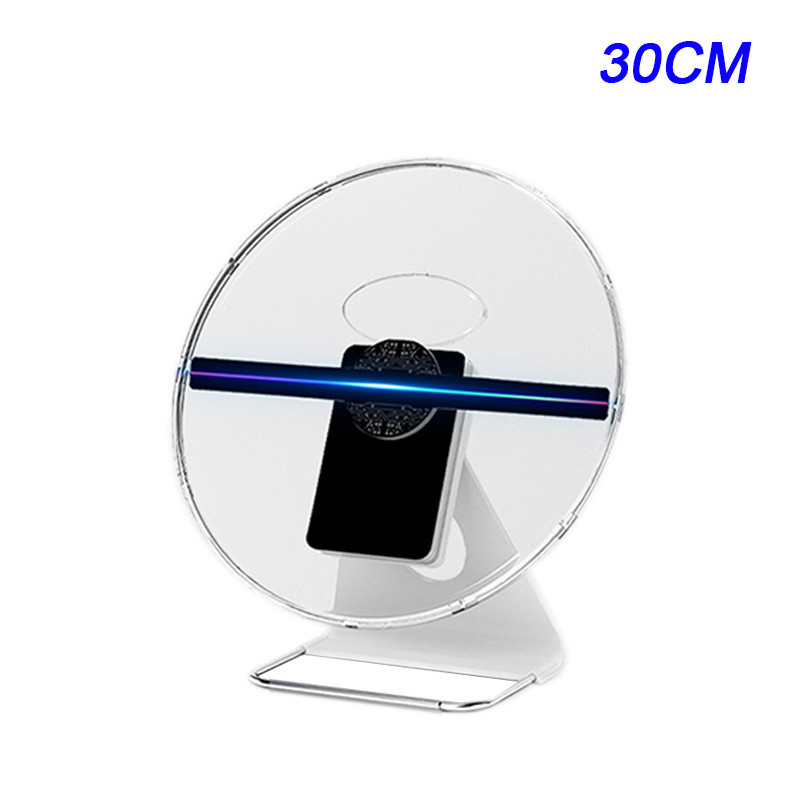

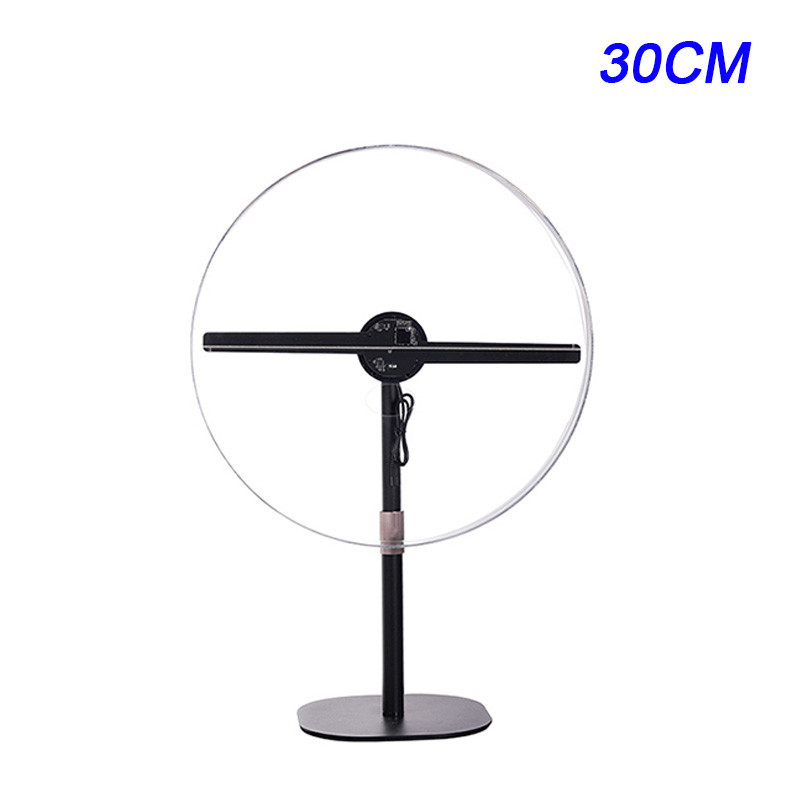

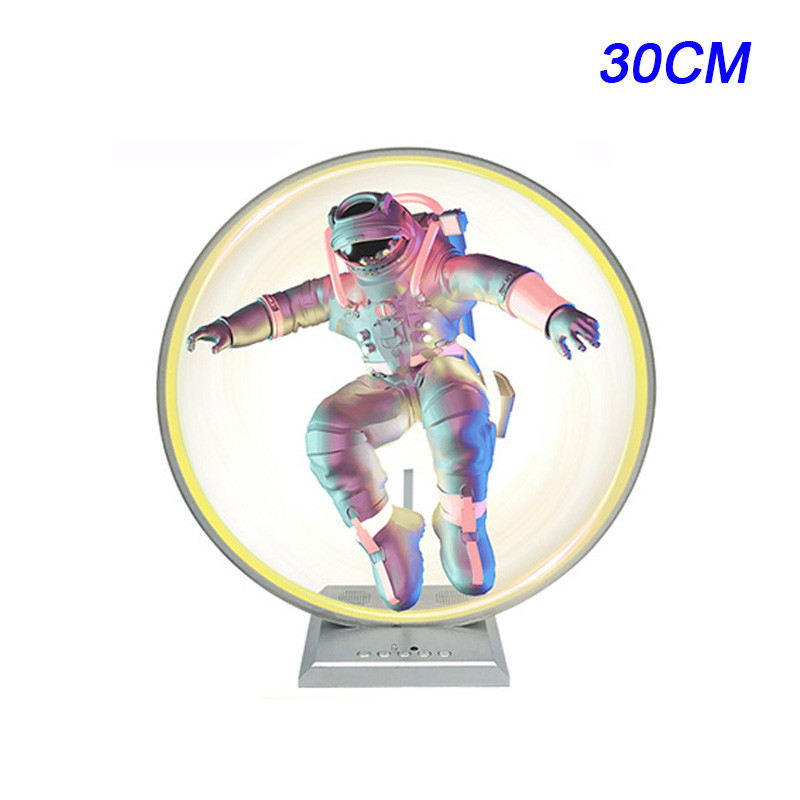

In pop-up stores, mobile exhibitions, retail promotions, and personal creative displays, portable, flexible power supply, and plug-and-play holographic devices are becoming increasingly popular. The 30CM holographic advertising fan, with its built-in battery, smart APP control, Type-C power support, and Bluetooth audio output, is a truly portable, easy-to-deploy, and high-definition desktop holographic display tool.
1. Built-in Battery Version
Built-in high-performance lithium battery, providing over 4 hours of battery life.
No external power supply required, supports outdoor and mobile use.
A single charge provides enough power for half a day of display needs, suitable for touring exhibitions, markets, and outdoor events.
2. Type-C Powered Version:
Supports Type-C interface power supply, can be powered by power bank, adapter, or computer USB. Flexible power supply, adaptable to various indoor and outdoor power environments. Optional high-capacity power bank for longer battery life.
The 30CM holographic advertising fan adopts a dual-blade floating structure, combined with a high-brightness LED module, to achieve:
Naked-eye 3D stereoscopic effect with clear image layering
High-brightness display, clearly visible both indoors and outdoors
Lightweight body, easy to carry
Standard includes protective cover and telescopic stand, dustproof and shockproof, adjustable viewing angle.
The 30CM holographic advertising fan has a built-in Bluetooth audio module, which can connect to Bluetooth speakers or headphones to achieve synchronized audio and video playback, suitable for product explanations, atmosphere creation, interactive experiences, and other scenarios.
The 30CM holographic advertising fan supports multiple formats including video, images, and 3D text.
A TF memory card is included for instant copying and playback of content.
Customizable video content is supported, offering personalized holographic video production services.
The app has a built-in material library, providing various industry templates and dynamic effects.
Retail Pop-up Stores: Floating product display, promotional information release, traffic generation and interaction
Exhibitions and Events: Mobile booths, visual embellishment of negotiation areas, brand exposure
Catering and Leisure: 3D presentation of dishes, event theme decoration, tabletop interaction
Education and Cultural Creativity: Teaching model display, artistic creation presentation, cultural and creative product demonstration
Corporate Reception and Meetings: Product introduction assistance, corporate promotional video playback, conference table sign display
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
With its portable design, flexible power supply, intelligent control, and high-definition display, the 30CM holographic advertising fan provides a low-threshold, high-effective holographic display entry point for small and micro-sized businesses, creative workers, and event planners. It is not only an advertising tool but also a visual focal point in mobile spaces, freeing creativity from the constraints of location and power supply, allowing displays to happen anytime, anywhere, and be exciting.
