Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO321F

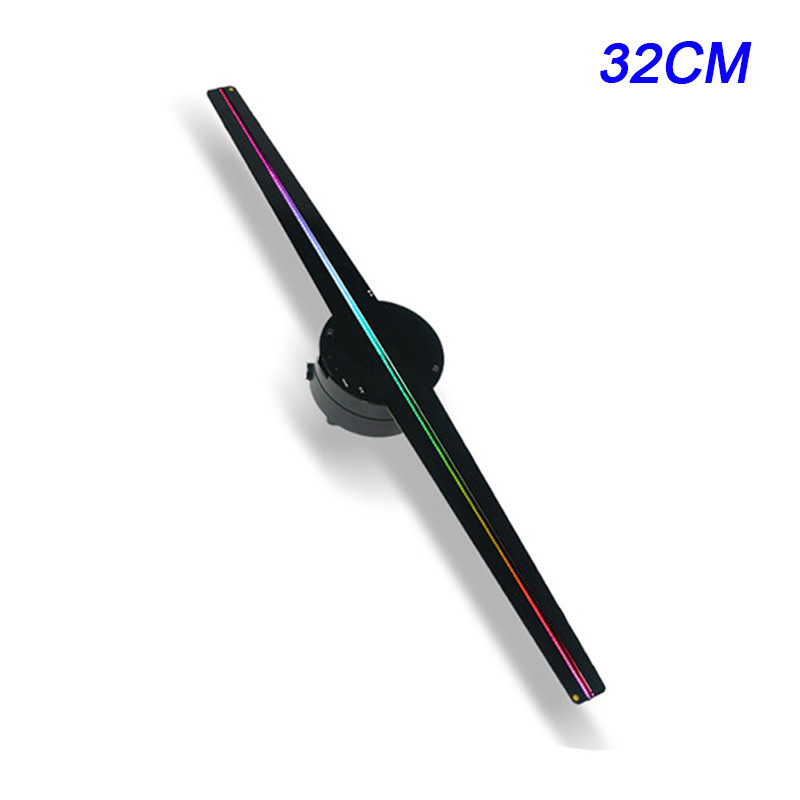

With the rapid development of digital advertising and immersive displays, miniaturized, portable, and intelligent holographic display devices are becoming a popular choice for store marketing, exhibitions, and personal creative projects. The 32CM holographic fan advertising machine integrates 384 high-brightness LEDs, glasses-free 3D display, a 170° wide viewing angle, and mobile app control. Its lightweight design, convenient operation, and stunning visual effects redefine the holographic display experience in small spaces.
The 32CM holographic fan advertising machine is equipped with 384 high-brightness LED beads, combined with a precision optical structure, to achieve clear and vibrant glasses-free 3D floating images. The image has distinct layers and a strong sense of depth, providing an immersive visual experience without the need for 3D glasses. It is suitable for various scenarios such as product display, brand promotion, and artistic creation.
The 32CM holographic fan advertising machine adopts a wide-angle optical design, providing a 170° ultra-wide viewing angle, ensuring clear and undistorted images from different angles. Suitable for placement in scenarios with many viewers, such as counters, shop windows, and exhibition stands, enhancing information reach.
Supports dual operation modes: Mobile App control (iOS/Android) and multi-functional remote control:
APP Remote Control: One-click content switching, brightness adjustment, and playback mode setting
Remote Control Operation: Suitable for quick on-site debugging and interactive demonstrations
WIFI Transmission: Wirelessly upload videos, images, and other content, freeing you from data cables
TF Card Local Playback: Supports offline content storage and loop playback

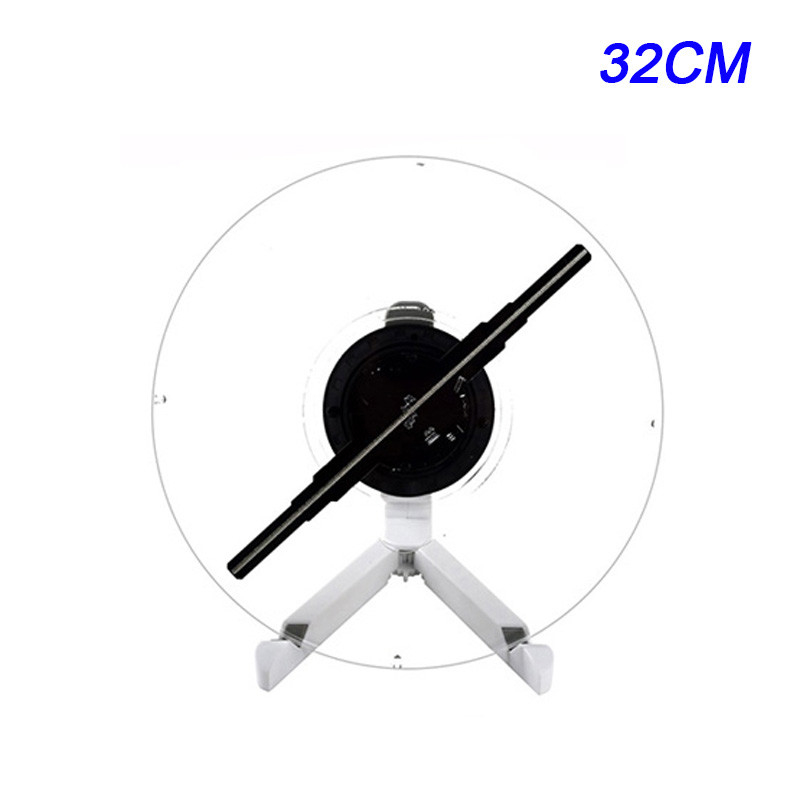

The entire machine adopts a lightweight structural design, making it lightweight and compact. Equipped with a protective cover and stand, it can easily achieve: Desktop placement or wall mounting. Mounting and Hanging Display
Quick assembly and disassembly, suitable for temporary setups in roadshows, pop-up stores, and events
Built-in handle or carrying bag option for easier mobile setup
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
The 32CM holographic fan advertising machine, with its compact size, powerful visuals, and intelligent control, provides a cost-effective holographic display entry point for small and medium-sized commercial scenarios and individual creators. It is not just an advertising device, but a new medium connecting products, brands, and audiences, delivering a powerful visual impact in a lightweight way, allowing creativity to float anywhere and displays to be vibrant at any time.
