Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO601F
ZXTLCD is an independent R&D and manufacturing company specializing in 3D holographic advertising machines and holographic visual systems, consistently focusing on innovative technologies and cutting-edge products. Starting with the earliest 42cm dual-blade fan screen, the company pioneered a series of brushless motors and cloud control systems, achieving real-time content control. It has launched a series of professional-grade holographic advertising machines supporting multi-screen splicing and other functions, filling numerous technological gaps both domestically and internationally. Its products are exported to over 80 countries and regions, including the Americas, Europe, Australia, Asia, and Africa.
![]()

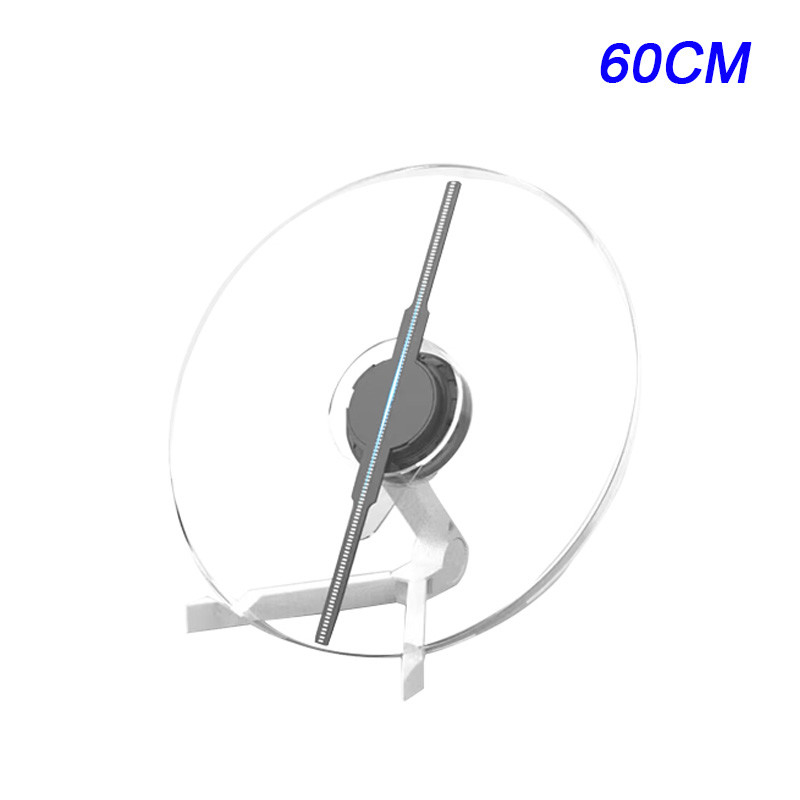

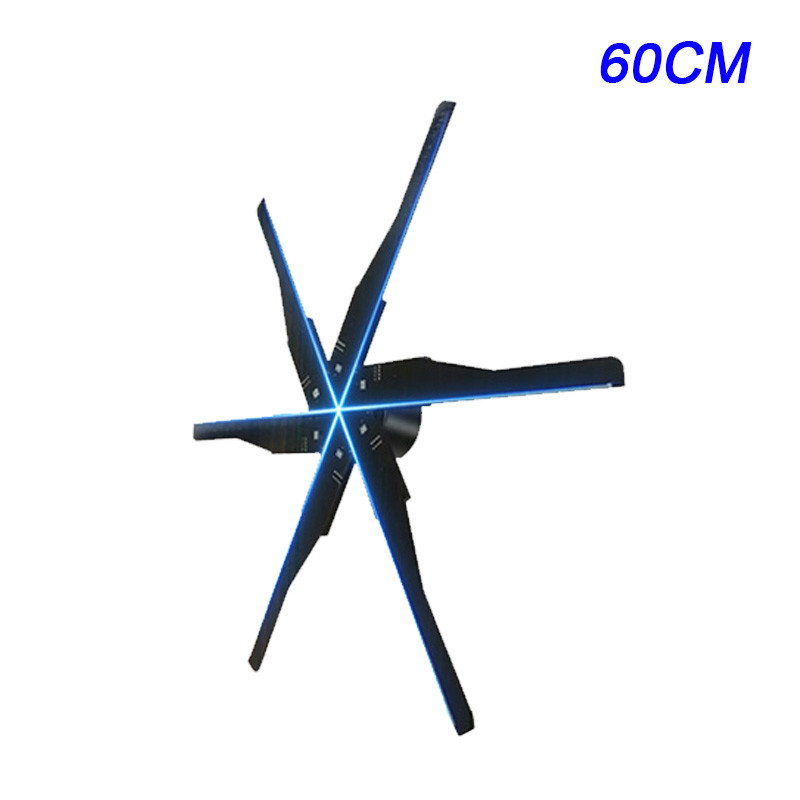

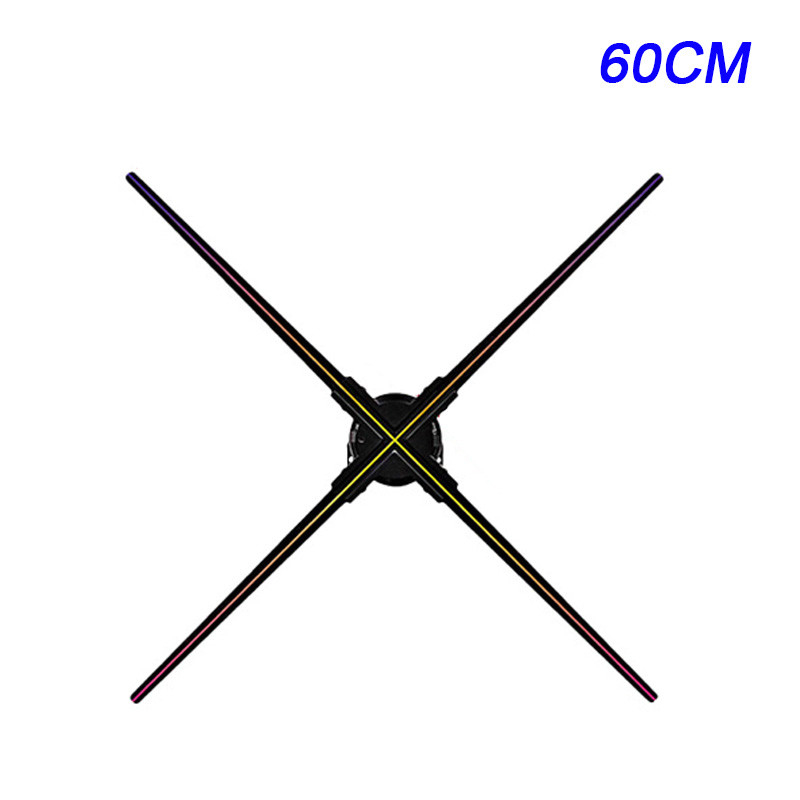

The 60cm 3D holographic fan projector utilizes cutting-edge 3D holographic display technology to create captivating and realistic visual effects. This advanced projector uses 720 high-brightness LEDs to present vivid and clear images, truly attracting the audience's attention. High-definition holographic display makes it ideal for various occasions, from retail stores and trade shows to private parties and corporate events.
Whether you're showcasing products, promoting events, or simply entertaining guests, this 3D holographic fan is the perfect tool to make a lasting impression.
![]()
This 3D holographic fan combines fan rotation with LED light strip displays, utilizing the principle of persistence of vision to create illusions of graphics, animations, and videos in mid-air.
During imaging, all the LEDs illuminate, while the surrounding casing remains dark and non-illuminating.
Thus, when the 3D holographic advertising machine is running, the human eye only perceives the illuminated areas, while the dark and unlit areas quickly disappear. Once the brain recognizes this, the display effect focuses solely on the light emitted by the LEDs, achieving a levitation effect and ultimately presenting a 3D levitation image.
![]()
With built-in WiFi connectivity, you can easily upload and change the content displayed on the fan using a computer or smartphone. This feature is compatible with Android and iOS devices, keeping your visual content fresh and relevant. Whether you need to update promotional materials, showcase new products, or present seasonal themes, the ZXTLCD 3D Holographic Fan ensures your content is always up-to-date and engaging.
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms* |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
Purchase a ZXTLCD Holographic Fan and gain access to a rich video library containing over 1,500 holographic videos. This extensive library covers a wide range of themes, including Christmas, Halloween, digital products, company logos, food and beverage, and more. These pre-loaded videos offer a wealth of options to enhance your presentations, making it easy to find the perfect content for any occasion.
Furthermore, our team is always ready to assist you; you can customize and create new videos to meet your specific needs, ensuring your holographic displays are always at their best.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
