High Definition 3D Holographic Fan Interactive 3D Fan Hologram

High Definition 3D Holographic Fan Interactive 3D Fan Hologram

3d holographic fan interactive

high definition 3d holographic fan

interactive 3d holo fan

Place of Origin:

Guangdong, China

Brand Name:

ZXTLCD

Certification:

CE/Rohs/FCC

Model Number:

ZXTLCD-HO452F

Chat Now
Request A Quote
Product Details
Diameter:
45CM
Material:
High End Aluminum Alloy Casing
Blade:
Four Blades
Resolution:
1920 X 1080 / 3840 X 2160
Panel Transparency:
Up To 3840X960
LED Lamp QTY:
960PCS
Brightness:
Up TO 2500nits Brightness Adjustable
Rotating Speed:
800RPM
Viewing Angle:
170°, View Angle Adjustable
Bluetooth:
Audio Support Bluetooth Connection
TF Memory:
16G
Upload Method:
TF Card/APP/Cloud/Web
Communication Mode:
2.4G WiFi 802.11b/g/n
Life Time:
Over 20,000hrs
APP Control:
APP Control, Both Android And IOS;
Content Format:
MP4,AVI,RMVB,JPG
APP 3D Editing:
Support Simple 3D Words Video Editing
Schedule:
Schedule Turn On/off Fan By Software
Splicing Function:
Splicing Function, Combine Multiple Fans To Become A Video Wall Display
Cloud Management:
Support Cloud Control, High Speed Upload And Download
Highlight:

3d holographic fan interactive

,

high definition 3d holographic fan

,

interactive 3d holo fan

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
wooden case, carton, flight cases are optional
Delivery Time
3-5 working days
Payment Terms
L/C,T/T,MoneyGram,Western Union
Supply Ability
2000 pcs per month
Product Description

High Definition 3D Holographic Fan Display for Retail Showcases Interactive Holographic Visuals

Suspended Holographic Fan: Three-Unit Splicing, High Definition & High Brightness, and Intelligent Audio-Visual Synchronization

In the fields of digital display and creative visuals, holographic suspended display technology is attracting increasing attention with its unique visual impact and sense of space. Holofan holographic fan screens utilize multi-light panels, can be spliced ​​and expanded, feature Bluetooth audio-visual synchronization, and offer intelligent remote control, providing users with a high-definition, high-brightness, and easily deployed suspended visual solution suitable for various scenarios such as retail, exhibitions, stages, and commercial spaces.


High Definition 3D Holographic Fan Interactive 3D Fan Hologram 0

I. Four-Light Panel Technology, High-Definition & High-Brightness Suspended Imaging

The suspended holographic fan is equipped with a four-light panel display system, delivering high image clarity and full brightness, presenting vivid and lifelike suspended images even in brightly lit environments. A single unit measures 45×110cm, providing a clear, three-dimensional image with strong visual appeal.

II. Flexible Splicing and Expansion, Creating Diverse Visual Arrays

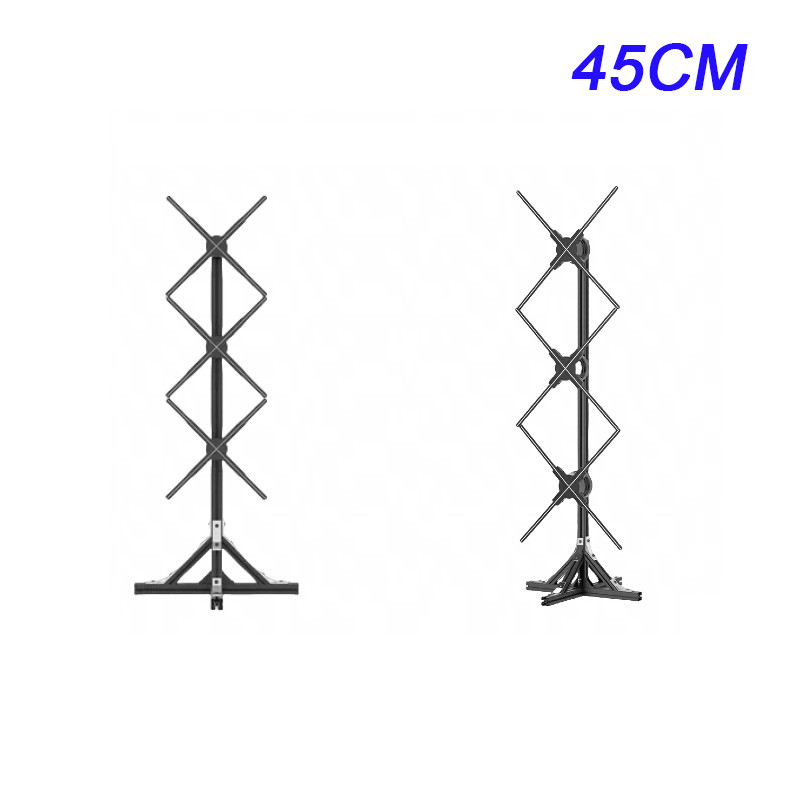

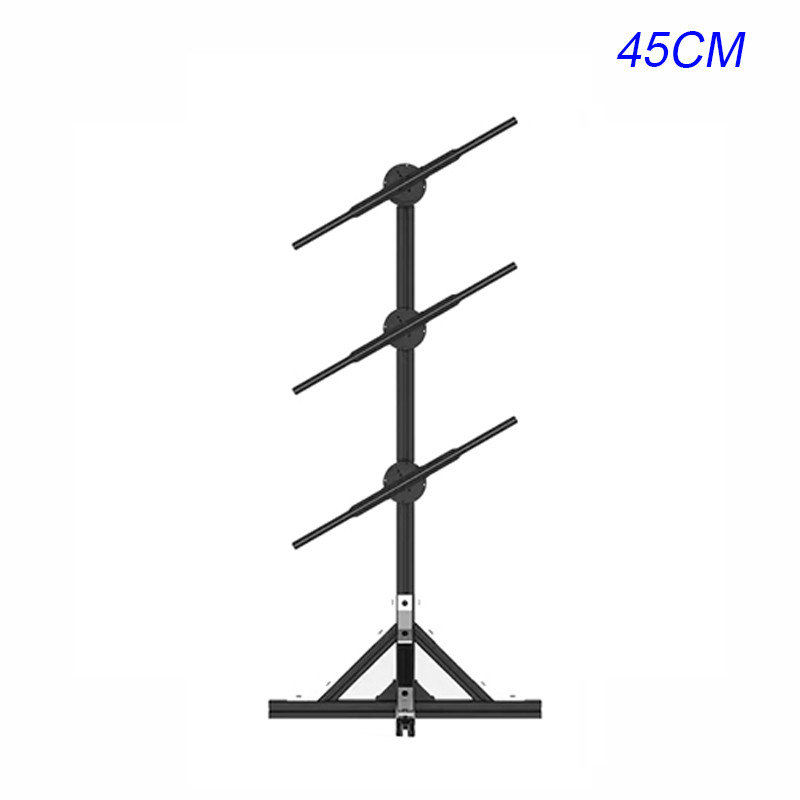

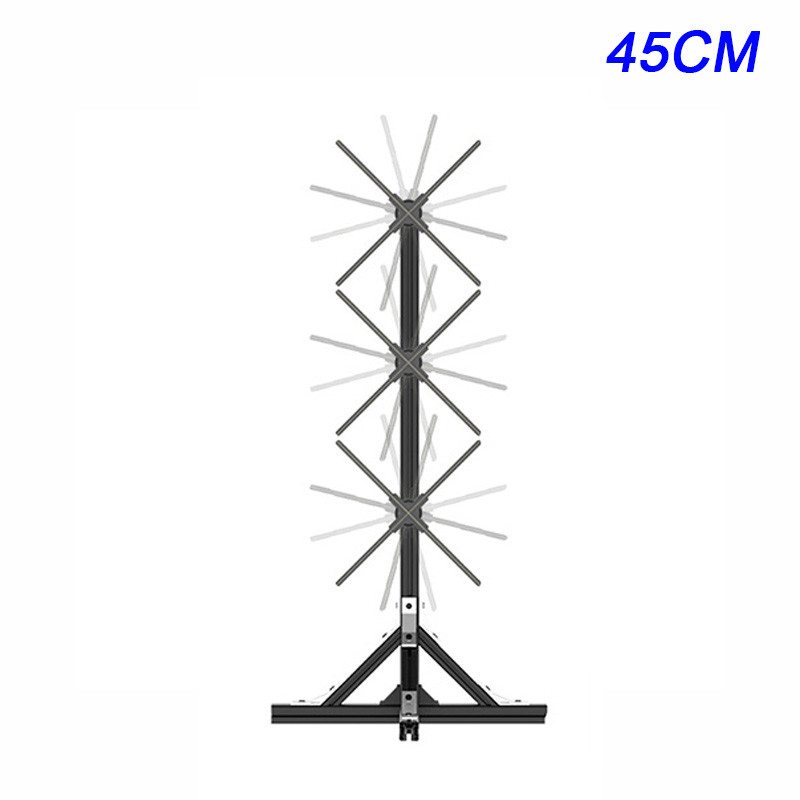

The suspended holographic fan supports the splicing of multiple devices; for example, three 45cm devices can be horizontally spliced ​​to create a larger holographic display wall. The assembly process is simple, and the included dedicated controller allows users to freely combine components according to site and content requirements for flexible exhibition setup.

III. Bluetooth Audio Synchronization for an Integrated Audiovisual Experience:

The floating holographic fan features a built-in Bluetooth audio module, supporting synchronized audio and video playback. Users can connect via Bluetooth to play background music or narration audio, creating an immersive audiovisual atmosphere suitable for product launches, brand promotions, interactive experiences, and other scenarios.


High Definition 3D Holographic Fan Interactive 3D Fan Hologram 1

IV. One-Click Control via Mobile Phone and Computer, Remote Timed On/Off:

Equipped with intelligent control software, it supports one-click operation via mobile phone and computer: Remote content upload and switching; Timed on/off settings; Playlist management. Users can easily adjust playback content at any time, achieving unattended automated operation.

V. Lightweight Installation and Mobility, Adaptable to Multiple Layouts:

The device has a lightweight structure, is easy to install, and is flexible to move. It can be quickly deployed in different locations such as exhibition halls, stores, stages, and event venues according to event needs, supporting various placement methods such as hanging, standing, and desktop mounting.


Product Model

ZXTLCD--M6

Device System

Android Smart System

Main Control (Main Frequency)

AllwinnerA40I(Quad-core 1.2GHz)

Display Size

64.5*64.5CM

Device Thickness

8.5CM

Resolution

2800*896

Number of LED Chips

896

Viewing Angle

176°

Rated Power

175W/24V

Input Voltage

100-240VAC,50/60HZ

Storage Space

8GB

Video/Image Format

MP4/JPG,

Bluetooth audio output

Support

Remote control

Support

Refresh rate

3840MHz (2037 units of 1920MHz)

Video processing method

FPGA hardware processing

Splicing method

Supports local area network splicing / remote cloud splicing

Decoding method

Hardware decoding

Driver IC

Jichuang 2153

Splicing center point spacing

460mm

Content replacement method

Mobile APP, WEB end, PC

Software support system

Windows,IOS,Android

Color

Black

Weight

0.78KG

Transmittance

92%

Noise

50 decibels

Brightness

3000cd/m2

Frame Rate

24 frames per second

Revolutions

720/min

Functional Features

Supports point-to-point control, network remote control, clustering, text ball, image cube

Provides upload software

Free

Product Material

ABS+PC/AL

Theoretical Machine Lifespan

30,000 hours

Warranty Period

12 months

Packaging Size/Weight

Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG)

Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg)

Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG)

Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG)

Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg)

Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG)

Common application locations

Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc.

Pricing terms*

Excluding tax, not including shipping

Battery capacity calculation

Estimated working time = battery capacity / (power / voltage * 1000)
For example: Estimated working time = battery capacity 1000mAh / (power 20W / voltage 24V * 1000)
 = 1000mAh / (20W / 24V * 1000)
 = 10000mAh / 830mA
 = 12 hours


The holographic floating fan, with its floating visual effect, flexible splicing, intelligent control, and lightweight deployment, breaks through the limitations of traditional flat displays, providing a new way of expression for brand communication and visual creativity. It is not just a display device, but a future medium connecting space, content, and audience, helping users stand out in digital displays.
