Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO251F

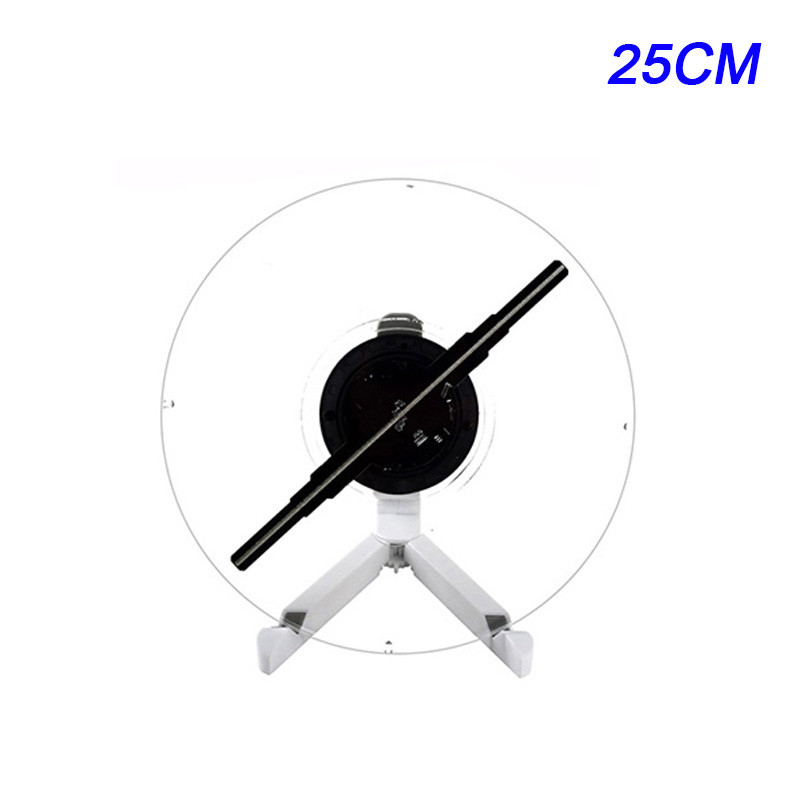

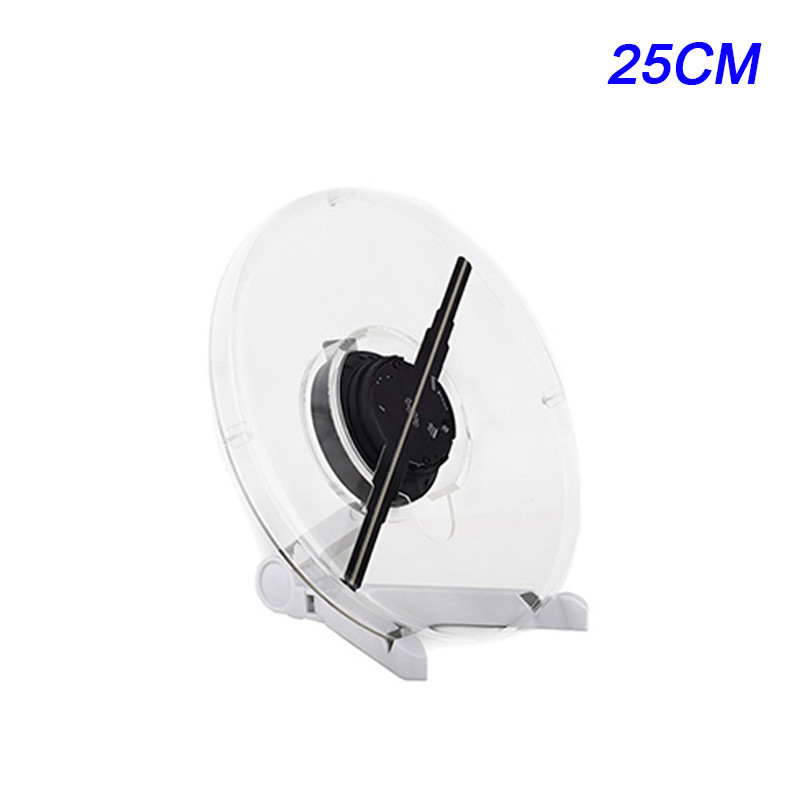

In today's world where digital technology is increasingly integrated into our lives, a device that allows viewing 3D images without special glasses is quietly entering commercial displays and home entertainment scenarios. ZXTLCD's 25cm holographic advertising fan, with its lightweight design, high-definition image quality, and flexible operation, brings a more accessible and practical solution to glasses-free 3D technology.
The 25cm holographic advertising fan uses cylindrical grating imaging technology, combined with high-brightness LEDs on the fan blades and a precision rotating structure, to achieve a 170° wide viewing angle within a 25cm viewing range. Images appear to float in the air with distinct layers, presenting realistic depth effects for both dynamic advertisements and 3D animations, breaking the limitations of traditional flat displays.
The device supports dual-platform control via mobile phone and computer. Content transfer, playback settings, and power management can be achieved through a dedicated APP. The included multi-functional remote control further simplifies operation and supports Bluetooth audio connection and local playback from memory cards, adapting to various online and offline usage scenarios. Thoughtful Design: Combining Protection and Portability

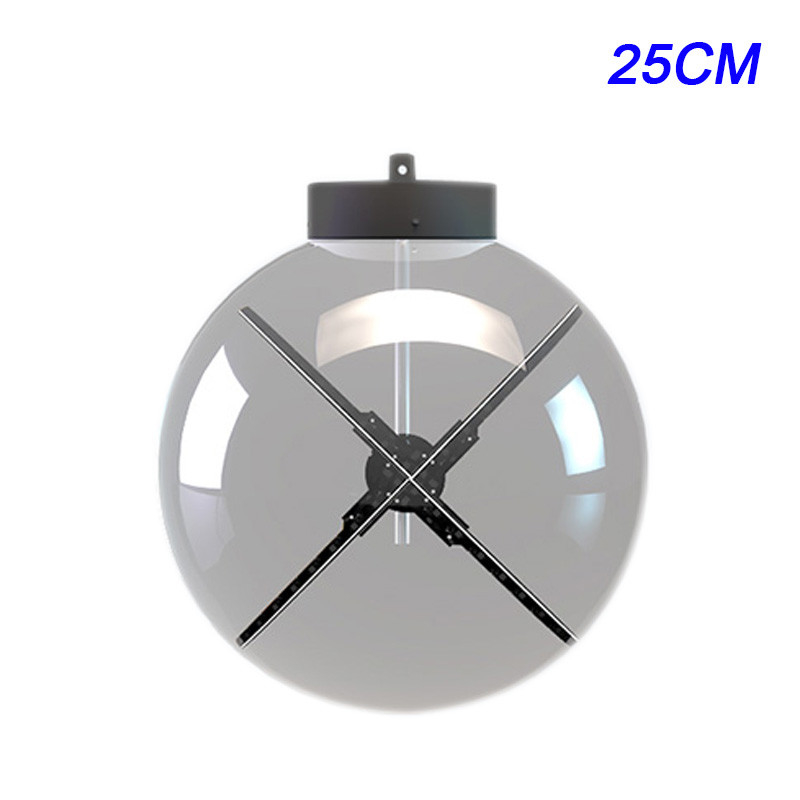

To protect the precision display screen, the product comes with a spherical acrylic protective cover. Made of high-light-transmittance, impact-resistant material, it also provides dust protection and quiet operation. It can be laid flat or hung. The lightweight design allows for flexible placement and movement in shop windows, exhibition booths, or home spaces.
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
The 25cm holographic advertising fan, with its core features of naked-eye 3D vision, intelligent wireless control, and user-friendly design, lowers the barrier to entry for holographic technology, allowing individual users and small and medium-sized businesses to experience the charm of cutting-edge digital displays at a reasonable cost. In today's pursuit of visual innovation, it is not just a tool, but a dynamic window connecting the real and digital worlds.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
