Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO561F
When the fan rotates at high speed, the light emitted by these LEDs creates a persistence effect on the retina, causing multiple still images to switch continuously within a short time, forming a continuous 3D image.

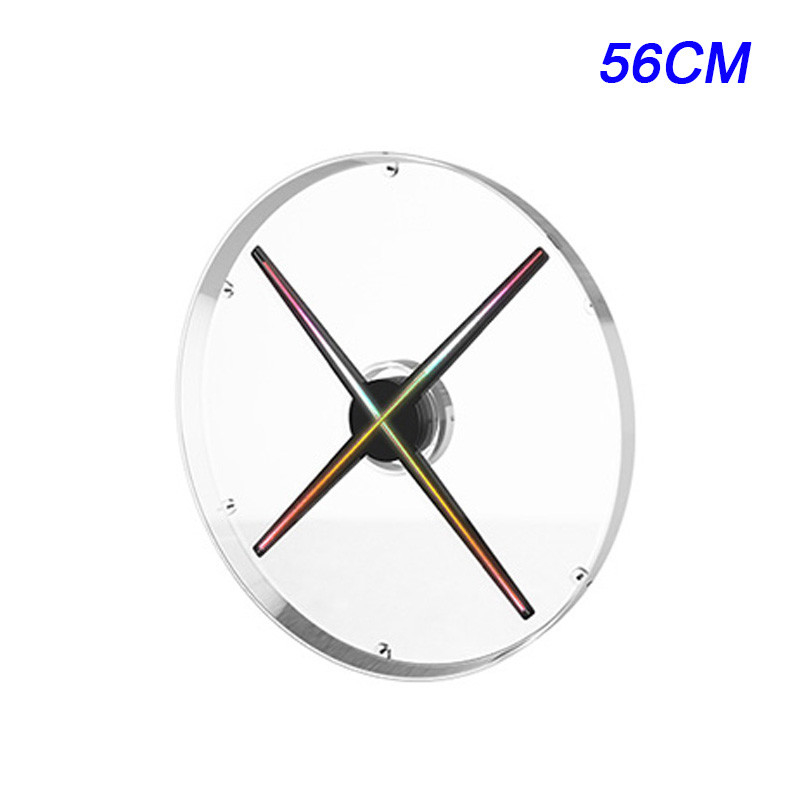

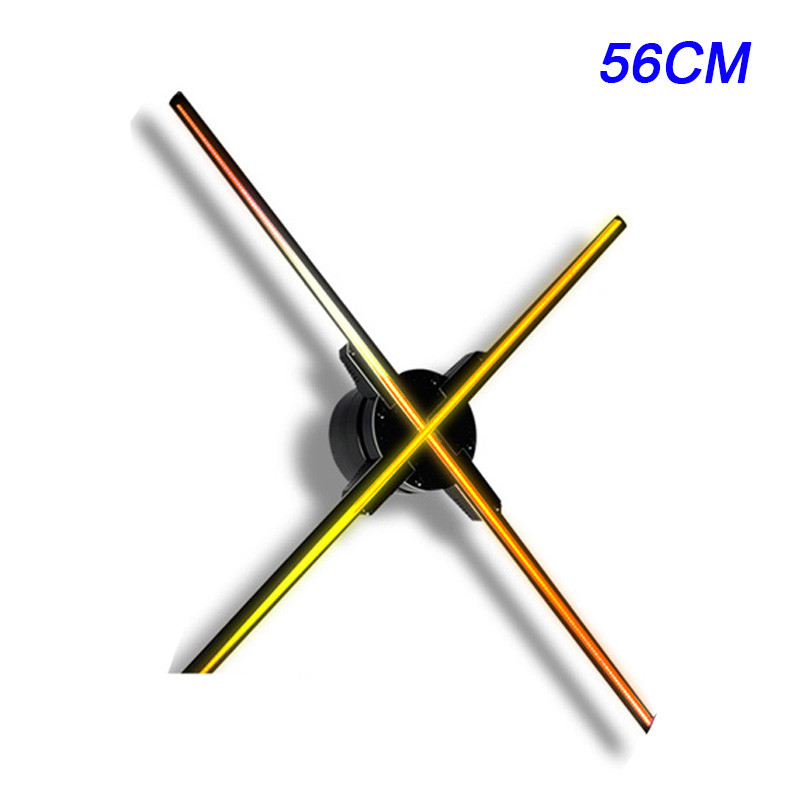

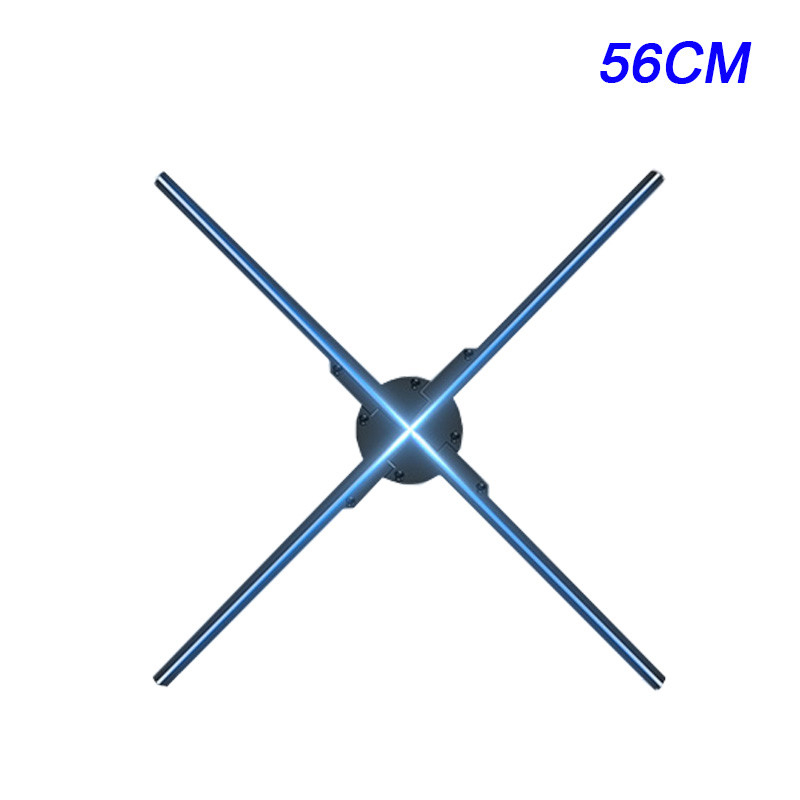

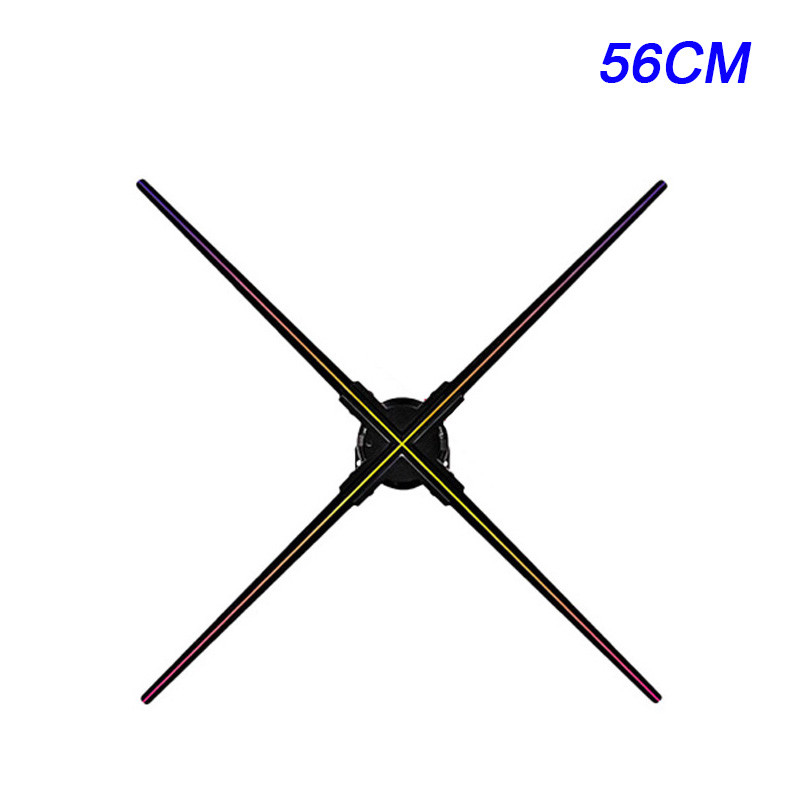

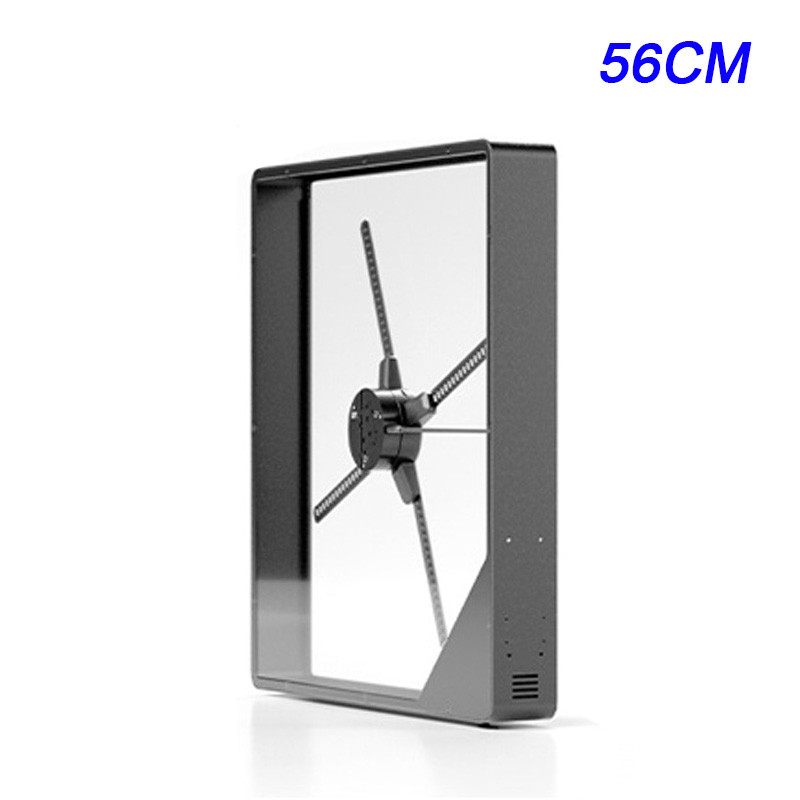

Through its precise mechanical structure and advanced optical principles, the 56cm holographic fan can dynamically construct lifelike, almost tangible, three-dimensional visual illusions while rotating, providing viewers with a stunning immersive experience.
At the intersection of industrial manufacturing and technological innovation, the 56cm holographic fan is showcasing its extraordinary charm in an unprecedented way.
It requires no auxiliary equipment; the stunning stereoscopic image effects can be viewed with the naked eye. This unique naked-eye display technology opens up vast application possibilities for holographic fans in various fields such as industrial manufacturing, advertising displays, and artistic creation.
The 56cm holographic fan, as an emerging multimedia display device, is gradually becoming a favorite in the modern advertising and display industry due to its unique display effects and high energy efficiency.
The 56cm holographic fan, as an emerging multimedia display device, is gradually becoming a favorite in the modern advertising and display industry due to its unique display effects and high energy efficiency.
|
Product Model |
ZXTLCD--S6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
Allwinner A40I (Quad-core 1.2GHz) |
|
Display Size |
56CM*56CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*612 |
|
Number of LED Chips |
612 |
|
Viewing Angle |
176° |
|
Rated Power |
125W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
400mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
46 decibels |
|
Brightness |
2250cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Packaging size without disassembling the lamp board: Inner box (Size: 450*450*115mm, Weight: including device 1.70KG) Outer box one (1 unit packed, Size: 448*111*452mm, Weight: including device 1.80KG) Outer box two (4 units packed, Size: 472*463*475mm, Weight: including device 7.5KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
