Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO451F

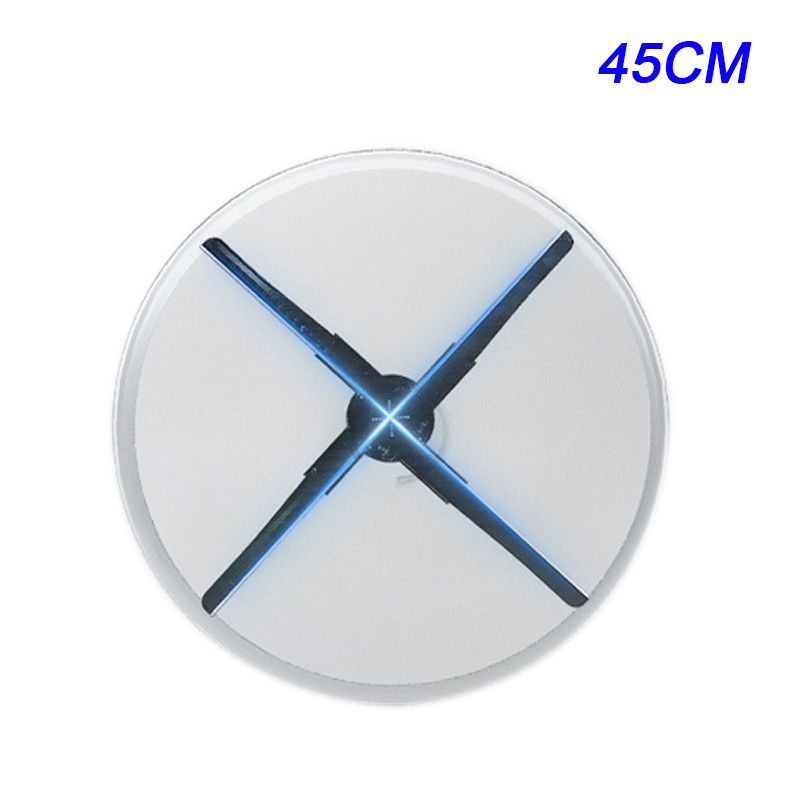

With the increasing prevalence of holographic display technology, achieving high-quality glasses-free 3D effects within limited spaces has become a common need for many small and medium-sized businesses, showrooms, and creative spaces. The 45CM four-blade deluxe HD version and two-blade version holographic fan, with their blades inlaid with 510 high-brightness LED chips, intelligent interactive system, and flexible deployment capabilities, provide a highly complete visual solution for small and medium-sized scenarios.
![]()

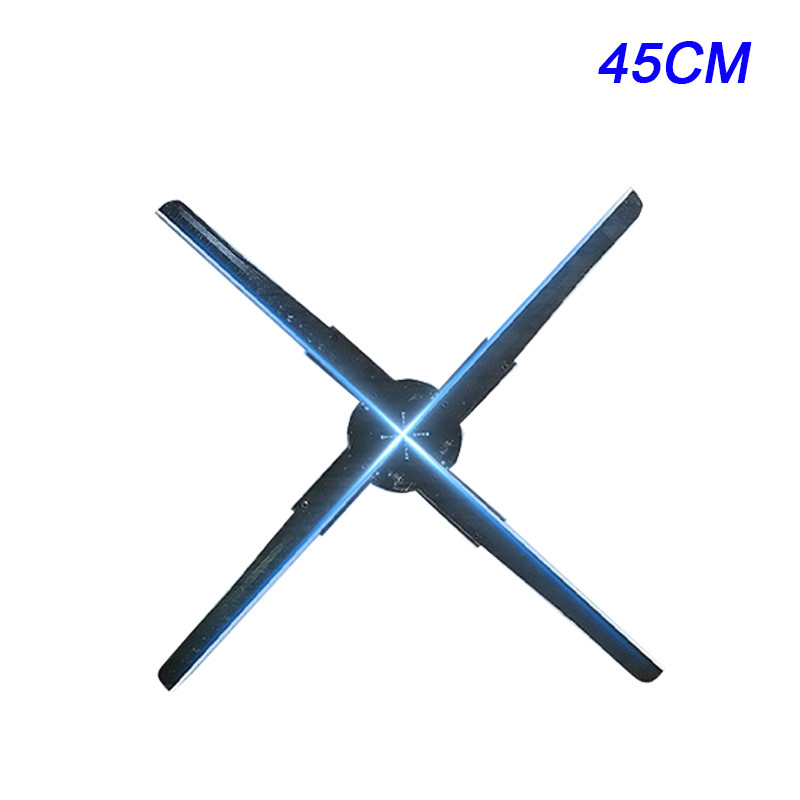

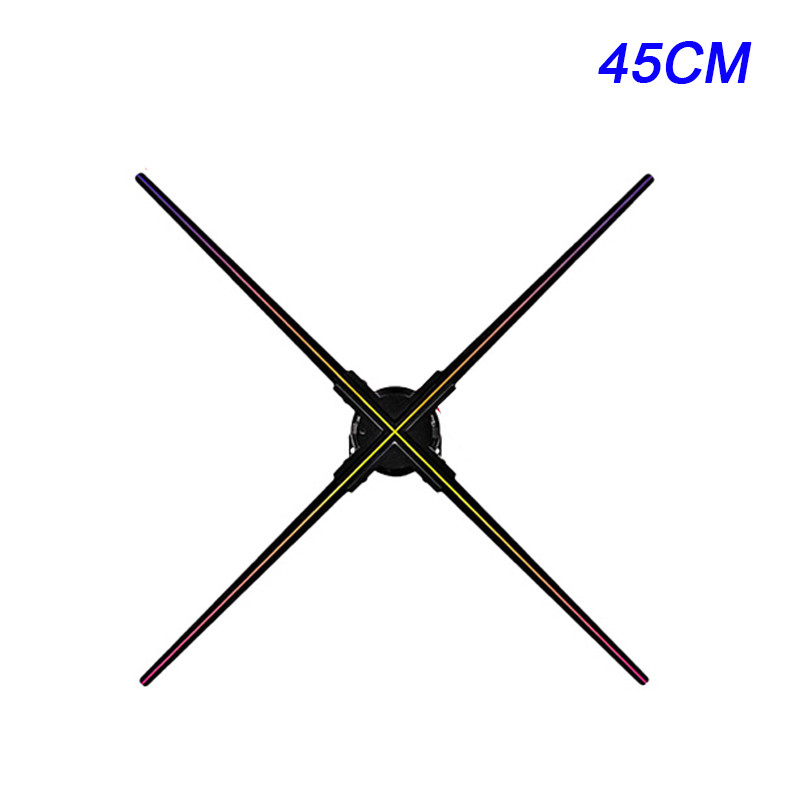

Four-Blade Deluxe HD Version: Utilizes a four-blade structure for more stable imaging, higher image integrity and smoothness, suitable for commercial displays and art exhibitions with high image quality requirements.

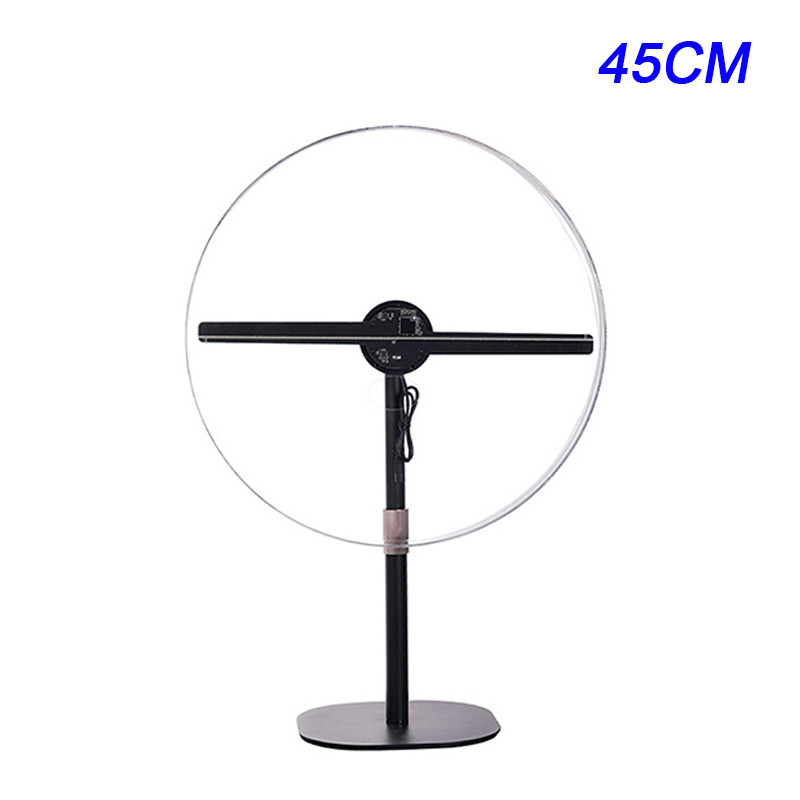

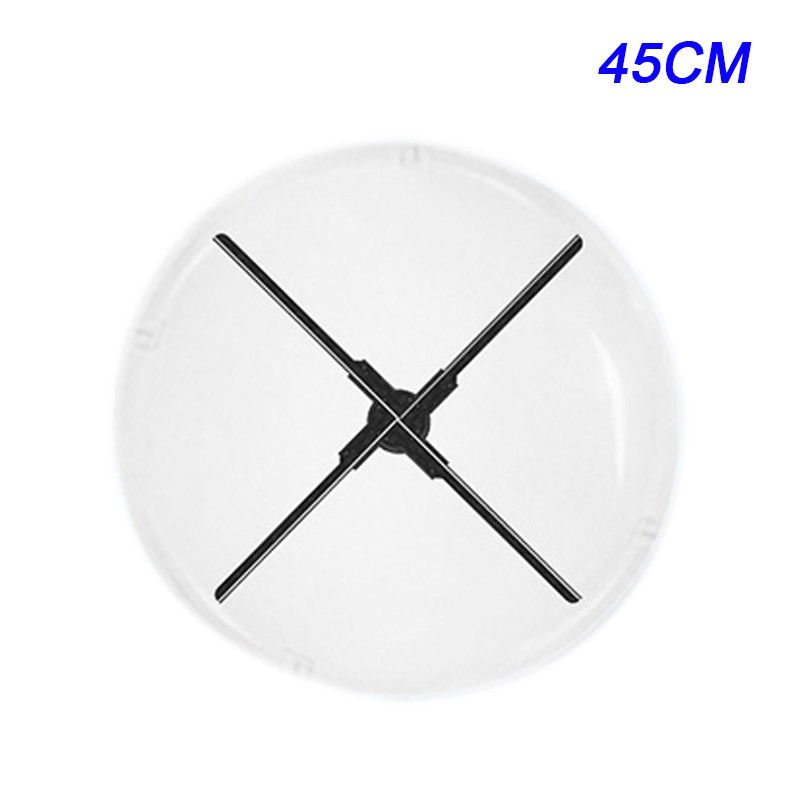

Two-Blade Version (with Protective Cover): Lighter and simpler structure, includes a protective cover, providing basic dust and touch protection, suitable for retail and reception environments with moderate foot traffic where aesthetics and practicality are both important.
![]()
The 45CM series holographic fan blades are equipped with 510 LED chips, combined with high-definition imaging algorithms, ensuring bright, clear, and vibrant images. It supports a HOLD VIEW frequency setting system, effectively suppressing flicker and ensuring comfortable viewing for extended periods, making it especially suitable for close-range indoor displays.
![]()
Two-way control via mobile app/computer: Supports wireless content transmission, brightness and angle adjustment, timer on/off, etc.
3D text editing function: Allows direct creation of text content with 3D dynamic effects on the device or in editing software.
Multi-language switching and quick start: Suitable for international occasions, ready to use right out of the box, low learning curve.
Built-in storage and video customization: Supports local content playback and brand-specific video customization, expanding content expression forms.
![]()
Boutiques and brand counters: 3D product display, dynamic presentation of new product launches
Hotel receptions and corporate lobbies: Welcome signage, looping brand image playback
Educational and cultural spaces: Scientific principle demonstrations, digital display of cultural relics, art installations
Dining and leisure venues: Dynamic menus of specialty dishes, themed environment creation
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms* |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
The 45CM series holographic fan is designed with the concept of "uncompromising performance, easy-to-use experience, and flexible deployment," achieving a balance of functionality, image quality, and practicality within a limited size. It provides small and medium-sized commercial spaces and creative spaces with a "plug-and-play, WYSIWYG" naked-eye 3D tool, allowing cutting-edge visual technology to truly integrate into daily display and communication scenarios.
