Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO131F

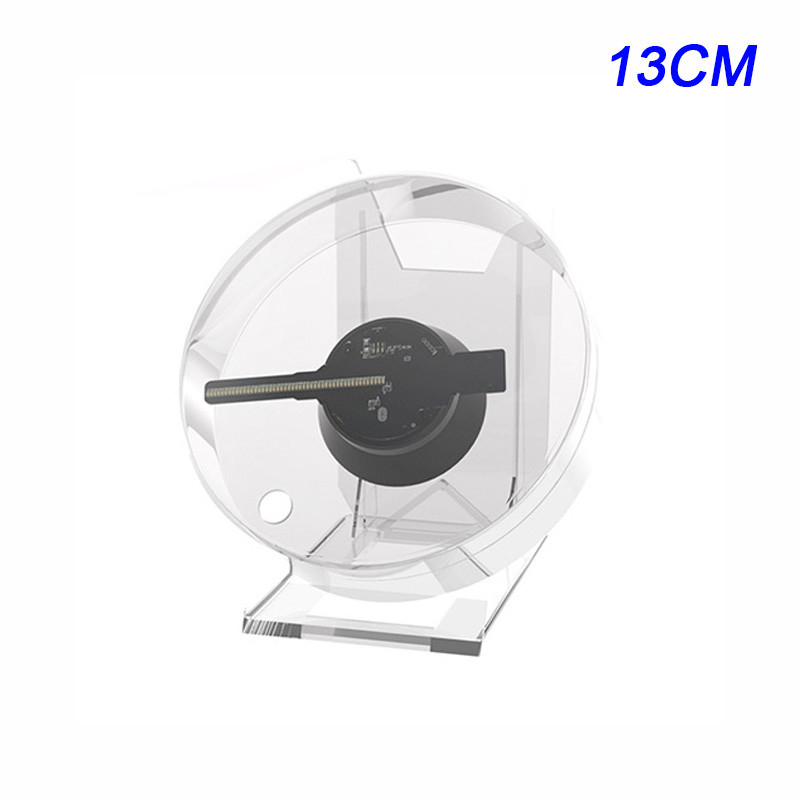

In the wave of technological pursuit for ultimate experiences, an entry-level product that balances practicality and affordability is quietly lowering the barrier to entry for holographic technology. The 13CM Standard Holographic Advertising Machine, with its compact size, simple operation, and affordable price, provides small businesses, startups, and individual creators with an easy way to embrace 3D visual displays.
Practical and Efficient Core Configuration:
Standard Clarity and Brightness:Meets basic display needs in most indoor environments, providing clear and stable images.
USB Direct Connection and Computer Transfer:No complicated setup required; quickly upload images and videos via data cable.
Standard Multi-Function Remote Control:Intuitive operation for power on/off, play, pause, and content switching, lowering the barrier to entry.
Convenient Experience:Ready to use right out of the box, portable.
Integrated Accessory Kit:The device comes with a protective cover, telescopic stand, multi-function remote control, and card reader; users can start using it without purchasing any additional accessories.
The protective cover safeguards the blades without compromising visual appeal, while the adjustable telescopic stand supports various placement scenarios such as desktops and counters.
The entire unit is lightweight and compact, allowing for easy movement between different locations. Whether in a store window, exhibition booth, or presentation stage, it can be quickly deployed to instantly attract attention.
Multiple Control Options: Balancing Traditional and Convenient Functions
Mobile App Control: Content transfer and playback management via a dedicated application, adapting to the mobile office trend.
Wired Computer Transmission: Suitable for batch material organization and stable connection needs, offering direct and reliable operation.
Remote Control: Simple and intuitive, especially suitable for real-time interaction and rapid adjustments.
Core Value: Delivering 3D Information in a Minimalist Way
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
The launch of the 13cm standard holographic fan marks a significant step in the transition of holographic technology from "high-end customization" to "mass application." While it may not boast top-of-the-line specifications, its sufficient reliability and ease of use allow more users to experience the magic of 3D visual displays at a lower cost, thereby stimulating greater market demand and creative inspiration.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
