Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO622F

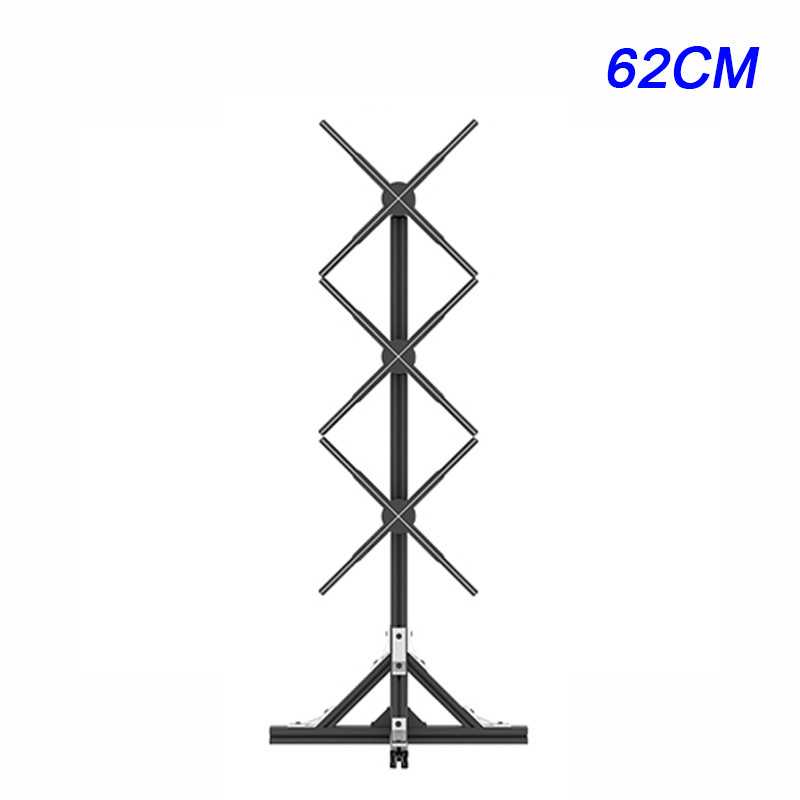

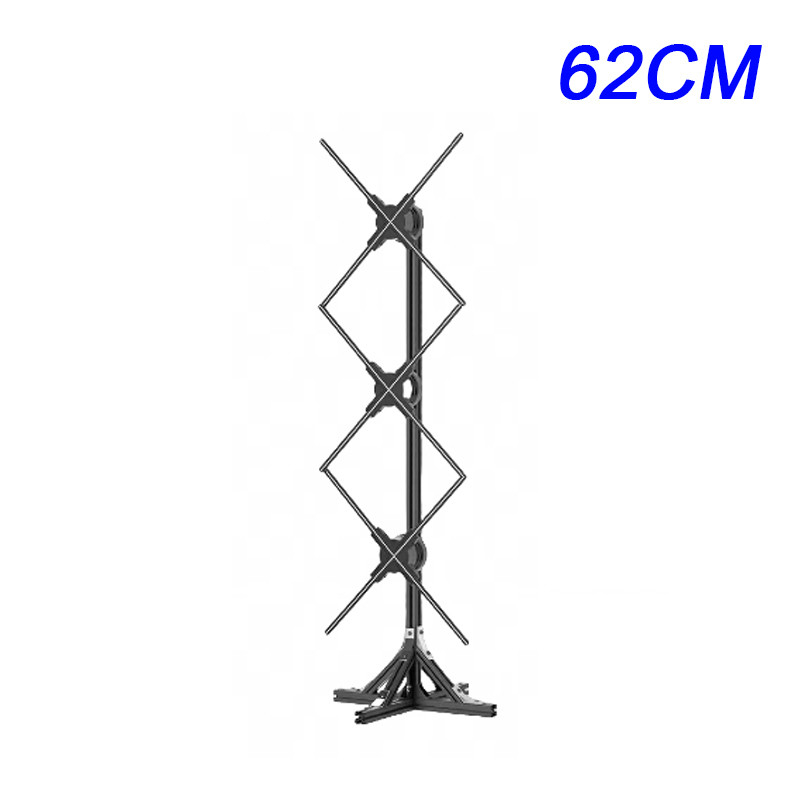

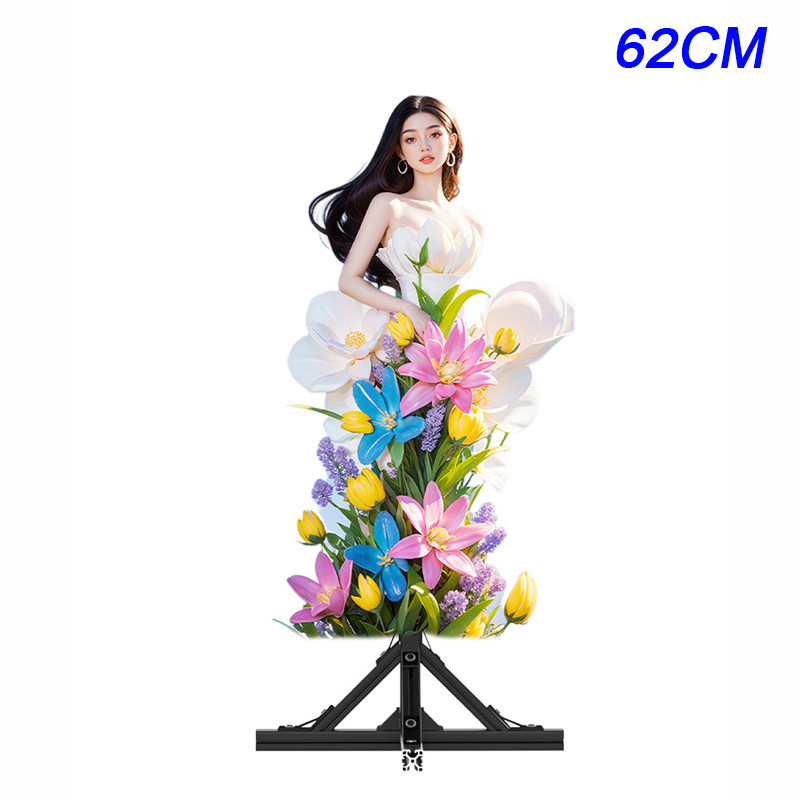

When single holographic devices can no longer meet the demands of grand narratives, modular splicing technology has emerged. A splicable array system composed of three freely combinable 62cm holographic fans breaks down the physical boundaries of the screen, propelling holographic display from "single-unit display" to a new era of "spatial construction," bringing users an unprecedented immersive audiovisual experience.
Modular Design Concept: The system adopts standardized 62cm fan unit modules, supporting various splicing methods such as horizontal, vertical, and curved shapes. Each unit is both an independent display terminal and seamlessly integrated into the overall image, achieving visual extension from point to surface, and from surface to volume.
Dedicated splicing controller: Precisely synchronizes multiple devices, eliminating delays and misalignments.
One-click control via mobile phone/computer: Manage the entire array's content and parameters simultaneously through a dedicated app.
Timed on/off function: Preset operating periods for unattended automated operation.
Easy Operation: Complex system, easy to learn.
Revolutionary Content Upload
Completely say goodbye to traditional cumbersome processes:
One-click material editing in computer software.
No complex transcoding required, directly upload to the system.
Content automatically synchronized to all splicing units.
No need for frequent memory card insertion and removal, significantly reducing the maintenance threshold.
The system adopts a lightweight structural design and comes with an easy installation kit. A single person can complete the array setup, debugging, and relocation in a short time, truly achieving "plug and play".
Audiovisual Fusion: Creating a multi-sensory experience
Built-in high-fidelity Bluetooth speakers, with precise synchronization between sound and floating images. Users can use mobile phones, computers, or dedicated remote controls to adjust audio and video, creating an immersive atmosphere.
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
Brand Launches: Giant holographic backdrops dynamically present product details and corporate philosophies.
Stage Performances: Serving as foreground or background screens, creating virtual-real interaction with live performances.
Themed Exhibitions: Constructing holographic corridors or immersive rooms to tell complete storylines.
Commercial Spaces: Creating dynamic art installations in shopping mall atriums to attract customers.
Industry Significance: Redefining Spatial Narrative
The modular holographic fan array is not only an upgrade in display technology but also a reconstruction of spatial language. It brings walls to life, allows spaces to "tell stories," and enables brands to establish emotional connections with audiences in a three-dimensional space. This freely combinable characteristic also means that each exhibition is a unique creation.
