Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO522F

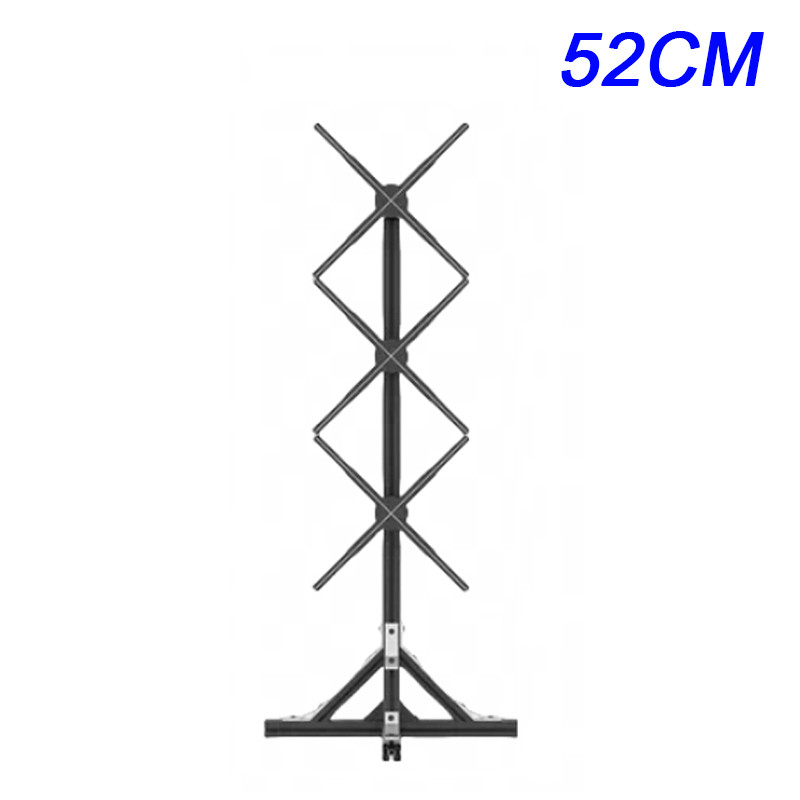

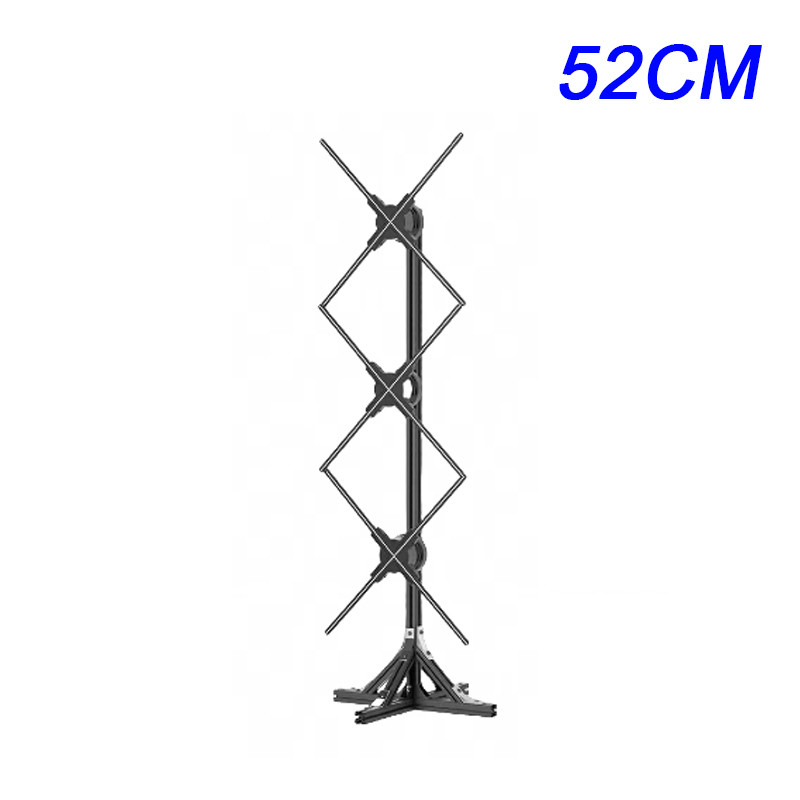

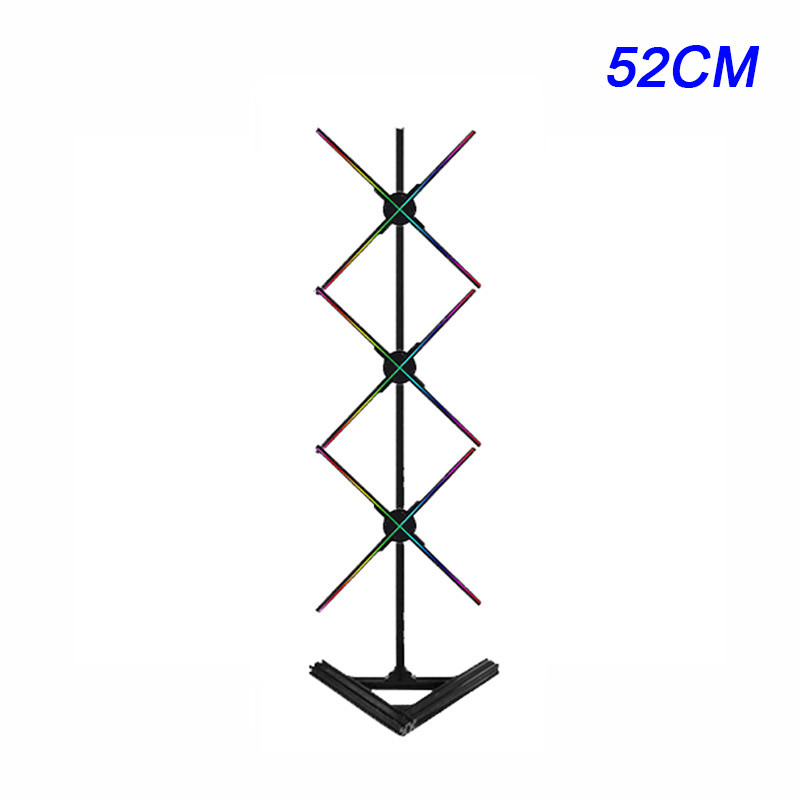

When creativity demands a larger canvas, and presentations require more flexible forms, modular splicing technology becomes the key answer. The 52CM three-piece holographic fan uses three holographic fan devices as basic units, paired with a dedicated bracket, to construct an infinitely expandable aerial display matrix, pushing holographic vision from a "single image" to a new dimension of "malleable space."
The 52CM three-piece holographic fan uses 52CM holographic devices as standardized modules, employing a dedicated splicing bracket and synchronous control system to ensure seamless alignment of multiple devices in physical connection and signal transmission. A combination starting with three units can easily expand into horizontal scrolls, vertical high screens, or matrix arrays, meeting diverse scene needs from brand walls to immersive corridors.
As a product independently developed by the original factory, ZXTLCD achieves full-chain independent control over the system, from hardware design to control protocols. Building upon this foundation, a three-year extended warranty is provided, along with support from a professional engineering team, ensuring stable and reliable operation of large-scale projects from deployment to long-term maintenance.
Hardware Customization Options: Users can choose customized protective covers with different materials, colors, and design styles based on the installation environment and brand image. Whether it's an aesthetically pleasing frame that blends into the space or a functional shell that enhances protection, it can be customized to meet specific needs.
Video Content Customization: Supports the creation of exclusive 3D holographic video materials tailored to brand requirements.
Function Customization Development: Open system interfaces support deep integration with enterprise-owned central control systems, interactive programs, or sensors.
One-Stop Solution: Provides a full-process service from solution design, installation and debugging to content creation and maintenance training.
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
The significance of the 52CM three-panel holographic fan lies in transforming the holographic device into a freely assembleable "spatial pixel." It is no longer an isolated display terminal, but rather a fundamental unit for building a digital environment. This modular and scalable approach is the key path to the future intelligentization and mediatization of space.
