Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OF550ZP

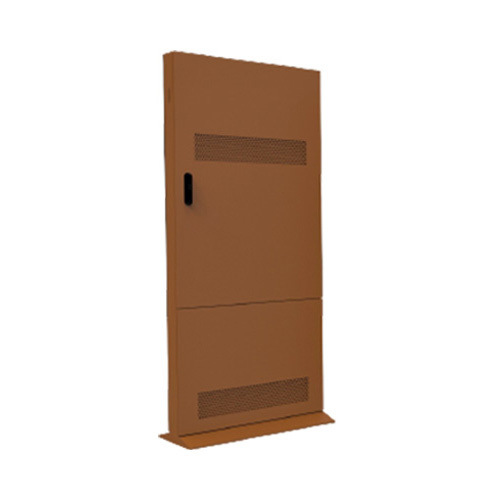

The ZXTLCD outdoor advertising display, combining high brightness and high protection, is a smart digital signage for outdoor information display. This 55-inch outdoor lcd panel not only operates stably in various weather conditions but also meets the advertising needs of multiple scenarios with its excellent performance.
A powerful tool for quickly acquiring customers, the ZXTLCD outdoor advertising display
【Appearance and Design】
The classic brown exterior gives the outdoor advertising display a unique elegance and stability, while its floor-standing design makes the displayed information more eye-catching. In outdoor environments, the classic brown color also blends in more harmoniously.
【Industrial-Grade PCAP Touchscreen】
The outdoor advertising display uses 10-point touch, with a response speed of <15ms, operable with gloves or wet hands.
【Multimedia LCD Display】
The 55-inch outdoor lcd panel is equipped with a multimedia LCD display that supports high-definition playback, presenting both images and videos with clear picture quality. In addition, the playback of multiple content formats adds diversity to advertising information.
【Rainproof, Waterproof, Lightning Protection, and Theft Protection】
The outdoor advertising display has IP65-level rainproof and waterproof capabilities, enabling normal operation in harsh weather conditions. Its lightning protection design effectively reduces the risk of lightning strikes. Its anti-theft function also ensures the safety of the equipment, making it a powerful tool for long-term stable advertising.
【Dual System Platform Optional】
Supports Android 11 customized system or Windows 10 Professional Edition to meet different application needs.
【Application Scenarios】
Whether in commercial plazas, street corners, parks, exhibitions, or other public places, the classic brown outdoor advertising display can blend into diverse scenarios, effectively conveying advertising information.
The 55-inch classic brown outdoor advertising display not only enhances advertising campaigns but is also a reliable outdoor digital signage solution. It will bring a brand-new experience to your brand display and information delivery in various scenarios.
| 55-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet | ||
| Specications | ||
| The containment structure | The material and feature of shell | IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 55 inch |
| Display area | 1214mm(H) X 684mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1920X 1080 | |
| Display color | 16.7M | |
| Brightness | 2000cd/㎡~2500 cd/㎡ | |
| Contrast Ratio | 4000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
| Touch Overlay for Interactivity | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points | |
| Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
| Drawer-type Android Media Player box Configuration | Processor Chip | RK3399, six core |
| RAM | 4GB | |
| Flash Memory Card | 32GB | |
| Wifi and 4G | Yes | |
| Version | Android 9.0 | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
| HDMI | 1 | |
| USB | 2 | |
| Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
| Speakers | Dual side speakers for Audio | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Outdoor OMC system(optional) | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
| Problem and staus monitoring software included. | ||
| Touble shooting by software included. | ||
| Use softwae Remote Check key working performance by Group | ||
| Unnormal work alarm generation | ||
| Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | 0℃ ~ 50℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| Product size / Net weight | To be determined | |
| Outer Package size and Gross weight | ||
