Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OW650GW
In this era of rapid information dissemination, how can you make your brand and advertising more attractive? A meticulously designed 65-inch wall-mounted outdoor lcd signage will inject new vitality into your advertising campaigns, bringing viewers an immersive visual feast.

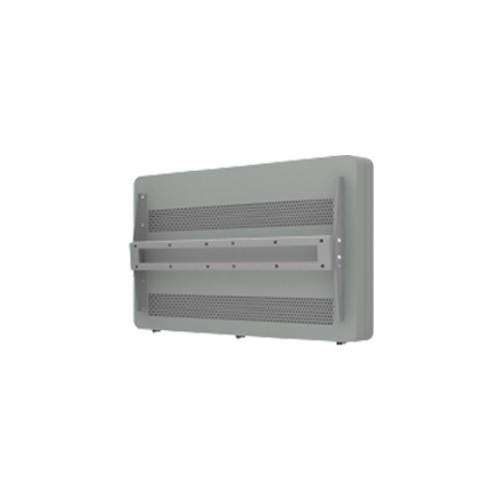

65-inch Wall-Mounted outdoor lcd signage: Showcasing a New Style of Advertising
High-Definition Horizontal Screen: This advertising display breaks with tradition, adopting a horizontal screen display to attract attention to a greater extent. Like an infinitely extending scroll, it presents a wealth of exciting content to the audience, leaving them in awe. Whether it's brand promotion, product display, or promotional activities, everything can be vividly presented on this 65-inch horizontal screen.
Bright and Reliable: Our wall-mounted outdoor lcd signage is not only unique in design but also unquestionable in performance. The high-definition, high-brightness display effect makes every frame vivid, attracting viewers to stop and admire. Stable and reliable performance ensures normal operation even in harsh outdoor environments, guaranteeing the effectiveness of your advertising.
Wall-mounted design: The wall-mounted design saves space, making advertising displays more sophisticated and uncluttered. It not only blends into the environment but also opens up more possibilities for your advertising. It can be easily installed in various spaces, such as shopping malls, hotels, and exhibition halls, delivering your brand and information to a wider audience. Whether it's static images or dynamic videos, they will all display exceptionally well on this 65-inch wall-mounted horizontal screen, leaving a lasting impression on viewers.
Choosing our 65-inch wall-mounted outdoor lcd signage means choosing an eye-catching advertising method that breathes new life into your brand. Whether it's product promotion, event advertising, or information display, everything can be vividly conveyed on this horizontal screen, drawing viewers into your advertising world.
| 65-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet | ||
| Specications | ||
| The containment structure | The material and feature of shell | IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 65 inch |
| Display area | 1429mm(H) X 804mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1920X 1080 | |
| Display color | 16.7M | |
| Brightness | 2500cd/㎡~3000 cd/㎡ | |
| Contrast Ratio | 3000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
| Touch Overlay for Interactivity | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points | |
| Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
| Drawer-type Android Media Player box Configuration | Processor Chip | RK3399, six core |
| RAM | 4GB | |
| Flash Memory Card | 32GB | |
| Wifi and 4G | Yes | |
| Version | Android 9.0 | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
| HDMI | 1 | |
| USB | 2 | |
| Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
| Speakers | Dual side speakers for Audio | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Outdoor OMC system(optional) | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
| Problem and staus monitoring software included. | ||
| Touble shooting by software included. | ||
| Use softwae Remote Check key working performance by Group | ||
| Unnormal work alarm generation | ||
| Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | 0℃ ~ 50℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| Product size / Net weight | To be determined | |
| Outer Package size and Gross weight | ||
