Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OF430CK

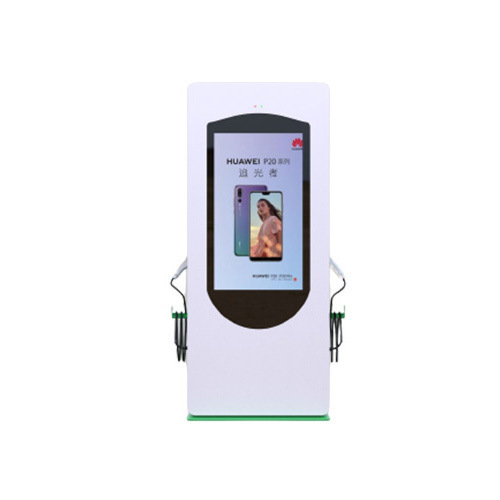

The 43-inch outdoor lcd display panel with charging station is a fusion of smart advertising displays. As a newly emerging and popular outdoor advertising model, it integrates multiple functions, bringing greater value and creativity to outdoor advertising display scenarios.
The 43-inch outdoor lcd display panel with charging station ensures worry-free charging for electric vehicles.
1. Multifunctional Integrated Design: Balancing Advertising and Charging
This outdoor lcd display panel with charging station not only features high-brightness, high-definition intelligent advertising display functions but also integrates a charging station, providing charging services for electric vehicles. This multifunctional integrated design makes it an indispensable part of the urban environment, meeting the diverse needs of citizens and improving the level of urban services.
2. Watch Ads While Charging: Attracting Attention and Enhancing Communication Effects
The attractiveness of advertising is closely related to its display effect. The high-brightness, high-definition display screen of the outdoor advertising display with charging station can effectively engage every charging user, further amplifying the value of advertising.
3. Real-time Charging Service: Convenient Charging to Meet Needs
The charging station function makes it a charging station in the city, providing convenient charging services for electric vehicles. While displaying outdoor advertisements, it also provides charging services for citizens, increasing the practicality and social value of the advertising machine.
4. Wide Range of Application Scenarios: Diversified Services, Creating More Possibilities
The charging station-style outdoor lcd display panel can be applied to various scenarios, such as commercial streets, shopping malls, and parking lots. It not only provides advertising displays but also meets citizens' charging needs. As an urban information terminal, it is not just an advertising machine but also a service station, creating more convenience for urban residents.
The 43-inch charging station-style outdoor lcd display panel integrates a multi-functional design, high-brightness and high-definition display, real-time charging service, and a wide range of application scenarios, bringing more possibilities and creativity to outdoor advertising display scenarios. It is not just an advertising machine but also part of urban services, providing more convenient services for urban residents.
| 43-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet | ||
| Specications | ||
| The containment structure | The material and feature of shell | IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 43 inch |
| Display area | 530mm(H) X 938mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1080 X 1920 | |
| Display color | 16.7M | |
| Brightness | 1500cd/㎡~2000 cd/㎡ | |
| Contrast Ratio | 1000 : 1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
| Touch Overlay for Interactivity | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points | |
| Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
| Drawer-type Android Media Player box Configuration | Processor Chip | RK3399, six core |
| RAM | 4GB | |
| Flash Memory Card | 32GB | |
| Wifi and 4G | Yes | |
| Version | Android 9.0 | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
| HDMI | 1 | |
| USB | 2 | |
| Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
| Speakers | Dual side speakers for Audio | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Outdoor OMC system(optional) | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
| Problem and staus monitoring software included. | ||
| Touble shooting by software included. | ||
| Use softwae Remote Check key working performance by Group | ||
| Unnormal work alarm generation | ||
| Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | 0℃ ~ 50℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| Product size / Net weight | To be determined | |
| Outer Package size and Gross weight | ||
