Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OF550WD

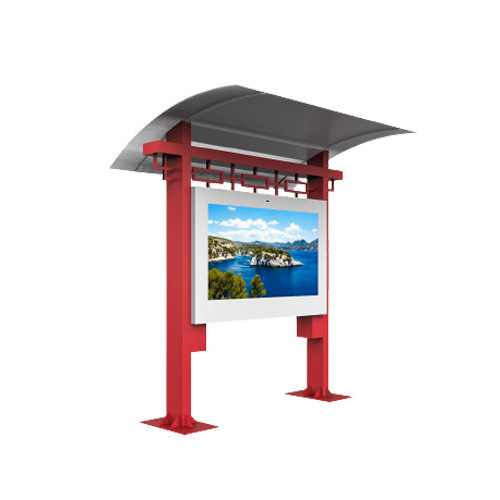

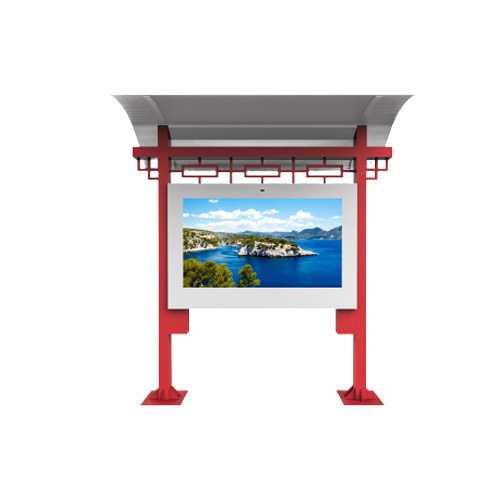

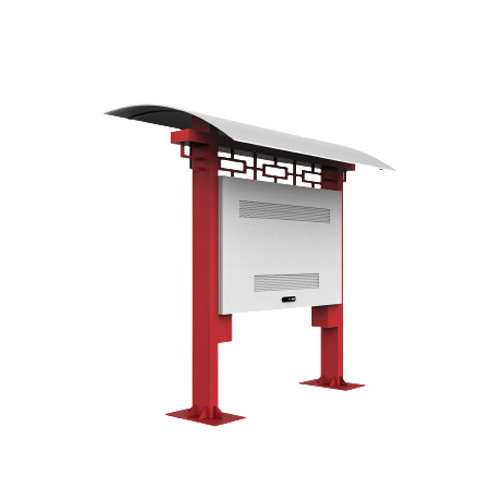

The 55-inch awning Exterior Lcd Displays is not only a powerful tool for advertising display but also a practical rain shelter, providing convenience for pedestrians. Combining a high-definition network screen, waterproof and high-brightness features, this vertical and horizontal digital signage all-in-one machine will help you showcase your unique charm in various scenarios.
55-inch Awning Outdoor Lcd Digital Signage: Make Your Advertising Shine
【Appearance and Design】
The stunning exterior design in a classic Chinese red adds a lot of color to the outdoor lcd digital signage. The unique rain shelter design not only provides shelter for pedestrians but also infuses the product with a unique cultural atmosphere. Its vertical and horizontal screen format further enhances the display effect of advertising information.
【Superior Display Performance】
Ultra-High Definition Resolution: 4K UHD (3840×2160) resolution, pixel density up to 163PPI
Professional-Grade Contrast Ratio: 3000:1 high dynamic contrast ratio, for clear and distinct image layers
Wide Viewing Angle Technology: 178° full viewing angle, no color distortion when viewed from multiple angles
Intelligent Light Sensing Adjustment: Built-in ambient light sensor automatically matches the optimal display brightness
【High-Definition Network Screen】
The 55-inch awning outdoor lcd digital signage is equipped with a high-definition network screen, ensuring clear display of advertising information and making the content more vivid and attractive. Whether it's an image or video advertisement, it can be presented at a higher resolution, boosting the promotional effect.
【Multi-functional Applications】
The vertical/horizontal screen design is not only suitable for advertising but also meets the needs of various scenarios such as information dissemination and event notifications. Dynamic backlight automatic adjustment and scrolling text functions make content display more flexible and diverse.
【Superior Environmental Adaptability】
Professional Protection Rating: IP65 waterproof and dustproof certified, impervious to heavy rain, sandstorms, salt spray, and other harsh weather conditions.
【Rain Shelter Design】
The rain shelter not only provides shelter for pedestrians but also offers additional protection for the outdoor advertising machine, ensuring stable operation even in inclement weather. The combination of the rain shelter and digital signage perfectly blends functionality and practicality.
【Application Scenarios】
The 55-inch awning outdoor lcd digital signage is suitable for commercial areas, streets and alleys, and even public places such as parks and squares. It not only provides significant advertising effects but also offers convenient services to pedestrians.
| 55-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet | ||
| Specications | ||
| The containment structure | The material and feature of shell | IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 55 inch |
| Display area | 1214mm(H) X 684mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1920X 1080 | |
| Display color | 16.7M | |
| Brightness | 2000cd/㎡~2500 cd/㎡ | |
| Contrast Ratio | 4000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
| Touch Overlay for Interactivity | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points | |
| Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
| Drawer-type Android Media Player box Configuration | Processor Chip | RK3399, six core |
| RAM | 4GB | |
| Flash Memory Card | 32GB | |
| Wifi and 4G | Yes | |
| Version | Android 9.0 | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
| HDMI | 1 | |
| USB | 2 | |
| Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
| Speakers | Dual side speakers for Audio | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Outdoor OMC system(optional) | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
| Problem and staus monitoring software included. | ||
| Touble shooting by software included. | ||
| Use softwae Remote Check key working performance by Group | ||
| Unnormal work alarm generation | ||
| Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | 0℃ ~ 50℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| Product size / Net weight | To be determined | |
| Outer Package size and Gross weight | ||
The 55-inch awning outdoor lcd digital signage, with its classic Chinese red exterior, high-definition network screen, waterproof and high-brightness features, will undoubtedly add unique charm to your advertising. Wherever it is displayed, it will give your brand and information delivery a fresh new vitality.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
