Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OF550GP
Outdoor advertising displays are intelligent display devices designed for outdoor environments. Compared to indoor advertising displays, they need to meet stringent environmental requirements and ensure reliability, guaranteeing stable and long-lasting advertising. This 55-inch floor-standing large outdoor lcd screens meets all the excellent hardware requirements of outdoor advertising displays, satisfying the advertising and display needs of various scenarios.

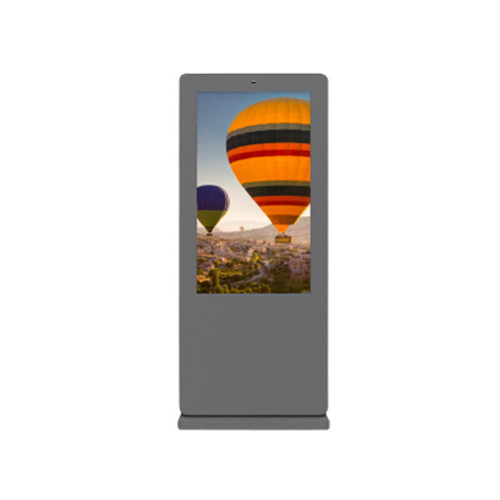

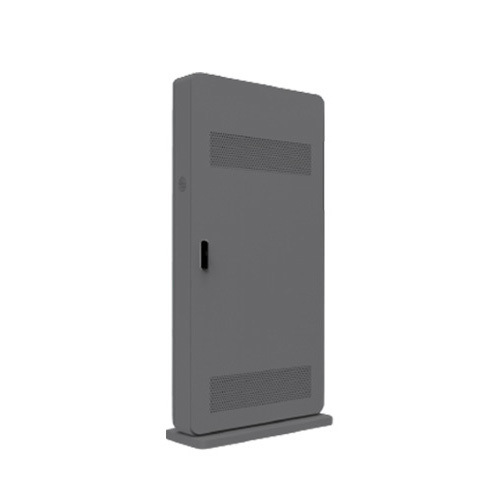

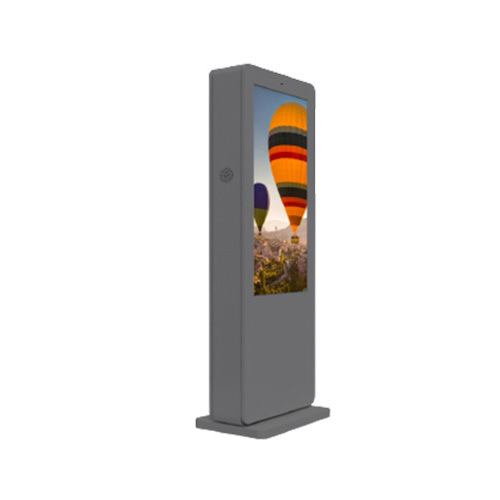

A New Force in Outdoor Advertising: 55-inch Floor-Standing large outdoor lcd screens
Appearance and Design: The 55-inch floor-standing large outdoor lcd screens features a matte gray business-like appearance, showcasing a stable and sophisticated character, blending seamlessly into different scenarios and adding a professional touch to information display.
Rich and Diverse Functions: In addition to traditional image advertisements, it also supports dynamic video playback, meeting diverse information delivery needs. Flexible video split-screen, scrolling subtitles, and timed on/off functions effectively enhance the advertising display effect.
High-Brightness and High-Definition Display: The high-brightness display instantly attracts attention, ensuring clear visibility even in strong light or direct sunlight. Ultra-high brightness technology combined with dynamic backlight automatic adjustment not only saves energy and is environmentally friendly but also guarantees image quality.
Military-grade protective design: Utilizing a 1.5mm SGCC galvanized steel plate welded structure, it creates "tank-level" protection for outdoor use: waterproof, dustproof, explosion-proof, shockproof, sun-resistant, weather-resistant, lightning-proof, corrosion-resistant, rust-proof, theft-proof, fire-retardant, and resistant to biological corrosion.
Remote management and maintenance: Enables remote monitoring and management, allowing you to understand the status of the advertising machine at any time, facilitating maintenance and repair, and ensuring continuous performance and stable operation.
Intelligent temperature control system: Real-time monitoring of 12 temperature monitoring points, with automatic adjustment of heat dissipation power and an automatic overheat protection mechanism.
Wide range of applications: Suitable for various purposes such as advertising display, information dissemination, and brand promotion, applicable to commercial centers, exhibition halls, campuses, and other scenarios.
This 55-inch large outdoor lcd screens is floor-standing, aesthetically pleasing, and integrates multiple hardware and software advantages, providing intelligent solutions for diverse information display needs and helping brands promote themselves more effectively.
| 55-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet | ||
| Specications | ||
| The containment structure | The material and feature of shell | IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 55 inch |
| Display area | 1214mm(H) X 684mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1920X 1080 | |
| Display color | 16.7M | |
| Brightness | 2000cd/㎡~2500 cd/㎡ | |
| Contrast Ratio | 4000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
| Touch Overlay for Interactivity | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points | |
| Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
| Drawer-type Android Media Player box Configuration | Processor Chip | RK3399, six core |
| RAM | 4GB | |
| Flash Memory Card | 32GB | |
| Wifi and 4G | Yes | |
| Version | Android 9.0 | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
| HDMI | 1 | |
| USB | 2 | |
| Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
| Speakers | Dual side speakers for Audio | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Outdoor OMC system(optional) | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
| Problem and staus monitoring software included. | ||
| Touble shooting by software included. | ||
| Use softwae Remote Check key working performance by Group | ||
| Unnormal work alarm generation | ||
| Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | 0℃ ~ 50℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| Product size / Net weight | To be determined | |
| Outer Package size and Gross weight | ||
