Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OF490WP
In today's digital age, outdoor advertising has become a powerful tool for corporate promotion. The 49-inch custom-designed vertical canopy outdoor lcd advertising display boasts a beautiful appearance and rich functionality, leading a new wave of impactful advertising experiences.

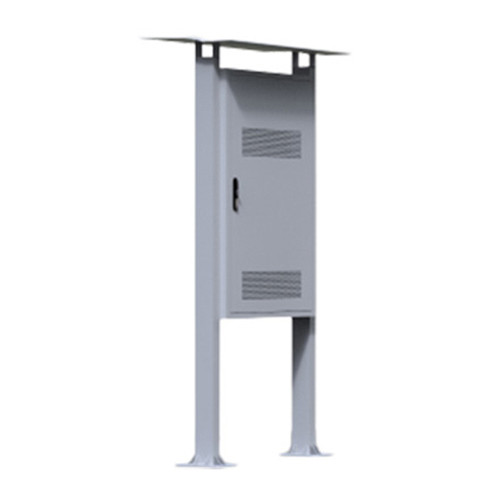

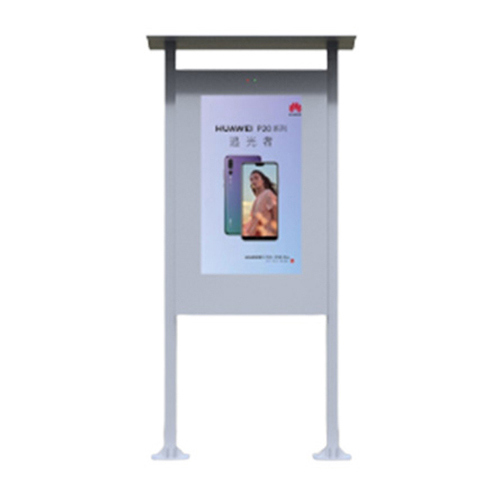

Enhancing Future Information Delivery: 49-inch Custom-Designed Vertical Canopy Outdoor Lcd Advertising Display
Ultra-thin Design:This advertising machine features a custom-designed vertical canopy with a star-silver exterior that exudes style and technology. The canopy itself is also a slim, flat design, resulting in a sleek and minimalist aesthetic.
Intelligent Light Sensing Function: The 49-inch high-brightness LCD screen delivers a more vivid and lifelike visual experience for advertising content. Intelligent light-sensing hardware automatically detects the environment and adjusts screen brightness according to lighting conditions, ensuring optimal display at all times.
Powerful Hardware Advantages: This advertising machine has undergone rigorous waterproof and rainproof testing, ensuring stable operation even in harsh weather conditions. The high-definition LCD screen ensures clear display of advertising content in outdoor environments, attracting viewers' attention.
Multi-Scenario Application: The 49-inch outdoor lcd advertising display with a custom-designed vertical canopy is suitable for various scenarios, such as commercial plazas, communities, and campuses. Whether for business promotion, community event advertising, or campus information dissemination, everything can be perfectly presented on this multi-functional advertising display, maximizing information delivery.
In summary, the 49-inch outdoor lcd advertising display with a custom-designed vertical canopy will become an essential tool in brand promotion and information dissemination, helping you build greater brand influence and demonstrate outstanding communication results.
| 49-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet | ||
| Specications | ||
| The containment structure | The material and feature of shell | IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 49 inch |
| Display area | 1073mm(H) X 604mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1920X 1080 | |
| Display color | 16.7M | |
| Brightness | 2000cd/㎡~2500 cd/㎡ | |
| Contrast Ratio | 4000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
| Touch Overlay for Interactivity | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points | |
| Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
| Drawer-type Android Media Player box Configuration | Processor Chip | RK3399, six core |
| RAM | 4GB | |
| Flash Memory Card | 32GB | |
| Wifi and 4G | Yes | |
| Version | Android 9.0 | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
| HDMI | 1 | |
| USB | 2 | |
| Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
| Speakers | Dual side speakers for Audio | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Outdoor OMC system(optional) | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
| Problem and staus monitoring software included. | ||
| Touble shooting by software included. | ||
| Use softwae Remote Check key working performance by Group | ||
| Unnormal work alarm generation | ||
| Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | 0℃ ~ 50℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| Product size / Net weight | To be determined | |
| Outer Package size and Gross weight | ||
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
