Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OF550BD
In modern society, advertising has become an indispensable method for brand promotion and information dissemination. The 55-inch outdoor lcd digital signage, with its practical design and reliable hardware, has become an ideal choice for advertising and display in various locations.
Smart Advertising, Multi-Scenario Application: 55-inch outdoor lcd digital signage
Unique Appearance, Eye-Catching:

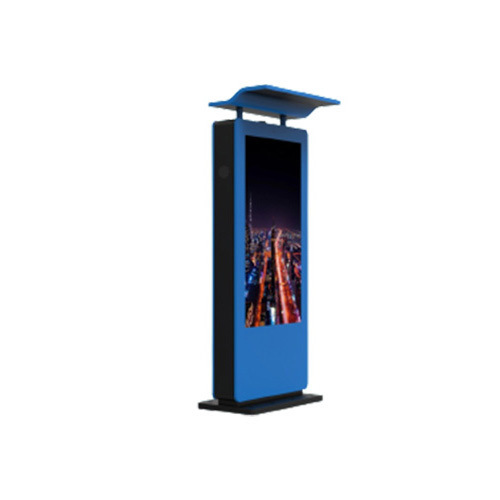

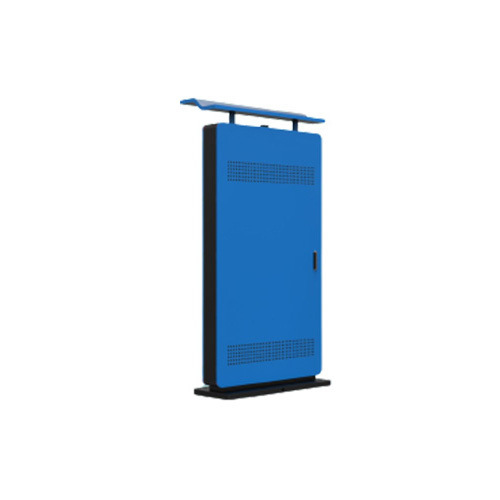

This advertising machine features a vertical design combined with a canopy exterior, providing waterproofing and adding a unique touch to the advertising content. Its stylish and sophisticated appearance attracts attention and interest from passersby in commercial areas, plazas, and pedestrian streets.
High Brightness and High Definition, Vivid Images:
Equipped with a high-brightness, high-definition LCD screen, advertising content is displayed more vividly and clearly. Whether it's images, videos, or dynamic advertisements, they all demonstrate excellent effects in outdoor environments, attracting viewers' attention.
Multi-functional, Meeting Needs:
This advertising machine has multiple functions and can be used for advertising and display needs in different locations. Whether in commercial plazas, public transportation stations, community centers, or high-speed rail platforms, it provides strong support for brand promotion and event promotion.
Reliable and Durable, Adaptable to Multiple Environments:
The unpredictable outdoor environment demands stable performance from equipment. The 55-inch outdoor lcd digital signage boasts hardware advantages such as waterproofing, high brightness, and lightning protection, ensuring stable operation in various weather conditions and providing reliable support for advertising displays.
Multi-Scenario Applications, Wide Impact:
Whether in a bustling downtown commercial district or in public places such as communities and parks, the 55-inch outdoor lcd digital signage can fully leverage its promotional effectiveness, providing strong support for brand promotion, information dissemination, and event advertising.
With its unique appearance, high-brightness, high-definition display, and multi-functional features, the 55-inch outdoor lcd digital signage is an ideal choice for advertising in various locations. Whether for commercial advertising or community information displays, it delivers superior results, empowering your promotional activities!
| 55-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet | ||
| Specications | ||
| The containment structure | The material and feature of shell | IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 55 inch |
| Display area | 1214mm(H) X 684mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1920X 1080 | |
| Display color | 16.7M | |
| Brightness | 2000cd/㎡~2500 cd/㎡ | |
| Contrast Ratio | 4000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
| Touch Overlay for Interactivity | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points | |
| Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
| Drawer-type Android Media Player box Configuration | Processor Chip | RK3399, six core |
| RAM | 4GB | |
| Flash Memory Card | 32GB | |
| Wifi and 4G | Yes | |
| Version | Android 9.0 | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
| HDMI | 1 | |
| USB | 2 | |
| Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
| Speakers | Dual side speakers for Audio | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Outdoor OMC system(optional) | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
| Problem and staus monitoring software included. | ||
| Touble shooting by software included. | ||
| Use softwae Remote Check key working performance by Group | ||
| Unnormal work alarm generation | ||
| Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | 0℃ ~ 50℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| Product size / Net weight | To be determined | |
| Outer Package size and Gross weight | ||
