Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK32PTD
Description:

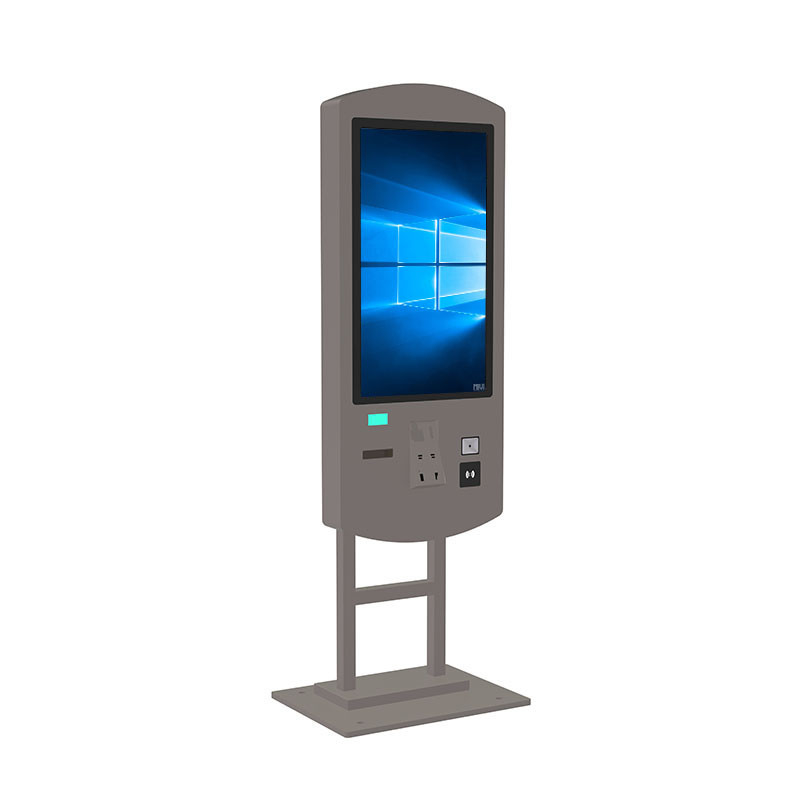

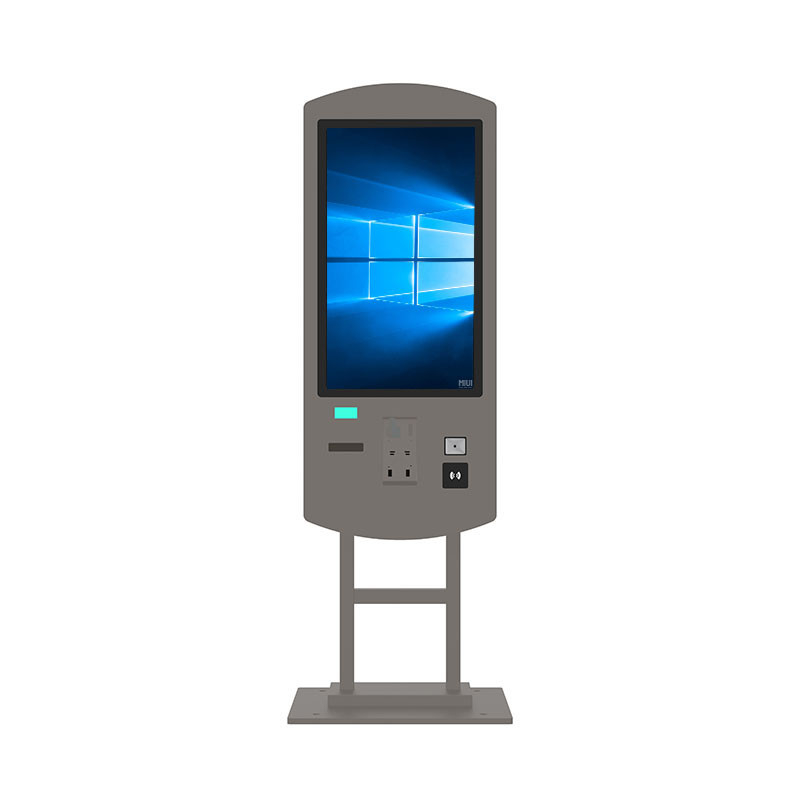

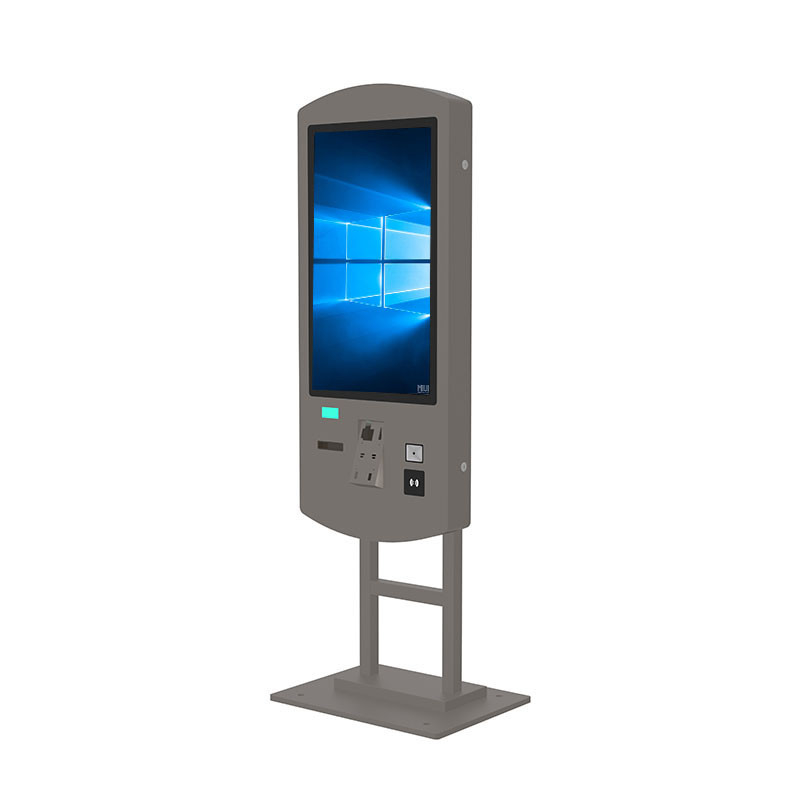

The Interactive Self-Order Kiosk is a dynamic and sophisticated self-service solution designed to enhance customer interaction and streamline ordering processes in retail, dining, and service-based industries. With its cutting-edge technology, customizable features, and seamless integration, this kiosk helps businesses optimize workflows, reduce customer wait times, and boost sales—all while delivering an intuitive and engaging user experience.
Key Features:
· Sleek High-Definition Touchscreen: The kiosk features a 32” or 43” HD touchscreen that delivers vibrant images and smooth, responsive touch capabilities. It ensures a fluid interaction for customers when browsing menus, catalogs, or service options.
· Fully Customizable Software: Businesses can tailor the interface to match their brand’s aesthetics, integrating their logo, colors, and promotional content. Dynamic features such as product recommendations, loyalty programs, and discounts can also be displayed to boost customer engagement.
· Secure and Flexible Payment Solutions: The kiosk accepts a variety of payment methods, including credit/debit cards, NFC (contactless payments), mobile wallets (Apple Pay, Google Pay), and QR code scanning, ensuring that transactions are fast, secure, and convenient.
· Seamless POS Integration: The kiosk integrates smoothly with your existing Point of Sale (POS) and inventory management systems, allowing for real-time order processing, accurate inventory tracking, and streamlined sales reporting.
· User-Centered Design: The kiosk offers a user-friendly interface that guides customers through each step of the ordering process with ease. From browsing items to making customized selections and completing payments, the system requires minimal effort from users.
· Durable and All-Weather Ready: Built to withstand high-traffic environments and outdoor conditions, the kiosk is made of robust materials and is rated for use in varying weather conditions. It provides reliable performance in both indoor and outdoor settings.
· Eco-Friendly Energy Efficiency: Featuring energy-efficient components, including LED backlighting, the kiosk helps businesses reduce energy consumption, making it a sustainable and cost-effective choice for long-term use.
LCD Panel Parameters | Screen Size | 32 inch | |
Display area | 698(H) X 391.8(V)mm | ||
Aspect Ratio | 16 : 9 | ||
LCD Type | a-Si TFT-LCD | ||
Max Resolution | 1920 X 1080 | ||
Display color | 16.7M , 72% NTSC | ||
Brightness | 350 cd/㎡ | ||
Contrast Ratio | 3000 :1 | ||
Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
Response Time | 20ms | ||
LCD Panel Life(hrs) | 60,000(hrs) | ||
Field Frequency | 60Hz | ||
PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
Touch points | 10 points | ||
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
Anti-microbial protection and Shatterproof Protection | |||
Optically bonded 3mm glass for low parallax | |||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
Response speed | < 6ms | ||
Accuracy of touch | More than 90% of the touch area ±2mm | ||
Touch ways | Fingers, touch pen | ||
Output format | The coordinate output | ||
Clicks time | Unlimited | ||
The smallest touch size | 5mm | ||
Long resistance | Yes available | ||
Touch Interfaces | USB | ||
Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
RAM | 8GB | ||
SSD | 64GB | ||
WIFI | 150Mbps 802.11n wifi integate | ||
Network port | RJ45, 10M/100M Adaptive Ethernet | ||
Interface | 2 * RJ45 GB Ethernet | ||
2 * RS232 Serial Port | |||
operating system | Win10 or win11 optional | ||
Onboard interface | HDMI input | 1 | |
VGA input | 1 | ||
DVI input | 1 | ||
USB Type B or Any USB Type optional | 1 | ||
Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
Receipt Printer | 80mm Thermal printer with cutter | ||
Power | Power supply | AC 100V~240V, 50/60Hz | |
The Max power loss | ≤ 45w | ||
Standby power loss | < 1W | ||
Features | Operating temperature | 0℃ ~ 50℃ | |
Storage temperature | below10℃ ~ +60℃ | ||
Accessories | The length of Power Cable | 1.5m | |
The length of HDMI Cable | 2m | ||
The length of USB-A to USB-B Cable | 1.5m | ||
Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
Package size | Machine body size | Customized | |
Net weight | Customized | ||
Unit Package size | 832 X 530 X 150mm | ||
The Gross weight of Unit Package | 50kg |
Benefits:
· Faster and More Efficient Service: By allowing customers to place orders and make payments independently, the kiosk significantly reduces wait times, which leads to faster service, increased customer turnover, and greater satisfaction—especially in busy environments.
· Improved Customer Engagement: The kiosk’s customizable interface and upselling capabilities offer businesses a unique opportunity to promote special deals, suggest related products, and encourage loyalty program sign-ups, leading to higher engagement and sales.
· Enhanced Operational Efficiency: The automation of order-taking and payment processes frees up staff to focus on other important tasks, such as food preparation, customer service, or inventory management. This improves overall workflow and productivity.
· Minimized Order Errors: Since customers directly input their orders into the kiosk, there’s a reduced risk of miscommunication and order mistakes, ensuring greater accuracy and fewer complaints.
· Cost Reduction: By reducing the need for staff to take orders, businesses can lower labor costs, making the kiosk an excellent investment for long-term operational savings.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
