Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK051

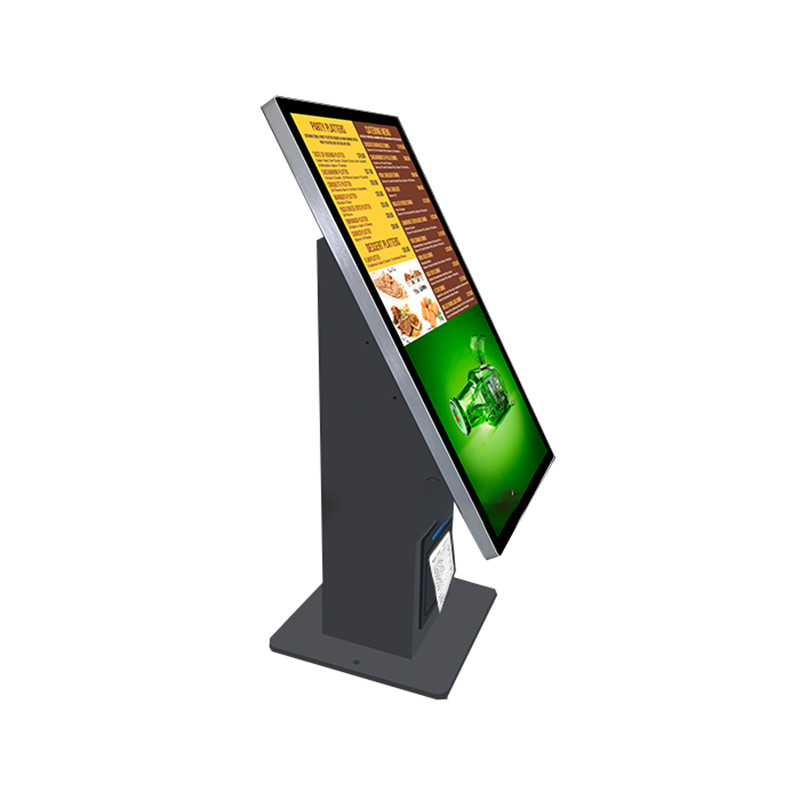

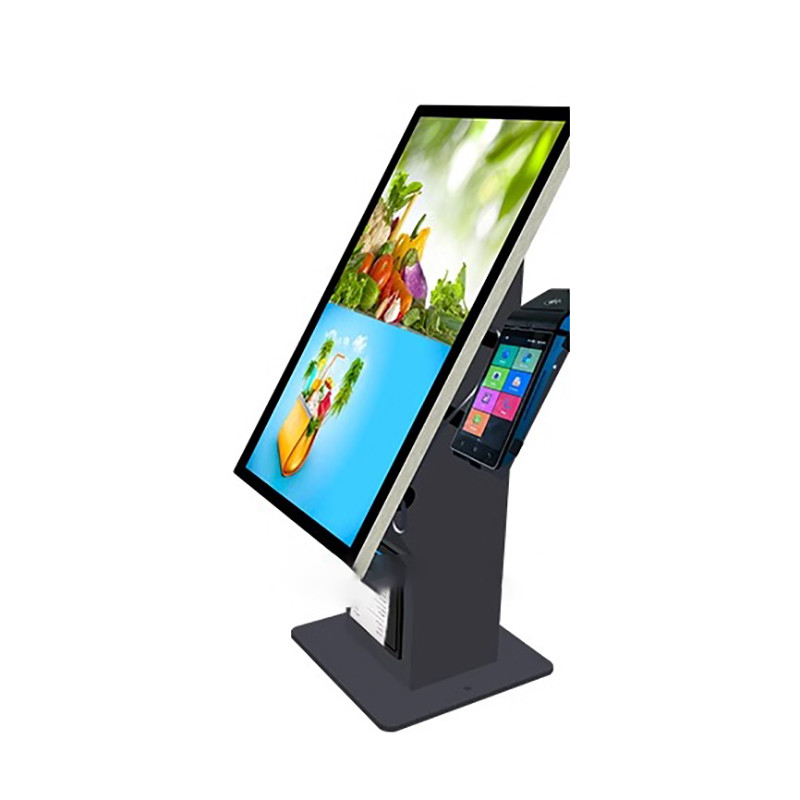

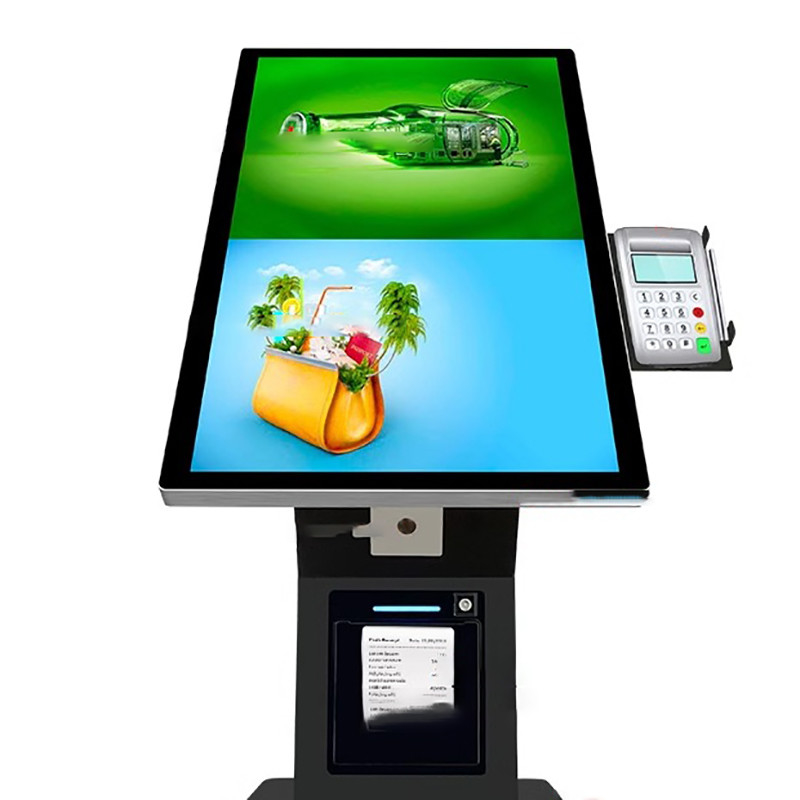

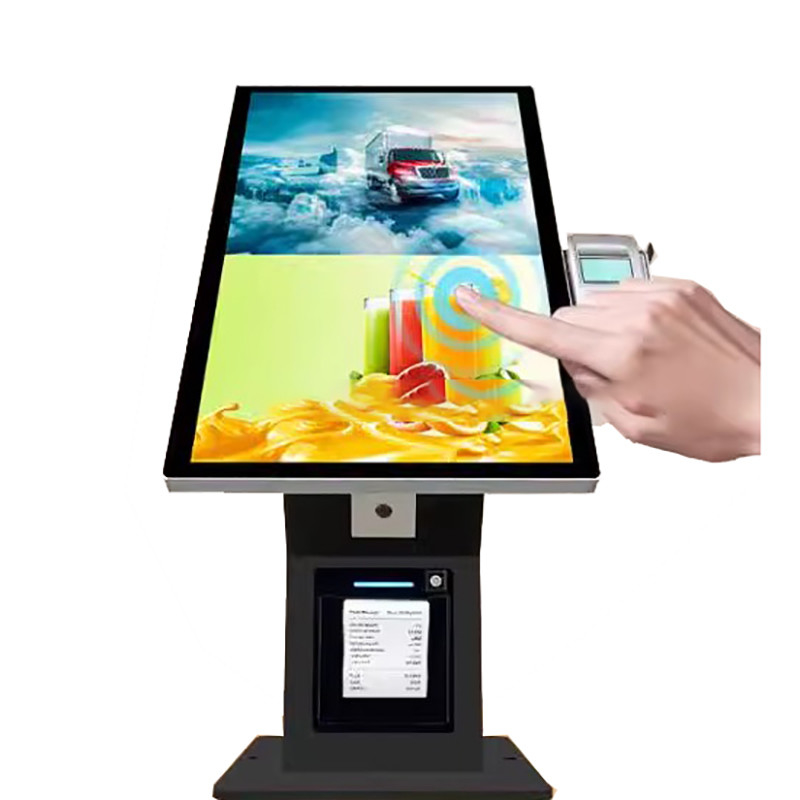

In the fast-paced urban life, waiting in line is a primary obstacle to consuming. Our desktop self-service touchscreen ordering machines, designed specifically for fast food, snack, and coffee shop settings, feature a compact size, smooth operation, and complete payment and ticketing functions. Deployed directly at tables or counters, they allow customers to order with ease, significantly reducing costs and increasing efficiency for businesses, completely eliminating congestion and errors.
![]()
This desktop ordering machine combines aesthetics, practicality, and power:
10-inch High-Definition Touchscreen: Supports ten-point capacitive touch, with sensitive response and smooth operation like a smartphone. Easy to operate even when multiple people are seated together, allowing for collaborative browsing and selection.
Exquisite Craftsmanship and Design:
Integrated Tempered Glass Panel: Hard and wear-resistant surface, easy to clean, maintaining a new look for a long time.
Aluminum Alloy Frame: Lightweight and sturdy, modern and minimalist, perfectly blending into various decorating styles.
Highly Integrated Functionality:
Built-in QR Code Scanner: Supports customers scanning table QR codes to order food or scan payment codes to complete payment.
Integrated Receipt Printer: Instantly prints order receipts after successful payment, serving as proof of payment or for expense reimbursement.
Reserved POS Machine Space: Designed with a space for a traditional POS machine, providing flexibility for merchants requiring a hybrid payment model.
![]()
Deploying desktop self-service ordering kiosks brings immediate positive changes to your restaurant:
Avoid Queues, Enhance Experience: Customers can order food directly from their seats, eliminating the need to wait in line at the cashier. This frees up valuable dining time for customers, significantly improving customer satisfaction and table turnover.
Reduced Labor Costs, Saves Costs: Automating the ordering and placement process effectively reduces reliance on front-desk staff, especially during peak hours, significantly reducing labor costs and recruitment pressure.
Reduce errors, improve efficiency: The standardized self-service ordering process, with orders processed automatically by the system, effectively avoids omissions and errors that may occur with manual recording, ensuring 100% accurate synchronization of information between the front desk and the kitchen.
Boost sales, increase revenue:
Convenient and efficient online payment: Integrating multiple mobile payment methods, checkout speed far exceeds traditional cash transactions, accelerating customer turnover.
Visually appealing menu display: High-definition screens display beautifully designed food sample images, detailed descriptions, and prices, making it more attractive than traditional text menus, effectively stimulating customer appetite, increasing order rates and average order value.
![]()
This desktop self-service ordering machine is not just an application of technology, but a smart restructuring of restaurant operations. With its cutting-edge integrated design, it condenses ordering, payment, and ticketing into a single, convenient location, placing it directly at the customer's fingertips. While enhancing customer autonomy and satisfaction, it brings multiple benefits to businesses in terms of cost, efficiency, and revenue.
| LCD Panel Parameters | Screen Size | 21.5 inch | |
| Display area | 476.5(H) X 268(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 585 X 380 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
