Touchscreen Self Ordering Kiosk Dual Side Display Restaurant Ordering Kiosk

Touchscreen Self Ordering Kiosk Dual Side Display Restaurant Ordering Kiosk

touchscreen self ordering kiosk

self ordering kiosk dual side

touchscreen restaurant ordering kiosk

Place of Origin:

Guangdong, China

Brand Name:

ZXTLCD

Certification:

CE/Rohs/FCC

Model Number:

ZXTLCD-SOK055

Contact Us
Request A Quote
Product Details
Resolution:
1920x1080
Frame:
Aluminum Alloy
Mic:
8 Array Mic
Operating System:
Android, Optional Windows Dual OS
Writing Method:
Pen/finger Touch
Highlight:

touchscreen self ordering kiosk

,

self ordering kiosk dual side

,

touchscreen restaurant ordering kiosk

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
wooden case, carton, flight cases are optional
Delivery Time
3-5 working days
Payment Terms
L/C,T/T,MoneyGram,Western Union
Supply Ability
2000 pcs per month
Product Description

Touchscreen Self-Ordering Kiosk with Dual-Side Display for Fast Food Restaurants

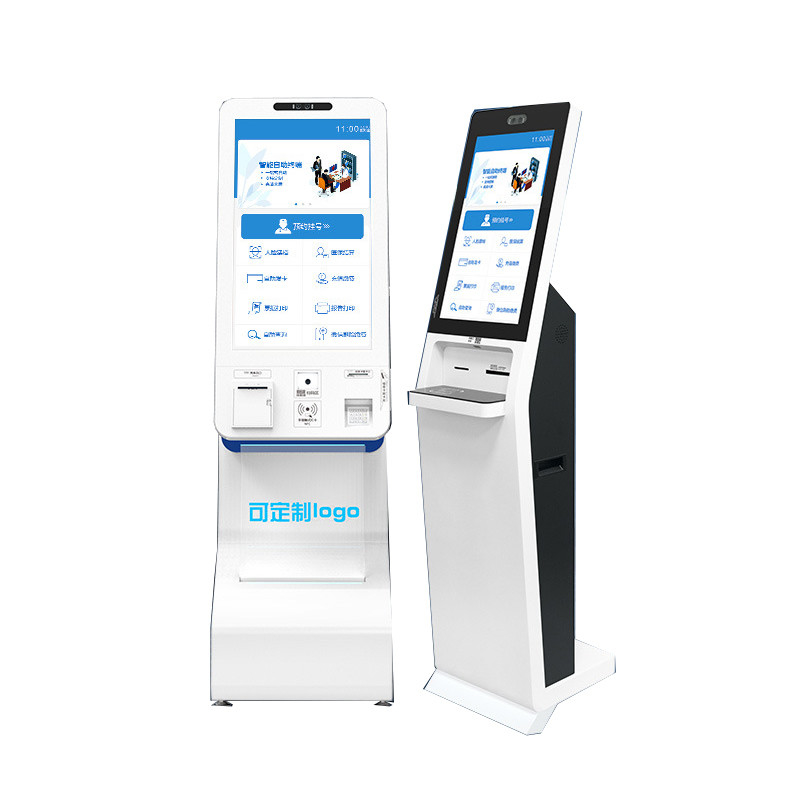

Touchscreen Self Ordering Kiosk Dual Side Display Restaurant Ordering Kiosk 0

The 21.5 Inch Touchscreen Self-Ordering Kiosk is designed to streamline the ordering process in fast food restaurants, cafes, and quick-service establishments. Featuring a high-brightness LCD display with dual-side functionality, this kiosk ensures clear visibility even in brightly lit environments. The intuitive touchscreen interface allows customers to browse menus, customize orders, and complete payments seamlessly. Built with a robust stainless steel frame, it is durable and suitable for high-traffic areas. With integrated thermal printing and cloud-based software, this kiosk enhances operational efficiency and reduces wait times.

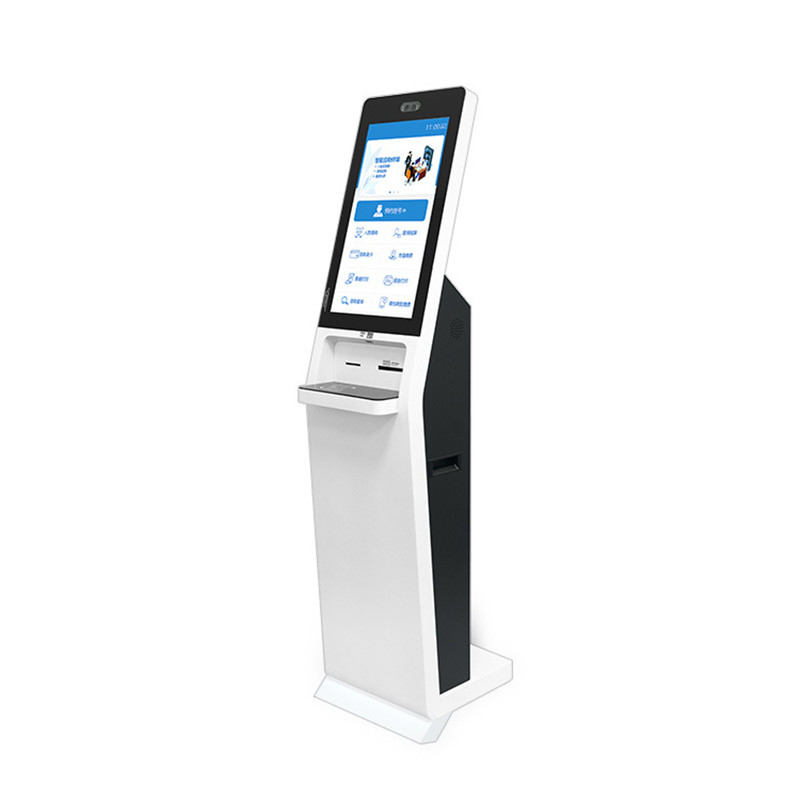

Touchscreen Self Ordering Kiosk Dual Side Display Restaurant Ordering Kiosk 1

high-brightness LCD touchscreen;Dual-side display for enhanced customer interaction;Stainless steel construction for durability;Integrated thermal printer for instant receipts;Cloud-based software for real-time menu updates;Easy-to-use interface for quick ordering;Payment integration (cashless and card payments)

IP54-rated for dust and splash resistance

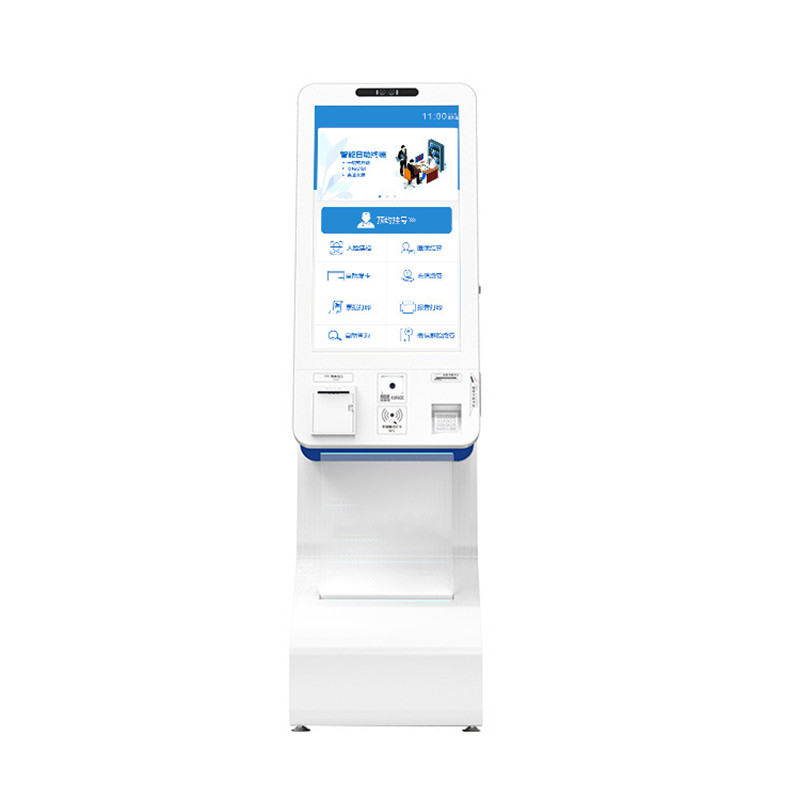

 Touchscreen Self Ordering Kiosk Dual Side Display Restaurant Ordering Kiosk 2

Ideal for fast food restaurants, cafes, food courts, and convenience stores.

LCD Panel Parameters Screen Size 21.5 inch
Display area 476.5(H) X 268(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency  60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
        Mini PC Parameters          (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature  0 ~ 50
Storage temperature  below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size  585 X 380 X 110mm
The Gross weight of Unit Package  50kg



If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
