Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK054

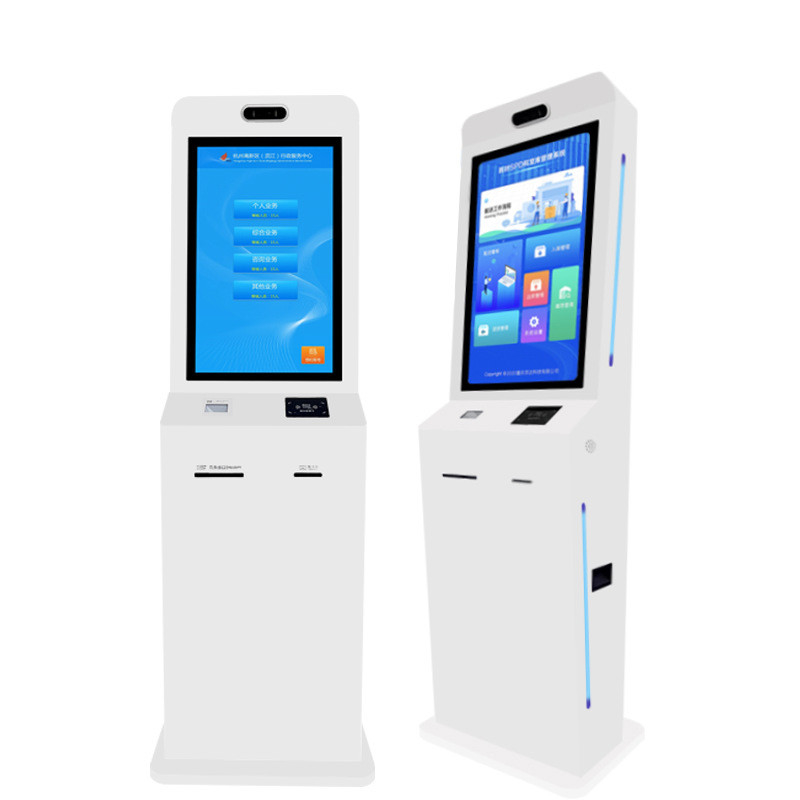

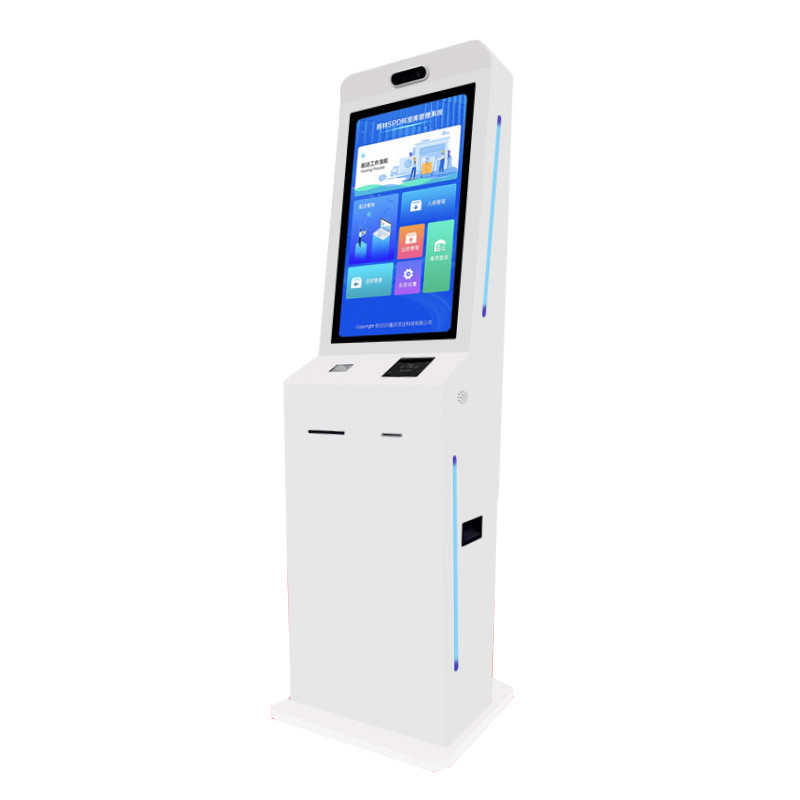

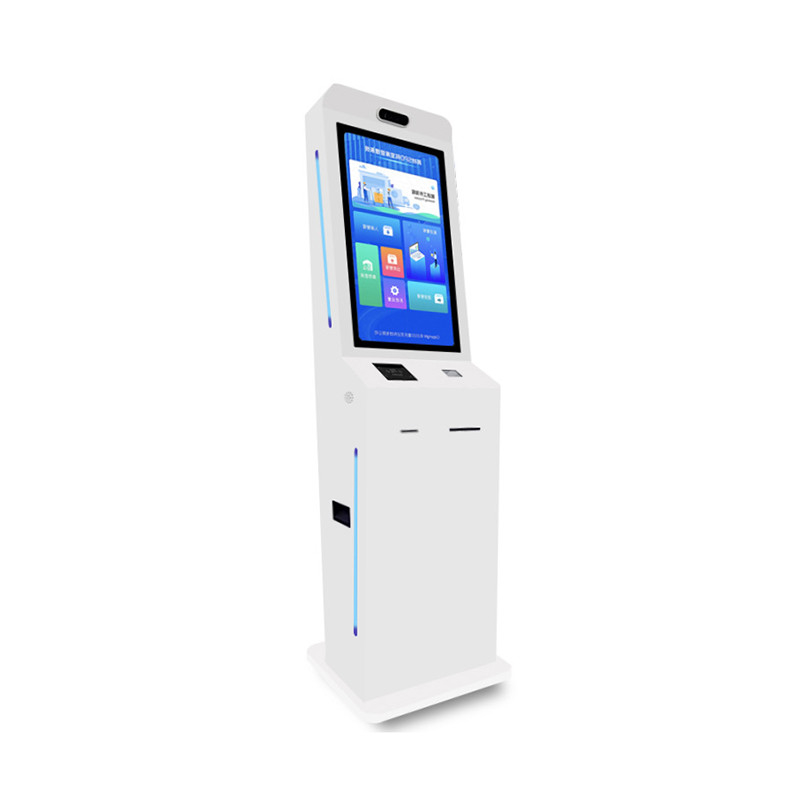

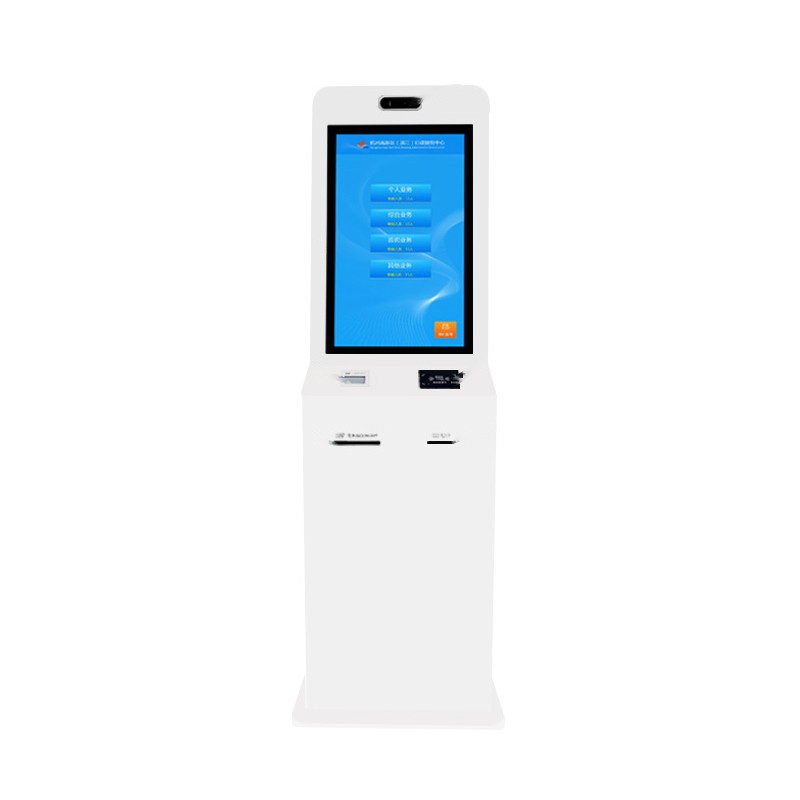

The 27-inch membership ordering self-service terminal, with its large screen display, powerful hardware support, and deep integration with membership systems, offers restaurants an ideal solution for comprehensively enhancing service quality and customer experience.
The 27-inch membership ordering self-service terminal utilizes a large 27-inch high-definition display (1080P), ensuring clarity and color accuracy of menu content and advertisements. Its wide viewing angle design provides a good viewing experience from any angle. The anti-glare coating maintains image clarity even in complex lighting environments.
The 27-inch screen not only provides ample display space but can also be used to play high-quality video advertisements or promotional activities, attracting customer attention and increasing interactivity. Through customized UI design, businesses can incorporate brand elements such as logos, colors, and style, transforming the device from a mere ordering tool into a work of art showcasing their brand image.
To adapt to various complex operating environments, the 27-inch membership ordering system self-service terminal adopts industrial-grade design standards. The casing is made of high-strength aluminum alloy, possessing excellent pressure resistance and corrosion resistance, effectively resisting impacts and wear during daily use. The device is also equipped with an efficient heat dissipation system, ensuring stable temperature during prolonged high-load operation and extending its service life.
Furthermore, the terminal is waterproof and dustproof, suitable for various commercial environments. Whether in a humid kitchen area or a high-traffic restaurant lobby, the device operates stably, reducing maintenance costs and failure rates.
| LCD Panel Parameters | Screen Size | 27 inch | |
| Display area | 597.9(H) X 336.3(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 720 X 460 X 120mm | ||
| The Gross weight of Unit Package | 50kg | ||
The 27-inch self-service terminal for membership ordering systems, with its superior visual experience, robust and durable industrial-grade design, and deep integration with membership management systems, is an ideal choice for improving restaurant operational efficiency and service quality. Whether it's displaying clear menu information on a large screen or enhancing customer loyalty through a membership management system, this device demonstrates its powerful application potential.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
