Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK32AT
Description:

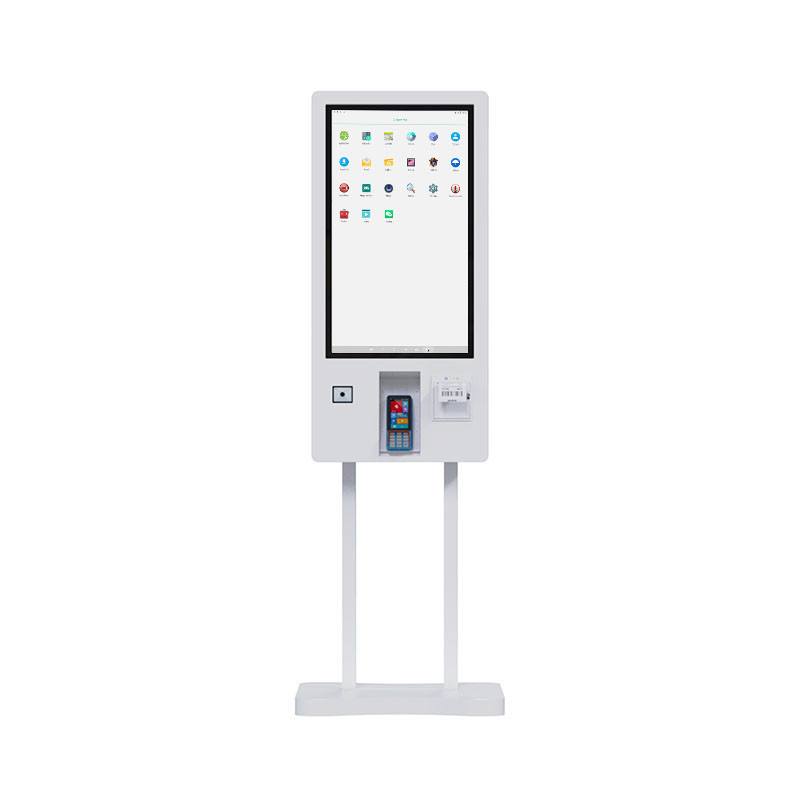

The Advanced Self-Order Kiosk is a cutting-edge solution designed to improve customer engagement, streamline operations, and enhance the ordering process across retail, food & beverage, and healthcare sectors. With its large touchscreen interface, secure payment systems, and seamless integration with existing infrastructure, the kiosk transforms the way businesses interact with their customers—delivering speed, convenience, and reliability.
Key Features:
· Large Touchscreen Display: Featuring a 32” high-resolution touchscreen, the kiosk delivers crystal-clear visuals and smooth navigation, ensuring an intuitive user experience for customers of all ages and backgrounds.
· Customizable User Interface: The system can be fully tailored to match your brand’s style, including logos, color schemes, and interactive promotions. Businesses can also display personalized content like offers, product recommendations, and customer loyalty rewards to maximize engagement.
· Secure Payment Options: Supports a wide range of secure payment methods, including credit/debit cards, mobile wallets (Apple Pay, Google Pay), NFC, and QR codes, ensuring fast and secure transactions for every customer.
· Integration with POS and Inventory Systems: Easily integrates with your existing POS system, enabling real-time order updates, inventory tracking, and sales reporting, streamlining the back-end process and ensuring smooth operational flow.
· User-Friendly Navigation: Designed with simplicity in mind, the kiosk offers a seamless experience, allowing customers to easily browse products, customize their orders, and complete payments with minimal effort and no training required.
· Robust and Weather-Resistant Design: Built to withstand the demands of high-traffic areas, the kiosk is durable and designed for both indoor and outdoor use. Its robust construction ensures it operates reliably, even in harsh conditions.
· Energy-Efficient Technology: The kiosk uses energy-saving LED backlighting and low-power components to reduce energy consumption, helping businesses save on electricity costs while maintaining high performance.
LCD Panel Parameters | Screen Size | 32 inch | |
Display area | 698(H) X 391.8(V)mm | ||
Aspect Ratio | 16 : 9 | ||
LCD Type | a-Si TFT-LCD | ||
Max Resolution | 1920 X 1080 | ||
Display color | 16.7M , 72% NTSC | ||
Brightness | 350 cd/㎡ | ||
Contrast Ratio | 3000 :1 | ||
Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
Response Time | 20ms | ||
LCD Panel Life(hrs) | 60,000(hrs) | ||
Field Frequency | 60Hz | ||
PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
Touch points | 10 points | ||
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
Anti-microbial protection and Shatterproof Protection | |||
Optically bonded 3mm glass for low parallax | |||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
Response speed | < 6ms | ||
Accuracy of touch | More than 90% of the touch area ±2mm | ||
Touch ways | Fingers, touch pen | ||
Output format | The coordinate output | ||
Clicks time | Unlimited | ||
The smallest touch size | 5mm | ||
Long resistance | Yes available | ||
Touch Interfaces | USB | ||
Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
RAM | 8GB | ||
SSD | 64GB | ||
WIFI | 150Mbps 802.11n wifi integate | ||
Network port | RJ45, 10M/100M Adaptive Ethernet | ||
Interface | 2 * RJ45 GB Ethernet | ||
2 * RS232 Serial Port | |||
operating system | Win10 or win11 optional | ||
Onboard interface | HDMI input | 1 | |
VGA input | 1 | ||
DVI input | 1 | ||
USB Type B or Any USB Type optional | 1 | ||
Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
Receipt Printer | 80mm Thermal printer with cutter | ||
Power | Power supply | AC 100V~240V, 50/60Hz | |
The Max power loss | ≤ 45w | ||
Standby power loss | < 1W | ||
Features | Operating temperature | 0℃ ~ 50℃ | |
Storage temperature | below10℃ ~ +60℃ | ||
Accessories | The length of Power Cable | 1.5m | |
The length of HDMI Cable | 2m | ||
The length of USB-A to USB-B Cable | 1.5m | ||
Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
Package size | Machine body size | Customized | |
Net weight | Customized | ||
Unit Package size | 832 X 530 X 150mm | ||
The Gross weight of Unit Package | 50kg |
Benefits:
· Faster and Efficient Ordering: By empowering customers to place their own orders, the kiosk reduces wait times, ensuring faster service and smoother operations. This is especially beneficial during peak hours in busy environments like fast food restaurants and retail stores.
· Increased Customer Satisfaction: With its intuitive interface and customizable features, customers enjoy a smooth, self-service experience that increases satisfaction and promotes repeat business.
· Operational Cost Reduction: The kiosk minimizes the need for additional staff to take orders, allowing businesses to reduce labor costs and allocate resources to other areas of service, like food preparation or customer assistance.
· Improved Accuracy: Self-ordering significantly reduces the risk of errors that may occur in verbal communication between customers and staff, leading to more accurate orders and fewer complaints.
· Upselling and Cross-Selling Opportunities: The kiosk can suggest complementary items and display personalized promotions, helping increase average order value and driving higher sales through upselling and cross-selling.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
