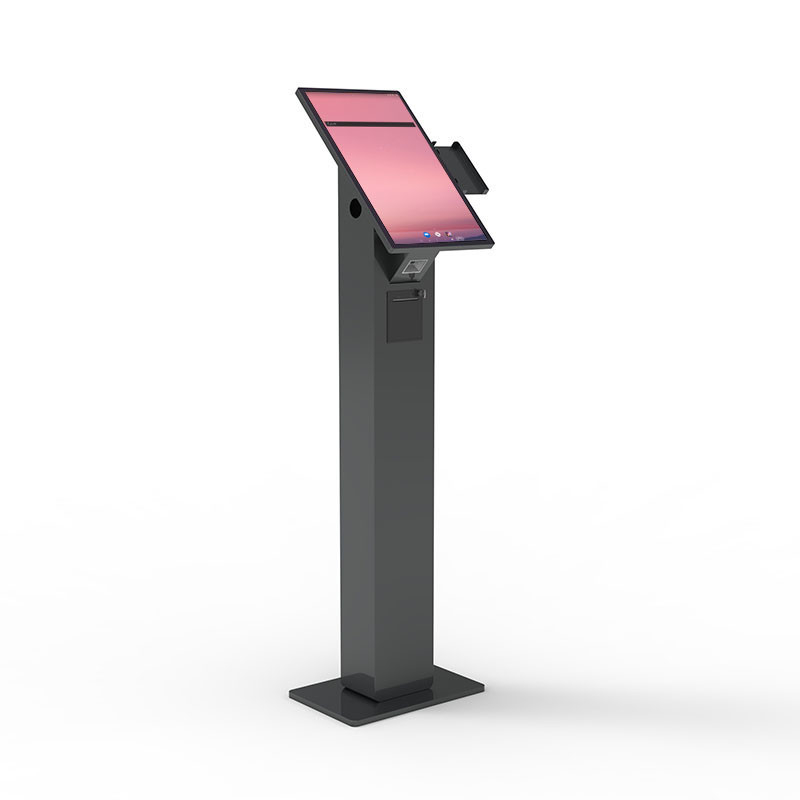

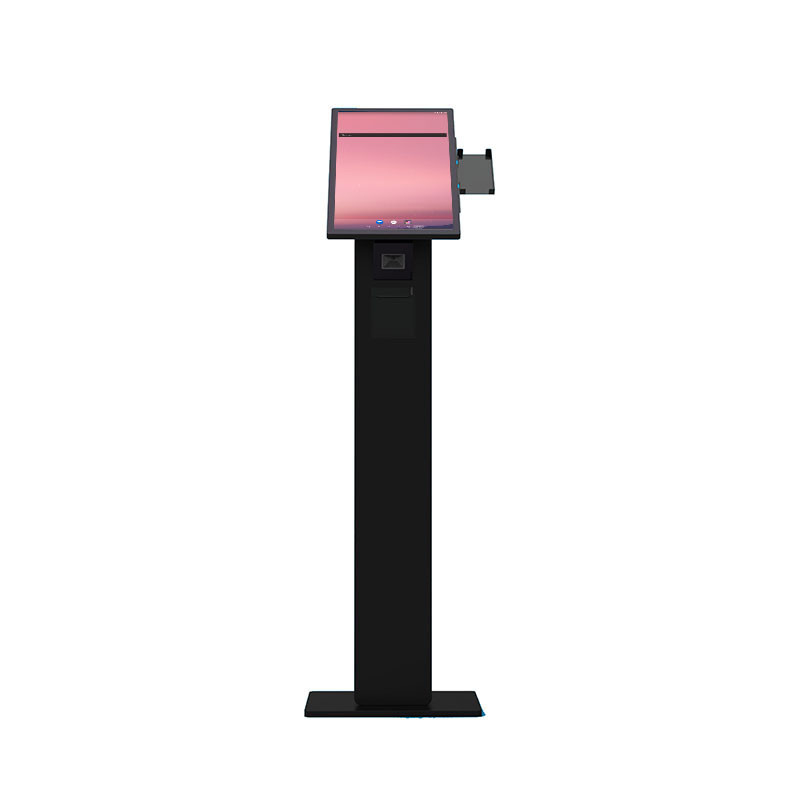

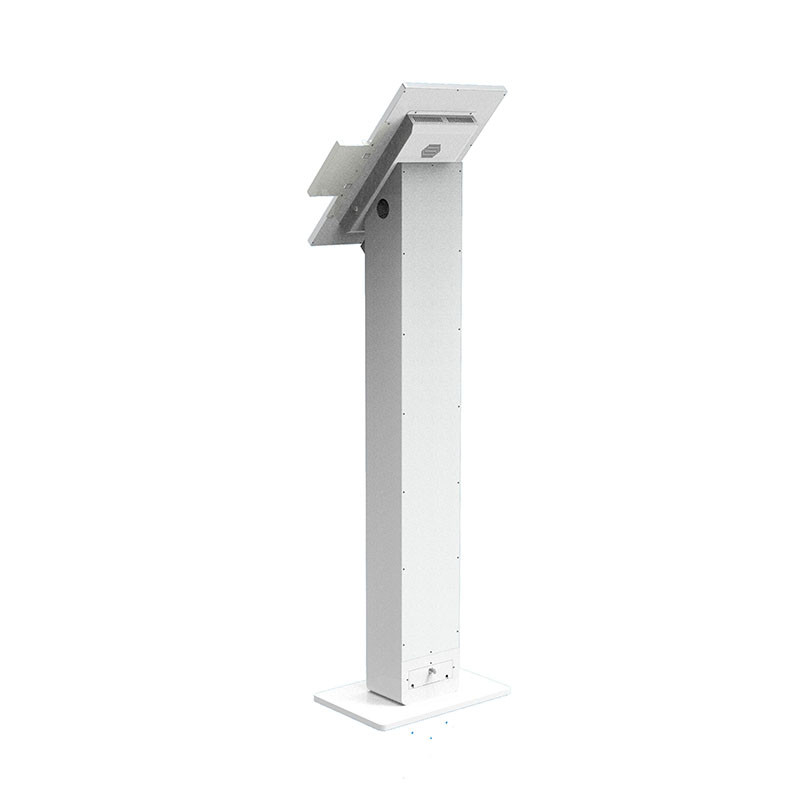

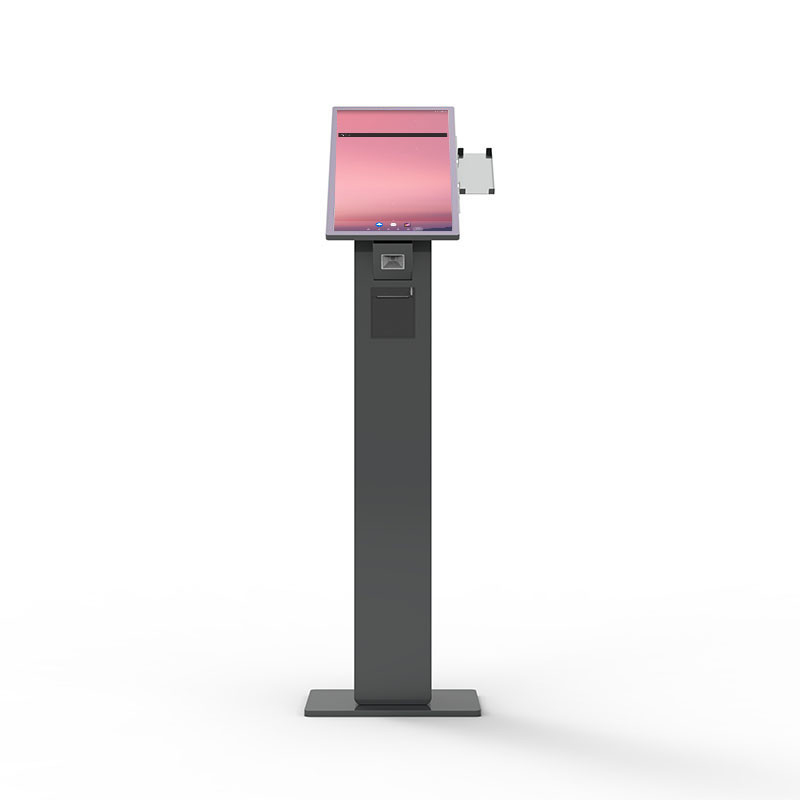

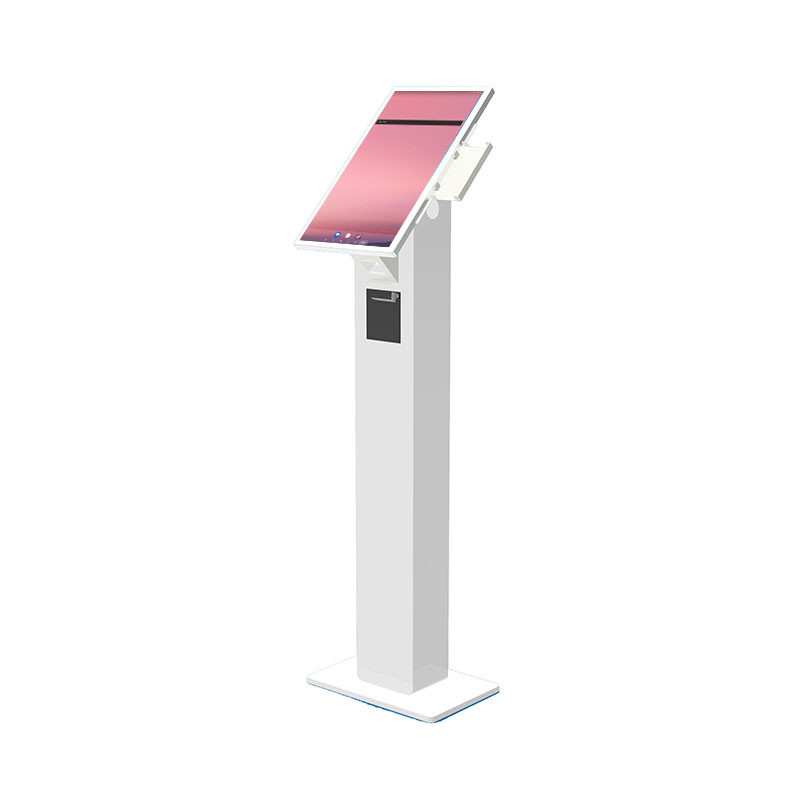

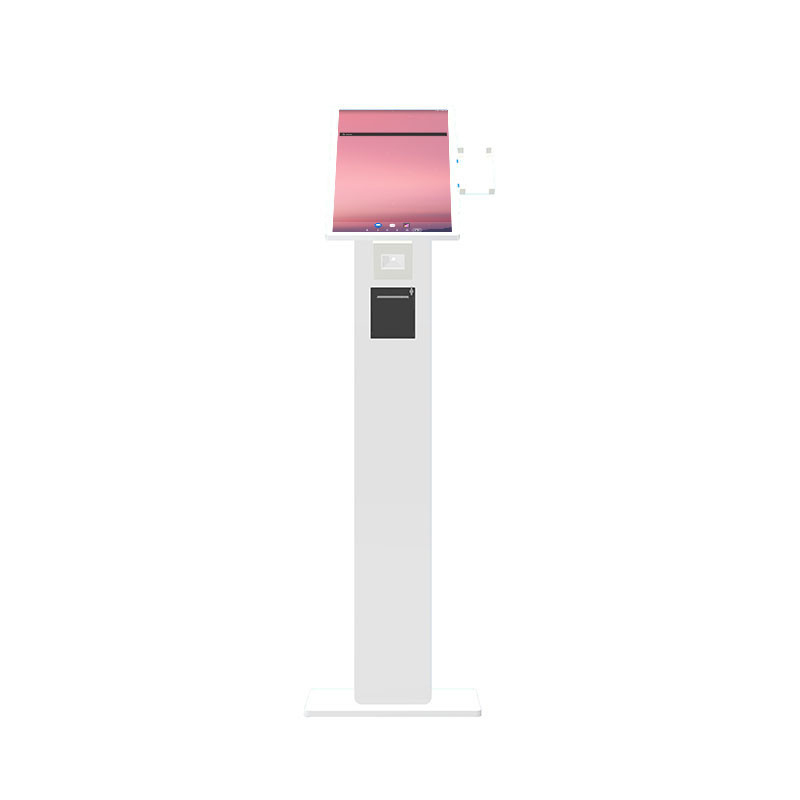

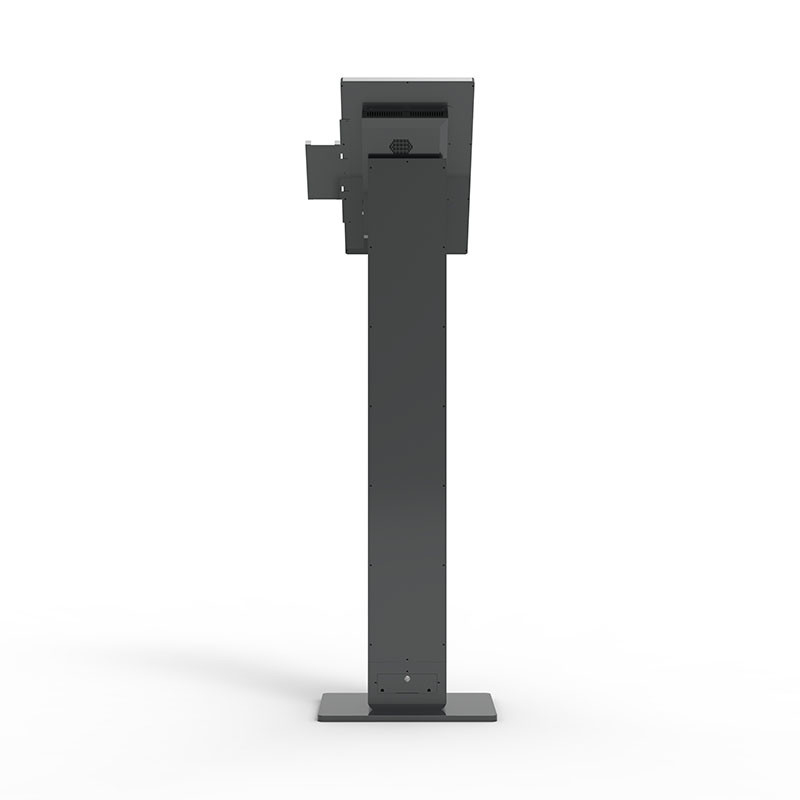

Android Self-Service Digital Ordering Station for Retail and Food Service
Description:
The Self-Service Digital Ordering Station is a high-tech, user-friendly solution designed to enhance the customer experience in retail stores and food service environments. Offering a seamless ordering process, this intuitive kiosk allows customers to explore product catalogs, customize their selections, and complete payments independently. It simplifies operations, increases customer satisfaction, and boosts sales by streamlining ordering and payment workflows.
Key Features:
· Large Touchscreen Interface: Equipped with a 21.5” HD touchscreen, the kiosk provides a clear and responsive interface that enables customers to browse, order, and pay with ease.
· Customizable Interface and Branding: The software interface can be fully customized to fit your brand’s look and feel, allowing for dynamic content display, promotional offers, and seasonal branding elements to capture customer attention.
· Secure Payment Options: Supports multiple payment methods, including credit/debit cards, contactless payments, mobile wallets (Apple Pay, Google Pay), and QR code scanning for secure, quick transactions.
· Seamless Integration with POS Systems: The kiosk integrates seamlessly with your existing POS system, ensuring real-time order management, inventory tracking, and payment processing without any disruptions.
· User-Friendly Design: Designed for simplicity and ease of use, the kiosk allows customers to browse menus or product catalogs, make selections, and complete their purchase within just a few taps, minimizing wait times and errors.
· Weatherproof and Durable: Built to last, the kiosk is designed for high-traffic and outdoor use, with rugged materials that can withstand various environmental conditions while maintaining reliable performance.
· Eco-Friendly and Energy-Efficient: Utilizing energy-efficient LED backlighting, the kiosk reduces power consumption, contributing to a greener environment and lowering operational costs.
| LCD Panel Parameters |
Screen Size |
21.5 inch |
| Display area |
476.5(H) X 268(V)mm |
| Aspect Ratio |
16 : 9 |
| LCD Type |
a-Si TFT-LCD |
| Max Resolution |
1920 X 1080 |
| Display color |
16.7M , 72% NTSC |
| Brightness |
350 cd/㎡ |
| Contrast Ratio |
3000 :1 |
| Viewing angle(up/down/left/right) |
89/89/89/89 (Typ.)(CR≥10) |
| Response Time |
20ms |
| LCD Panel Life(hrs) |
60,000(hrs) |
| Field Frequency |
60Hz |
| PCAP Touchscreen Panel Parameters |
Touch style |
Projected Capacitive Touch screen |
| Touch points |
10 points |
| Cover Glass |
Physical toughened Morse magnitude 7 explosion-proof |
| Anti-microbial protection and Shatterproof Protection |
| Optically bonded 3mm glass for low parallax |
| The glass transmittance |
>88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% |
| Response speed |
< 6ms |
| Accuracy of touch |
More than 90% of the touch area ±2mm |
| Touch ways |
Fingers, touch pen |
| Output format |
The coordinate output |
| Clicks time |
Unlimited |
| The smallest touch size |
5mm |
| Long resistance |
Yes available |
| Touch Interfaces |
USB |
| Operating temperature & Humidity |
below10℃ ~ +50℃, ≤ 85%RH |
| Storage temperature & Humidity |
below20℃ ~ +60℃, ≤ 90%RH |
| Mini PC Parameters (Fan-less Industrial PC) |
CPU |
Intel Celeron J1900 |
| RAM |
8GB |
| SSD |
64GB |
| WIFI |
150Mbps 802.11n wifi integate |
| Network port |
RJ45, 10M/100M Adaptive Ethernet |
| Interface |
2 * RJ45 GB Ethernet |
| 2 * RS232 Serial Port |
| operating system |
Win10 or win11 optional |
| Onboard interface |
HDMI input |
1 |
| VGA input |
1 |
| DVI input |
1 |
| USB Type B or Any USB Type optional |
1 |
| Parts(Built-in) |
QR/Barcode Reader |
Can recognize 1D barcode and 2D barcode |
| Receipt Printer |
80mm Thermal printer with cutter |
| Power |
Power supply |
AC 100V~240V, 50/60Hz |
| The Max power loss |
≤ 45w |
| Standby power loss |
< 1W |
| Features |
Operating temperature |
0℃ ~ 50℃ |
| Storage temperature |
below10℃ ~ +60℃ |
| Accessories |
The length of Power Cable |
1.5m |
| The length of HDMI Cable |
2m |
| The length of USB-A to USB-B Cable |
1.5m |
| Versatile Mounting Solution |
Wall Mounted |
with walll mount bracket |
| Stand Holder(Optional) |
Movable, can be with wheels on the base, height is adjustable |
| Package size |
Machine body size |
Customized |
| Net weight |
Customized |
| Unit Package size |
585 X 380 X 110mm |
| The Gross weight of Unit Package |
50kg |
Benefits:
· Enhanced Customer Experience: By allowing customers to independently browse and place orders, the kiosk empowers them to make decisions at their own pace, leading to a more personalized and enjoyable experience.
· Reduced Wait Times: Customers no longer need to wait in long lines to place orders, resulting in faster service, especially during busy periods. This improves the overall customer flow and satisfaction.
· Increased Sales Opportunities: The kiosk’s ability to suggest complementary products or upsell items based on customer choices can increase average transaction value, contributing to higher revenue.
· Improved Operational Efficiency: The kiosk reduces the reliance on human staff for order taking, allowing employees to focus on food preparation, customer service, or other critical tasks, ultimately boosting productivity.
· Accurate and Error-Free Orders: With customers entering their own orders directly into the system, the chances of miscommunication or order errors are drastically reduced, ensuring a smoother operation.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
