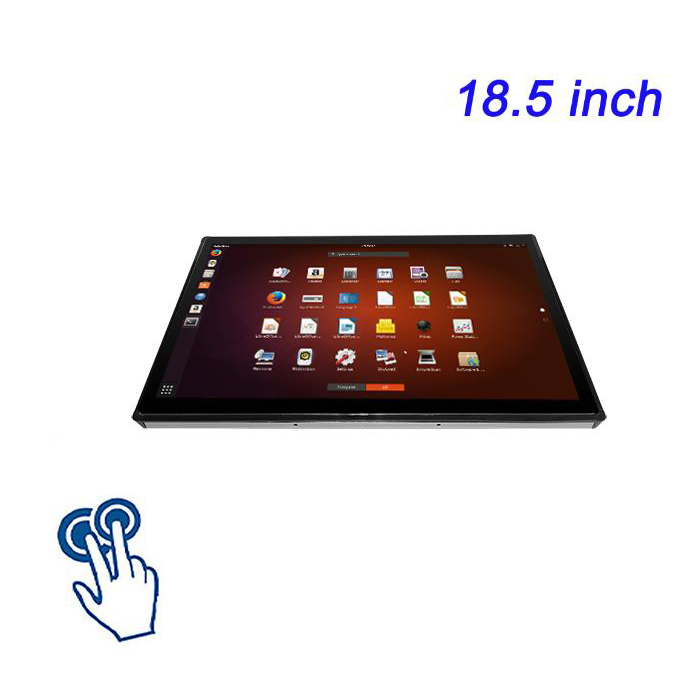

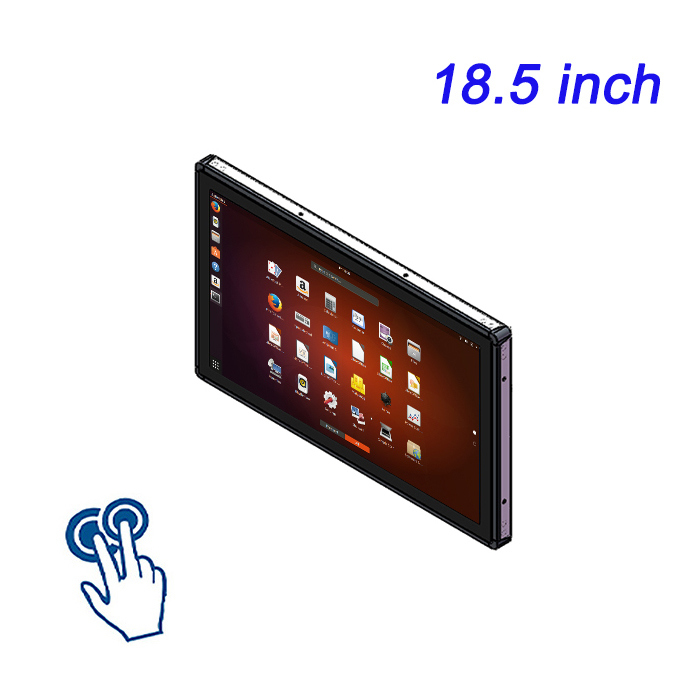

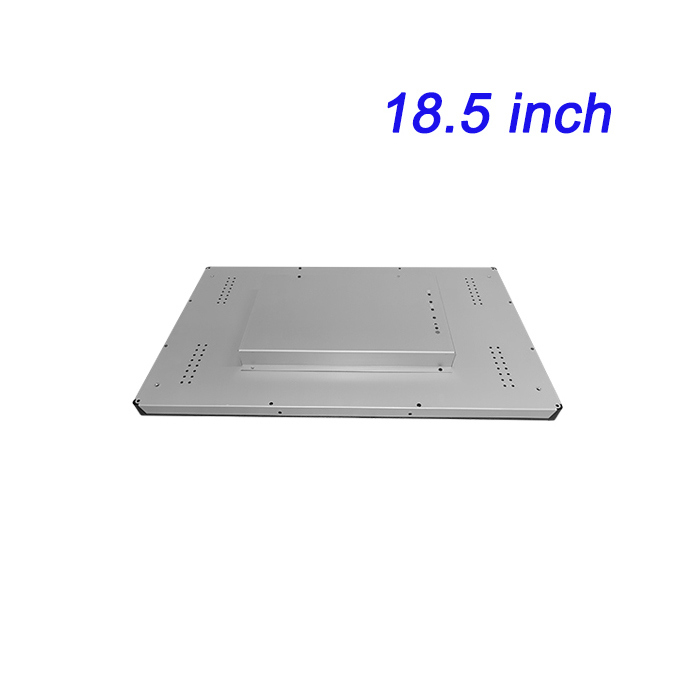

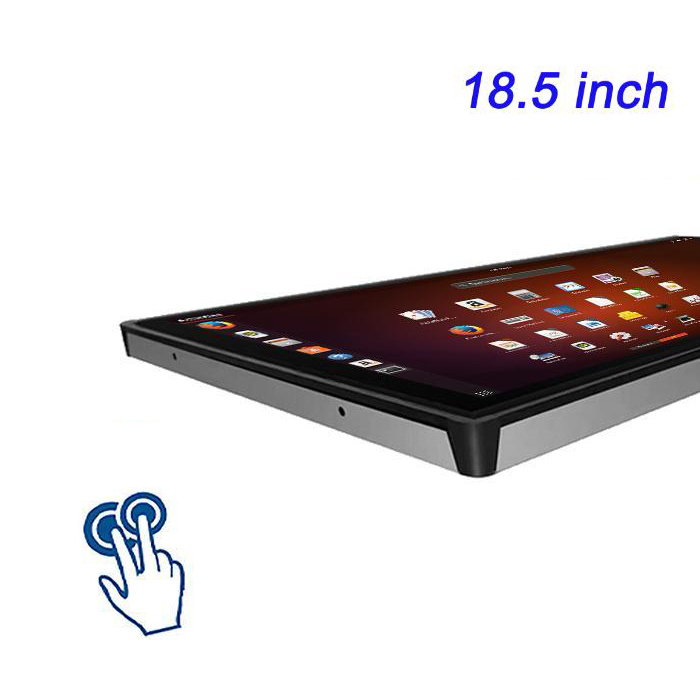

OEM Factory 18.5 Inch Capacitive Touch Screen Monitor Indoor Multi Touch Digital Display with Vga Hmi Dvi Input

18.5 inch capacitive touch screen

multi touch digital display monitor

self ordering kiosk with VGA input

Place of Origin:

Guangdong, China

Brand Name:

ZXTLCD

Certification:

CE/Rohs/FCC

Model Number:

ZXTLCD-RM185SLT

Chat Now

Request A Quote

Product Details

Screen Size:

18.5 Inch

Operating Temperature:

0°C To 50°C

Power Supply:

AC 100~240V, 50hz-60hz

Panel Type:

BOE Original A+ Grade IPS

Resolution:

1920 X 1080

Brightness:

350cd/m²

View Angle:

178°/178° (H/V)

Power Consumption:

80W

Cabinet Material:

Metal Case + Glass

Touch Screen:

10-point Capacitive Touch Screen

NFC Reader/scanner/QR Reader:

Support, Built-in

80mm Thermal Printer:

Support, Built-in

Passport Scanner:

Optional

POS Terminal Installation:

Resever Space

Application:

Hospitality, Hotel And Catering

Protype:

Desktop / Floor Standing /wall Mounted(Optional)

Highlight:

18.5 inch capacitive touch screen

multi touch digital display monitor

self ordering kiosk with VGA input

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

wooden case, carton, flight cases are optional

Delivery Time

3-5 working days

Payment Terms

L/C,T/T,MoneyGram,Western Union

Supply Ability

2000 pcs per month

Factory Price Customizable 21.5 Inch Touch Screen Self-Ordering Payment Kiosk Machine with SDK Barcode Reader Waterproof for Restaurants

Chat Now

43 inch Windows Floor Standing Ordering Machine Self Service Terminal Payment Kiosk with Printer QR Code Scanner

Chat Now

43 Inch Android Restaurant Automatic Touch Screen Self Ordering Machine Self Service Payment Kiosk With Scanner and Printer

Chat Now

Windows 23.6 Inch Touch Screen Self-service Ordering Machine Payment Order Gift Card Kiosk for Restaurant with Printer Scanner

Chat Now

86-755-84654872

info@seethrulcd.com

86-755-84654872

Chat Now

Product Description

OEM Factory 18.5 Inch Capacitive Touch Screen Monitor Indoor Multi Touch Digital Display with Vga Hmi Dvi Input

Name: OEM Factory 18.5 Inch Capacitive Touch Screen Monitor Indoor Multi Touch Digital Display with Vga Hmi Dvi Input
Brand: Shenzhen ZXT LCD Technology Co.,Ltd
SKU: ZXTLCD-RM185SLT
Availability: InStock

With the continuous advancement of smart city construction, the demand for information-based services in public spaces is increasingly growing. The 18.5-inch wall-mounted capacitive touch Linux all-in-one machine, as a new type of intelligent device, is becoming a key technology for improving service quality in public spaces thanks to its efficient information processing and user interaction capabilities.

18.5-inch Wall-Mounted Capacitive Touch Linux All-in-One: A One-Stop Information Query PlatformIn public spaces such as shopping malls, hospitals, and libraries, the 18.5-inch wall-mounted capacitive touch Linux all-in-one machine provides visitors with an intuitive and convenient information query platform. Users can quickly access venue layouts, service guides, event announcements, and other information through simple touch operations.This self-service query method not only saves time for visitors but also reduces the workload of on-site staff, improving overall service efficiency and visitor satisfaction. OEM Factory 18.5 Inch Capacitive Touch Screen Monitor Indoor Multi Touch Digital Display with Vga Hmi Dvi Input 1

18.5-inch Building Advertising Wall-Mounted Machine: Dynamic Display and Interactive AdvertisingAs an indispensable information dissemination tool in modern buildings, the 18.5-inch building advertising wall-mounted machine can display various advertisements and promotional videos in high definition. Its dynamic presentation is more attention-grabbing than traditional static posters, increasing advertisement viewership and interactivity.Furthermore, the integrated touch functionality allows passersby to participate in advertising campaigns, such as scanning QR codes to join online activities or registering personal information to obtain more product details.

18.5-inch Wall-Mounted Touch Display All-in-One Machine: Emergency Information Broadcast and GuidanceDuring emergencies, the 18.5-inch wall-mounted touch display all-in-one machine can quickly transform into an emergency information broadcasting system. It can promptly display evacuation routes, safety guidelines, and real-time emergency notifications for situations such as fires or earthquakes.This function is crucial for ensuring safety in public spaces, especially in high-traffic areas, as it effectively guides orderly evacuations and reduces the risks of accidents.

LCD Panel Parameters	Screen Size	18.5 Inch
	Display Area	411.3 mm.(Height) X 231.4(Width)mm.
	Aspect Ratio	16 : 9
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1920 X 1080
	Display Color	16.7m , 72% NTSC
	Brightness	250cd/m²
	Contrast Ratio	1200 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Projected Capacitive Touchscreen Monitor
	Touch Points	10 Points
	Cover Glass	Morse Glass Size 7 Physically reinforced to prevent explosion
		Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Internal computer configuration (Choose one of two)	CPU	i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz	I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
	Graphics Card	Integrated Graphics Card Intel® HD 4600	Integrated Graphics Card Intel® HD 530
	RAM	4GB	8GB
	Storage Memory Capacity	128GB	256GB
	OS	Linux	Linux
	Wi-Fi Built-in	Speed 150Mbps 802.11n wifi Integrated	Speed 150Mbps 802.11n wifi Integrated
Media Format	Video Format	wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
	Audio Format	MP3, WMA
	Photo Format	BMP, JPEG, PNG, GIF etc.
Onboard Interface	Network port	RJ45 X 1, 10M/100M Adjustable Ethernet
	HDMI	1
	USB	4
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 30 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	460 X 280 X 51.7mm
	Net Weight	6.5 Kilogram
	Package Size	51 X 33.5 X 11 Centimeter
	Gross Package Weight per Unit	7 Kilogram

The widespread application of the 18.5-inch wall-mounted capacitive touch Linux all-in-one machine not only enriches information services in public spaces but also enhances the quality and efficiency of these services. Through these high-performance all-in-one machines, public spaces can achieve instant information updates and efficient dissemination while strengthening interaction with the public, creating a more intelligent service environment.

With further technological developments, it is expected that such smart devices will bring more innovative applications in the future, adding greater convenience to public life.

If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
