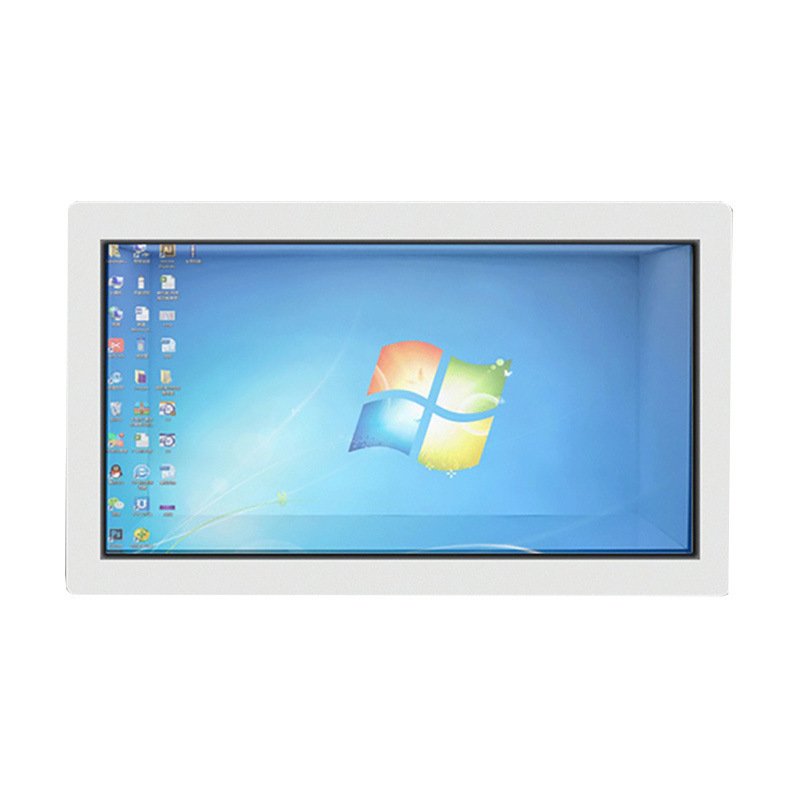

49 inch transparent screen flexible touchscreen transparent lcd monitor

Clarifying What Flexible Means

The source title uses the phrase “flexible touchscreen,” but buyers should not assume the transparent LCD panel bends or curves. In many product listings, flexible describes configuration or integration choices rather than a physically flexible panel. Confirm panel construction, touch technology and allowable orientation before designing furniture around it.

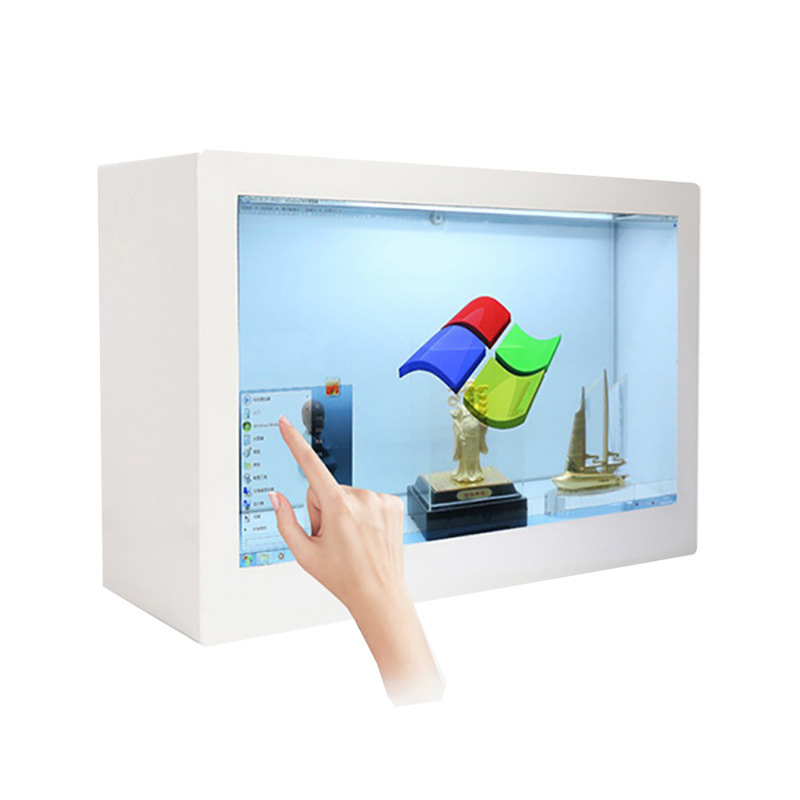

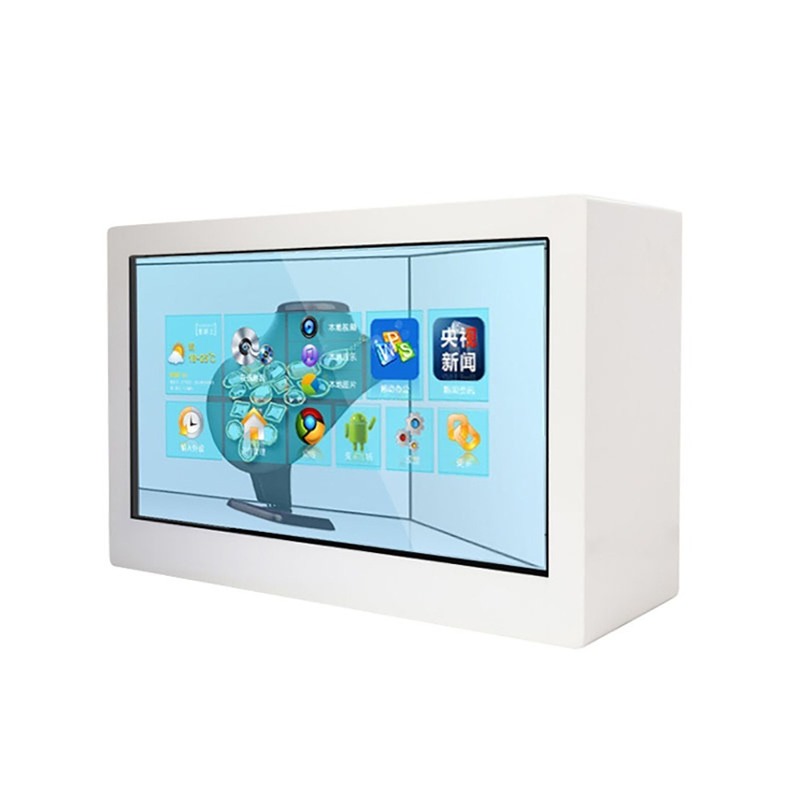

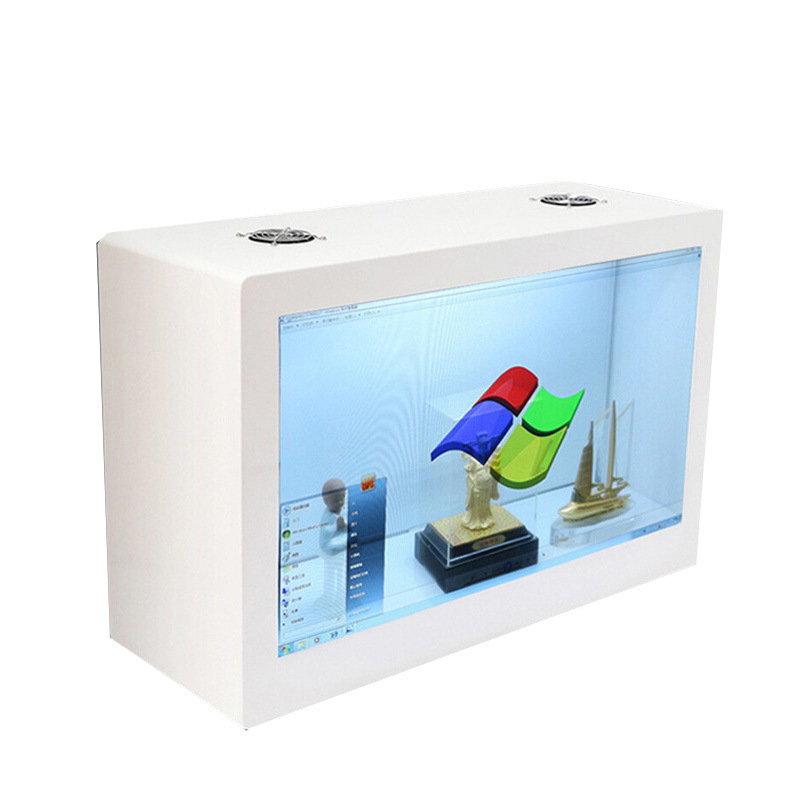

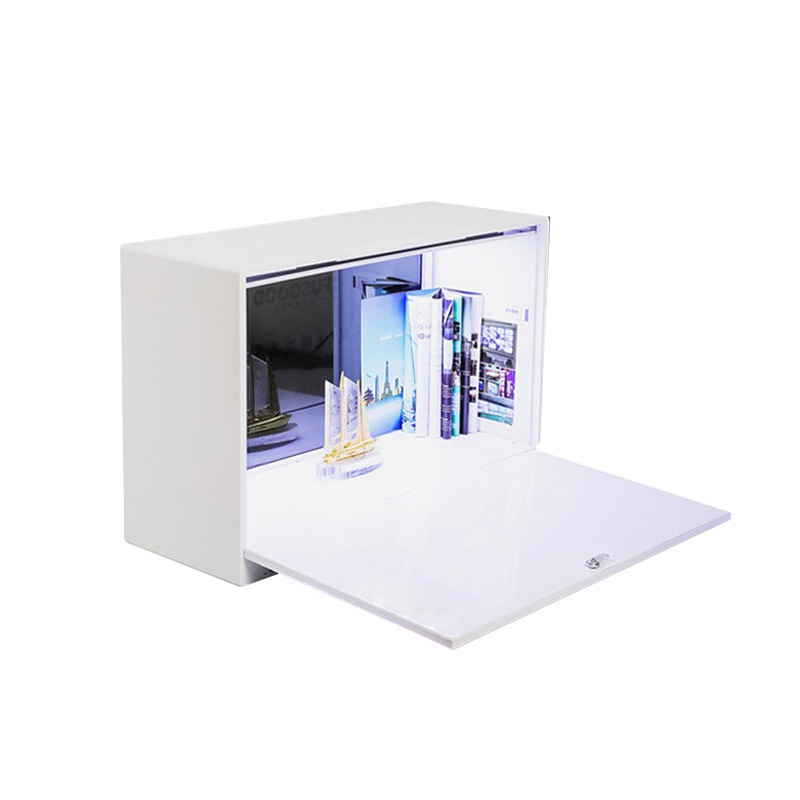

The safer product definition is a 49-inch touch-enabled transparent LCD showcase cabinet that can be customized for a fixture, desktop case or floor-standing enclosure.

Start With the Integration Envelope

System integrators need the panel active area, bezel, total cabinet dimensions, ventilation, touch controller, player and cable locations. The displayed object adds another envelope: usable width, height, depth, weight and access route. Put both on the same CAD drawing.

If a millwork contractor surrounds the cabinet, reserve removable panels and airflow. Do not seal service components behind finished furniture. Agree on installation tolerances and who supplies final trim.

Select Touch Technology for the User and Site

Capacitive touch can provide a familiar glass interaction, while infrared touch may accommodate gloves or non-transparent pointers depending on configuration. The right choice depends on intended users, bezel design, number of touch points, environmental conditions and software.

Test the complete stack, not only the touch frame. Glass thickness, reflections, operating system, USB extension and application design can affect the result. Define touch calibration and recovery in acceptance testing.

Keep the Interface Tied to the Physical Object

Use touch to select a product view, reveal a component, compare variants or request assistance. Place controls around the object rather than covering it. If visitors need to read detailed specifications, provide a temporary dark reading panel and then return to transparent presentation.

Applications should launch automatically, hide system controls and reset after inactivity. Any QR, lead collection or analytics function needs a clear data and privacy plan.

Integration Deliverables to Request

Ask for dimensional drawings, wiring diagram, input list, power requirement, heat guidance, touch driver information and supported operating systems. Confirm whether the quotation includes only a cabinet and touch controller or also an Android player, Windows PC and application software.

A factory test should reproduce the intended computer, cable length and sample content. This catches touch and signal issues before the cabinet is enclosed in site furniture.

Integrator FAQ

Is the transparent panel bendable?

Do not assume so. Obtain the exact panel specification and mechanical restrictions.

Can the cabinet be embedded into furniture?

Yes, with coordinated ventilation, access, tolerances and structural support.

Does touch software come included?

Touch hardware and drivers may be included, but the interactive application is a separate scope unless stated.

Divide Responsibilities Before Integration

The display supplier may provide the transparent panel, touch frame and cabinet; the integrator may supply the computer, application and site cabling; the furniture contractor may build the surrounding fixture. Write these boundaries into the project schedule. State who mounts the product, terminates power, installs drivers, calibrates touch, loads content and signs off ventilation. Also identify the owner of troubleshooting when a symptom crosses systems—for example, intermittent touch caused by a USB extension or a black screen caused by PC power settings. Clear responsibility makes a custom integration easier to commission and support.

Final Buying Checkpoint

Keep an integration sample available until the site fixture is complete. It gives software and furniture teams a stable reference for connector placement, heat, touch and viewing quality. If any party changes glass, cable length, computer or enclosure clearance, repeat the relevant test. A signed change log prevents small substitutions from creating an unexplained failure during final commissioning.

Request a Cabinet Proposal

Send the object dimensions and weight, installation drawing, viewing distance, required touch or playback configuration, cabinet finish, access method and delivery destination. These details allow ZXTLCD to confirm a project-specific transparent showcase rather than quote a screen with an undefined enclosure.
