Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-LCD650VCT
When One Physical Sample Represents Many Options

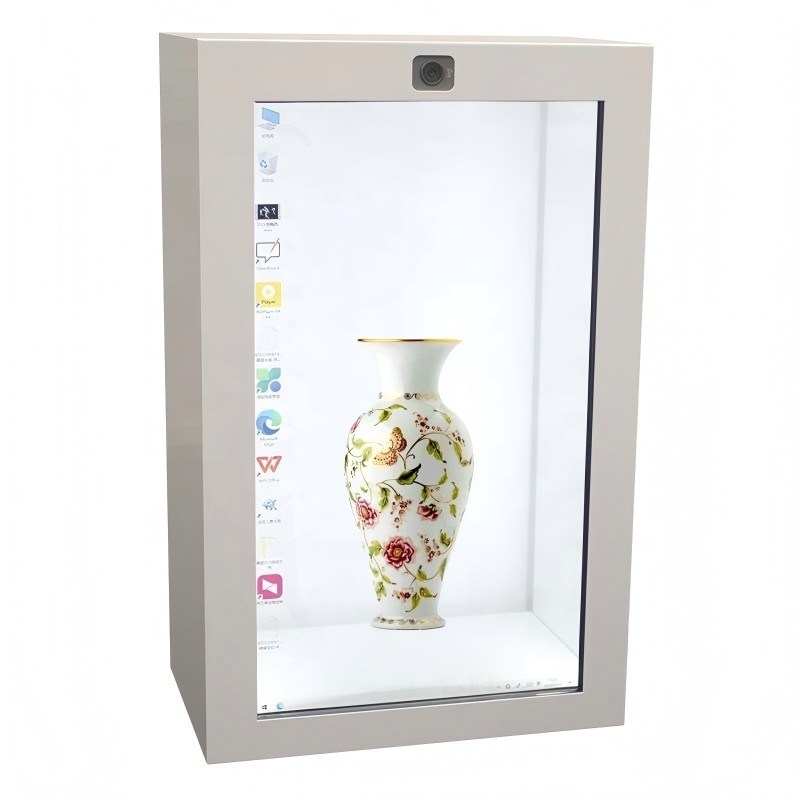

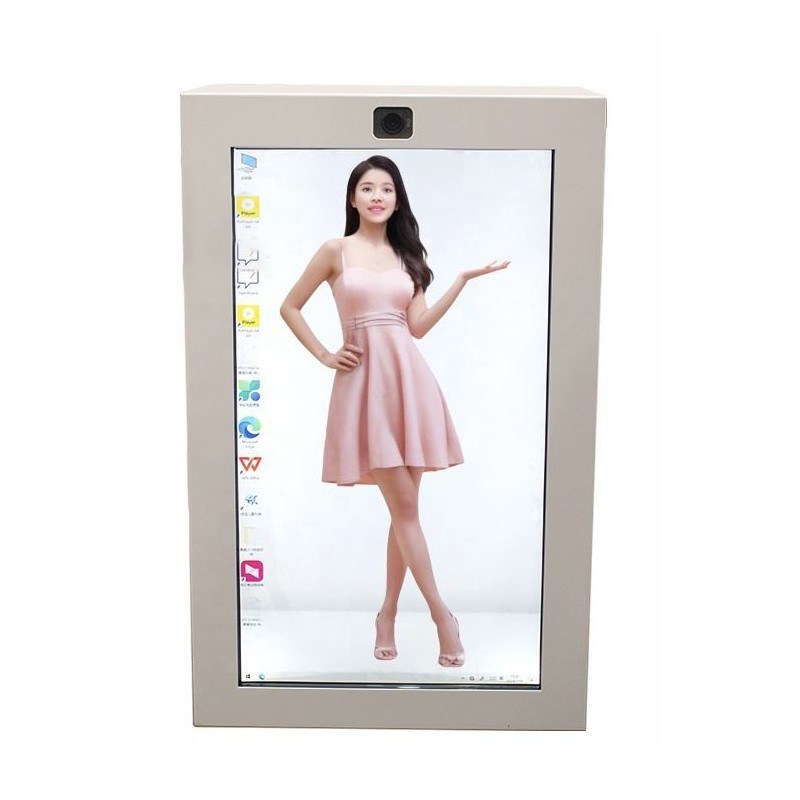

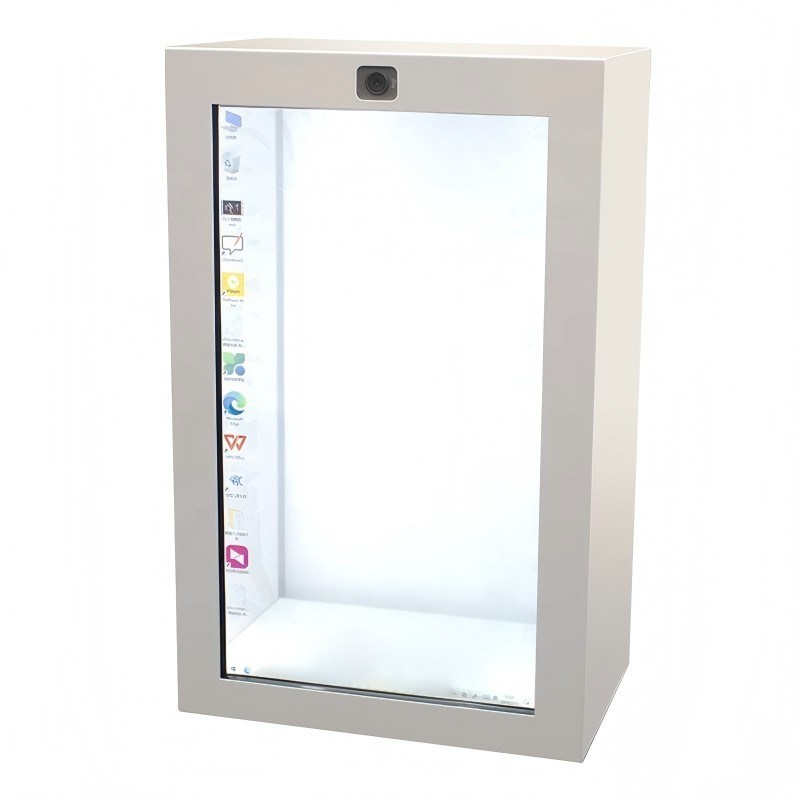

A 65-inch Android touch transparent LCD showcase cabinet can display one substantial product while the interface explains configurations that cannot all fit inside. Visitors see a real reference, then compare colors, features, accessories or applications on the transparent layer.
This suits appliances, equipment, electronics and engineered products where the physical sample builds trust but the range requires digital depth.
Android Is the Platform, Not the Experience
Confirm Android version, processor, memory, storage, ports, network and device-management needs against the intended application. A generic APK or website may not perform correctly without testing. Configure kiosk mode, automatic launch, offline fallback and scheduled restart.
Separate application development, CMS, AI services and third-party licences from the cabinet hardware scope.
Keep Touch Within Human Reach
A 65-inch surface is larger than a comfortable touch zone. Place frequent controls between waist and shoulder height and avoid forcing users to reach across the object. Use a small number of clearly labelled paths and reset after inactivity.
Test with users of different heights and provide a non-touch attract loop that remains useful when no one interacts.
| 65 Inch transparent Holographic display | ||
| Display Panel | Screen Size | 65 inches |
| Panel Type | a‑Si TFT IPS Transparent LCD Panel | |
| Native Resolution | 3840 × 2160 pixels (4K UHD) | |
| Sub‑Pixel Pitch | 0.124 × 0.372 mm (H × V) | |
| Pixel Format | RGB Vertical Stripe | |
| Pixel Pitch | 0.372 × 0.372 mm (H × V) | |
| Active Display Area | 1428 × 804 mm (H × V) | |
| Panel Shape | Flat Rectangular Panel | |
| Aspect Ratio | 16:9 | |
| Panel Transmittance | >75% | |
| Contrast Ratio | 4000:1 (Typical) | |
| Viewing Angle | 89°/89°/89°/89° (Minimum), CR ≥10 | |
| Display Mode | IPS, Normally Black, Transmissive | |
| Optimum Viewing Direction | All Viewing Angles | |
| Response Time | 8 ms (Typical, Gray‑to‑Gray) | |
| Display Colors | 1.07 Billion Colors, 8‑bit + Hi‑FRC | |
| Color Gamut | 71% NTSC | |
| Panel Input Voltage | AC 110–220V | |
| Refresh Rate | 60 Hz | |
| Panel Signal Interface | LVDS | |
| Input Interfaces | HDMI, VGA, USB and Audio Input | |
| Operating Temperature | -20°C to 50°C | |
| Storage Temperature | -30°C to 60°C | |
| Operating Humidity | 10%–90% RH | |
| Storage Humidity | 5%–90% RH | |
| Power Supply | AC 100–240V, 50/60 Hz | |
| Power Consumption | <280W | |
| Standby Power Consumption | <3W | |
| Installation Options | Desktop, Floor‑Standing or Interactive Version | |
| Product Dimensions | Refer to the Mechanical Drawing | |
| USB Plug‑and‑Play Player | Operating System | Standalone Plug‑and‑Play System; No Windows OS Required |
| Start‑Up Mode | Automatically Starts Loop Playback After Power‑On | |
| Input Ports | 1 × USB 2.0, 1 × HDMI | |
| Default Storage Medium | USB Flash Drive | |
| Optional Storage Medium | SD Card | |
| Content Update | Automatically Copies Content from USB | |
| OSD Languages | English and Chinese | |
| Supported Video Format | MP4 | |
| Supported Audio Format | MP3 | |
| Supported Image Format | JPG | |
| Supported Text Format | TXT | |
| Audio Output | Built‑In Power Amplifier | |
| Playback Modes | Single‑File Repeat or All‑Files Loop Playback | |
| Android Media Player | CPU | Quad‑Core Cortex‑A17, Up to 1.8 GHz |
| GPU | Mali‑T764 | |
| Operating System | Android 7.1 | |
| RAM | 2GB DDR3 | |
| Internal Storage | 16GB eMMC | |
| External Storage | SATA, USB, SD Card or CF Card | |
| Output Resolution | 1920 × 1080, Full HD | |
| Playback Modes | Loop Playback, Scheduled Playback and Transition Effects | |
| Network Connectivity | Ethernet and Wi‑Fi; 3G Optional | |
| Remote Control | Infrared Remote Control Supported | |
| Memory Card Support | SD and CF Cards | |
| Supported Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 and More | |
| Supported Image Formats | BMP, JPEG, PNG and GIF | |
| Supported Network Protocols | TCP/IP, PPPoE, ICMP, DHCP, DNS, FTP and HTTP | |
| USB 2.0 Ports | 2 × USB Host Ports for Mouse, Keyboard and Other Peripheral Devices | |
| RJ45 Ethernet | 1 × RJ45 Port, 10/100 Mbps | |
| Wireless Network | 2.4 GHz Wi‑Fi, IEEE 802.11n, Up to 150 Mbps | |
| TF Card Slot | 1 × TF/MicroSD Card Slot | |
| Windows PC – Entry‑Level | CPU | Intel 1037U, Dual‑Core, Dual‑Thread, 1.8 GHz |
| Motherboard | Mini‑ITX Architecture, Intel Bay Trail SoC Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics with Dynamic Video Memory Technology (DVMT) | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Standard | CPU | 3rd Generation Intel Core i3, Dual‑Core, Four‑Thread, 1.8 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Advanced | CPU | 3rd Generation Intel Core i5, Dual‑Core, Four‑Thread, 1.7 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Premium | CPU | 7th Generation Intel Core i7, Dual‑Core, Four‑Thread, 2.7 GHz, 15W |
| Motherboard | Mini‑ITX Architecture | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Infrared Touch Frame | Touch Technology | Infrared Touch |
| Integration Method | Seamlessly Integrated, Embedded Design | |
| Reported Touch Resolution | 32768 × 32768, Driver‑Free | |
| Activation Force | No Pressure Required | |
| Light Transmittance | >92% | |
| Multi‑Touch Response Time | 10–15 ms | |
| Single‑Touch Response Time | 7 ms | |
| Minimum Touch Object Size | 4 × 4 mm | |
| Touch Object Size Recognition | Supported | |
| Touch Interface | USB | |
| Touch Scan Rate | ≥110 Hz | |
| Communication Interface | USB 2.0 Full‑Speed | |
| Power Supply | 1 × USB | |
| Operating Voltage | DC 5.0V ±5% | |
| Average Current | ≤200 mA | |
| Power Consumption | ≤1.0W | |
| LED Service Life | 60,000 Hours | |
| Fault Tolerance | Remains Operational with Less Than 10% Non‑Adjacent Sensor Failure | |
| Operating Humidity | Up to 90% RH at 0°C to 40°C, Non‑Condensing | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -20°C to 60°C | |
| ESD Protection | EN 61000‑4‑2:2008, Level 3; 4 kV Contact Discharge and 8 kV Air Discharge | |
| Ambient Light Resistance | Excellent | |
| Firmware Upgrade | USB Firmware Upgrade | |
| Multi‑Touch OS Support | Win 10, Win 8, Win 7 and Android | |
| Single‑Touch OS Support | Win XP, macOS and Linux | |
| Projected Capacitive Touchscreen | Touch Technology | Projected Capacitive Touch |
| Input Method | Finger or Stylus | |
| Number of Touch Points | 10‑Point Multi‑Touch | |
| Activation Force | 10–60 g | |
| Touch Durability | ≥35 Million Touches | |
| Minimum Pressure | <10 g | |
| Surface Hardness | ≥7H | |
| Storage Conditions | -15°C to 40°C at <90% RH; 40°C to 70°C at <60% RH | |
| Operating Humidity | 10%–90% RH at 40°C, Non‑Condensing | |
| Response Time | <10 ms | |
| Light Transmittance | >85% | |
| Touchscreen Structure | 1.1 mm Glass + 0.125 mm Upper ITO Film + 0.125 mm Lower ITO Film | |
| Position Durability | 50 Million Touches at the Same Position | |
| Standard Packing List | Power Cable | 1 |
| Warranty Card | 1 | |
| Remote Control | 1 | |
| Cabinet Key | 1 | |
| Certificate of Conformity | 1 | |
Cabinet Engineering for a Large Object
Define usable volume, load, fixing points, internal power, heat and door clearance. The Android player, router and power supply should occupy a locked service compartment. Lighting must reveal the product without heating sensitive materials or reducing screen contrast.
Request a coordinated mechanical and wiring drawing before software layout is frozen.
Remote Management and Store Support
If several sites use the cabinet, decide how content, application versions and device health are managed. Store staff need simple recovery instructions; central teams need controlled publishing and a record of installed configurations.
Provide object drawings, user flow, network policy and deployment quantity for an accurate proposal.
FAQ
Can any Android app be installed?
Compatibility depends on the supplied hardware, Android version and kiosk requirements.
Is Wi-Fi sufficient for updates?
It may be, but commercial reliability and security should be assessed for the site.
Can the cabinet work offline?
Core content and fallback guidance can be stored locally when the application is designed for it.
![]()
Application and Hardware Acceptance
Freeze the tested Android application build before shipment and identify the exact player hardware it was approved on. The acceptance test should cover cold start, automatic launch, touch, video decoding, network loss, storage capacity and recovery after an interrupted update. Keep a signed copy of the APK or web release and the device settings used during the test.
If the customer supplies software, provide a demonstration unit or remote test window early. If the supplier provides the application, list every screen and data connection in the scope. Ambiguous phrases such as “supports Android apps” do not define performance, cybersecurity or long-term compatibility.
At the site, enrol the device into the approved management platform before the cabinet is closed into surrounding furniture. Record credentials through the customer’s secure process rather than leaving default passwords.
Discuss Your Showcase Project
Provide the displayed object dimensions and weight, installation drawing, cabinet finish, access and security needs, touch or player configuration, quantity and destination. ZXTLCD can confirm the enclosure, transparent panel and integration scope for the project.
![]()
![]()
![]()
![]()
