Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK049

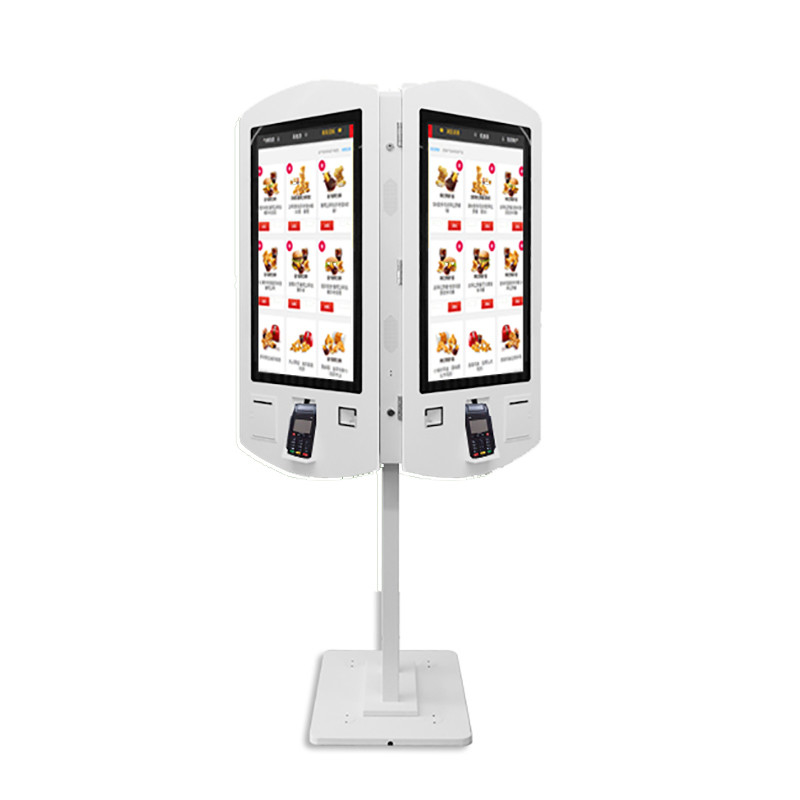

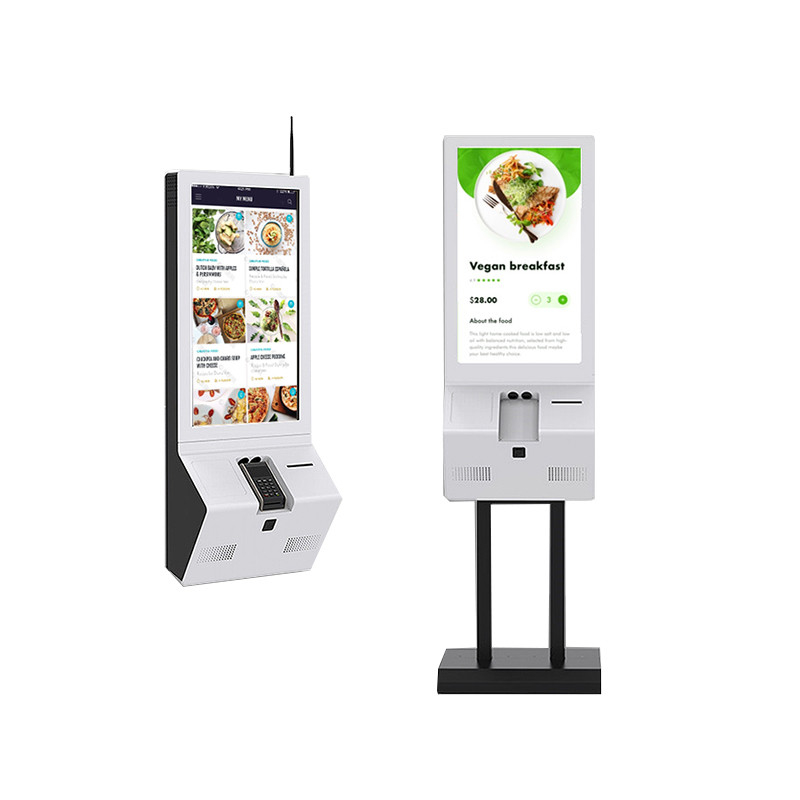

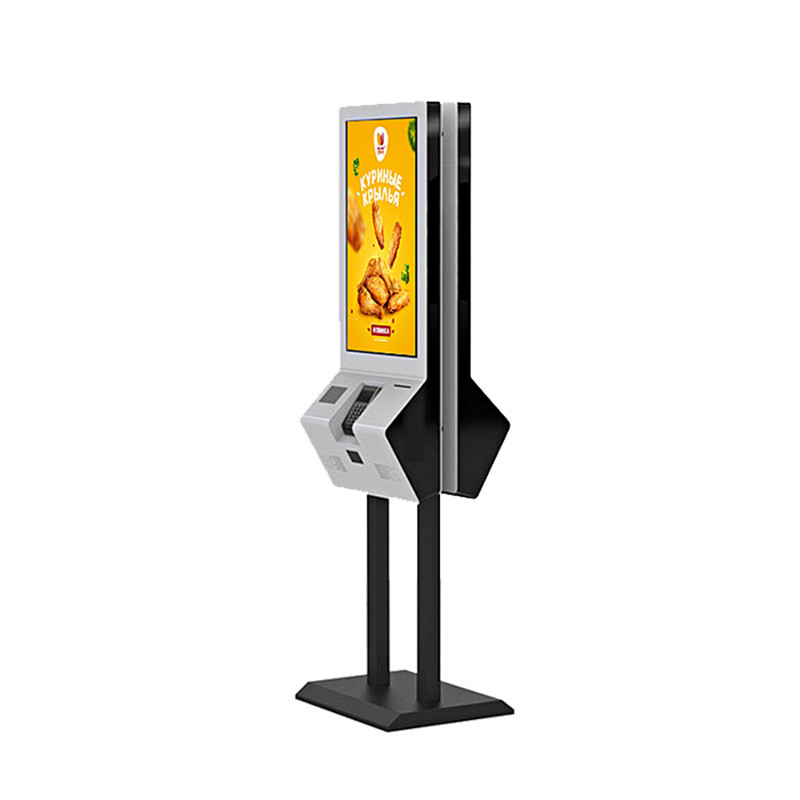

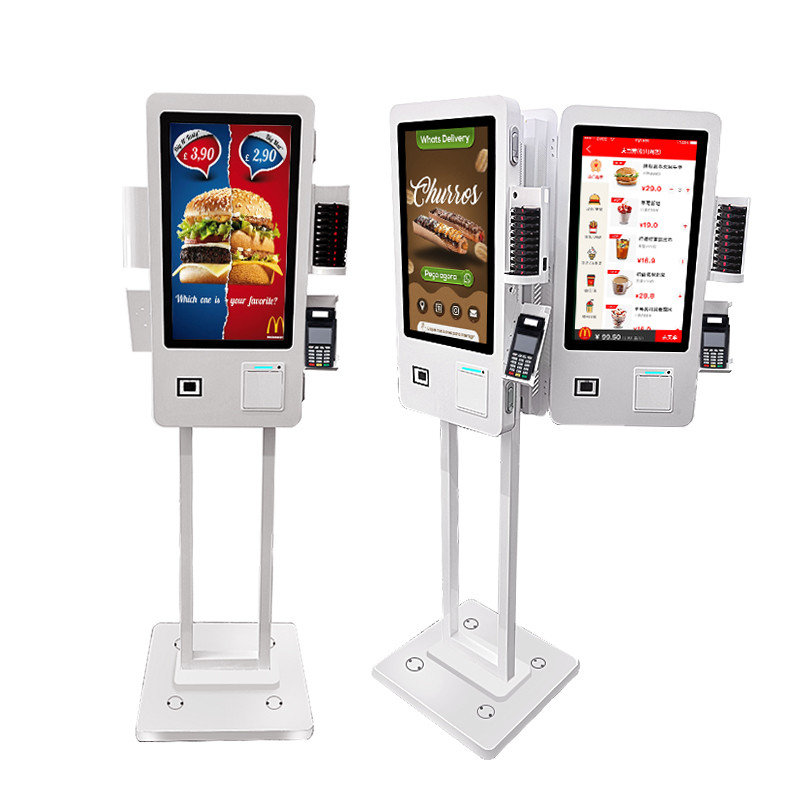

In today's rapidly evolving digital and intelligent landscape, the 32-inch self-service ordering machine has not only brought revolutionary changes to the catering industry, but its flexible and diverse hardware features also give it unique advantages in other fields. With its advanced technology, user-friendly design, and high customizability, this device has become an ideal choice for many businesses to improve efficiency and service quality.
In the catering industry's pursuit of both personalization and efficiency, the 32-inch customized self-service ordering machine, with its high adaptability and intelligent functions, has become a revolutionary tool for chain brands, themed restaurants, and high-end dining scenarios.
Addressing the differentiated needs of various catering formats, the 32-inch customized self-service terminal offers comprehensive customization services from hardware configuration to software interface.
The machine body supports brand VI color spraying, logo etching, and decorative element embedding, achieving seamless integration of the device with the store's visual system.
The screen interface can be custom-designed based on menu categorization logic and promotional activity modules, and even supports dynamic theme switching to meet the visual presentation needs of holiday marketing or seasonal limited-edition menus.
The device adopts a modular structure design, supporting flexible selection of peripherals such as printing modules, ID card readers, and membership card readers, adapting to the operational needs of different scenarios such as fast food, hot pot, and baking.
The industrial-grade dustproof and waterproof body, combined with a wide temperature range operation capability (-20℃ to 60℃), ensures stable operation in complex environments such as open kitchens and outdoor dining areas, significantly reducing equipment failure rates.
By integrating AI visual recognition and multimodal interaction technology, the 32-inch customized smart terminal offers innovative interaction methods such as voice ordering, gesture page turning, and facial recognition membership login.
Its extra-large touch interface supports dual-user operation, allowing customers to simultaneously browse menus and adjust set meal combinations during peak hours, reducing the average ordering time to less than 18 seconds.
The built-in intelligent recommendation engine dynamically pushes suitable dishes based on time of day, weather, and customer historical order data, improving average order value and new product conversion rates.
To enhance operational management, the device is equipped with a cloud-based data platform system, synchronizing real-time data on raw material consumption, dish sales, and equipment status across all stores.
Managers can monitor bottlenecks in food preparation efficiency through visual dashboards, automatically generating replenishment alerts and equipment maintenance plans.
Furthermore, customized API interfaces support seamless integration with third-party ERP and CRM systems, enabling advanced functions such as unified membership points redemption and cross-store discount verification.
The 32-inch customized self-service ordering machine, through deep customization and integration of intelligent technology, not only restructures the customer's ordering and payment experience but also becomes a core node in the digital operation of catering enterprises.
From reducing labor costs by 30% to increasing table turnover by 45%, from enhancing brand recognition to accumulating precise consumer data, this device is redefining the efficiency standards of catering services. With the maturity of technologies such as 3D dish projection and AR interactive menus, its value as a "smart service terminal" in catering spaces will continue to expand.
| LCD Panel Parameters | Screen Size | 32 inch | |
| Display area | 698(H) X 391.8(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 832 X 530 X 150mm | ||
| The Gross weight of Unit Package | 50kg | ||
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
