32 inch Curved Self Ordering Kiosk Square Self Order Kiosk With Immersive Display

32 inch Curved Self Ordering Kiosk Square Self Order Kiosk With Immersive Display

curved self ordering kiosk square

curved square self order kiosk

immersive square self order kiosk

Place of Origin:

Guangdong, China

Brand Name:

ZXTLCD

Certification:

CE/Rohs/FCC

Model Number:

ZXTLCD-SOK048

Chat Now
Request A Quote
Product Details
Screen Size:
32 Inch
Panel Type:
BOE Original A+ Grade IPS
Resolution:
1920 X 1080
Brightness:
350cd/m²
View Angle:
178°/178° (H/V)
Power Consumption:
80W
Operating Temperature:
0°C To 50°C
Cabinet Material:
Metal Case + Glass
Touch Screen:
10-point Capacitive Touch Screen
NFC Reader/scanner/QR Reader:
Support, Built-in
80mm Thermal Printer:
Support, Built-in
Passport Scanner:
Optional
POS Terminal Installation:
Resever Space
Power Supply:
AC 100~240V, 50hz-60hz
Application:
Hospitality, Hotel And Catering
Protype:
Desktop / Floor Standing /wall Mounted(Optional)
Highlight:

curved self ordering kiosk square

,

curved square self order kiosk

,

immersive square self order kiosk

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
wooden case, carton, flight cases are optional
Delivery Time
3-5 working days
Payment Terms
L/C,T/T,MoneyGram,Western Union
Supply Ability
2000 pcs per month
Product Description

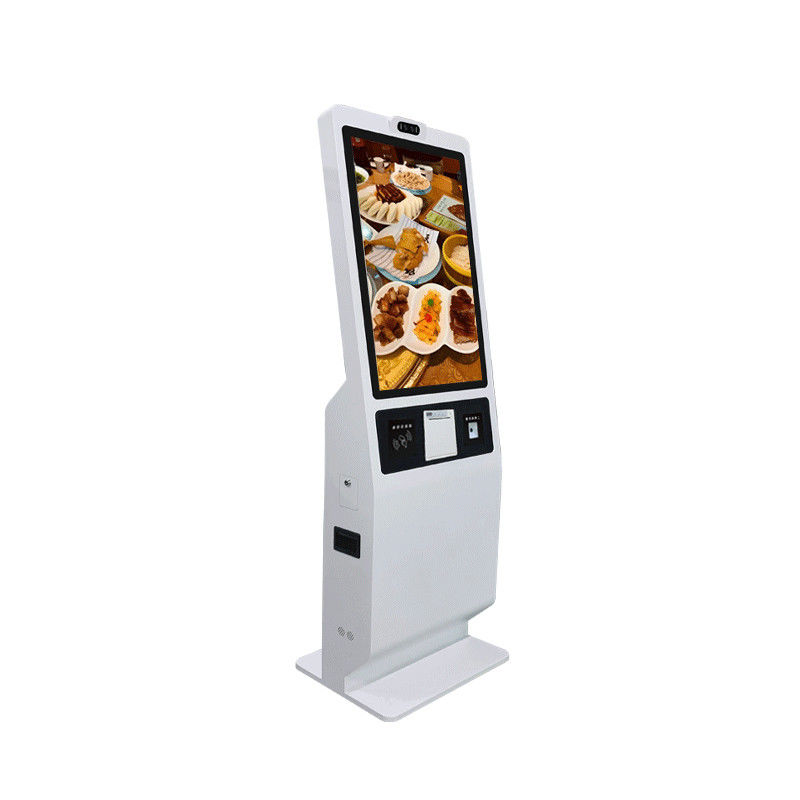

32 inch Curved Self Ordering Kiosk Square Self Order Kiosk With Immersive Display

In today's booming retail industry, the 32-inch self-service ordering terminal is leading the intelligent transformation of retail ordering with its unique advantages, bringing customers a convenient and personalized ordering experience, while also providing retail operators with efficient management tools.

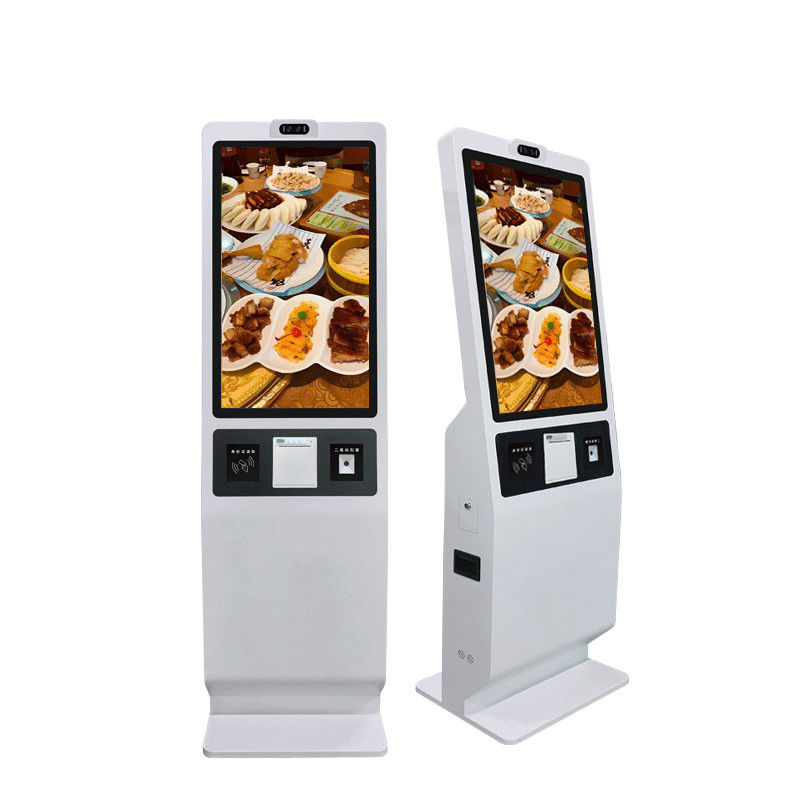

32 inch Curved Self Ordering Kiosk Square Self Order Kiosk With Immersive Display 0

32-inch Self-Service Ordering Terminal: Hardware Configuration for a Quality Choice

The 32-inch self-service ordering terminal boasts a superior hardware design. Its industrial-grade touchscreen not only offers fast response but also features waterproof, dustproof, and wear-resistant properties, allowing it to withstand prolonged, high-frequency use even in busy retail environments.


The entire device is constructed with a metal body, making it sturdy and durable, effectively resisting accidental impacts and scratches.


The internal high-performance processor ensures smooth and stable operation even when running large applications or multitasking, without lag or crashes. Furthermore, the terminal is equipped with a high-speed thermal printer, enabling fast and accurate printing of customer order information, providing strong support for store inventory preparation and delivery.


32-inch Retail Self-Service Ordering Terminal: Smart and Convenient Software Functions

In terms of software, the 32-inch retail self-service ordering terminal is highly intelligent. Its interface design is simple and intuitive, with clear product categorization, allowing customers to quickly find their desired items.


The addition of intelligent voice ordering makes the ordering process more convenient and enjoyable; simply speak the product name, and the machine will accurately recognize and complete the order, achieving an accuracy rate of over 95%. Simultaneously, the machine supports multiple payment methods, including WeChat Pay, Alipay, and UnionPay cards, allowing customers to easily complete payments without carrying cash. Furthermore, it features a membership management system, enabling retail stores to provide personalized services such as points, coupons, and birthday benefits to members, effectively improving customer loyalty and repeat purchase rates.

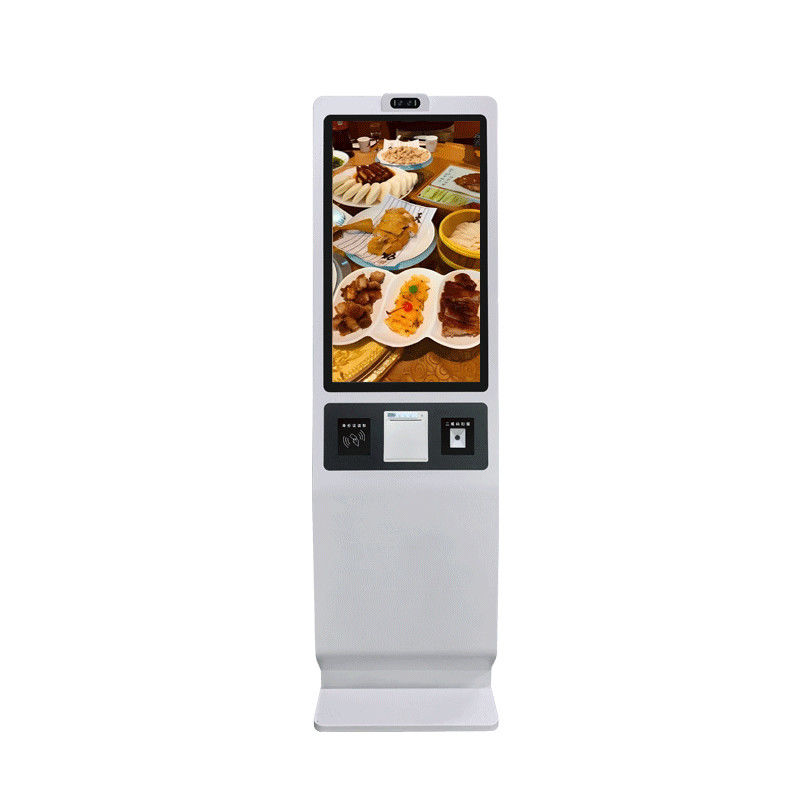

32 inch Curved Self Ordering Kiosk Square Self Order Kiosk With Immersive Display 1

32-inch Retail Self-Service Ordering Terminal: Multi-Scenario Applications, Flexible Adaptation to Retail Needs

The 32-inch retail self-service ordering terminal has a wide range of applicable scenarios. In convenience stores, it can be placed at the entrance or next to the checkout counter, allowing customers to order food themselves upon entering, reducing waiting time and enhancing the shopping experience.


In supermarkets, it can seamlessly integrate with the kitchen system, enabling rapid food preparation and improving operational efficiency.


In snack shops, milk tea shops, and similar establishments, it can attract more young customers through customized menu designs and marketing campaigns.


Furthermore, this ordering machine can be customized to meet the specific needs of retail stores, such as adding features like recommended specialty products and beverage pairing suggestions, creating a unique ordering solution for each store.


LCD Panel Parameters Screen Size 32 inch
Display area 698(H) X 391.8(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency  60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
        Mini PC Parameters          (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature  0 ~ 50
Storage temperature  below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size  832 X 530 X 150mm
The Gross weight of Unit Package  50kg


With its superior hardware configuration, intelligent software functions, and flexible multi-scenario application capabilities, the 32-inch retail self-service ordering terminal is becoming an essential tool in the retail industry. It not only brings customers a brand-new ordering experience, helping retail stores improve service quality and brand image, but also helps operators reduce costs and increase efficiency, driving the retail industry towards intelligence and digitalization, and will undoubtedly play an even more important role in the future retail market.
