Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK043
In today's fast-paced life, service efficiency and customer experience are paramount in the catering industry. The 21.5-inch self-service ordering terminal, with its moderate screen size, powerful hardware configuration, and flexible application scenarios, is an ideal choice for improving restaurant operational efficiency and service quality.

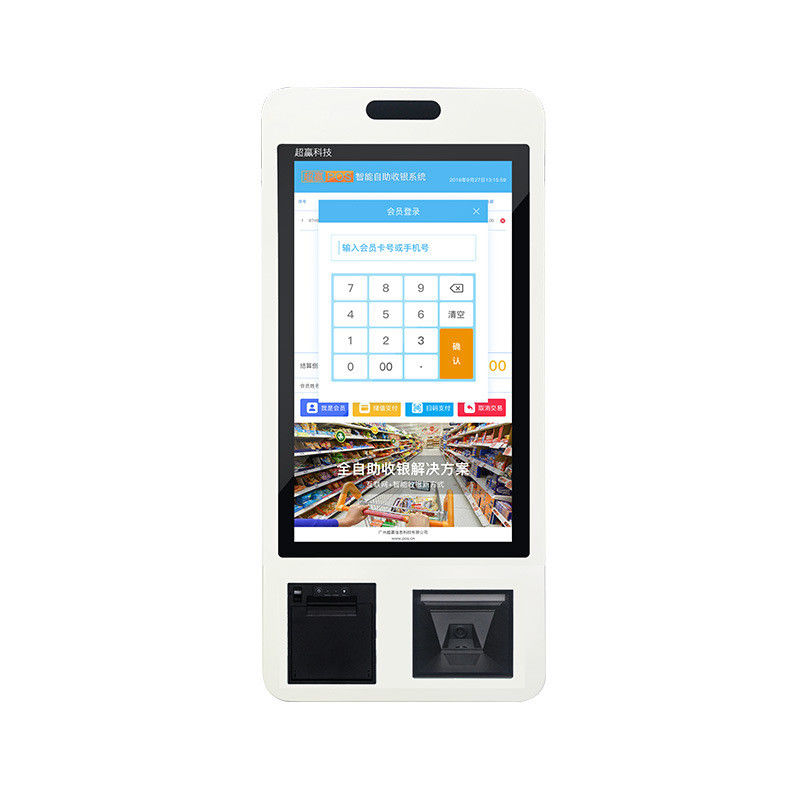

The 21.5-inch self-service ordering terminal is designed to balance aesthetics and practicality. Its 21.5-inch 1080P high-definition display not only provides a clear and detailed visual effect but also features a wide viewing angle, ensuring a good viewing experience for customers from any angle. The screen surface uses an anti-glare coating, maintaining clear visibility even in bright light and preventing reflections from affecting operation.
Internally, the device is equipped with a high-performance processor and large-capacity memory, ensuring smooth system operation and rapid response. Whether during peak hours or daily use, it can stably process orders and quickly respond to user operations. Furthermore, the terminal is equipped with a high-speed solid-state drive (SSD), further improving data read speed and system startup time, reducing customer waiting time.
To adapt to various complex operating environments, the 21.5-inch self-service ordering terminal adopts industrial-grade design standards. The casing is made of high-strength aluminum alloy, possessing excellent pressure resistance and corrosion resistance, effectively resisting impacts and wear during daily use. The device also features an efficient heat dissipation system, ensuring stable temperature during prolonged high-load operation and extending its service life.
Furthermore, the terminal is waterproof and dustproof, achieving an IP65 protection rating, suitable for various commercial environments. Whether in a humid kitchen area or a high-traffic restaurant lobby, the device operates stably, reducing maintenance costs and failure rates. This rugged and durable design makes the 21.5-inch self-service ordering terminal a reliable long-term choice for businesses.

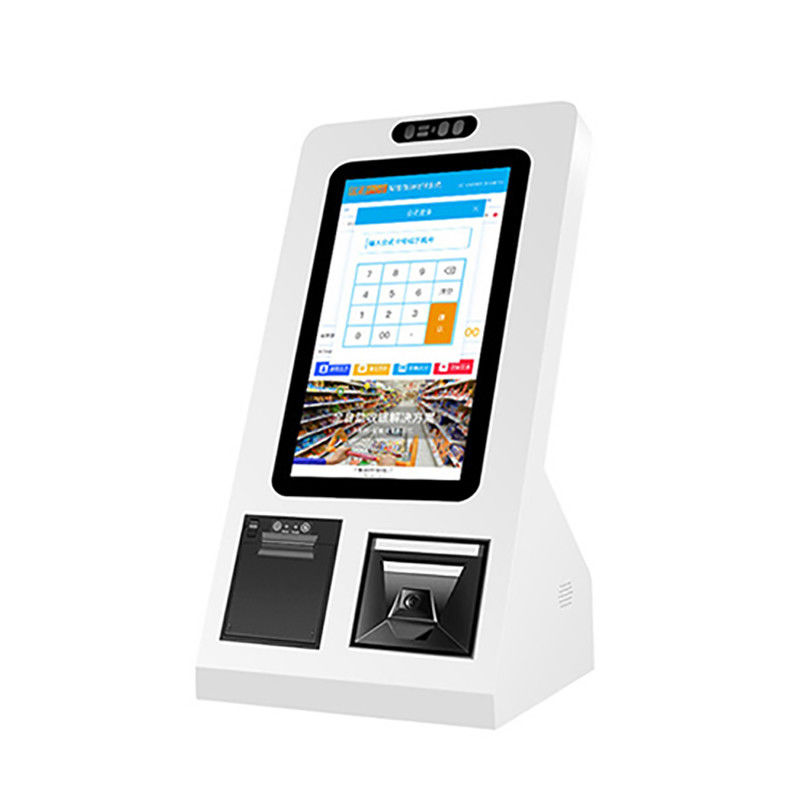

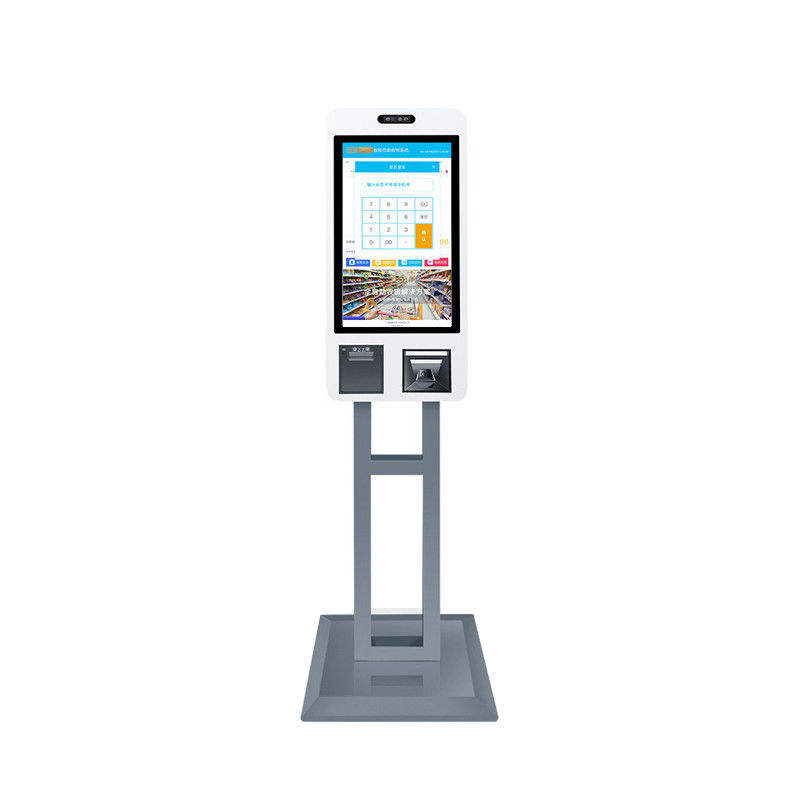

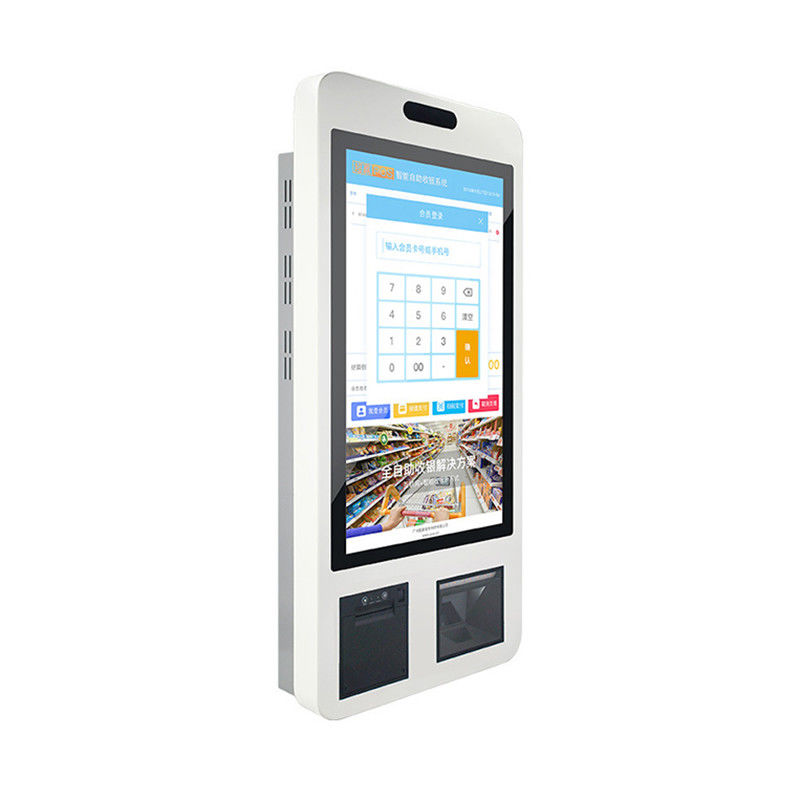

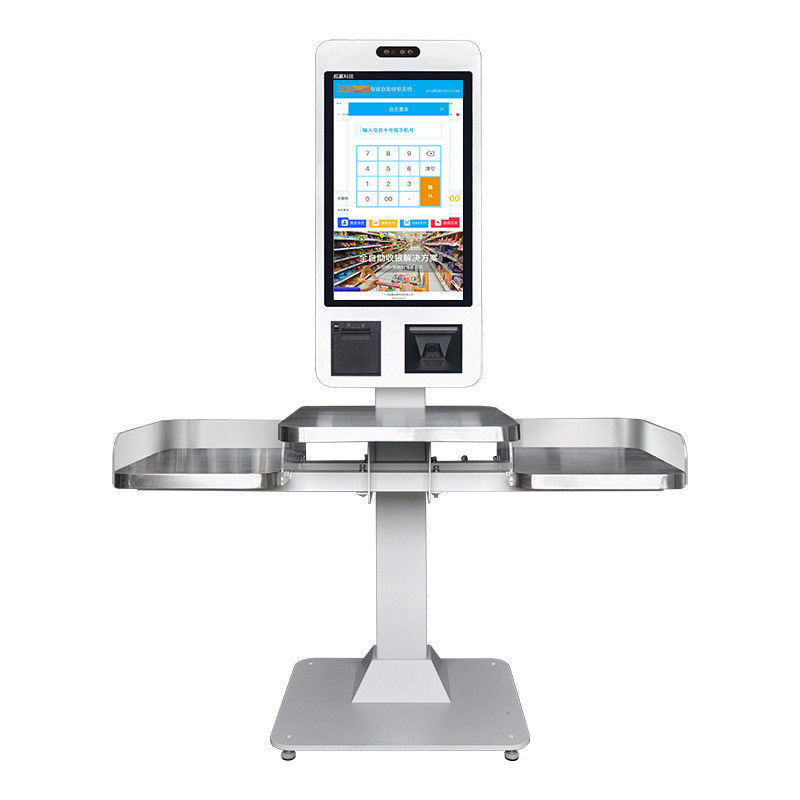

The 21.5-inch self-service ordering terminal supports multiple installation methods, allowing for flexible placement according to actual needs. In addition to the common vertical installation, the device can also be wall-mounted or recessed into a desktop to meet the needs of different space layouts. For example, in small fast-food restaurants, a desktop embedded installation can be chosen to save valuable counter space; while in large restaurants or shopping malls, a freestanding or wall-mounted installation can be used for convenient customer access.
The device is equipped with a height-adjustable stand at the bottom, allowing the screen height and angle to be adjusted according to the user's height and usage habits, providing a more comfortable interactive experience. Furthermore, the terminal supports a modular design, facilitating future expansion and upgrades, such as adding payment modules, printers, or other peripherals to further enhance its functionality.
With its elegant design, powerful hardware performance, and flexible installation options, the 21.5-inch self-service ordering terminal has become an indispensable part of the modern catering industry. Whether it's providing a clear menu display through a high-definition screen or ensuring stable operation over long periods through a robust and durable industrial-grade design, this device demonstrates its outstanding application potential. For businesses seeking to improve customer experience and operational efficiency, the 32-inch self-service ordering terminal is undoubtedly a worthwhile investment.
| LCD Panel Parameters | Screen Size | 21.5 inch | |
| Display area | 476.5(H) X 268(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||

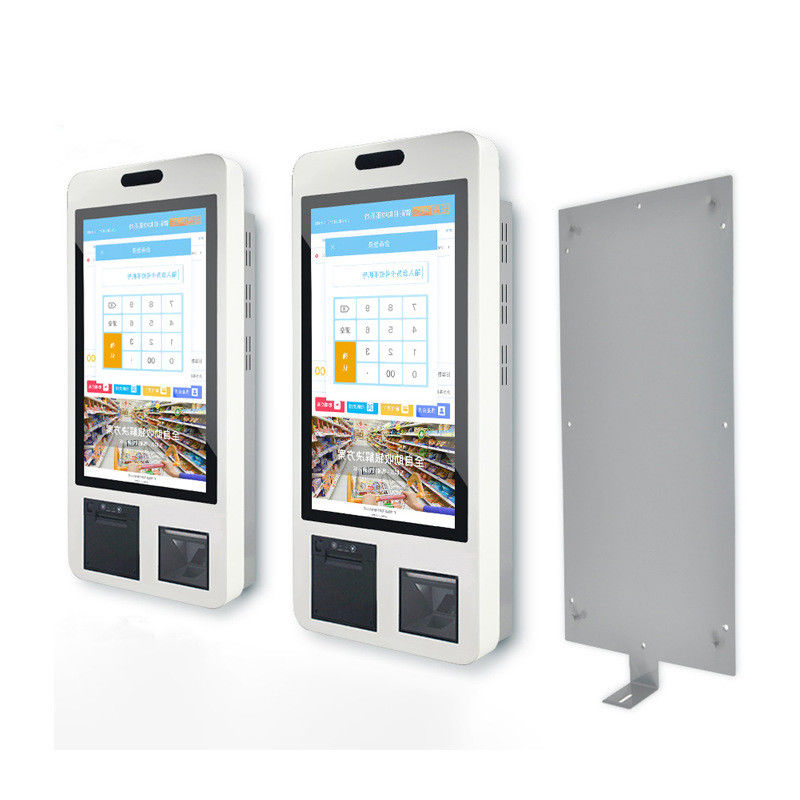

| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 585 X 380 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
