Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK040

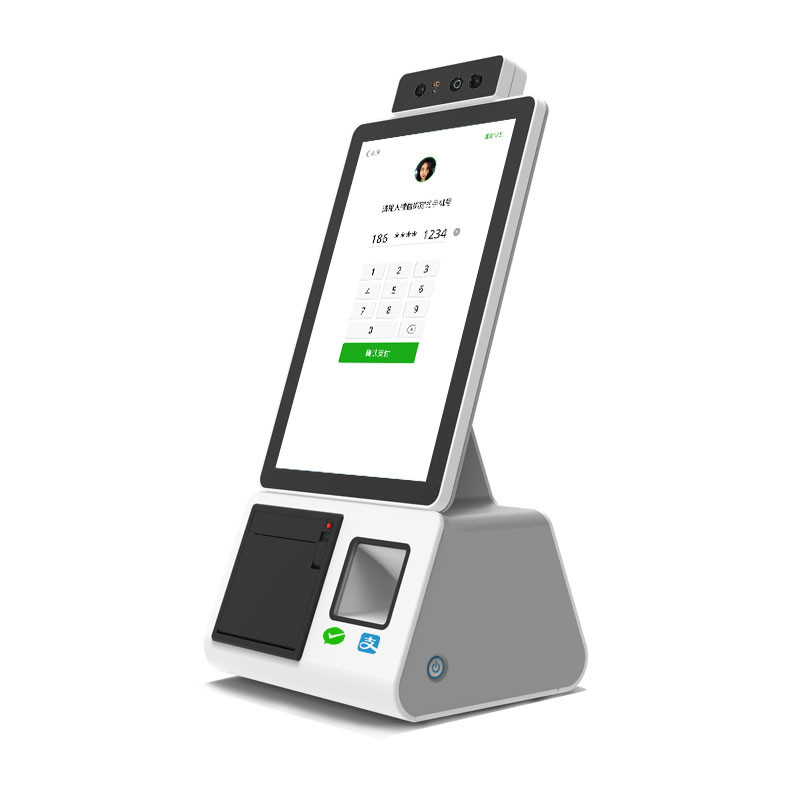

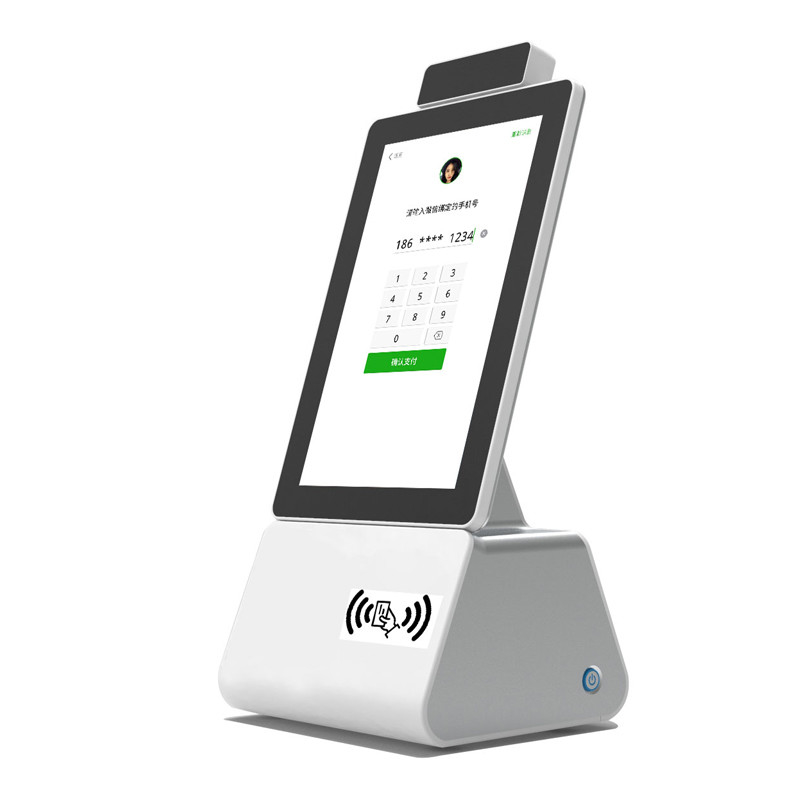

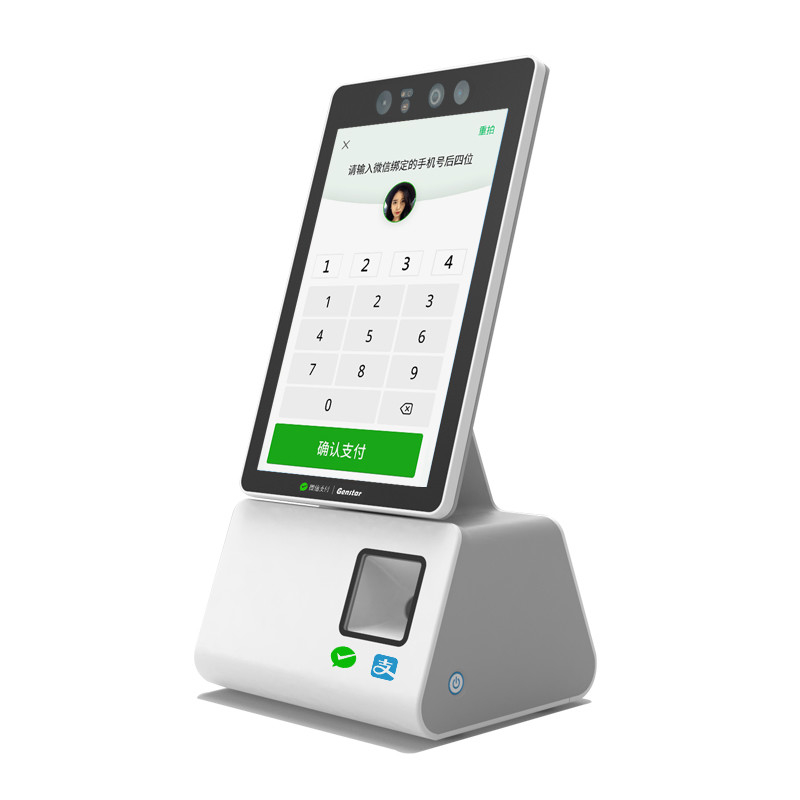

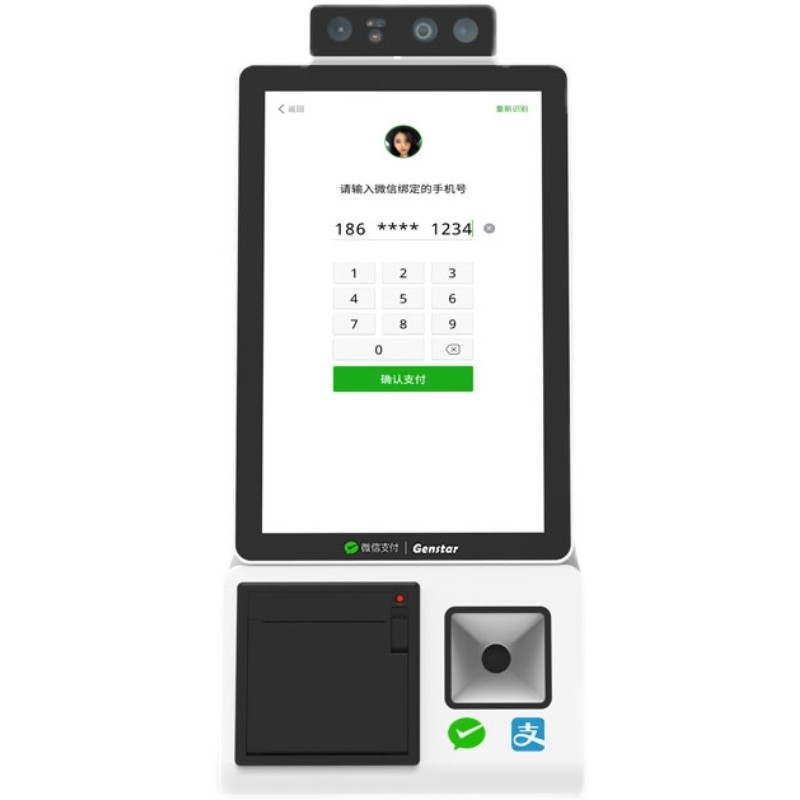

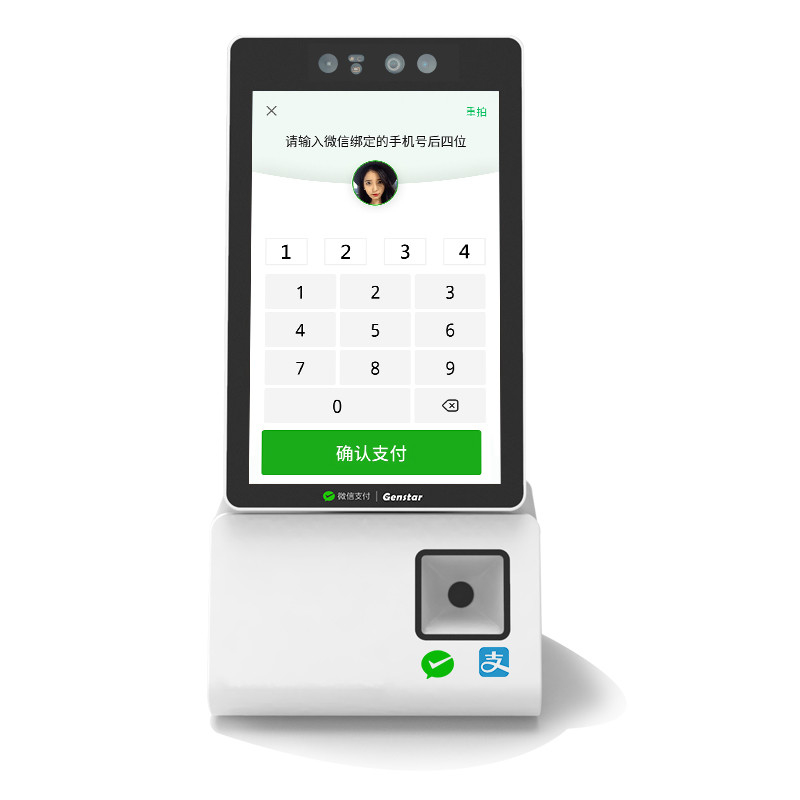

In an era of deep integration between contactless payment and smart commerce, facial recognition payment is evolving from innovative applications to inclusive services. Our facial recognition payment self-service ordering machine is not just a terminal device, but a complete, open, and deeply integrateable hardware foundation and development platform for payment service providers, software developers, and business partners, aiming to jointly build a safer, more efficient, and diverse payment ecosystem.
This hardware terminal integrates the core functional modules required for facial recognition payment, forming an integrated solution:
3D Structured Light Facial Recognition Payment: Provides secure, accurate, and fast liveness detection and payment verification.
QR Code Scanning Payment: Supports mainstream QR code payment methods and is compatible with diverse payment habits.
Receipt Printing: Built-in thermal printer for instant receipt printing after transaction completion.
Payment Advertising Screen: The payment interface and standby mode can be used as an advertising display window to tap into traffic value.
Standalone/Integrated POS: Can be used as a standalone POS terminal or integrated into existing POS systems as a peripheral.
We provide a comprehensive Software Development Kit (SDK) and guidance documentation, opening up underlying hardware capabilities to assist partners in deep development and business integration:
3D Structured Light Camera Development SDK: Utilizes core algorithms such as underlying face recognition and liveness detection.
Thermal Printer Development SDK: Controls ticket printing format, content, and trigger conditions.
Standalone POS Keyboard with Screen SDK: Enables functional development for standalone POS modes equipped with a display screen and numeric keypad.
Single/Dual-Wire Connected POS SDK: Enables communication and data interaction with various mainstream POS systems.
Voice Prompt Synthesis SDK: Integrates voice prompts and transaction announcement functions.
The hardware design supports multiple deployment modes to meet different needs, from standalone operation to deep integration:
1. Standalone POS Mode: After connecting a small keyboard, the device can be used as a standalone POS terminal without the need for a traditional POS machine, making it especially suitable for small and micro-merchants, stalls, or as a supplementary POS point.
2. Scanner Integration Mode (Simplified Connection): Used as a smart scanner, it is plug-and-play via simplex connection, quickly upgrading existing POS systems to facial recognition payment functionality with easy deployment.
3. Deep Integration Mode (Full-Duplex Connection): Deeply integrated with the POS system via full-duplex connection. It not only completes payments but also captures customer display data (such as amount and product information) from the POS system, achieving seamless synchronization between the payment process and POS data, and providing technical possibilities for value-added services and profit-sharing models based on transaction flow.
| LCD Panel Parameters | Screen Size | 15.6 inch | |
| Display area | 344.16(H) X 193.59(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 450 X 310 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
This facial recognition payment self-service ordering machine open platform hardware's value transcends the hardware itself. It serves as a bridge and cornerstone for us and our partners to jointly explore the future of payments and build a new business ecosystem. By providing stable and reliable hardware, fully open interfaces, and flexible and diverse models, we empower various partners to innovate rapidly in their respective fields, jointly promoting the implementation and deepening of facial recognition payment technology across all scenarios, including retail, catering, travel, and government affairs, and working together to usher in a new chapter of smart payments.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
