Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK037
In today's fast-paced life, queuing has become a major pain point affecting the consumer experience. Our series of self-service ordering terminals, with the core goal of "eliminating queues and doubling efficiency," integrates smart ordering, convenient payment, and smart marketing, fully empowering the catering, retail, and supermarket industries and reshaping an efficient and smooth service experience.
We offer 24-inch and 32-inch self-service ordering machines in mainstream sizes to meet the needs of different spaces and customer flows.
Capacitive Touchscreen: Utilizing high-sensitivity capacitive touch technology, it offers rapid and accurate response, providing a smooth and seamless operation like a smartphone.
Dual System Support: Fully compatible with both PC (Windows) and Android platforms, allowing flexible selection based on your software preferences and backend management system, ensuring stable operation and strong compatibility.
Integrated Experience: Integrates the complete "order-pay-ticket" process. After the customer completes their order, the system automatically generates an order and guides payment. Upon successful payment, a receipt is printed instantly, all in one seamless process.
Enhanced Customer Experience: Achieve "Smart Ordering, No Queues." Customers can leisurely browse menus, customize their orders, and enjoy a self-directed, stress-free ordering process, significantly improving satisfaction and table turnover.
Double Operational Efficiency: Automating ordering and cashiering effectively alleviates front-of-house pressure during peak hours, allowing servers to focus more on food preparation, delivery, and personalized service, resulting in a significant improvement in overall operational efficiency.
Leave the Professional Work to the Professional Equipment: We focus on building reliable and easy-to-use self-service terminals to help you completely solve the queuing problem and make your business easier.
Omnichannel Payment Support:
Card Payment: Supports various bank cards and stored-value cards.
QR Code Payment: Supports both active and passive scanning modes, perfectly integrated with mainstream mobile payment platforms such as WeChat Pay and Alipay.
Other Payment Methods: NFC, facial recognition, and other emerging payment methods can be integrated as needed.
Intelligent Advertising and Marketing Mode:
When the device is idle, the screen automatically switches to a high-definition advertising player, looping brand promotional videos, new product recommendations, and promotional activities.
This transforms waiting time into prime brand exposure time, effectively attracting customer attention, stimulating consumption desire, achieving "dual-purpose functionality," and maximizing the return on hardware investment.
We offer a variety of terminal products to adapt to different installation environments and business needs:

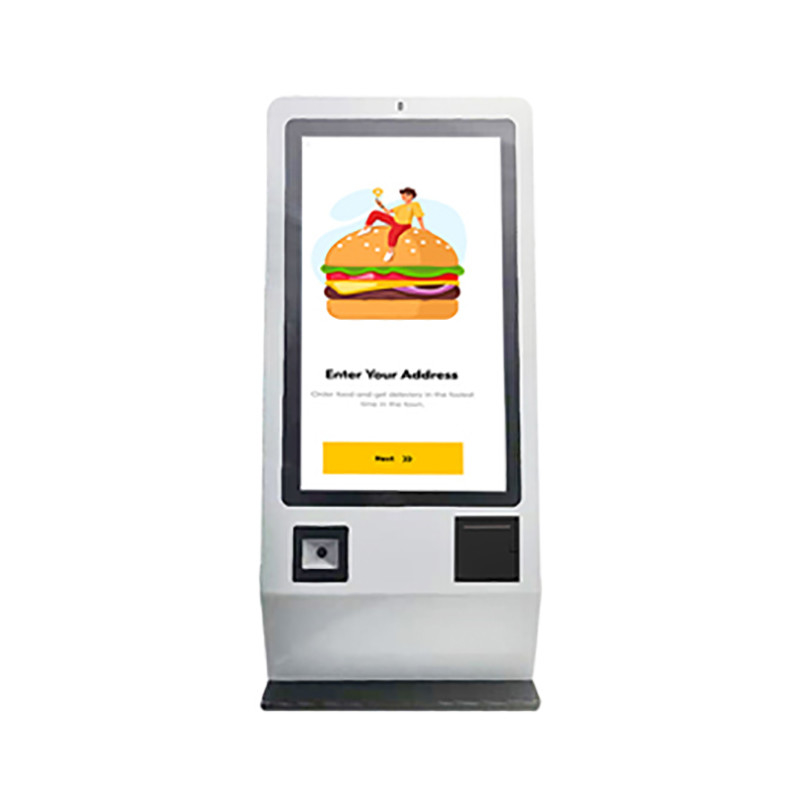

Tabletop Ordering Machine: Compact and flexible, suitable for fast food restaurants, coffee shop counters, or areas with limited space.

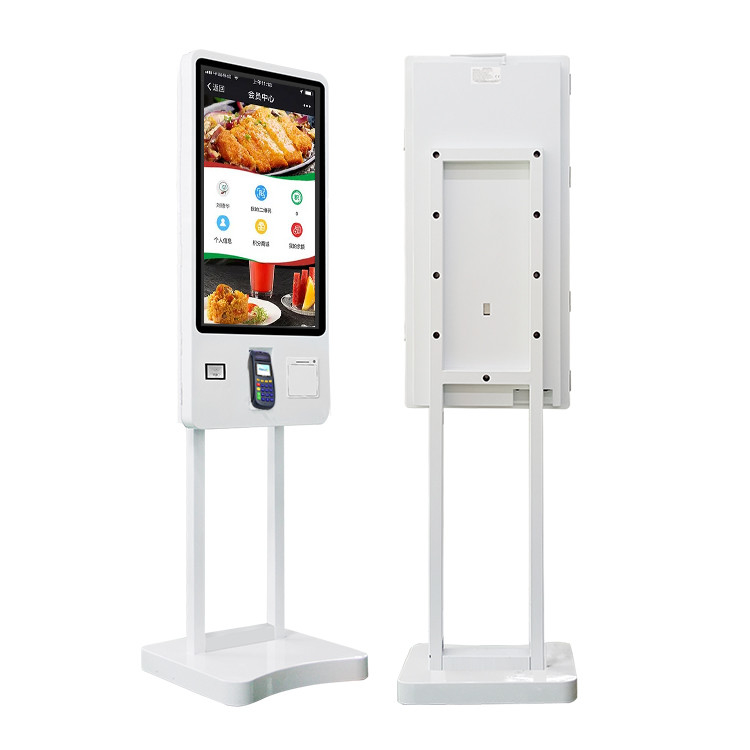

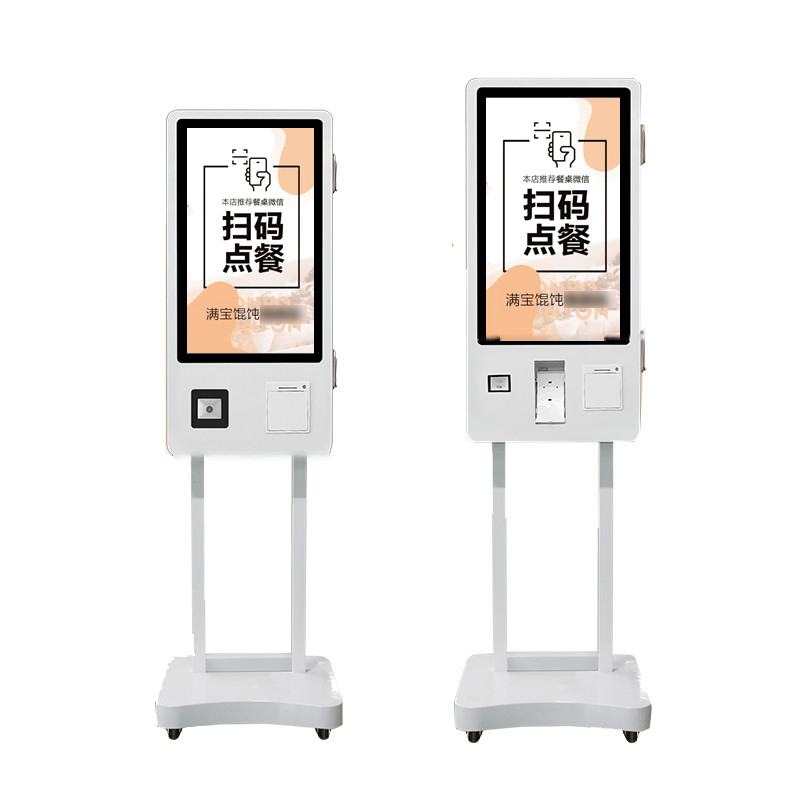

Standing Ordering and Ticket Collection Machine: Standard form, highly integrated, suitable for restaurant entrances and shopping mall food courts.
Angled Ordering Machine: Ergonomically designed for a more comfortable writing and operating angle, commonly found in fast food restaurants.
Ordering Machine with Call Number Display: Integrates a call number display screen, directly showing the order number after ordering, making the process more intuitive.
Dual-sided ordering kiosks: Operable from both sides, greatly improving single-machine service efficiency and suitable for peak hours with high customer traffic or wide areas.
From full payment coverage to transforming idle periods into advertising screens, and to diverse product formats, our self-service ordering solutions are dedicated to creating value for you in every detail. Choosing us means choosing to use technology to say goodbye to queues and congestion, and to embrace a new era of efficient, intelligent, and dynamic business operations.
| LCD Panel Parameters | Screen Size | 21.5 inch | |
| Display area | 476.5(H) X 268(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||

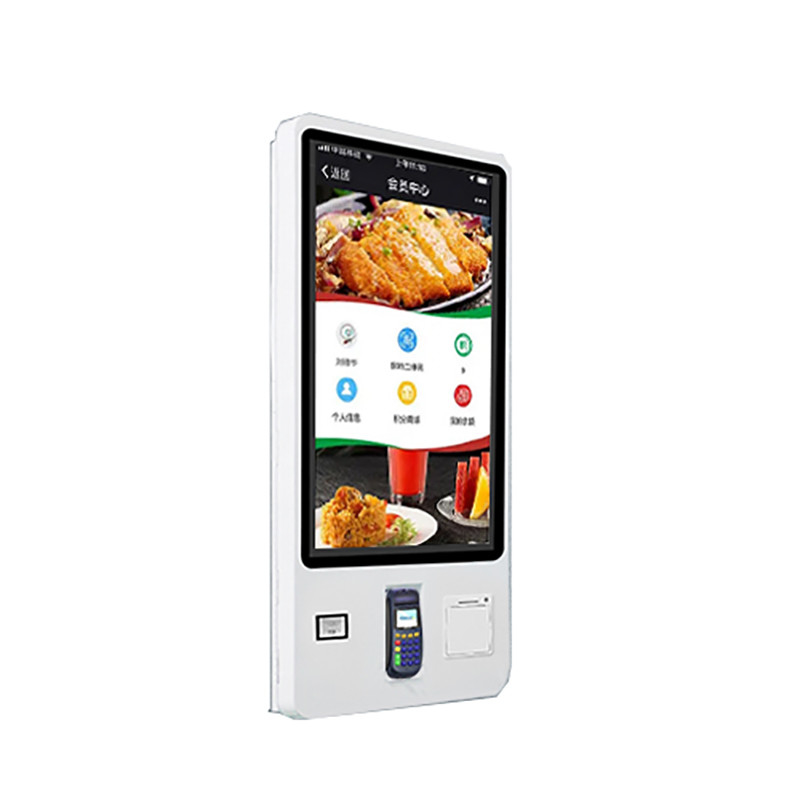

| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 585 X 380 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
