Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK034
In today's fast-paced life, consumers expect a more convenient and autonomous dining experience, while catering businesses strive for a win-win situation of operational efficiency and cost control. Self-service ordering machines, with "Easy Meal" as their core concept, provide the catering industry with a ready-to-use and continuously empowering smart solution through high-performance hardware configuration, intuitive interactive design, and integrated cloud management.
The high-end, easy-to-use self-service ordering machine is designed with the user at the center, featuring a clear and intuitive ordering process. Customers simply need to "click the screen to start ordering" to easily complete the entire process of "selecting food — adjusting — paying" under intelligent guidance.
The device supports intelligent prompts throughout the process. During self-checkout, the screen simultaneously displays the name, quantity, unit price, and total price of the selected items, making everything clear at a glance. Combined with intelligent voice prompts, even first-time users can quickly get started, achieving a seamless "no-training, instant-use" experience, significantly shortening ordering decision time and improving service smoothness.

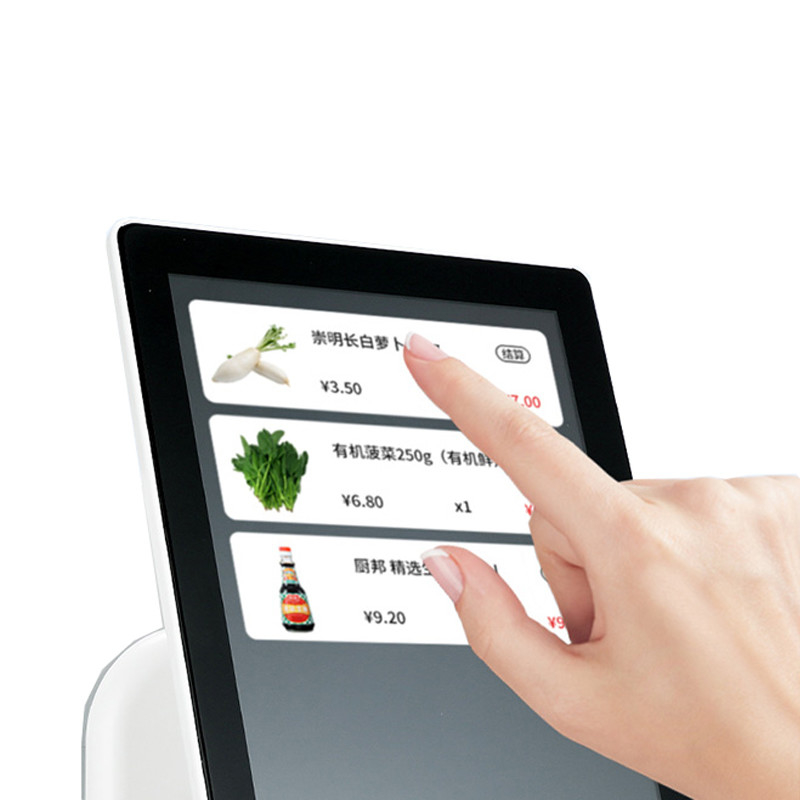

The device is equipped with a quad-core processor and 64GB of high-speed flash memory, ensuring smooth system operation and enabling rapid loading of menu images and multitasking. The 10-point capacitive touchscreen is highly responsive, supporting multi-touch and gesture operation, providing a smooth interactive experience.
The high-end, easy-to-use self-service ordering machine has a built-in 80mm high-speed automatic cutter thermal printer, which can quickly and quietly print clear receipts after order confirmation, improving order processing efficiency and professionalism. Its stylish design blends perfectly with modern restaurant spaces, enhancing the store's technological feel and brand image.
Merchants can manage store operations anytime, anywhere via computer or mobile backend. The system supports real-time information synchronization across multiple devices, allowing managers to easily perform the following operations on PCs or mobile devices:
Real-time monitoring of store status: View sales data, order flow, and menu item sales rankings;
Remote updates and management: Adjust menus, prices, and promotional activities at any time and instantly synchronize them to all terminals;
Business data analysis: Obtain multi-dimensional business reports to provide data support for marketing decisions and supply chain optimization.
This "cloud + terminal" management model breaks down the limitations of time and space, making chain store management more efficient and individual store operations more worry-free.
The high-spec, user-friendly self-service ordering machine is not only an efficient front-end service tool but also an intelligent hub connecting customers, products, and data. With its user-friendly interface, reliable performance, and intelligent management, it helps catering businesses improve customer experience while achieving digitalization, visualization, and refinement of operations, representing a reliable step towards intelligent operation in the catering industry.
| LCD Panel Parameters | Screen Size | 15.6 inch | |
| Display area | 344.16(H) X 193.59(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 450 X 310 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
