Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK033
In today's wave of digital transformation sweeping across all industries, self-service ordering machines have evolved from simple catering equipment into comprehensive intelligent interactive platforms applicable to multiple fields such as finance, government affairs, transportation, and retail. As a source manufacturer, we leverage our deep technological accumulation and flexible customization capabilities to create exclusive, efficient, and reliable self-service solutions for different industries, driving the intelligent upgrade of public services and business operations.
As a source manufacturer, ZXTLCD possesses a complete industrial chain capability from design and R&D to production and assembly. This enables us to break through the limitations of standardized products and provide customers with deep and flexible customization services. Whether it's the appearance style, hardware configuration, functional modules, or software systems and interaction processes, everything can be tailored to the specific industry's business processes, usage environment, and brand image.
Appearance and Structure Customization: Offering a variety of sizes, shapes, materials, and colors to ensure aesthetic integration of the equipment with the usage scenario.
Hardware Module Customization: Integrate various professional peripherals as needed, including ID card readers, passport readers, magnetic stripe readers, document scanners, fingerprint modules, receipt printers, barcode scanners, and cameras.
Software System Customization: Can be equipped with Windows, Android, or Linux systems, and deeply developed to meet industry standards for business applications, achieving seamless integration with existing backend systems.
Leveraging our powerful customization capabilities, our self-service terminals have successfully empowered numerous industry scenarios, demonstrating broad applicability and enormous value potential:
1. Airport and Transportation Hub Scenarios
In transportation scenarios such as airports, the terminal transforms into a "smart travel assistant":
Self-service Check-in and Seat Selection: Passengers can quickly check in, print boarding passes and baggage tags.
Self-service Ticketing: Enables self-service inquiry, purchase, rescheduling, and printing of air tickets and train tickets.
Self-service Information Inquiry: Provides real-time information such as flight/train schedules, airport maps, and transportation connections.
Integrated Commercial Services:Integrating self-service ordering, product preview, and quick payment functions for retail and catering in the waiting area.
2. Banking, Government, and Enterprise Scenarios
In the public service and business sectors, terminals become key nodes for improving efficiency and optimizing experience:
Self-service Business Processing: Supporting self-service bank account opening, transfers, and transaction record printing; self-service application, form filling, payment, and certificate printing in government service halls.
Self-service Check-in and Ticket Collection: Self-service registration and visitor card printing for corporate visitors; self-service number taking and queuing for citizens.
Self-service Inquiry and Certificate Issuance: Providing policy and regulation information and service guides, and supporting self-service photo taking and reading of ID card/bank card magnetic stripe information.
Self-service Material Collection: Self-service collection of office supplies, documents, etc. within enterprises.
3. Retail and Catering Scenarios (Deepened Application)
In the commercial consumption sector, terminals continue to evolve:
Self-service Checkout and Barcode Scanning: Supermarkets and convenience stores achieve integrated self-service scanning, bagging, and payment of goods.
Self-service ordering and pickup: Restaurants, cafes, and fast food outlets support fully self-service operations, integrated with kitchen display systems and pickup lockers.
Membership and marketing services: Integrates member identification, coupon verification, and interactive advertising functions.
| LCD Panel Parameters | Screen Size | 21.5 inch | |
| Display area | 476.5(H) X 268(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 585 X 380 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||

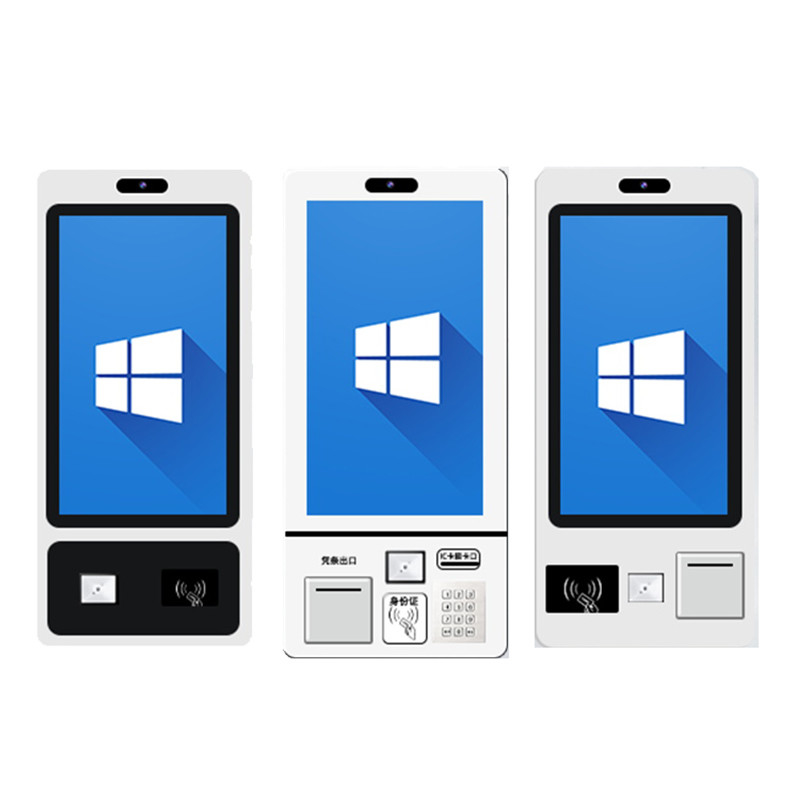

Diverse styles, choose according to your needs: There's always one that suits you. ZXTLCD offers a wide range of basic product models and style options, covering various forms such as freestanding, tabletop, and wall-mounted, as well as different sizes of touchscreen configurations. Customers can then personalize these options to quickly obtain a self-service ordering machine that meets industry requirements while also reflecting their brand's unique characteristics.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
