Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK022

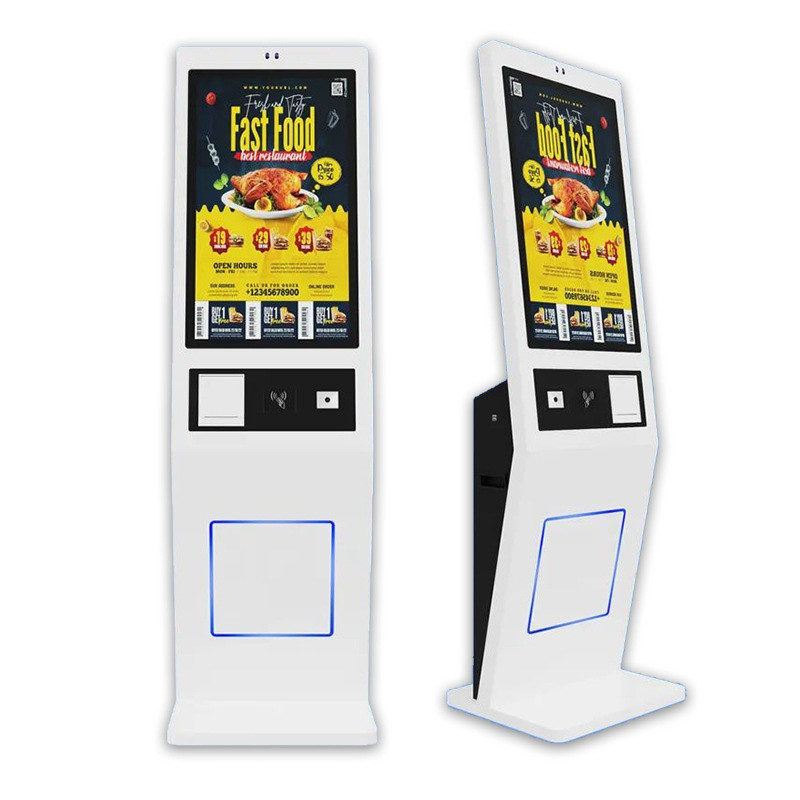

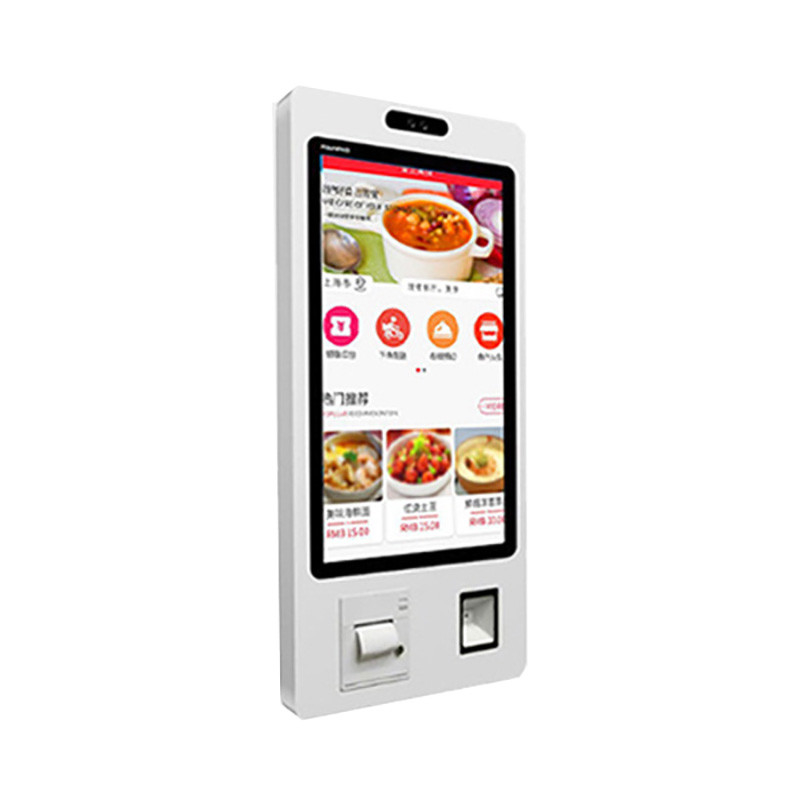

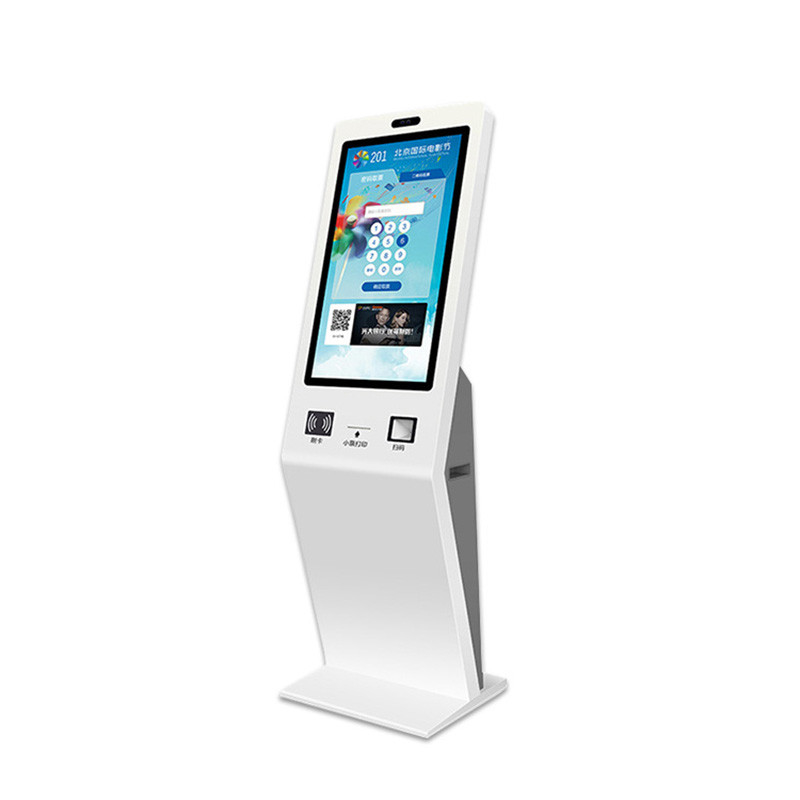

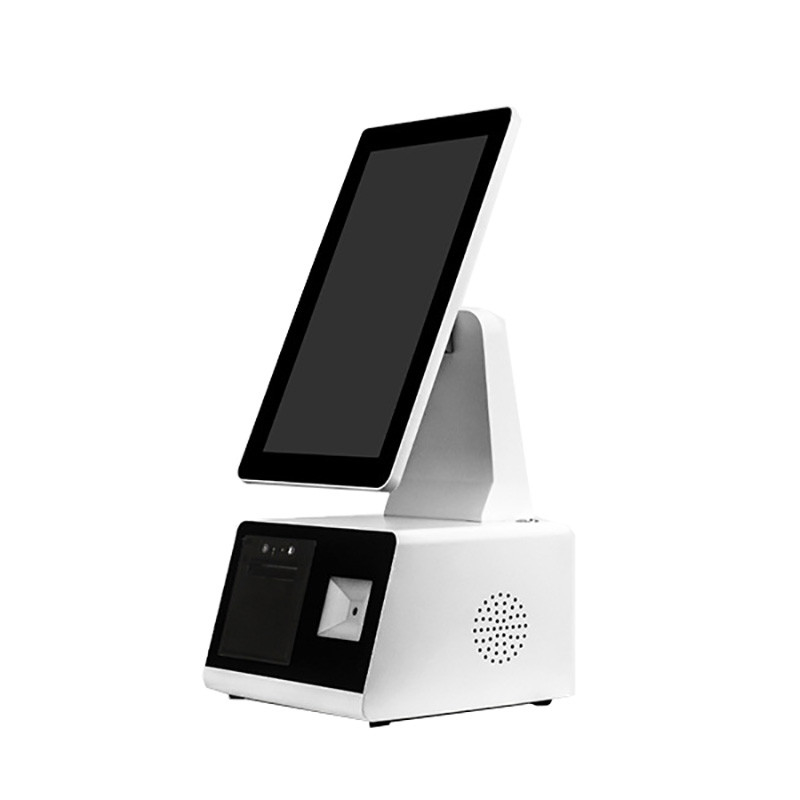

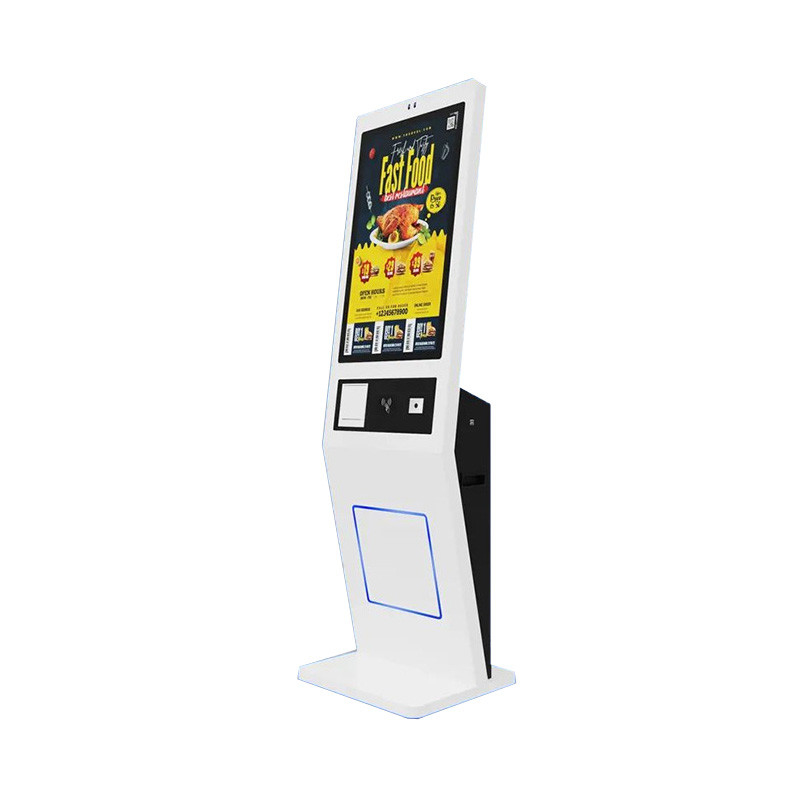

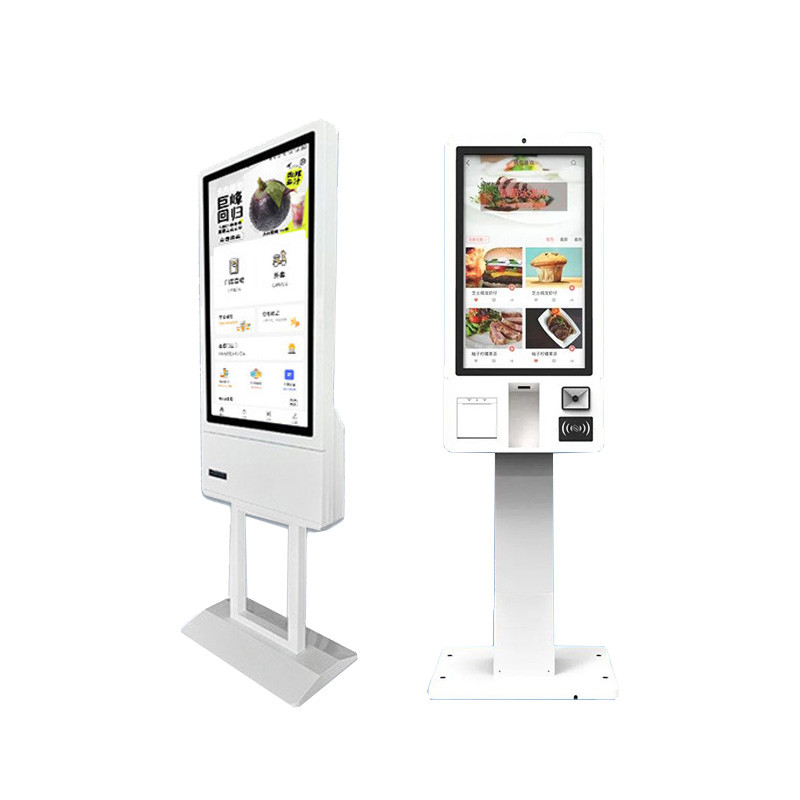

In today's world of heightened health awareness and accelerated digital transformation, contactless and highly efficient self-service has become the new standard for business operations. The intelligent multifunctional self-service ordering kiosk, as a comprehensive terminal integrating self-service ordering, payment, and printing, is leading various industries into a new era of low-cost, high-efficiency operations thanks to its superior display quality, flexible customization capabilities, and wide industry applicability.
The device deeply integrates facial recognition payment and self-checkout functions, allowing customers to complete identity verification and payment without any physical contact. The transaction process is safe, fast, and hygienic. This contactless shopping method not only meets the health needs of the post-pandemic era but also significantly reduces customer waiting time through self-checkout, improving the smoothness and autonomy of the shopping experience.
We insist on using brand-new, original factory A-grade LCD screens, eliminating salvaged and secondhand screens to ensure superior and stable display performance from the source. Each screen is carefully selected to ensure no bright spots or dark patches, and true color reproduction. Combined with multi-layer optical protection technology, the screen provides 1080P full HD resolution and high brightness, ensuring clear and sharp information display even in complex lighting environments such as shopping malls and restaurants, laying a solid visual foundation for interactive experiences.
As a multi-functional all-in-one machine, it highly integrates the functions of traditionally scattered ordering, cashiering, and printing equipment:
Self-Service Ordering/Checkout: Customers can independently complete the entire process of browsing, selecting, and paying for goods.
Kitchen Printing: Orders are synchronized to the kitchen printer in real time, improving food preparation efficiency and accuracy.
Cash Processing (Optional): Some models support cash payment, meeting the payment needs of all customer groups.
This integrated design not only reduces the types and quantities of hardware equipment merchants need to purchase, lowering initial investment and maintenance costs, but also simplifies the front-end layout, optimizes operational flow, and achieves centralized control of operating costs from multiple perspectives.
We offer a rich selection of basic models and support in-depth customization of appearance and function. Whether it's the exterior material, structural form, screen size, or specific functional modules (such as ID card readers, barcode scanners, receipt printers, etc.), personalized designs can be created according to the business processes and aesthetics of different industries, ensuring the device seamlessly integrates into various self-service scenarios such as banks, government service halls, hospitals, airports, retail stores, and restaurants.
The intelligent multi-functional self-service ordering machine is not just a machine, but a future-oriented business service concept. It ensures safety and convenience with contactless technology, provides reliable interaction with superior quality, drives cost optimization with integrated design, and empowers cross-industry collaboration through deep customization. Choosing it means choosing service upgrades driven by technological innovation, steadily stepping into a new era of intelligent and self-service commerce while improving operational efficiency and customer satisfaction.
| LCD Panel Parameters | Screen Size | 27 inch | |
| Display area | 597.9(H) X 336.3(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 720 X 460 X 120mm | ||
| The Gross weight of Unit Package | 50kg | ||
