In the retail and catering industries, the efficiency and experience of the checkout process directly impact customer satisfaction and store operating costs. The 15.6-inch high-definition self-service checkout machine, with its facial recognition payment, intelligent identification, dual-screen interaction, and minimalist design, is becoming the intelligent core for stores to reduce costs, increase efficiency, and enhance the shopping experience. It's not just a checkout device, but a smart service hub connecting customers, products, and data.
![]()
The device deeply integrates facial recognition payment and QR code payment functions, allowing customers to complete identity verification and payment confirmation in one second, greatly improving checkout efficiency. This contactless payment method is not only safe and hygienic, but also minimizes the reliance on manpower in traditional checkout processes, effectively helping merchants reduce labor costs and shorten customer waiting times.
Shorter waiting times lead to a smoother shopping process, directly translating into higher customer satisfaction and retention rates. The device also supports cash payments, accommodating various payment habits and ensuring service inclusivity.
![]()
Equipped with a 15.6-inch high-definition touchscreen, using G+G capacitive touch technology, supporting precise ten-point touch. The screen is highly responsive and the touch is smooth, ensuring a seamless operating experience even during peak hours. A clear interface and intuitive guidance allow customers to easily complete the entire process of scanning, verifying, and paying for goods, achieving "easy to understand at a glance, easy to access with a single touch."
![]()
The device offers multiple configuration options to adapt to different scenarios:

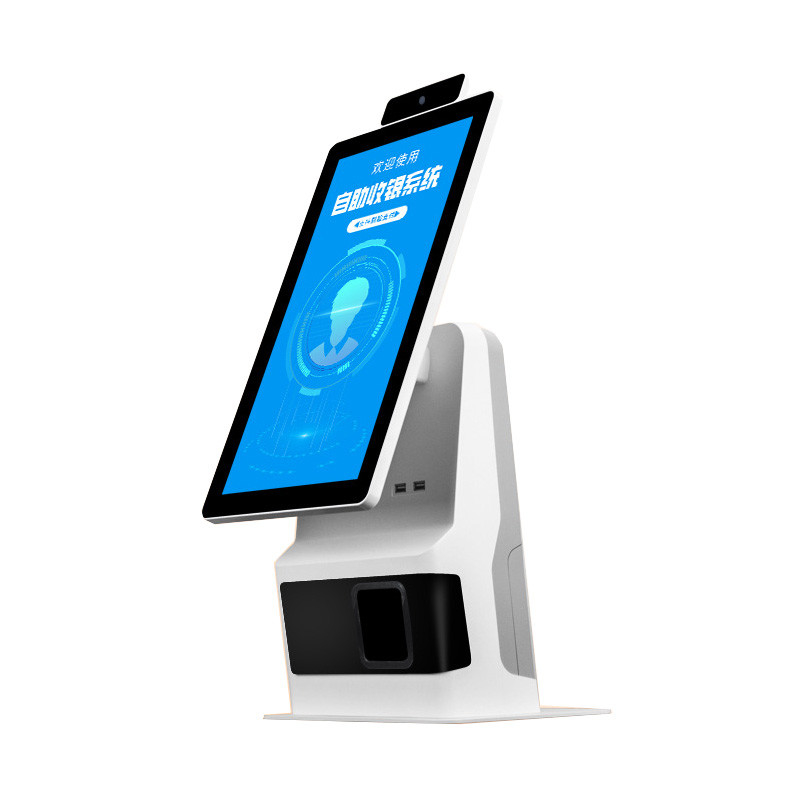

Single-Screen All-in-One Machine: Integrated and simple, saving space, suitable for compact spaces such as fast food restaurants and cafes.

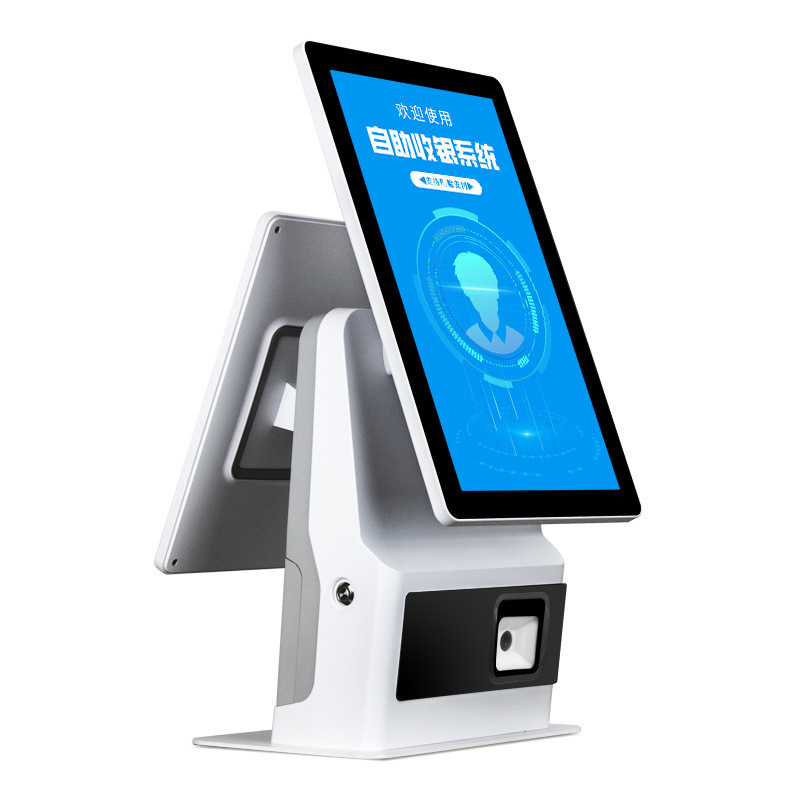

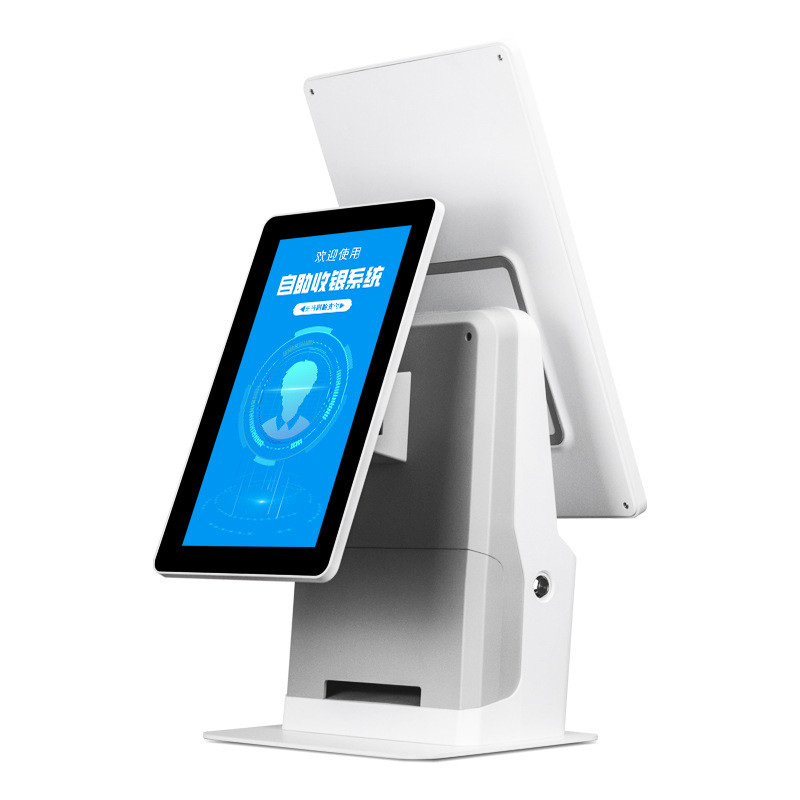

Dual-Screen Interactive Machine: The main screen faces the customer for operation, while the secondary screen faces the staff for confirmation or to display order details and promotional information, enhancing interaction and trust.

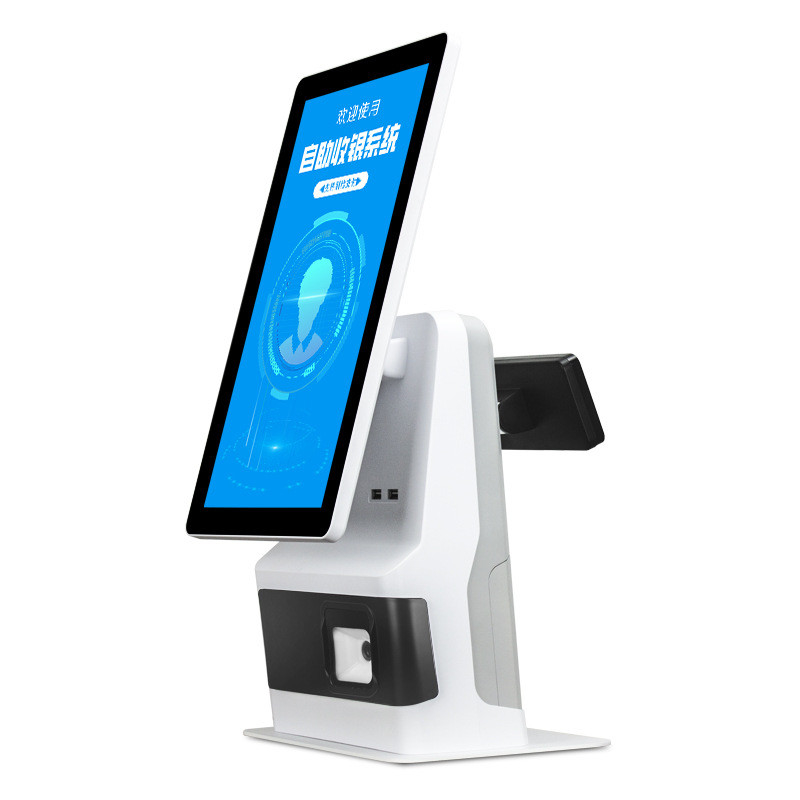

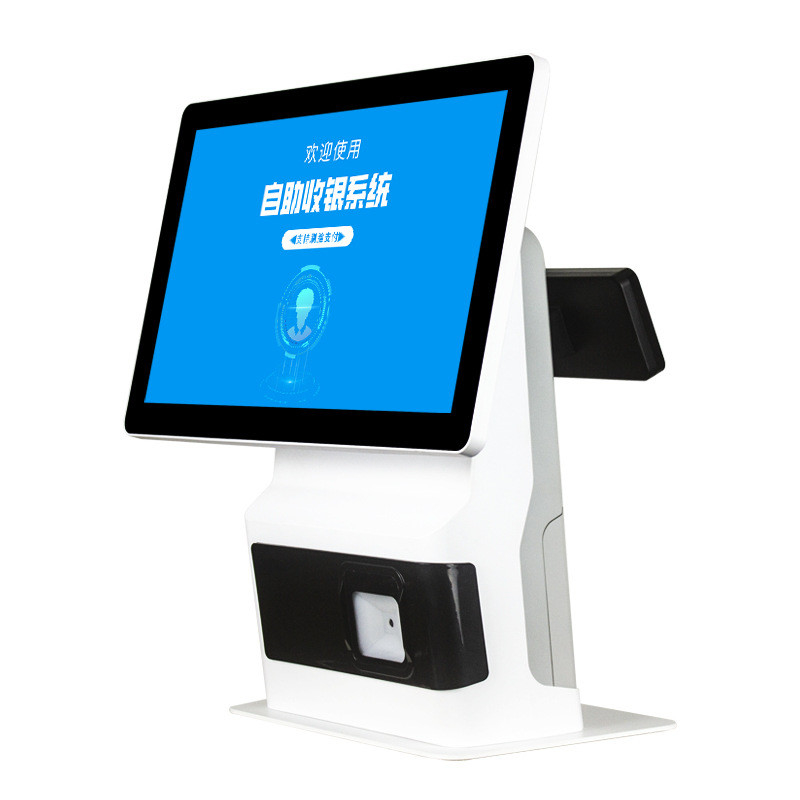

Vertical Integrated Scanning Machine: Integrates the scanning window and screen into one unit, allowing customers to complete scanning, viewing, and payment in one stop, resulting in a simpler and more efficient workflow.
Its integrated, minimalist design boasts an elegant appearance, doesn't occupy excessive space, and seamlessly blends into various store décor styles, enhancing the overall technological feel and sophistication of the store.
![]()
With its flexible configuration and powerful functions, this self-service checkout machine is suitable for a wide range of commercial scenarios:
Tea Shops and Coffee Shops: Quickly handles high-frequency, small-amount orders, and improves production efficiency with its order queuing system.
Fast Food Restaurants and Canteens: Supports self-service order selection and QR code payment, alleviating checkout pressure during peak hours.
Retail Convenience Stores: Integrates product scanning, price inquiry, membership points, and payment, enabling self-checkout.
More Scenarios: Such as fresh food supermarkets, bookstores, and cultural and creative stores, all can be customized to adapt corresponding business modules.
![]()
![]()
The 15.6-inch high-definition self-service checkout machine, with payment technology as its entry point, smooth interaction as its foundation, and flexible form factor as its extension, truly realizes the leap from "checkout" to "smart service." It helps businesses build a more efficient operating system in an era of rising labor costs, while providing customers with a faster, more autonomous, and more enjoyable consumption experience. It is a key step for the retail and catering industries toward intelligent and unmanned operations.
| LCD Panel Parameters | Screen Size | 15.6 inch | |
| Display area | 344.16(H) X 193.59(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 450 X 310 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
