Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK010

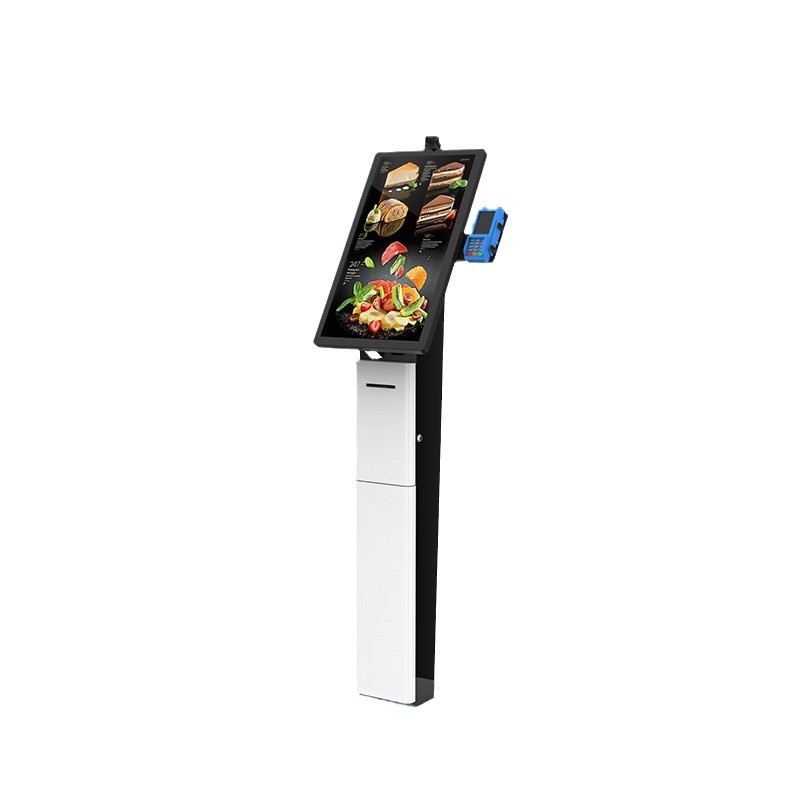

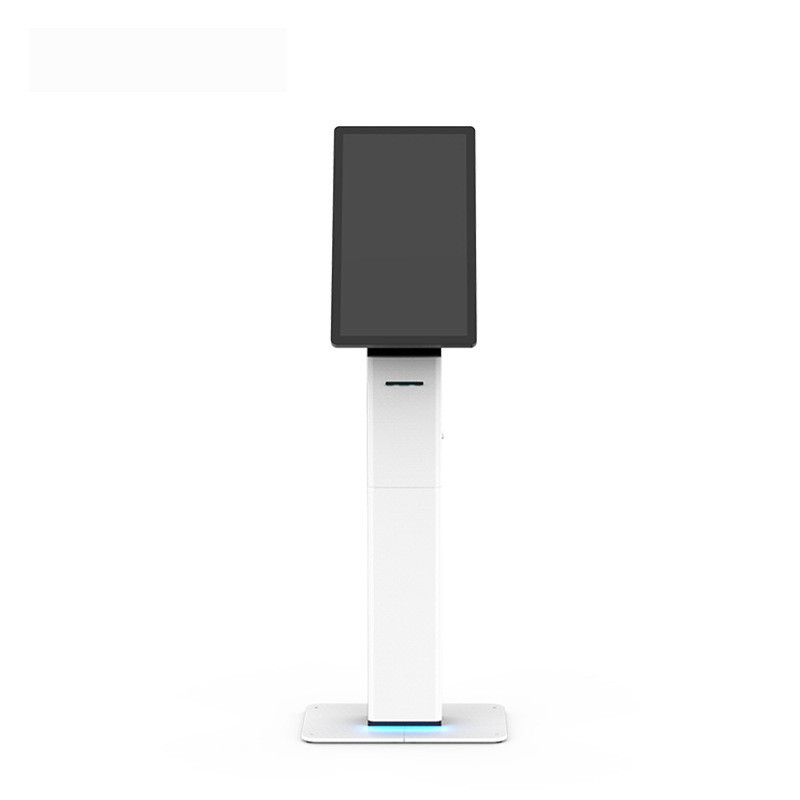

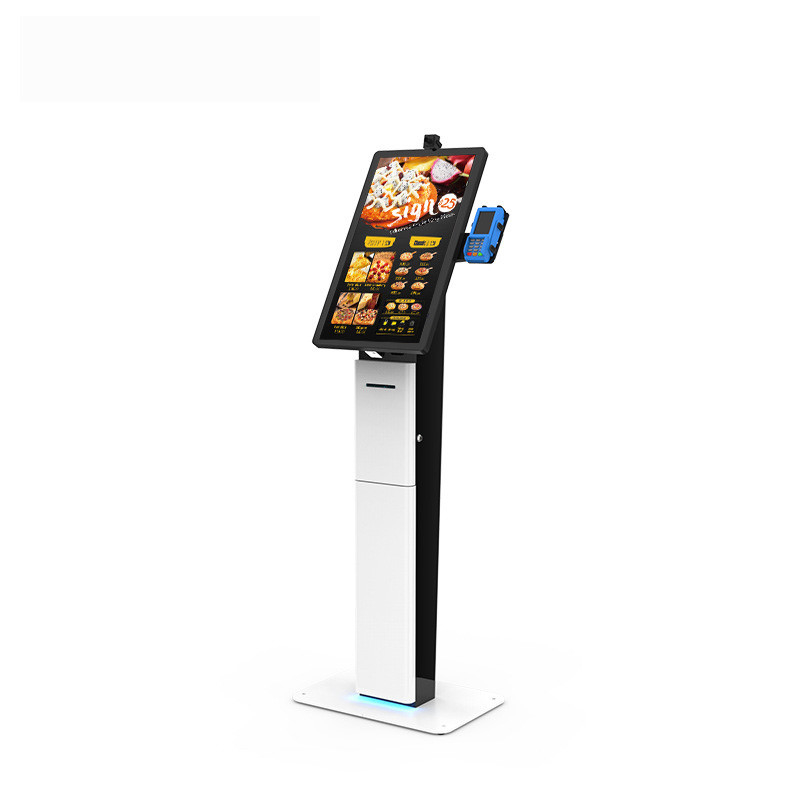

In unattended or high-traffic commercial environments, the ruggedness, security, and ease of maintenance of equipment are often just as important as its functionality and user experience. The 27-inch self-service ordering machine is designed for such demanding commercial scenarios. It not only provides an excellent experience in display and interaction but also adheres to commercial-grade safety and durability standards in all aspects, from structural design to safety details, ensuring stable and worry-free operation in various environments.
The machine is equipped with a 27-inch high-definition commercial touchscreen, supporting 10-point capacitive touch, offering rapid response and smooth operation. Whether installed horizontally or vertically, it presents a clear picture and an intuitive interface, providing customers with a comfortable and efficient ordering and interactive experience. An optional LED ambient light above the screen ensures clear visibility of the screen content under different lighting conditions.

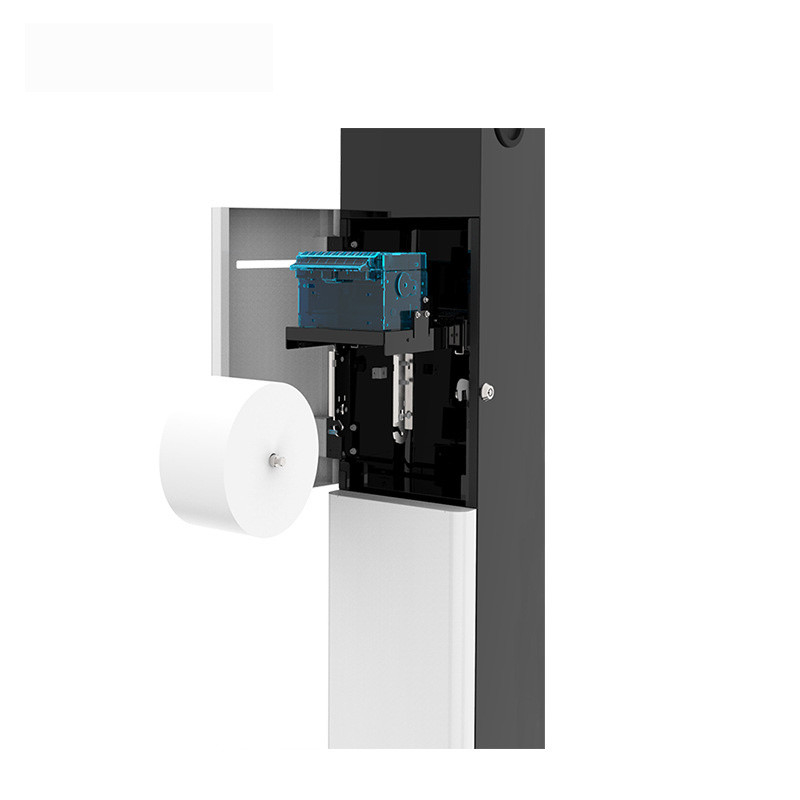

The built-in 80mm high-speed thermal printer supports paper rolls up to 150mm long, offering fast printing speeds and quiet operation. It features anti-jamming and anti-tear functions. The printer compartment adopts a front-opening design, eliminating the need to move or flip the device when changing paper rolls, making daily maintenance extremely convenient. This design detail fully considers high-frequency commercial scenarios, minimizing maintenance time and costs.
The core advantage of the 27-inch self-service ordering machine lies in its all-steel structure and comprehensive security design, surpassing ordinary consumer-grade equipment:

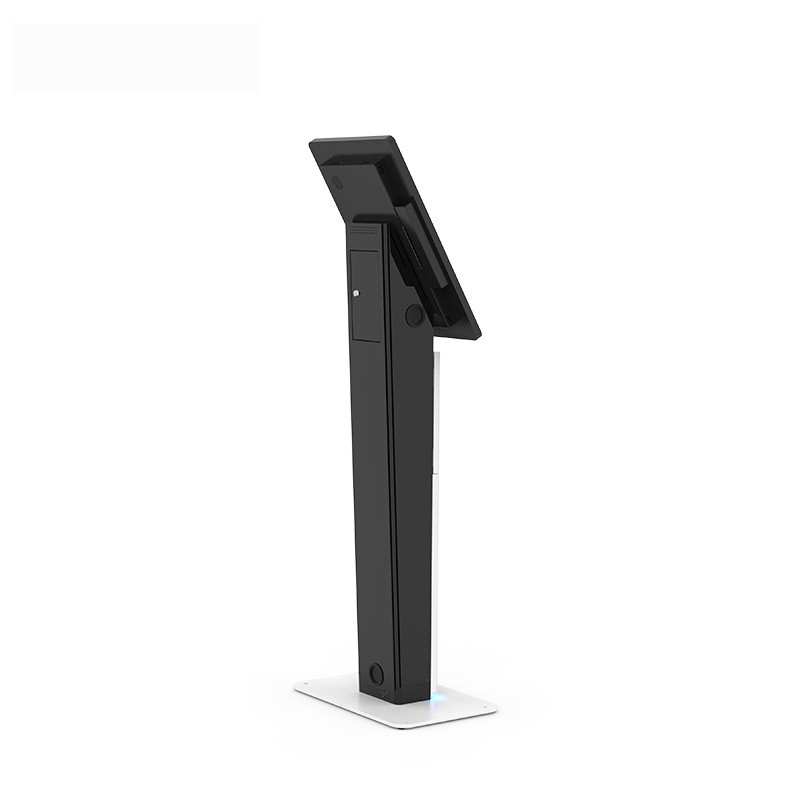

Heavy-duty Steel Structure: From the screen back panel to the base, the entire structure is made of heavy-duty steel, ensuring a robust and stable structure with extremely high impact and damage resistance, effectively resisting accidental impacts or malicious damage in public places.
Cable Safety Management:
A cable management cover is provided, which can be installed at the screen interface to effectively prevent human pulling or damage to cables or interfaces.
The device features a dedicated cable management compartment where all cables can be concealed internally. A lockable panel ensures cable security and prevents unauthorized access.
The bottom has standardized cable routing holes for neat and organized cabling.
Secure Maintenance and Storage Space:
Both the printer compartment and the bottom cable management compartment are lockable, ensuring the safety of consumables and internal components.
The device has ample internal space, not only for internal cabling but also as a small storage space for power strips, adapters, or small maintenance tools, facilitating daily maintenance.
Standard Rich Interfaces: Supports Ethernet and WiFi networking to adapt to different network environments.
Optional Functional Components: Can be flexibly configured with a 2-megapixel camera (for facial recognition or monitoring), infrared scanner, card reader mounting bracket, etc., depending on requirements.
| LCD Panel Parameters | Screen Size | 21.5 inch | |
| Display area | 476.5(H) X 268(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 585 X 380 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
Deep Customization Support: For customers with special integration needs, we can provide design and manufacturing services for more functional components, achieving deep product customization. The 27-inch self-service ordering machine is a smart terminal designed for the real business world. Its all-steel body provides a robust physical safety barrier, meticulous details ensure stable operation, and excellent interactive and printing performance serves customers. Whether in a bustling shopping mall food court, a 24-hour unmanned convenience store, or a busy transportation hub, it reliably fulfills the dual mission of efficient service and safe operation, making it a solid partner for businesses seeking intelligent upgrades.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
