Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO421F

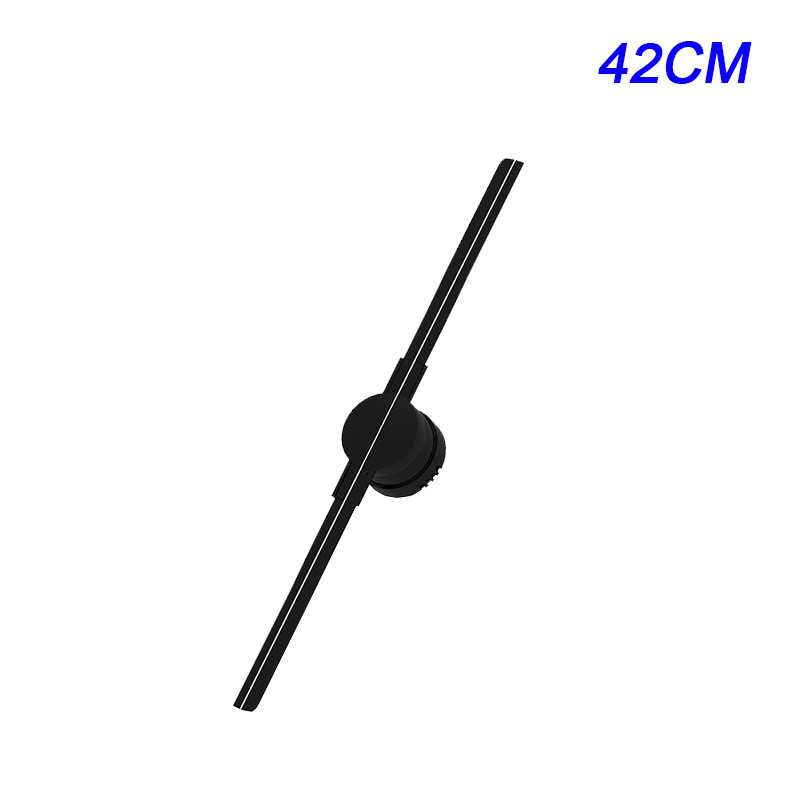

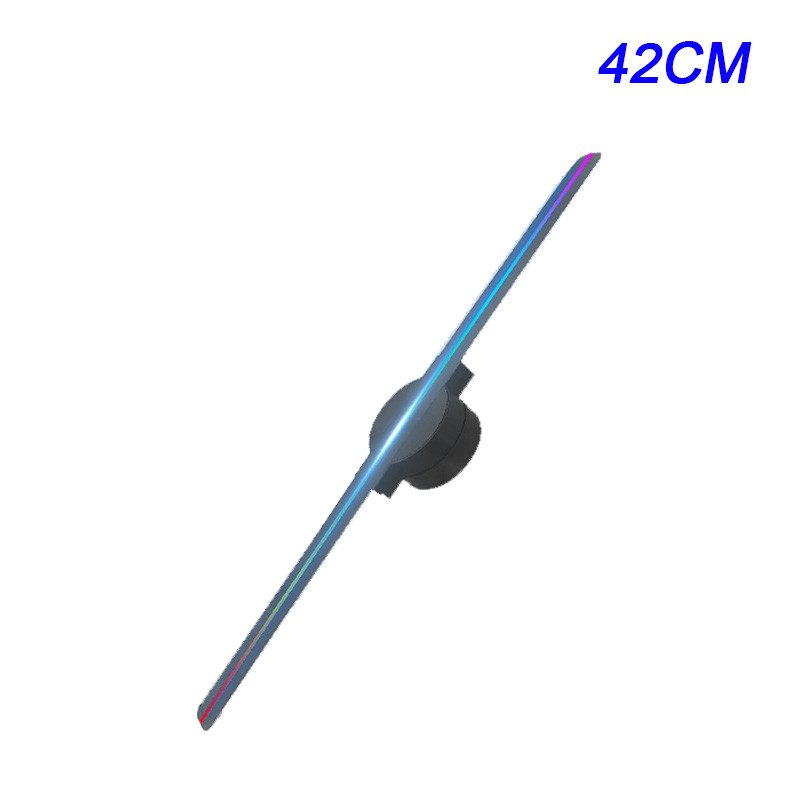

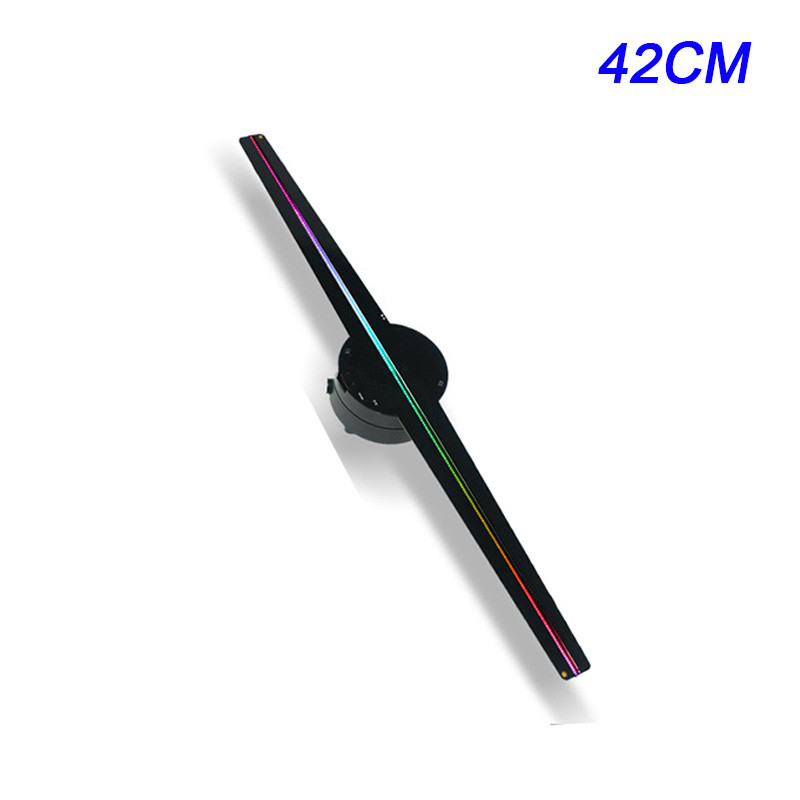

As 3D display technology evolves from handheld and portable models to larger sizes and higher performance, a visual revolution is underway for professional applications. The newly launched 42cm dual-blade holographic fan, powered by 224 high-brightness LED chips, creates a giant aerial screen with a resolution of 1024x224, bringing holographic displays to a new dimension of enterprise-level applications.
Ultra-High Resolution Imaging: 224 high-quality LED chips are densely arranged in the fan blades, ensuring clear, sharp images with rich details.
Dual-Blade Optimized Design: Compared to the single-blade structure, the two-blade version provides more stable rotational imaging and a wider viewing angle.
Intelligent Brightness Adjustment: Adapts to different ambient light conditions, delivering optimal visual effects from dimly lit exhibition halls to brightly lit shopping malls.
Multi-Language Support System: One-click switching of content languages seamlessly meets international display needs.
Mobile App: Adjust content, brightness, and rotation frequency in real time via mobile phone; supports 3D text editing.
PC Management: Batch upload videos and images to the built-in 16GB storage for efficient management of massive amounts of materials.
Seamless WIFI Connectivity Eliminating Cable Constraints and Achieving Multi-Device Networking and Remote Collaborative Control
Customized Development Interface:Open system architecture supports customized functions for specific enterprise needs.
Brand Flagship Stores—42cm in size becomes the visual focal point of the store, suspending product details for display.
Museums and Science Museums—Artifacts and scientific models are recreated in three dimensions in the air, providing an interactive educational experience.
Large Exhibition Venues—Multiple devices form a holographic array, creating an immersive brand space.

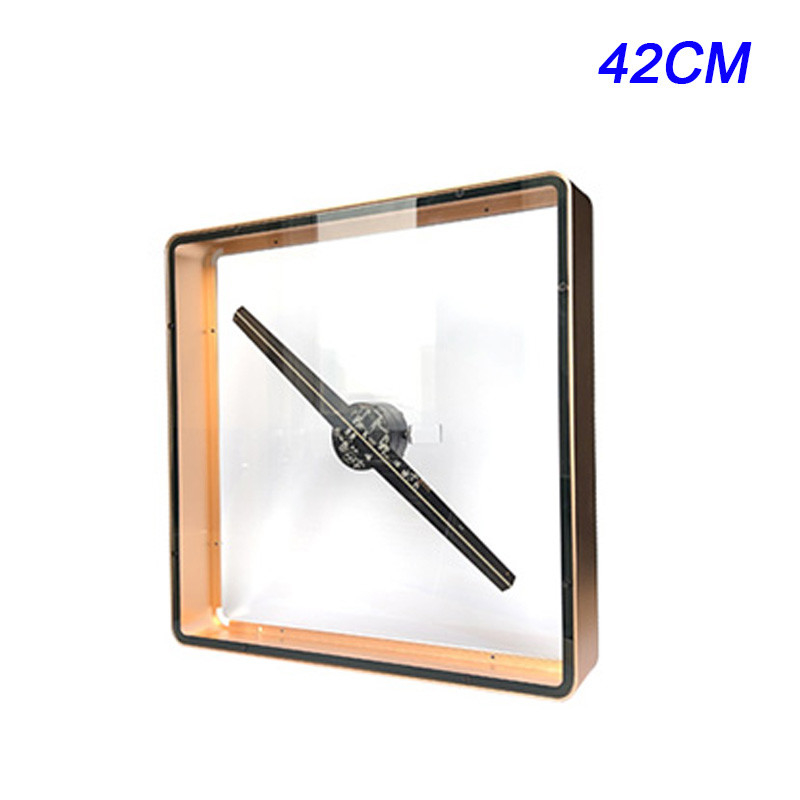

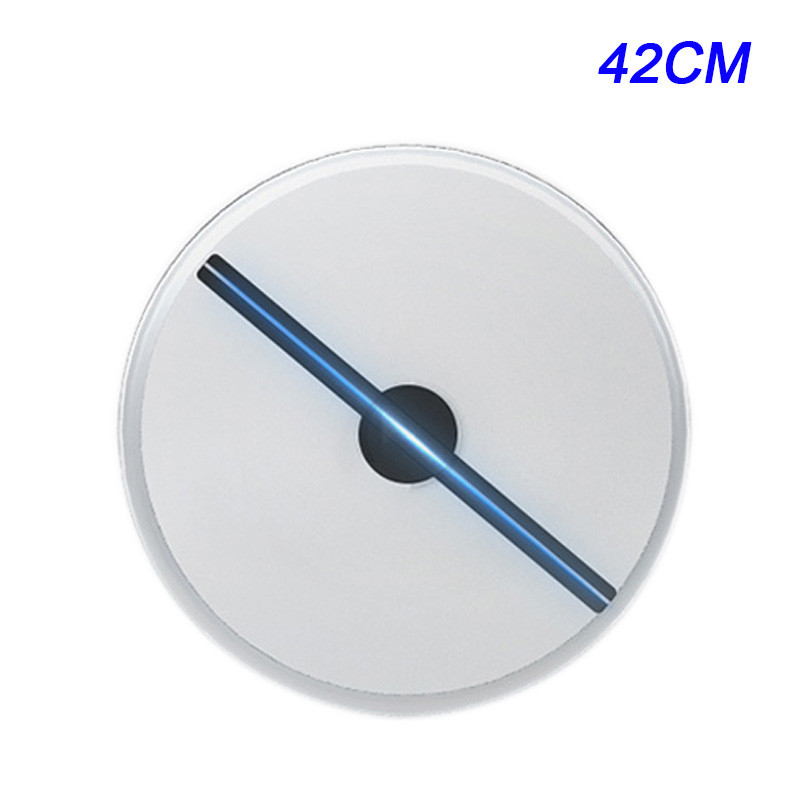

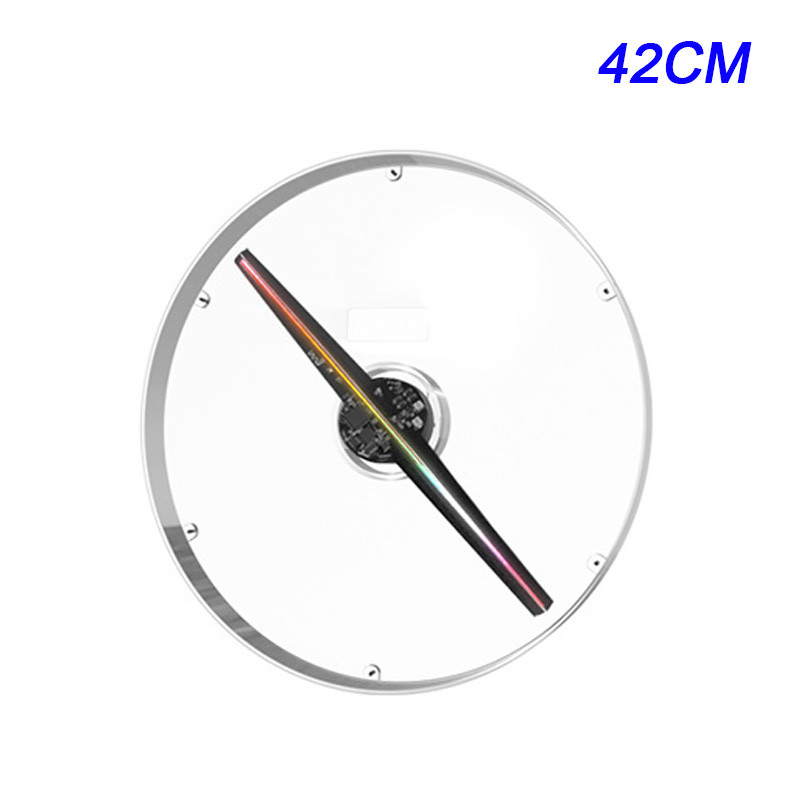

Commercial Center Atriums—The metal protective cover version is safe and durable, becoming a permanent art installation.
As a product developed in-house, ZXTLCD not only offers a three-year extended warranty but also has a complete "frequency setting system" to ensure stable operation over long periods. Its unique "sleep function" automatically enters a low-power state when unattended, extending device lifespan.
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
