Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK215PTT

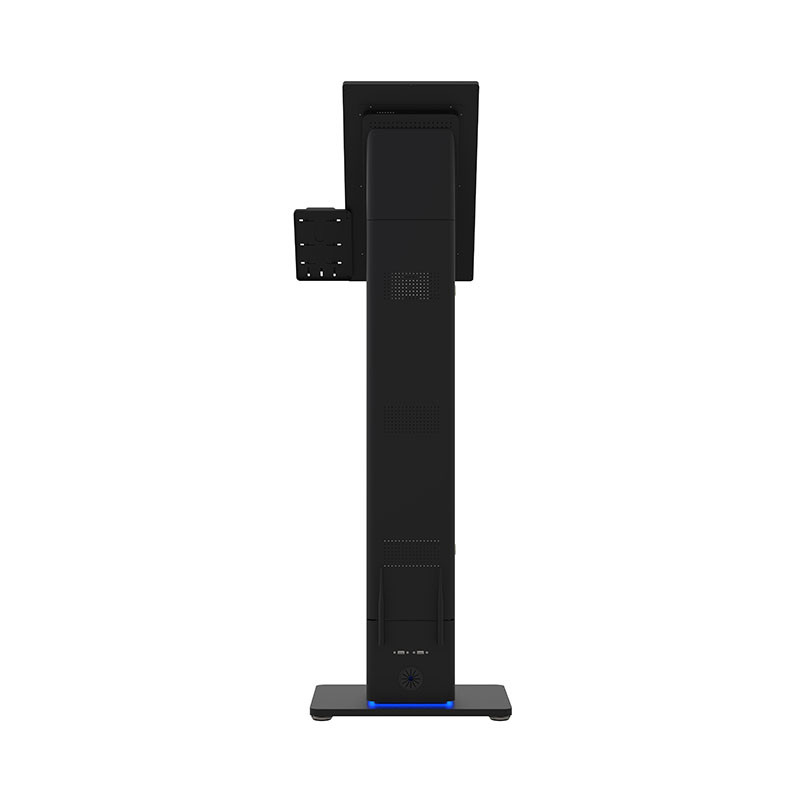

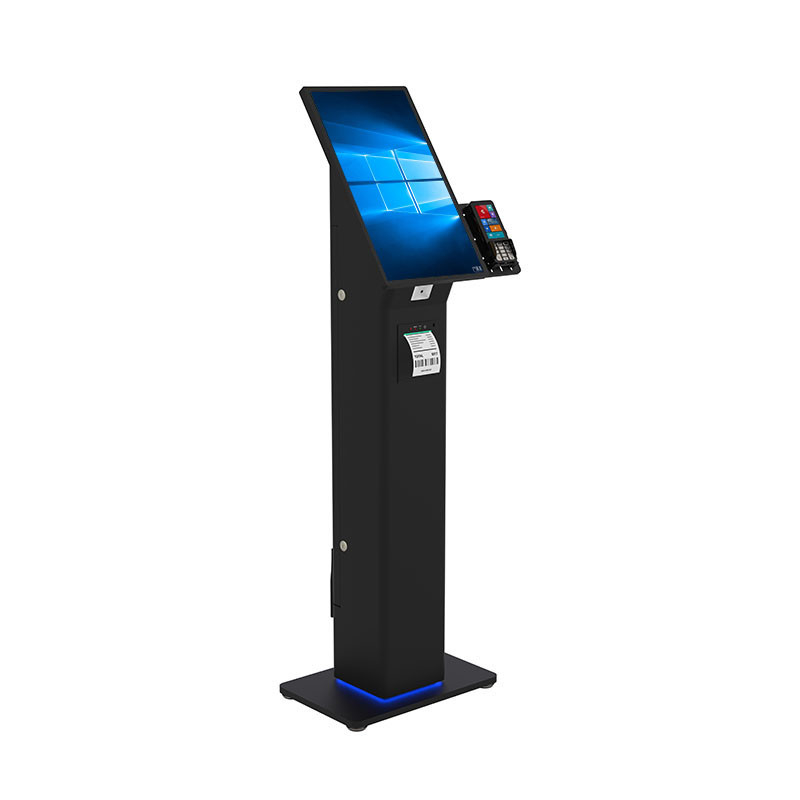

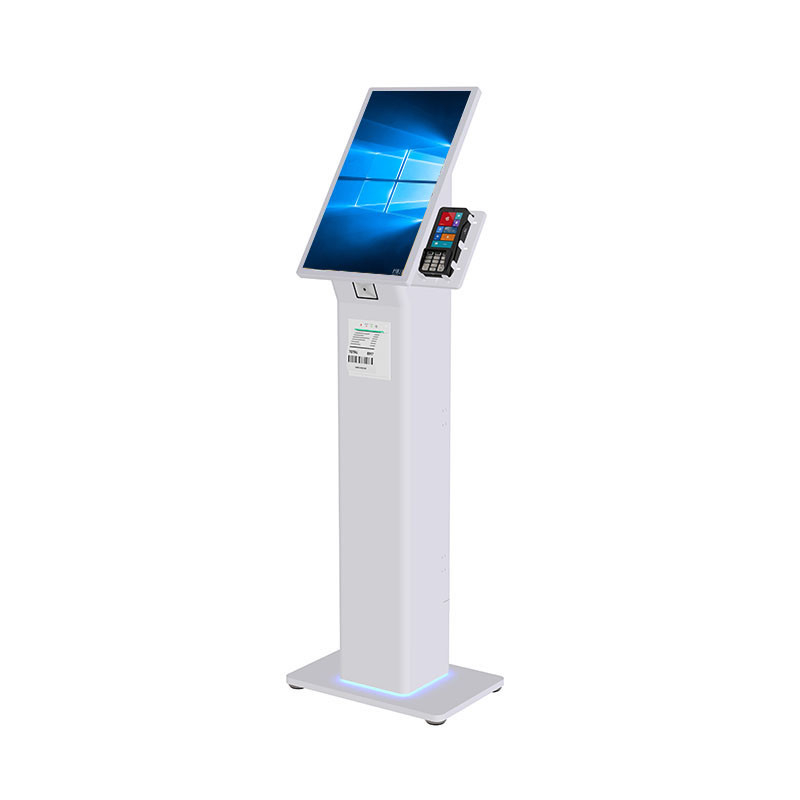

In today's catering industry, where the pursuit of ultimate efficiency and enhanced customer experience is paramount, the 21.5-inch Windows self-service ordering kiosk, with its large screen, full functionality, and intelligent interactive design, is becoming a core piece of equipment for the digital transformation of large chain restaurants, food courts, and corporate canteens. This device not only breaks the physical limitations of traditional ordering processes but also integrates ordering, payment, marketing, and data management into a standardized service loop through its multi-functional capabilities, helping businesses gain a competitive edge in the fiercely competitive market.
As an industry-leading intelligent terminal, its core advantages lie in its 2K full HD anti-glare touchscreen and multi-tasking collaborative processing capabilities. Compared to traditional small-screen devices, the 21.5-inch large screen can simultaneously display high-definition text and image information for over 60 dishes and supports intelligent split-screen interaction—the left side displays dish details and dynamic previews, while the right side provides real-time recommendations for set meals and promotions. Customers can easily activate a 360° three-dimensional display and ingredient traceability information by simply touching the dish, improving ordering decision efficiency by 70%.
The 21.5-inch self-service ordering kiosk deeply integrates an intelligent order allocation engine, realizing fully automated management from front-end ordering to back-end meal preparation. Its dynamic order allocation system can analyze food preparation time, kitchen workstation load, and rider maneuvering in real time, automatically optimizing order execution sequences: fast food orders go directly to the fast exit, while customized dishes are intelligently broken down and prepared simultaneously at multiple workstations. Actual operational data shows that after a well-known fast food brand implemented this system, its peak lunchtime order processing capacity increased from 150 orders/hour to 400 orders/hour, improving kitchen efficiency by over 180%.
| LCD Panel Parameters | Screen Size | 17 inch | |
| Display area | 337.92(H) X 270.34(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 440 X 385 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
From standardized fast food to customized banquet scenarios, the 21.5-inch Windows self-service ordering kiosk is reshaping the catering service value chain with system-level innovation. Its large-screen interaction and intelligent platform not only overcome efficiency bottlenecks but also help merchants achieve precise marketing forecasting and dynamic supply chain optimization through the accumulation of consumer data.
Currently, leading manufacturers in the industry have launched a "hardware as a service + cloud subscription" integrated model, allowing merchants to enjoy a full-stack intelligent ordering solution with zero initial investment, driving the catering industry's digitalization into a new stage of inclusive development.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
