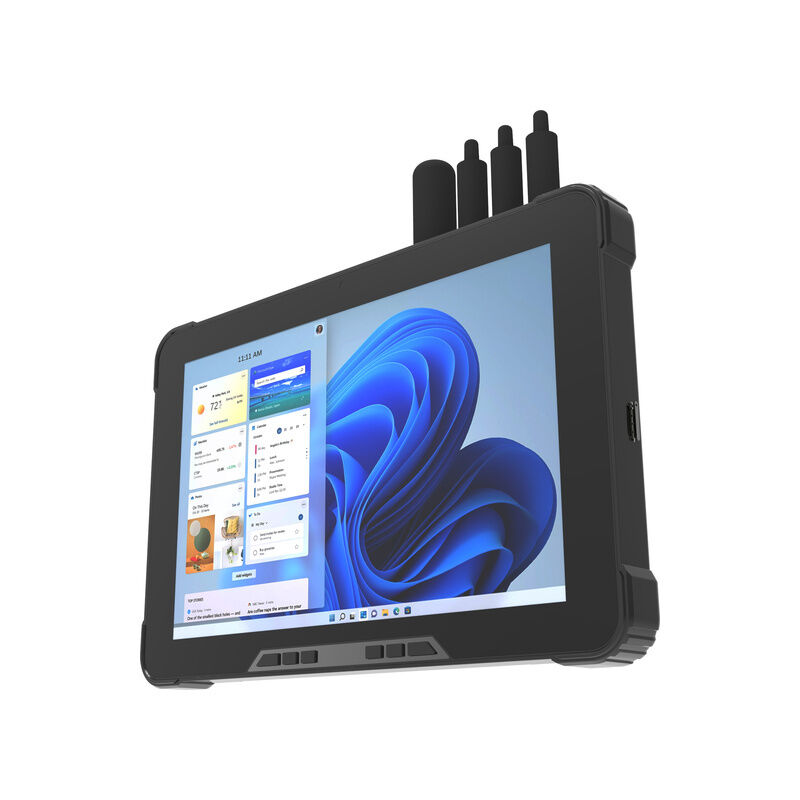

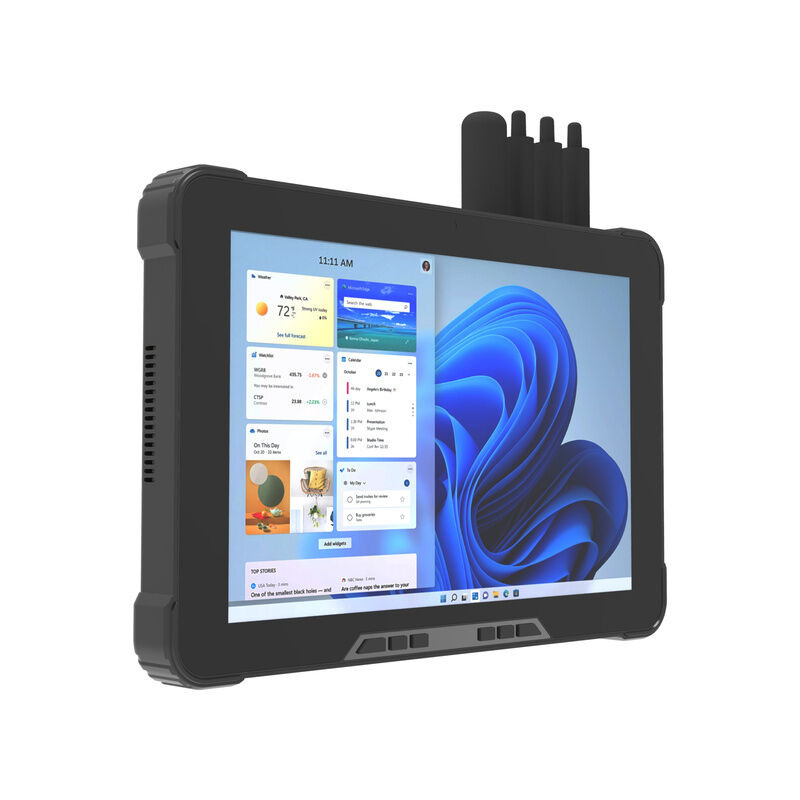

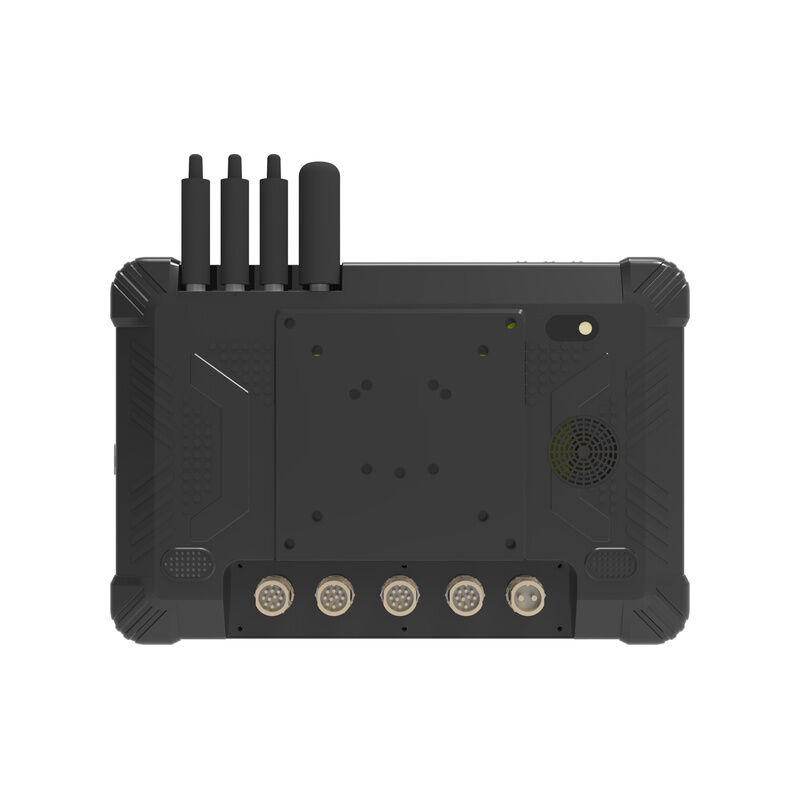

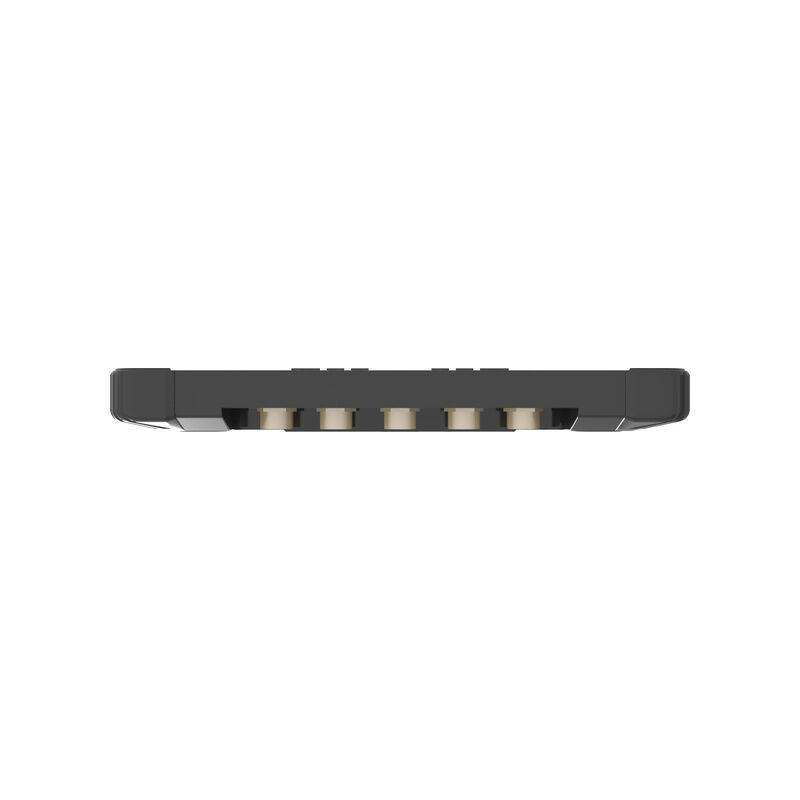

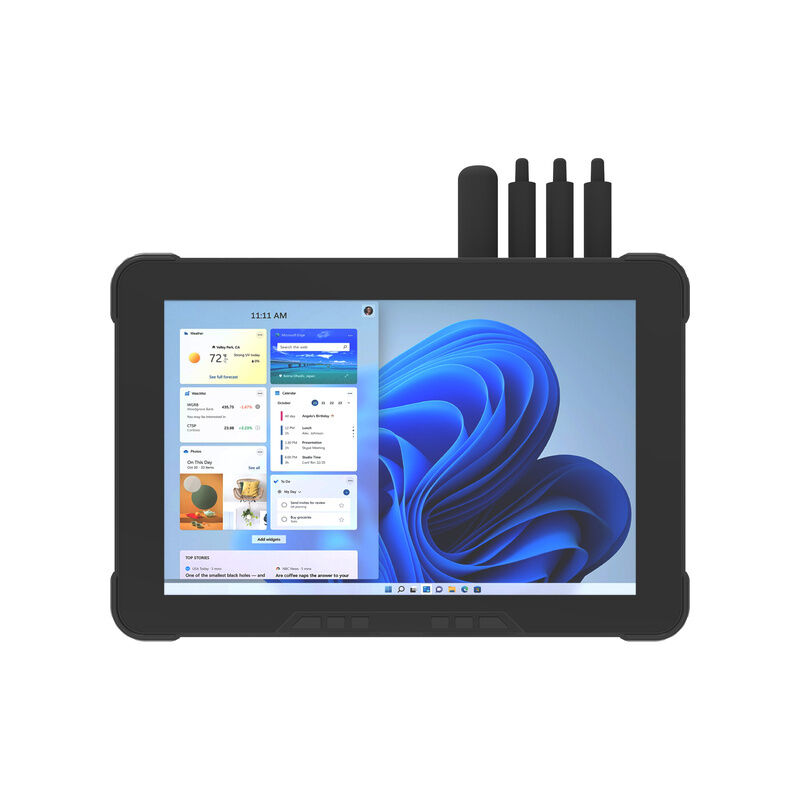

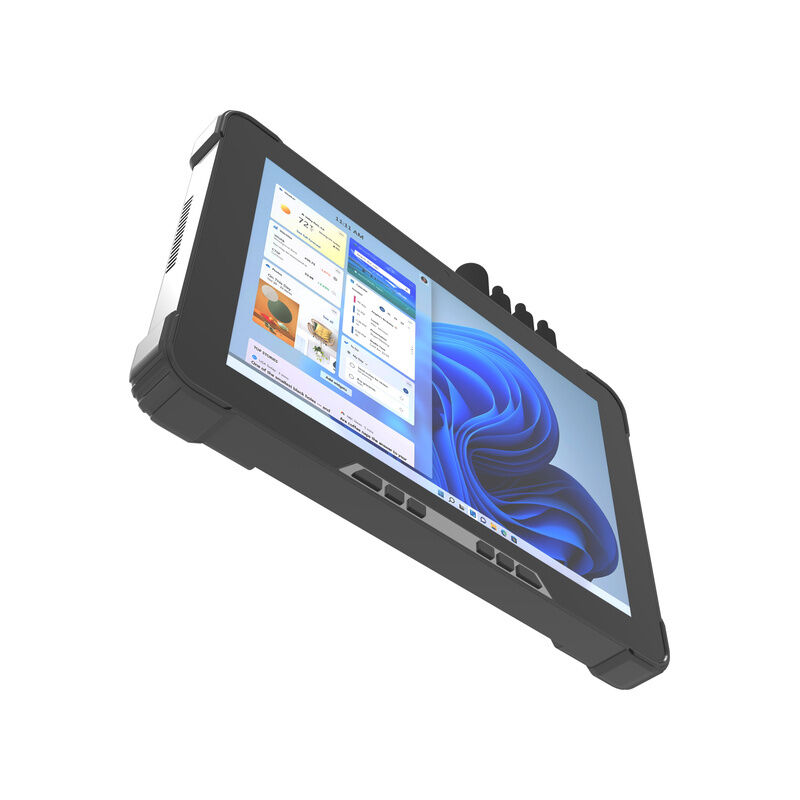

Vehicle-Mount Rugged Tablet 10.1 Inch for Mobile Equipment Monitoring and Machine Control

Mobile equipment operators need information where the work happens—not on a computer left in an office. This 10.1-inch vehicle mount rugged tablet provides a Win-based touch terminal for displaying work orders, equipment status, route information and operator records inside suitable industrial vehicles or mobile machinery.

The unit uses an Intel Celeron N5100 quad-core processor and is supplied with Win 10, with Win 11 listed as an option. Memory and storage can be configured as 4GB+64GB or 8GB+256GB. That choice allows a buyer to match the hardware to the intended software, whether the task involves a focused operator interface or a larger local database and several Win applications.

A readable operator workspace

The 10.1-inch panel has a stated resolution of 1080 × 1920 and supports ten-point touch. Its 273 × 172 × 20 mm body provides more screen area than a handheld data terminal while remaining compact enough for space-conscious cabins and control positions. The final orientation should be confirmed against the application interface because the published resolution is presented in portrait order while the housing dimensions suggest a landscape-style body.

For equipment monitoring, interface design matters as much as processor speed. Large status areas, clear warning colors and touch targets sized for moving environments are preferable to a desktop interface simply reduced to fit. Integrators should test their Win application at the native resolution before approving a production order.

Wireless access for connected operations

Dual-band Wi-Fi supports 802.11a/b/g/n/ac on both 2.4GHz and 5GHz networks. This can connect the vehicle mount rugged tablet to a facility network, mobile access point or other approved infrastructure for task updates and data synchronization. The page does not publish cellular, Bluetooth, GPS or wired communication specifications for this model, so those functions should not be assumed.

The listed operating range is -20°C to 55°C, with storage from -25°C to 80°C. These values are useful when comparing the device with the expected cabin or equipment environment, but the installer must still consider direct sunlight, enclosed-cab heat, vibration and power conditions.

Mounting and integration require project confirmation

Although the product is positioned for vehicle-mounted use, the public page does not specify the mounting pattern, bracket, vehicle power input, ignition control, vibration rating or physical I/O. These are essential procurement questions. A buyer should provide the vehicle type, available mounting space, voltage source, cable routing, required peripherals and software connection method.

The vehicle mount rugged tablet can serve as the human-facing part of a mobile workflow, but it should not be described as a machine-control device until the required ports, protocols and application integration have been verified. For many projects its role will be monitoring, work instruction and data entry rather than direct safety-critical control.

Send ZXTLCD the installation drawing, operating system preference, memory requirement and connectivity list. The team can then confirm whether the standard unit and available mounting options fit the proposed vehicle or mobile equipment project.

### Review the installation as one system

Before volume purchasing, test one unit in the actual cabin or operator position. Check reach, viewing angle, reflected light, cable movement and access for servicing. The mounting structure should not obstruct vehicle controls or create an unsafe projection. Power conversion and shutdown behavior must be agreed with the vehicle integrator, particularly where abrupt power loss could damage stored records. A pilot also reveals whether the selected Win configuration opens the required pages at an acceptable speed and whether wireless coverage remains stable along the working route.

If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
