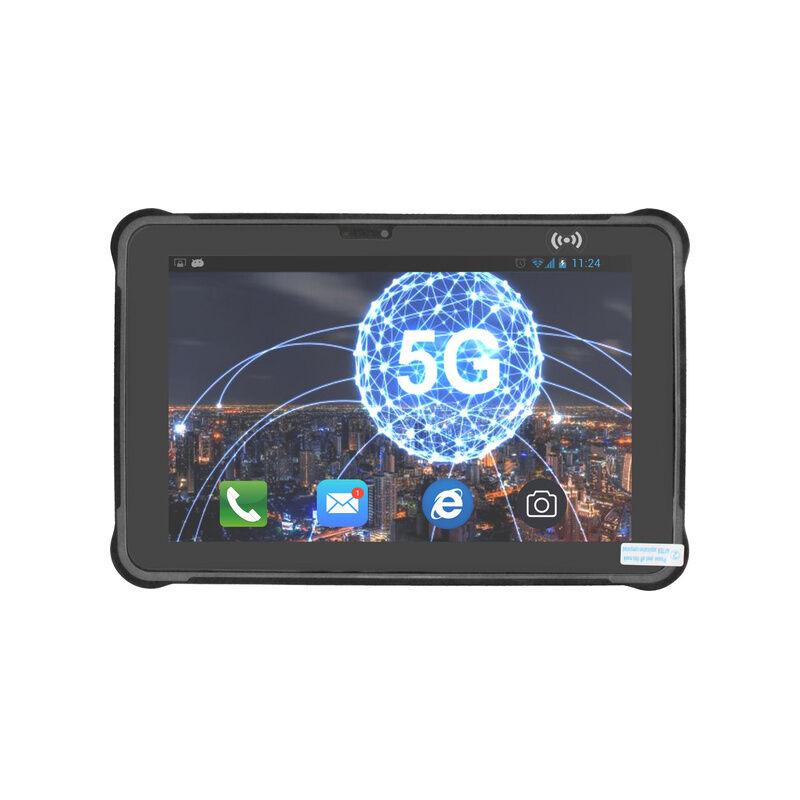

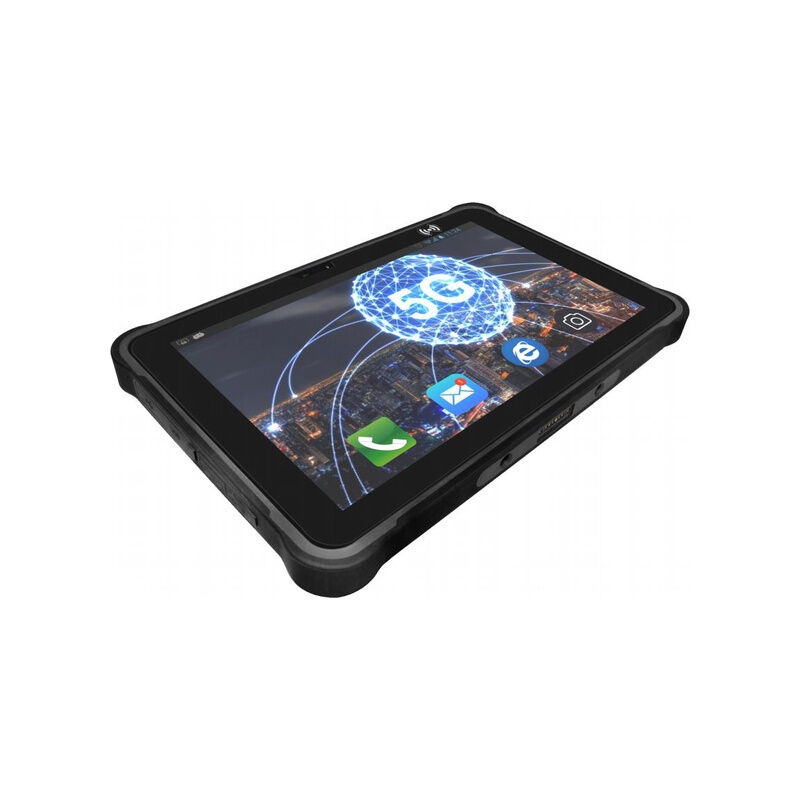

Utility Inspection Tablet 10.1 Inch Supports Field Positioning Dispatch and Activity Logs

Utility work produces a continuous trail of assignments, inspection results and follow-up actions. A mobile device can keep those records close to the asset, provided the application is designed for intermittent connectivity and the hardware matches the working environment. This 10.1-inch utility inspection tablet runs Android 10 and provides a 1920 × 1200 touch interface for field forms and activity logs.

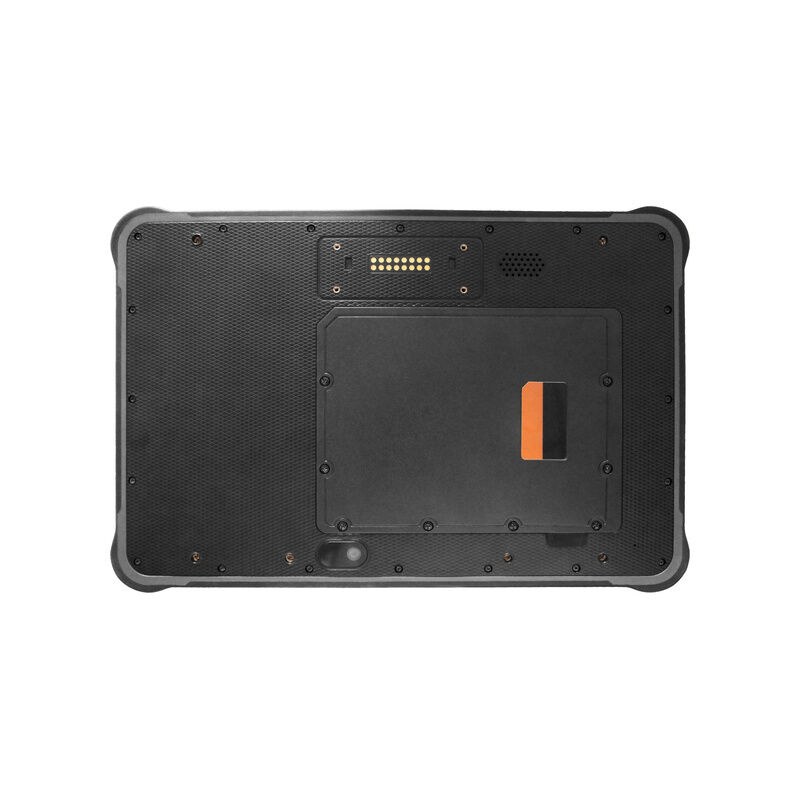

The enclosure measures 273 × 172 × 20 mm and carries a ten-point touch screen. The 16:10 display provides room for route lists, equipment details, photographic references and structured reports while remaining easier to carry than a large laptop-style device.

Android workflow for repeatable inspections

The published memory configuration is 8GB RAM with 256GB storage. This gives an Android application space for offline forms, reference files and locally held records, subject to the customer’s storage policy. The processor is not listed, so application performance should be verified on a sample or confirmed against the final production specification.

Android 10 compatibility also needs review. Buyers should confirm that their application, mobile-device-management platform and security requirements continue to support this operating system version. An OS version should not be selected only because it appears in a product title; it must fit the organization’s software lifecycle.

Connectivity for dispatch and record synchronization

Dual-band 802.11a/b/g/n/ac Wi-Fi is available on 2.4GHz and 5GHz bands. Where a utility depot, vehicle hotspot or site network provides coverage, the utility inspection tablet can receive assignments and synchronize activity logs.

The page does not confirm cellular networking, GPS or Bluetooth. Therefore, “field positioning” in the original title should not be treated as verified satellite positioning. If route navigation, geotagging or continuous wide-area data is required, the buyer must request the appropriate communication and positioning configuration.

Environmental and peripheral checks

IP65 protection is published, together with an operating range of -20°C to 55°C and storage from -25°C to 80°C. These values help evaluate ordinary dust, water and temperature exposure. No drop, vibration or classified-location certification is listed.

Battery capacity and estimated operating time are not provided. Neither are cameras, barcode readers, NFC or physical ports. A utility team should specify the expected shift length, charging access, evidence-capture needs and any instrument connection before a quotation is finalized.

The strongest use case for this utility inspection tablet is structured Android data entry within a defined field process. It should not be described as a direct electrical control device without confirmed interfaces, protocols and system engineering. Share the application, network conditions, protection requirements and required accessories with ZXTLCD so the ordered unit can be matched to the inspection procedure.

### Validate the route before volume deployment

A utility operator can run a pilot across the longest normal route and record where wireless access is available, how much data remains offline and how staff handle the device at each asset. The test should include login, assignment download, evidence capture, exception reporting and synchronization. Battery behavior must be measured with the intended application because no published capacity is available. If location data is required, the pilot should use a configuration with confirmed positioning hardware. These results provide a practical basis for selecting accessories and network options.

The approved purchase specification should record the Android build, processor, positioning option and wireless configuration. These details make later repeat orders easier to verify and reduce dependence on a broad marketing title.
