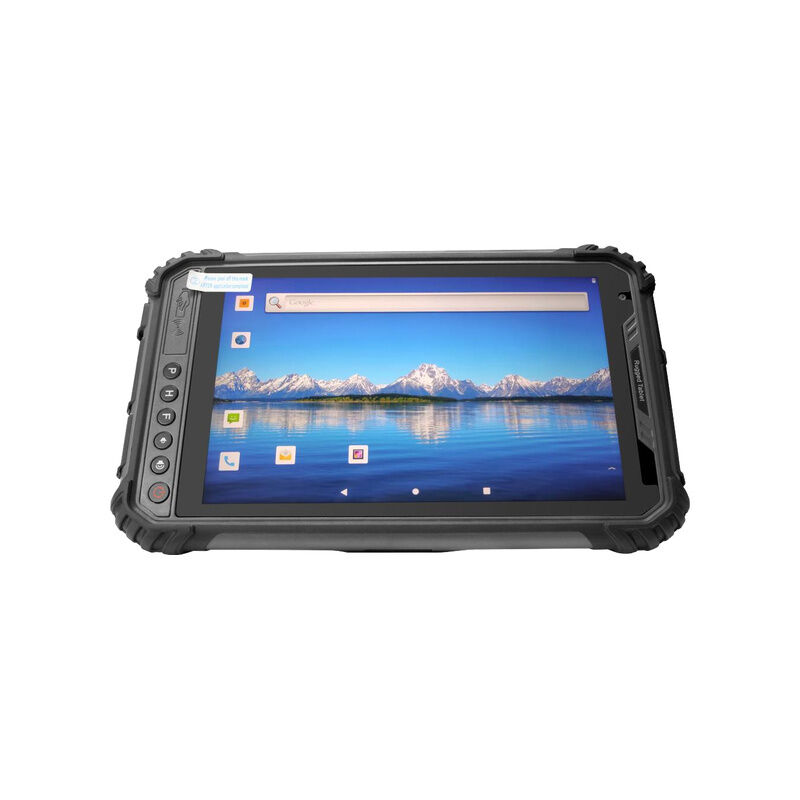

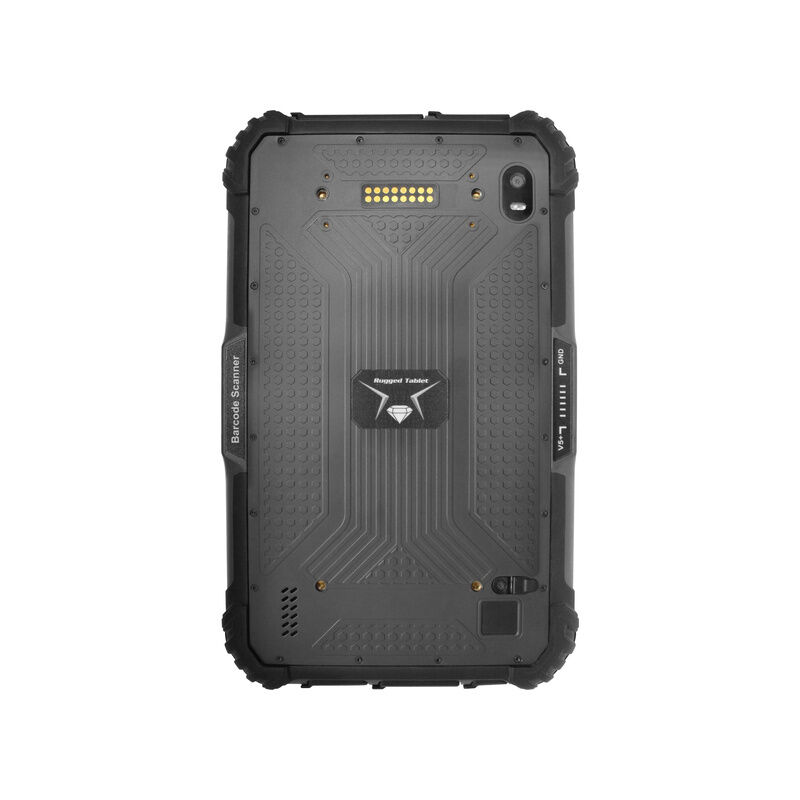

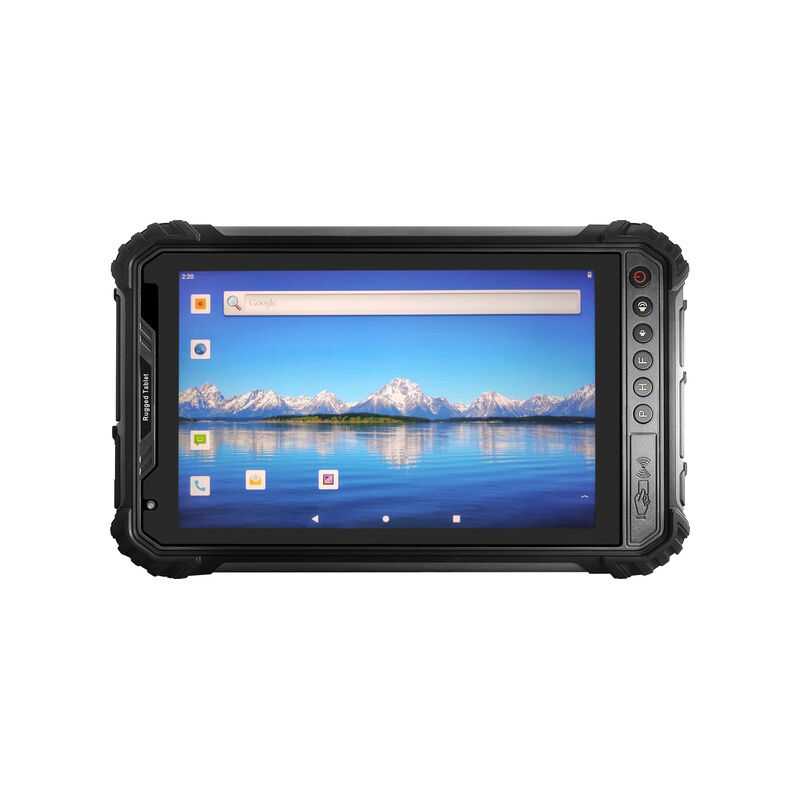

Outdoor Rugged Tablet 8 Inch with Bright Display for Field Inspection and Site Records

A tablet used beside equipment must support more than occasional form entry. It may display drawings, capture inspection results, synchronize records and remain readable while an operator moves between work areas. This 8 inch outdoor rugged tablet is positioned for field inspection and site record capture. Its published configuration combines Android 11 with MTK MT8788, while the listed memory and storage choice is 4GB+64GB; optional 8GB+256GB. That combination gives buyers a factual starting point for application testing rather than a generic performance claim.

The physical format is 234 × 144 × 16.8 mm. The display specification is 8 inch, 800×1280, 10-point touch. This matters when operators need to review forms, equipment values, images or task instructions without returning to a desk. Touch targets should still be tested with the actual software, screen scaling and any gloves used on site; a touch-point specification alone does not guarantee that an office interface will be convenient in the field.

Plan deployment before placing a volume order

A sample should be tested with the intended application, wireless environment, accessories and user roles. For this 8 inch outdoor rugged tablet, the confirmed operating platform is Android 11, supported by MTK MT8788. The available memory and storage statement—4GB+64GB; optional 8GB+256GB—should be selected according to application size, local photo or video retention, offline map requirements and the number of records kept before synchronization. Buyers should provide a sample application package and representative files during evaluation.

The 8 inch, 800×1280, 10-point touch screen creates the main operator workspace. A pilot can check text size, sunlight or indoor lighting conditions, touch accuracy and the number of fields visible without excessive scrolling. Where the page does not publish brightness, glove mode or active-pen support, those capabilities should be confirmed separately instead of assumed from the rugged product category.

Protection and connectivity have different jobs

An IP rating describes enclosure protection under defined conditions, while network and positioning features support the information workflow. Published communications for this model include 4G, dual-band Wi-Fi, GPS/BDS/GLONASS. Network selection should follow the deployment country, carrier bands, access-point policy and whether the workflow must continue offline. GPS or related positioning can support route, inspection or asset records, but application accuracy and antenna behavior should be tested in the intended vehicle, building or outdoor setting.

The listed protection information is IP65; 1.2 m drop. This is useful for screening a device for demanding work, but it is not a substitute for a site risk assessment. Ports, covers, charging accessories and mounting arrangements must be used as specified to preserve enclosure protection. Temperature limits, cleaning methods and drop exposure should also be reviewed against the actual workplace.

Procurement details that improve repeat orders

Recording the approved configuration helps purchasing and operations receive the same platform in later batches. The page lists optional UHF, high-precision GPS and fingerprint. Optional functions should appear individually on the quotation and approved sample because barcode engines, RFID modules, positioning options, docks and fingerprint readers can change software integration, power demand and mechanical handling. If an interface or battery value is not published, the buyer should request written confirmation before building it into a tender or installation drawing.

A practical acceptance test for this 8 inch outdoor rugged tablet can cover cold start, application login, a complete sample job, wireless handoff, record synchronization, charging and recovery from an interrupted task. Fleet planning should also define device naming, user permissions, OS update control, spare units and accessory replacement. These steps turn a list of specifications into a repeatable deployment for field inspection and site record capture.

### Confirm the project baseline

For an accurate proposal, send the intended application, destination country, quantity, working hours, required wireless bands, data-capture options, mounting or docking needs and environmental conditions. ZXTLCD can then confirm the configuration of the 8 inch outdoor rugged tablet against the project before sampling or volume production.
