Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SM5T

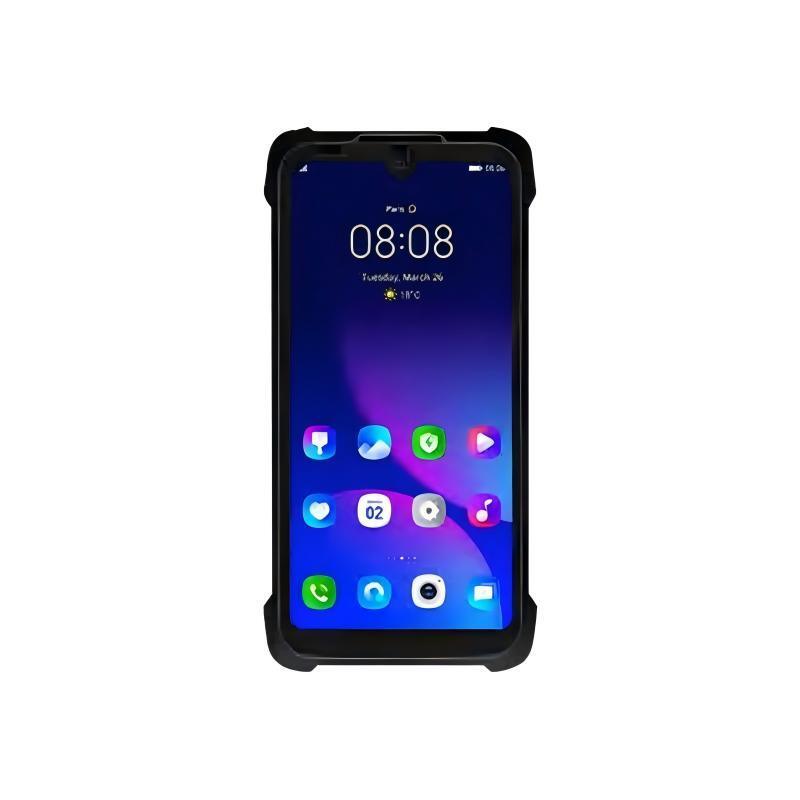

The Android 13 Rugged Tablet brings desktop-style data handling into a compact mobile form for teams that work away from a fixed workstation.
Its 5.7-inch 720 × 1520 display and 5-point touch control support clear viewing and direct input, while the handheld housing is convenient for frequent movement between tasks.
With dimensions of 155×77.7×13.3mm, the device fits mobile workflows where space and carrying convenience matter. A 400 nits display supports practical viewing during routine work. Physical controls and the touch interface give operators flexible ways to complete forms and review records.
| Project | Describe |
| System | Android 13 |
| CPU | Unisoc T616 (T7250) |
| RAM/ROM | 4GB+64GB/8GB+128GB optional |
| Display screen | 5.7 inch,720*1520 |
| Touch Screen | 5 Point Touch |
| WWAN | 4G LTE,3G WCDMA,GSM |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G |
| GPS | BDS, GPS, GLONASS |
| Speaker | 8Ω 1.0 Watt |
| Size | 155*77.7*13.3mm |
| Camera | Front: 5MP; Rear: 13MP |
| 1D/2D Barcode | optional |
| NFC | 13.56 MHz |
| Waterproof | IP65 |
| Drop Test | Dropping Resistance 1.5 meters |
| Storage temperature | -40℃ to 60℃ |
| Operate temperature | -25℃ to 50℃ |
Running Android 13, the Android 13 Rugged Tablet uses Unisoc T616 (T7250) to support day-to-day application processing and data entry. The listed 4GB+64GB/8GB+128GB optional configuration provides space for software, records and working files. This platform is suited to structured workflows that require consistent access to forms, status information and task documentation.
![]()
The device supports 4G mobile network connectivity; dual-band 2.4GHz and 5GHz Wi-Fi with wireless access point support; multi-system positioning through BDS, GPS and GLONASS. These capabilities help teams synchronize records, locate work activity and exchange information without returning to a fixed office. It also provides front 5MP and rear 13MP cameras and supports NFC at 13.56 MHz for visual documentation and identification workflows.
![]()

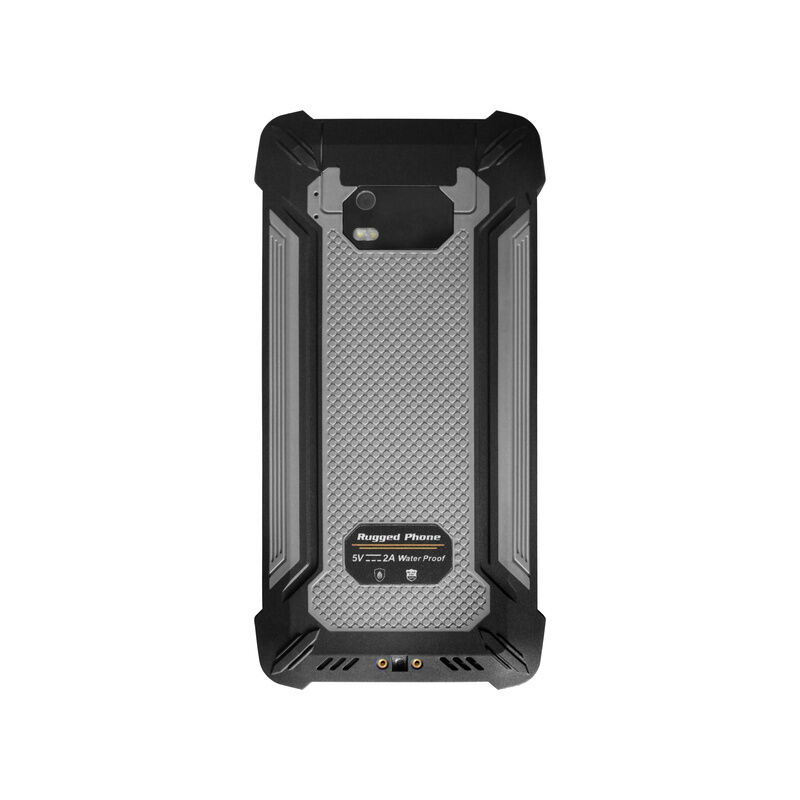

The enclosure is designed with an IP65 protection rating and resistance to drops of up to 1.5 meters. It is specified for storage from -40°C to 60°C and operation from -25°C to 50°C. This construction helps the unit remain practical around dust, moisture, movement and changing workplace conditions.
![]()
The Android 13 Rugged Tablet can support mobile forms, equipment checks, business updates and routine field records. Depending on the ordered configuration, options may include memory/storage and 1D/2D barcode scanning. This makes it possible to align the device with the required data collection, communication and deployment method without presenting optional functions as standard equipment.
![]()
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
| Project | Describe |
| System | Android 13 |
| CPU | Unisoc T616 (T7250) |
| RAM/ROM | 4GB+64GB/8GB+128GB optional |
| Display screen | 5.7 inch,720*1520 |
| Touch Screen | 5 Point Touch |
| WWAN | 4G LTE,3G WCDMA,GSM |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G |
| GPS | BDS, GPS, GLONASS |
| Speaker | 8Ω 1.0 Watt |
| Size | 155*77.7*13.3mm |
| Camera | Front: 5MP; Rear: 13MP |
| 1D/2D Barcode | optional |
| NFC | 13.56 MHz |
| Waterproof | IP65 |
| Drop Test | Dropping Resistance 1.5 meters |
| Storage temperature | -40℃ to 60℃ |
| Operate temperature | -25℃ to 50℃ |
![]()
![]()
![]()
![]()
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
