Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED-R55-DN6B
OLED flexible panel, self-emissive technology, rich colors, vivid effects
Ultra-high contrast ratio, pure blacks, presenting delicate image quality
Slim and lightweight frameless double-sided display design, commercial appearance
Local light control for static images, power consumption reduced by 40% compared to traditional LEDs
Self-emissive characteristics allow for a near 180° viewing angle, no color shift, and support for a wide color gamut
Supports 4K ultra-high-definition display, with clear text and image details
Applications in multiple scenarios such as new retail, smart city construction, cultural and exhibition industries, etc.

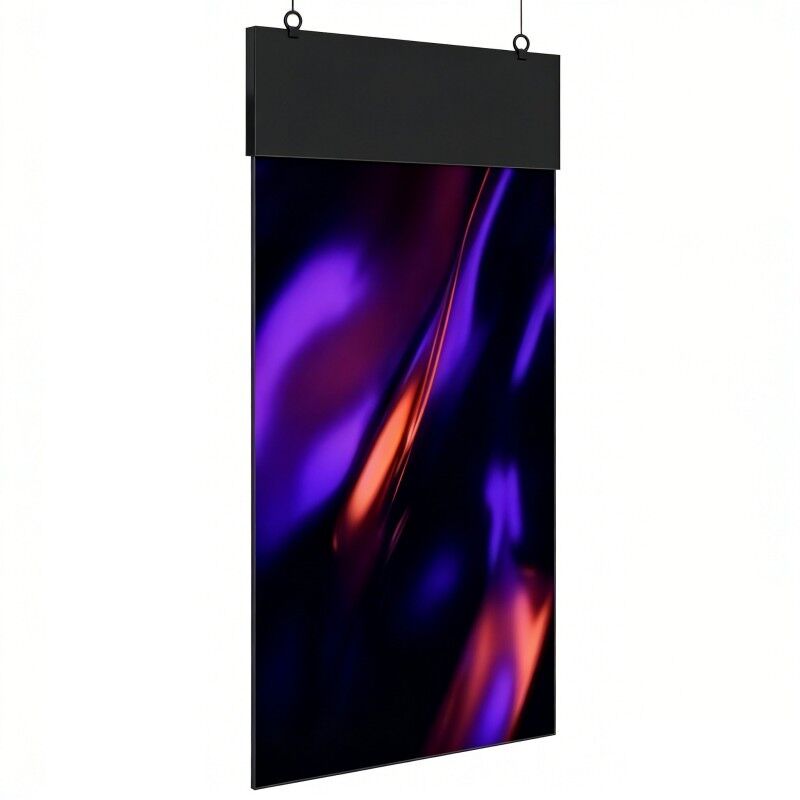

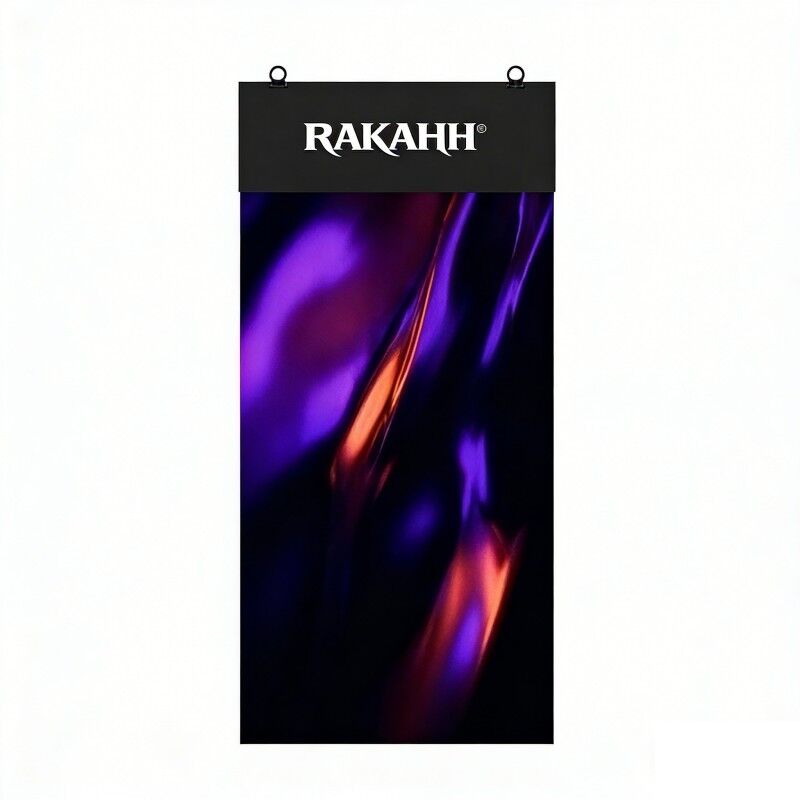

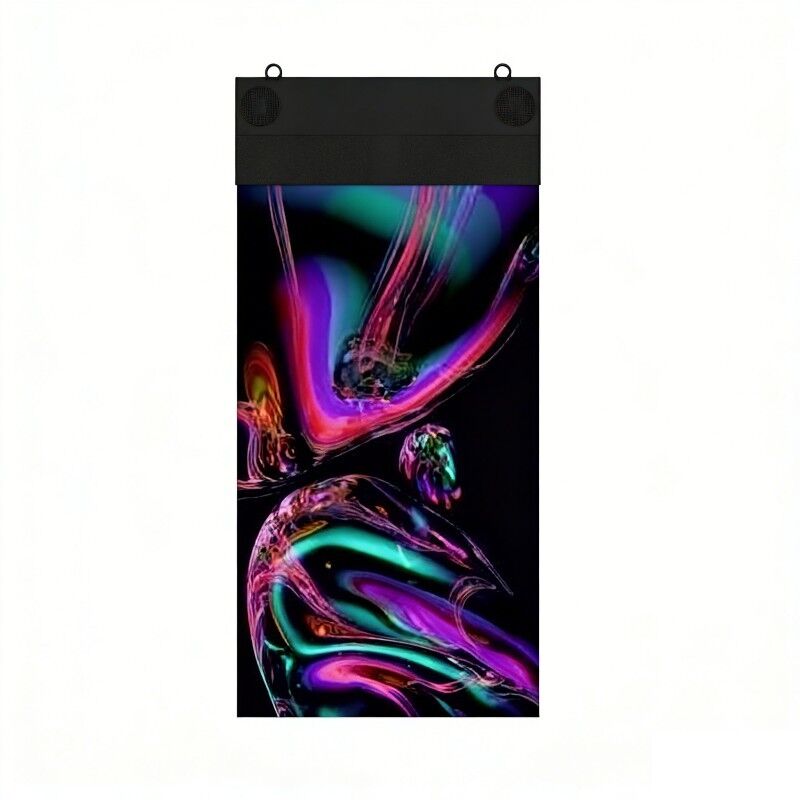

| 55-inch flexible double-sided hanging unit(ZXTLCD-R55-DN6B) | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | OLED |
| Resolution | 3840*2160(UHD) |
| Brightness | 185-500cd/㎡ |
| Contrast Ratio | 185000:1 |
| Viewing angle(up/down/left/right) | 178°(H)/178°(V) |
| Response Time | 1ms |
| Display color | 98% |
| Onboard interface | |
| Input Interface | USB*1 + HDMI*2 +network port*1 |
| Output interface | network port*1 |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | AC 100-240V |
| Total System Power Consumption | <100W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| Operating Humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 705*70*1493.18(mm) |
| Overall dimensions | 1710*110*140mm |
| Installation Method | hoisting |
| Net weight / Gross weight | 36KG/51KG |
| Accessories | |
| Remote control, certificate of conformity, warranty card, user manual | |
| other | |
| After-Sales Service | 1-Year Warranty |
