Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED-T55-PG6B

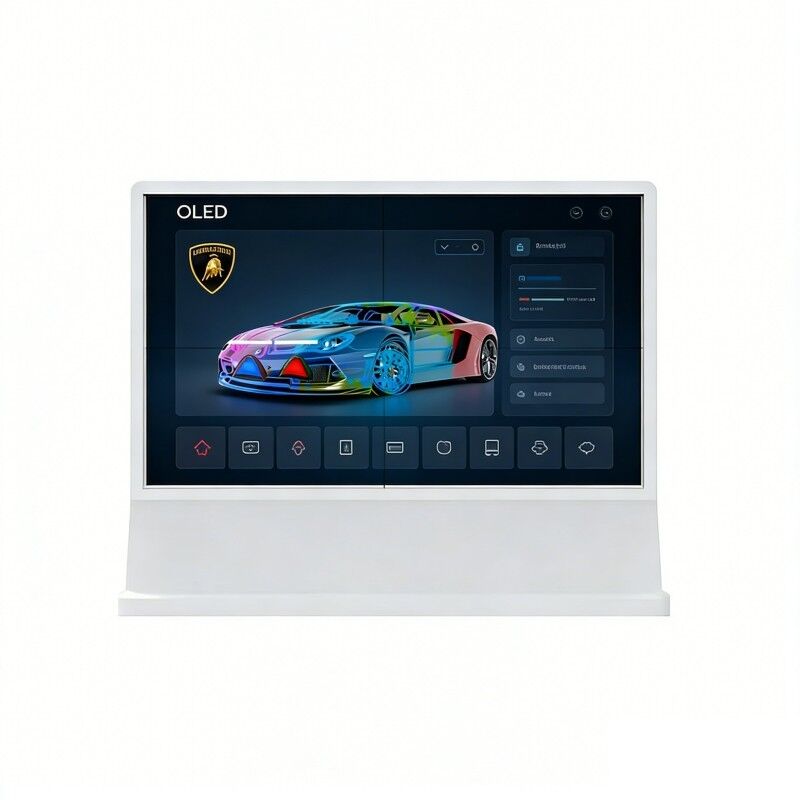

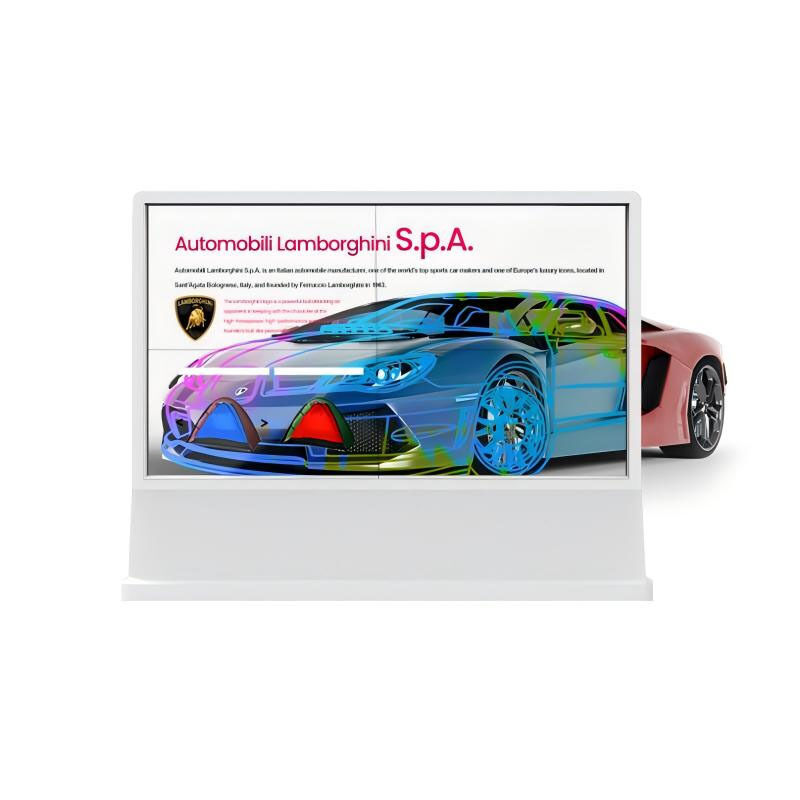

A 2x2 transparent OLED video wall combines two transparent OLED displays to form a 2x2 display area. Transparent OLED is an emerging display technology characterized by high brightness, high contrast, and wide viewing angles, while allowing the viewer to see objects behind the screen.
By combining two transparent OLED displays, a larger display area can be achieved, providing users with a richer visual experience. This splicing method allows for the creation of larger displays while maintaining transparency, enabling the displayed content to blend seamlessly with the environment and create a more immersive effect.

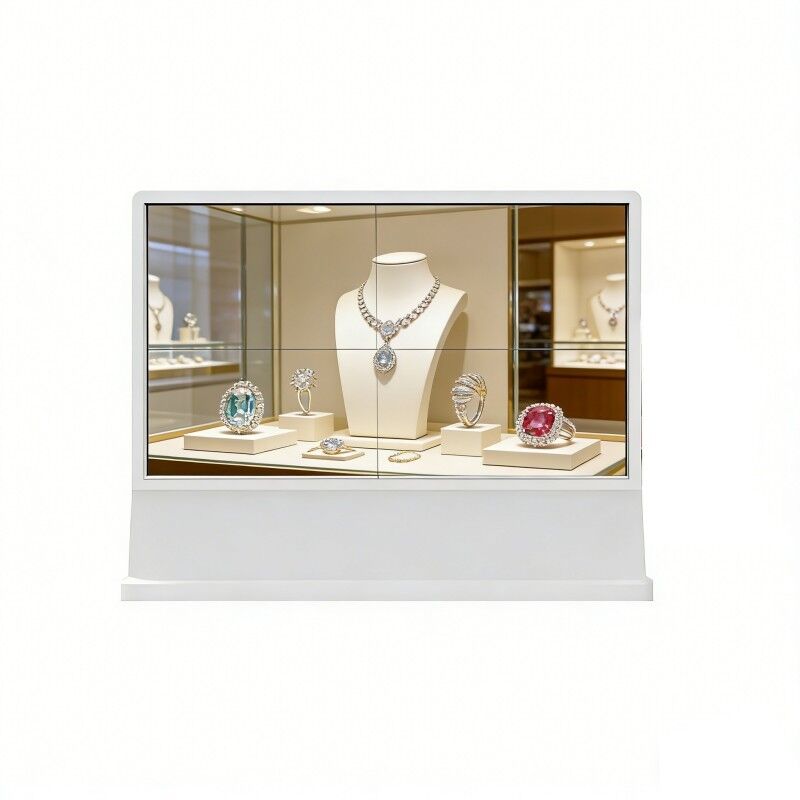

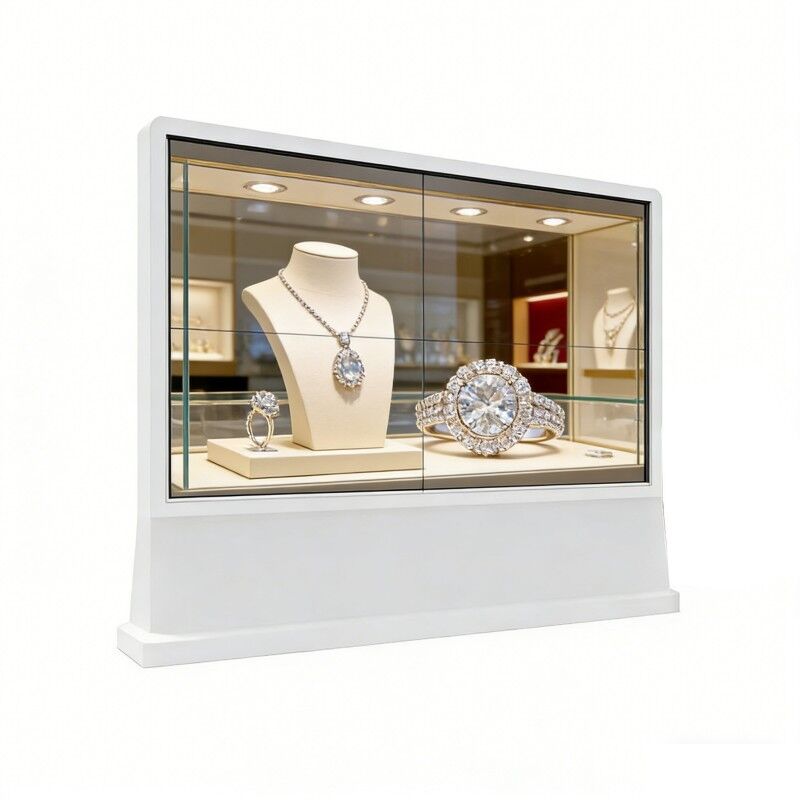

The 2x2 transparent OLED video wall has applications in various fields. For example, in the retail industry, it can be used as a product display window to attract customer attention.
In the smart home field, it can be used on display panels or mirrors to provide information display and intelligent control functions. In the advertising industry, the 2x2 transparent OLED video wall can be used for outdoor billboards to attract more attention.
| 55-inch 2x2 spliced OLED transparent screen(ZXTLCD-T55-PG6B) | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | OLED |
| Resolution | 1080*3840 |
| Brightness | 150-400nit |
| Contrast Ratio | 150000:1 |
| Viewing angle(up/down/left/right) | 178°(H)/178°(V) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 10bit(R),1.07 billon colors |
| Onboard interface | |
| Input Interface | USB*1 + HDMI*1 +network port*1 |
| Output interface | network port*1 |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | AC 100-240V |
| Total System Power Consumption | <100W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| Operating Humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 1263*1912(mm) |
| Overall dimensions | TBD |
| Installation Method | Base installation |
| Net weight / Gross weight | TBD |
| Accessories | |
| Base, power cord, remote control, certificate of conformity and warranty card | |
| other | |
| After-Sales Service | 1-Year Warranty |
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
