Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED-T48-LP6A
OLED Self-Emitting Technology, Superior Picture Quality: Utilizing OLED self-emissive technology, each pixel emits light independently, resulting in more realistic and delicate color reproduction, higher contrast, purer blacks, and a more transparent image.
High Transparency, Seamless Blending of Reality and Dispersion: With a screen transparency of up to 45%, it clearly displays the content while allowing a view of the surrounding environment, creating a highly futuristic feel.
Ultra-Thin Body, Stylish and Beautiful: The slim and lightweight body boasts a stylish and minimalist design, suitable for various scenarios and enhancing the overall ambiance of any space.
Low Power Consumption, Energy-Saving and Environmentally Friendly: OLED technology features low power consumption and a long lifespan, making it energy-efficient and environmentally friendly.

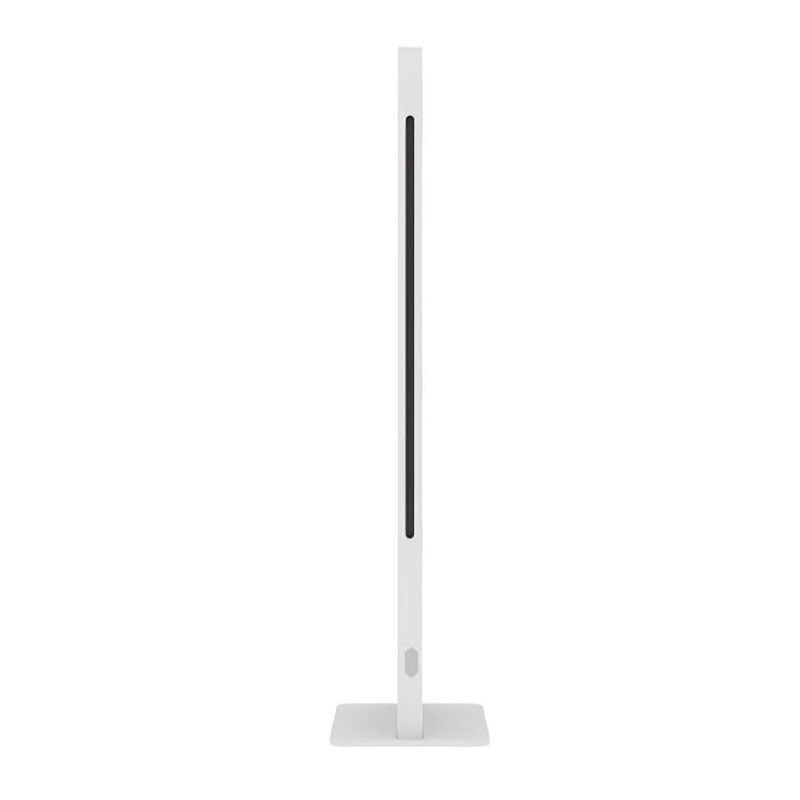

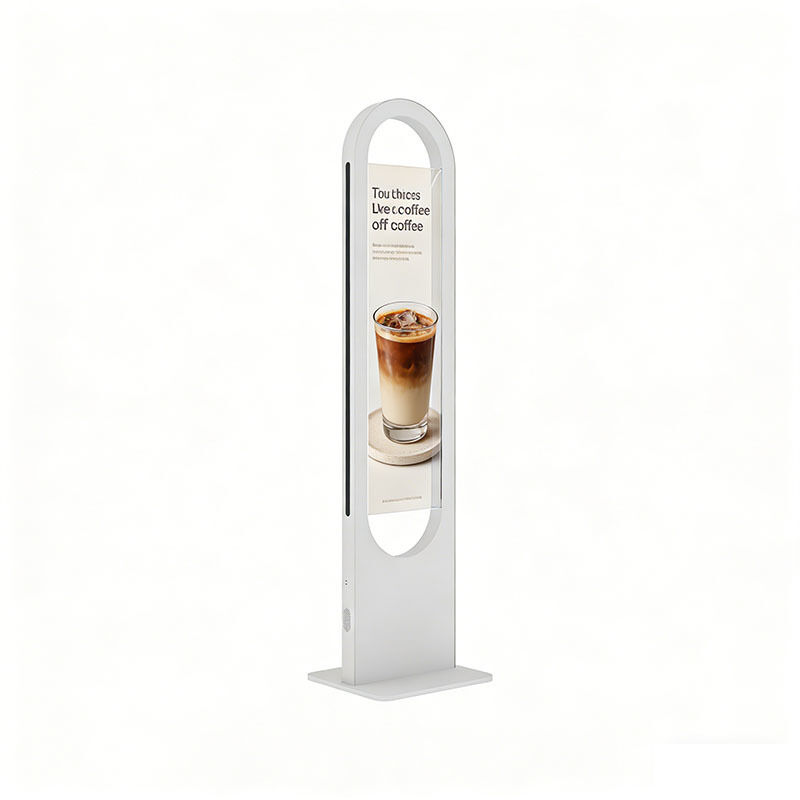

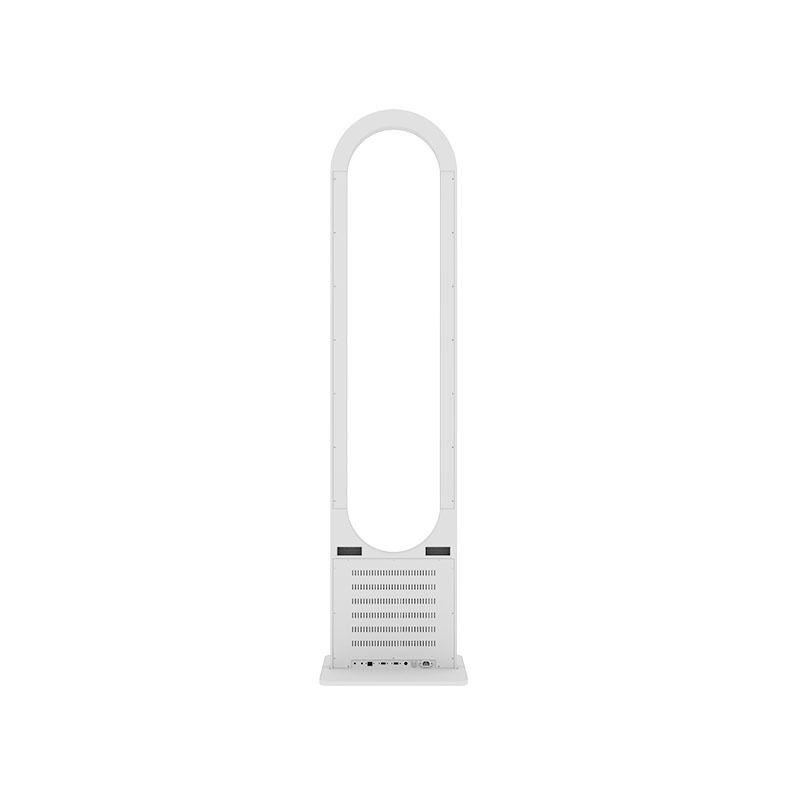

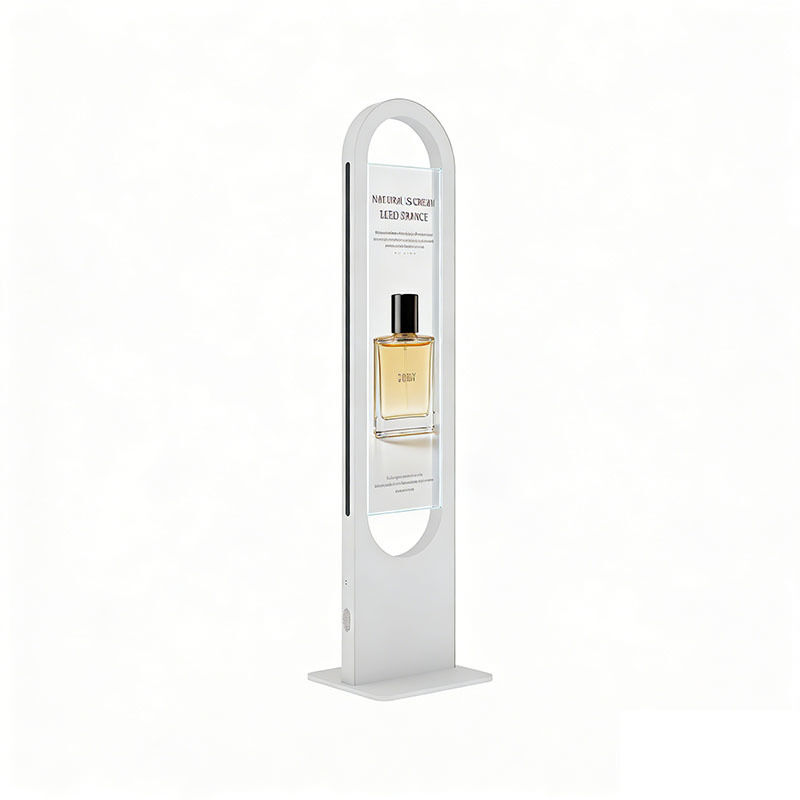

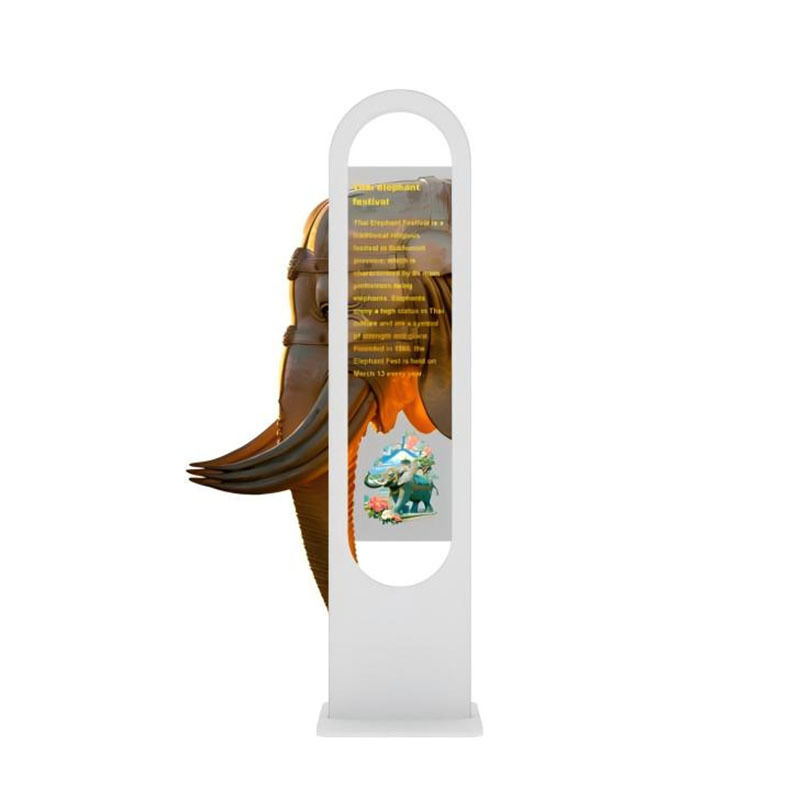

| 48 Inch U-shaped floor-standing OLED transparent screen(ZXTLCD-T48-LP6A) | |
| LCD Panel Parameters | |
| Screen Size | 48 inch |
| Panel type | OLED |
| Resolution | 1920*540 |
| Brightness | 150-400cd/m² Automatic adjustment |
| Contrast Ratio | 200000:1 |
| Viewing angle(up/down/left/right) | 178°(H)/178°(V) |
| Response Time | 1ms(Gray To Gray) |
| Display color | 10bit(R),1.07 billon colors |
| Onboard interface | |
| Input Interface | Type-c*1 USB*2 HDMI*2 RJ45*1 WIFI*2 Bluetooth*1 TOUCH USB*1 |
| Output interface | RS232 |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | AC 100-240V |
| Total System Power Consumption | <200W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| Operating Humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass |
| external dimensions | 2000*510*450(mm) |
| Overall dimensions | TBD |
| Installation Method | Integrated base |
| Net weight / Gross weight | TBD |
| Accessories | |
| Power cord, antenna, remote control, certificate of conformity and warranty card | |
| other | |
| After-Sales Service | 1-Year Warranty |
