Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED-T77-LPAB
OLED self-emissive technology delivers rich and vibrant colors.
Transparent illumination ensures perfect picture quality.
Ultra-high contrast ratio and exceptional image depth; pure blacks and brilliant highlights.
Supports capacitive touch for seamless human-computer interaction.
Large 77-inch transparent display provides a top-tier visual impact.
Suitable for various applications including smart home hubs, commercial displays, and art installations.
Supports a 178° ultra-wide viewing angle, maintaining excellent picture quality from any viewing angle.
Cabinet-style design breaks away from traditional TV installation methods, greatly enhancing spatial aesthetics.

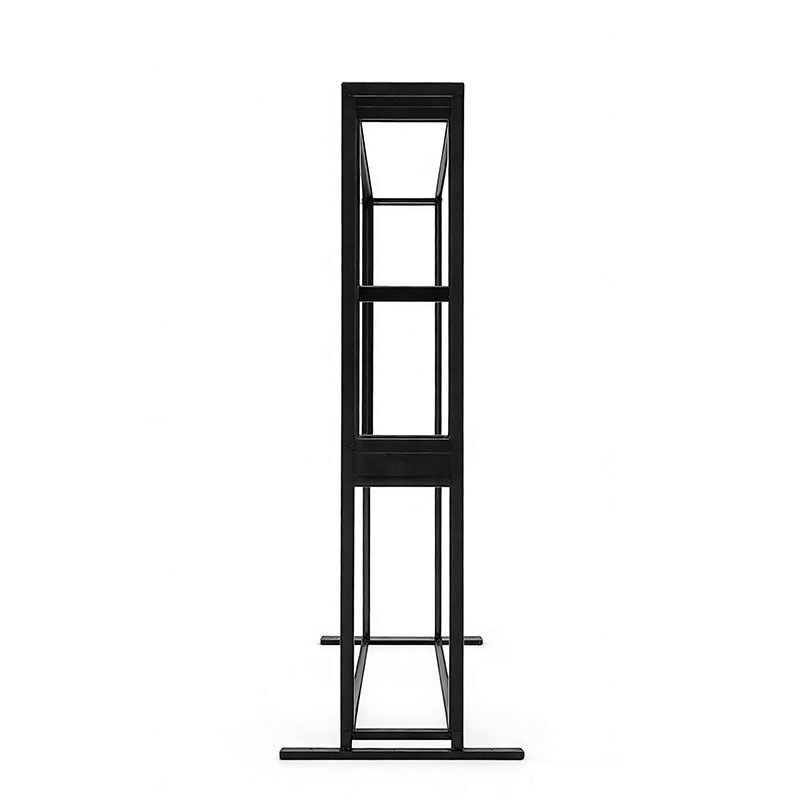

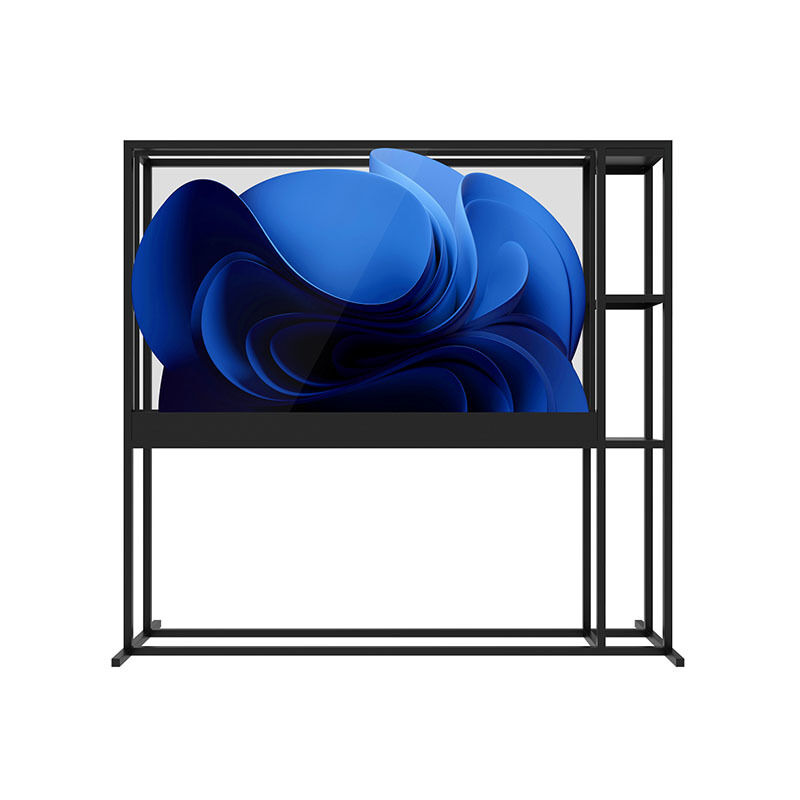

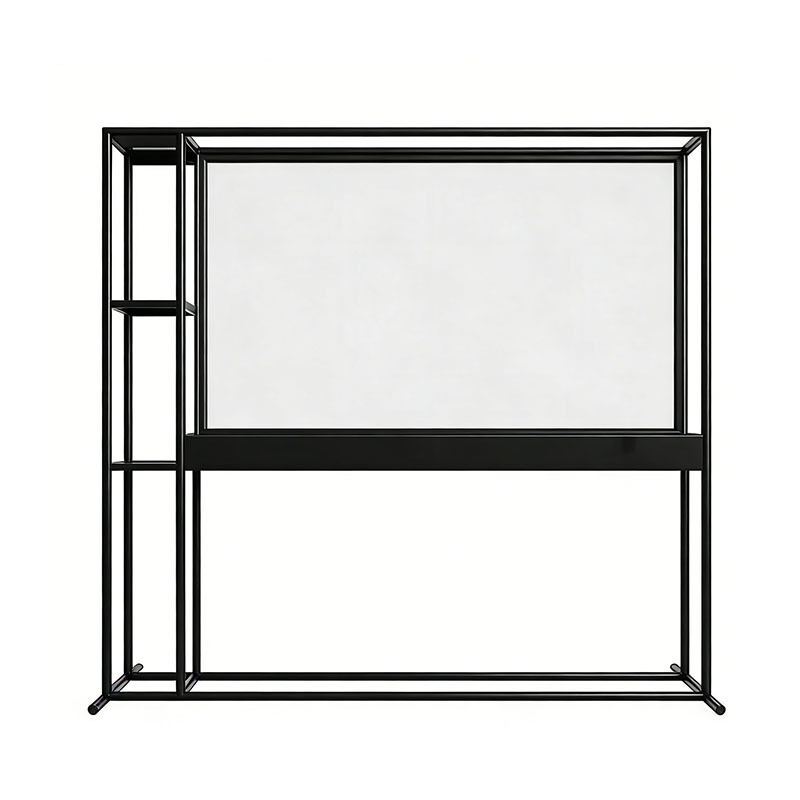

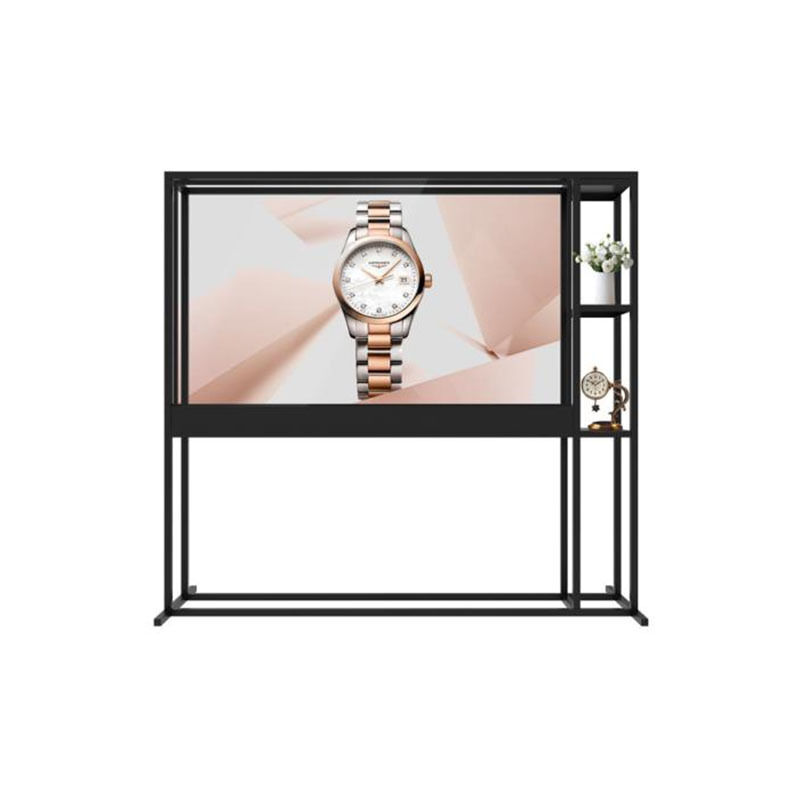

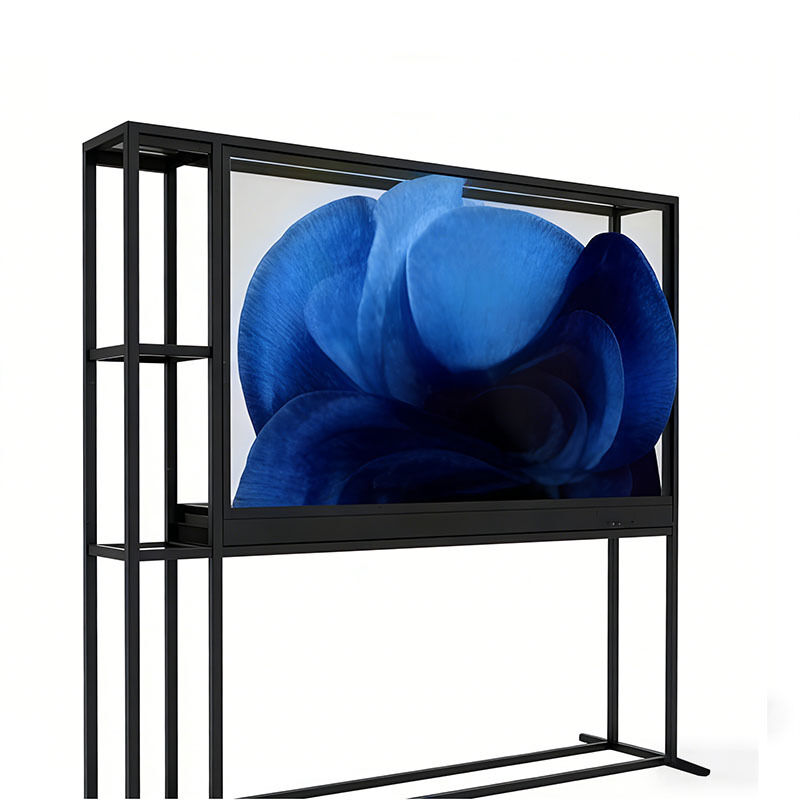

| 77-inch OLED transparent screen vertical display case(ZXTLCD-T77-LPAB) | |
| LCD Panel Parameters | |
| Screen Size | 77 inch |
| Panel type | Transparent OLED |
| Resolution | 3840*2160 |
| Brightness | 200-600cd/㎡ Automatic adjustment |
| Contrast Ratio | 200000:1 |
| Viewing angle(up/down/left/right) | 178°(H)/178°(V) |
| Onboard interface | |
| Input Interface | Type-c*1 USB*2 HDMI*2 RJ45*1 WIFI*2 Bluetooth*1 TOUCH USB*1 |
| Output interface | RS232 |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | DC 20V |
| Total System Power Consumption | ＜40W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| Operating Humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 2055*700*1930(mm) |
| Overall dimensions | 1814*524*1230mm (flight case) |
| Installation Method | Desktop base |
| Net weight / Gross weight | 150KG/210KG |
| Accessories | |
| Power cord, remote control, certificate of conformity, warranty card, instruction manual | |
| other | |
| After-Sales Service | 1-Year Warranty |
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
