Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED-T77-QPAA

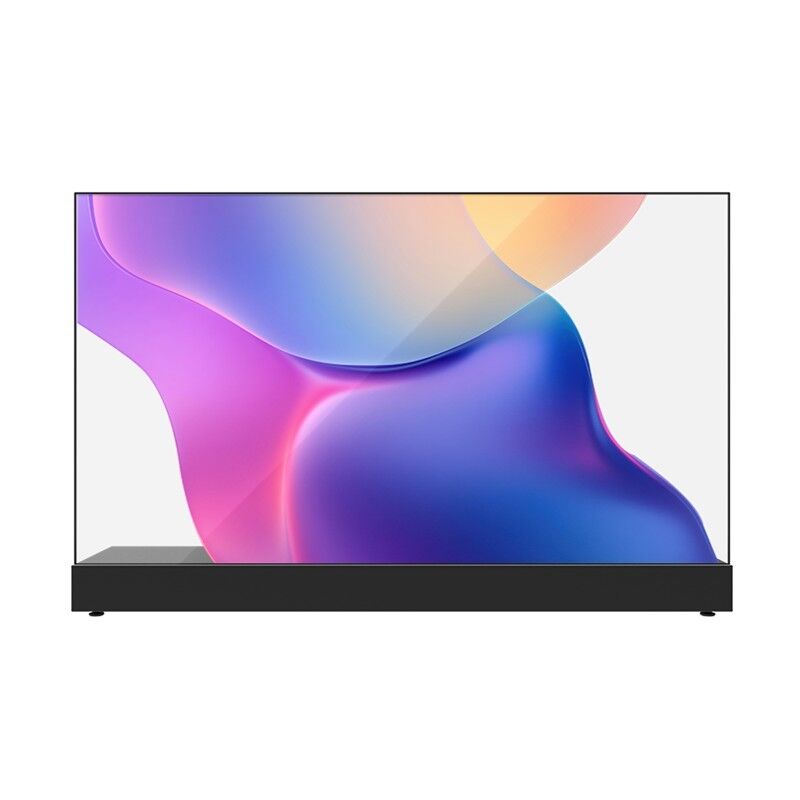

High Transparency: The 77-inch OLED transparent screen boasts high transparency, allowing for clear visibility of background objects even when the screen is off or displaying light-colored content.
This characteristic makes the screen uniquely appealing in various application scenarios.
4K Resolution: This product typically features 4K resolution, or 3840x2160 pixels, ensuring image clarity and detail. Whether watching HD videos or displaying high-resolution images, it delivers excellent visual effects.
Fast Response Time: OLED screens have extremely fast response times, typically less than 1 millisecond. This reduces ghosting and blurring when displaying dynamic content, enhancing the viewing experience.
Wide Color Gamut and High Contrast Ratio: OLED screens cover a wider color gamut, presenting richer colors. Simultaneously, due to their self-emissive nature, OLED screens achieve extremely high contrast ratios, with particularly outstanding black levels.
| 77-inch OLED transparent screen embedded model(ZXTLCD-T77-QPAA) | |
| LCD Panel Parameters | |
| Screen Size | 77 inch |
| Panel type | Transparent OLED |
| Resolution | 3840*2160 |
| Brightness | 200-600cd/㎡ Automatic adjustment |
| Contrast Ratio | 200000:1 |
| Viewing angle(up/down/left/right) | 178°(H)/178°(V) |
| Onboard interface | |
| Input Interface | Type-c*1 USB*2 HDMI*2 RJ45*1 WIFI*2 Bluetooth*1 TOUCH USB*1 |
| Output interface | RS232 |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | DC 20V |
| Total System Power Consumption | ＜40W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| Operating Humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 1743.4*353*1088.77(mm) |
| Overall dimensions | 1874*584*11340mm (flight case) |
| Installation Method | Desktop base |
| Net weight / Gross weight | 100KG/160KG |
| Accessories | |
| Power cord, remote control, certificate of conformity, warranty card, instruction manual | |
| other | |
| After-Sales Service | 1-Year Warranty |
