Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED-T55-QP6A

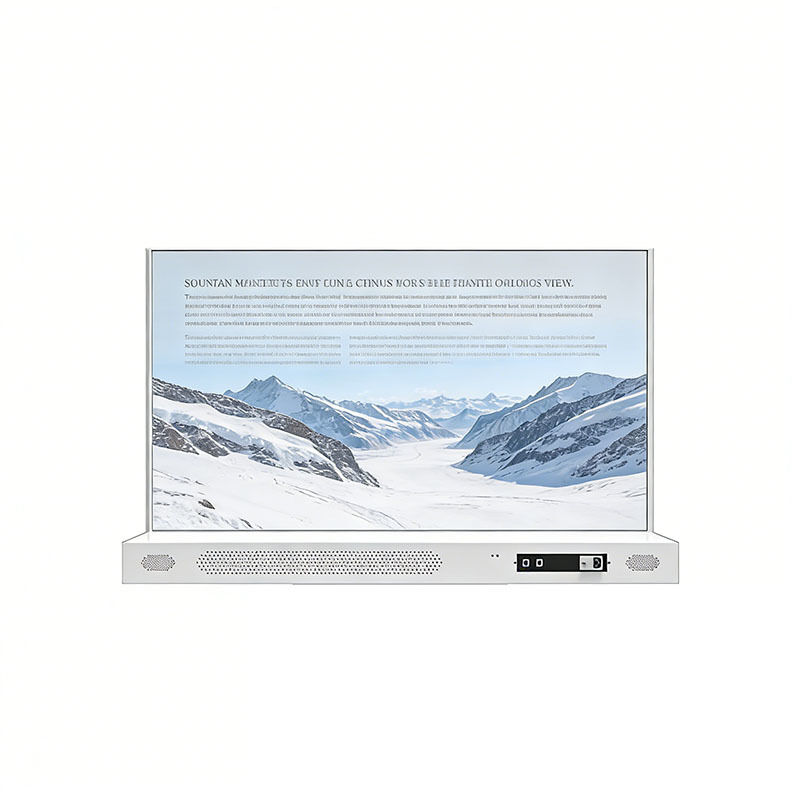

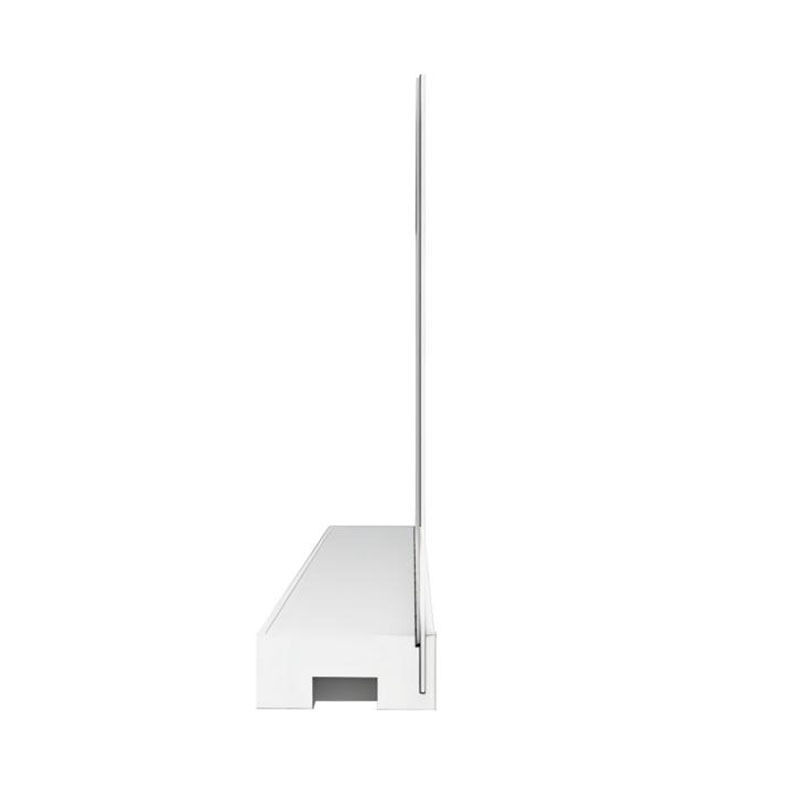

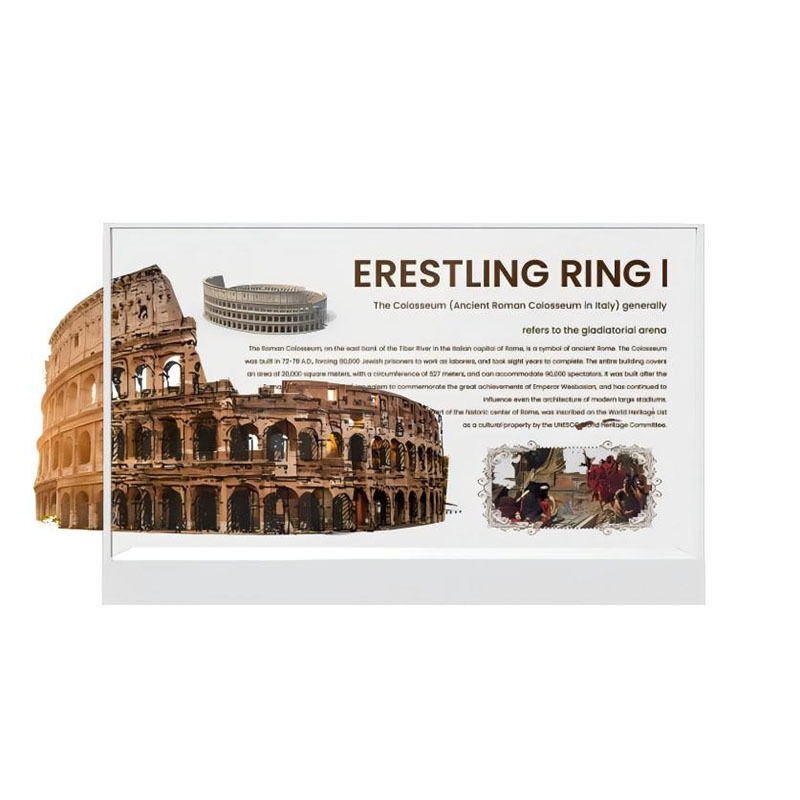

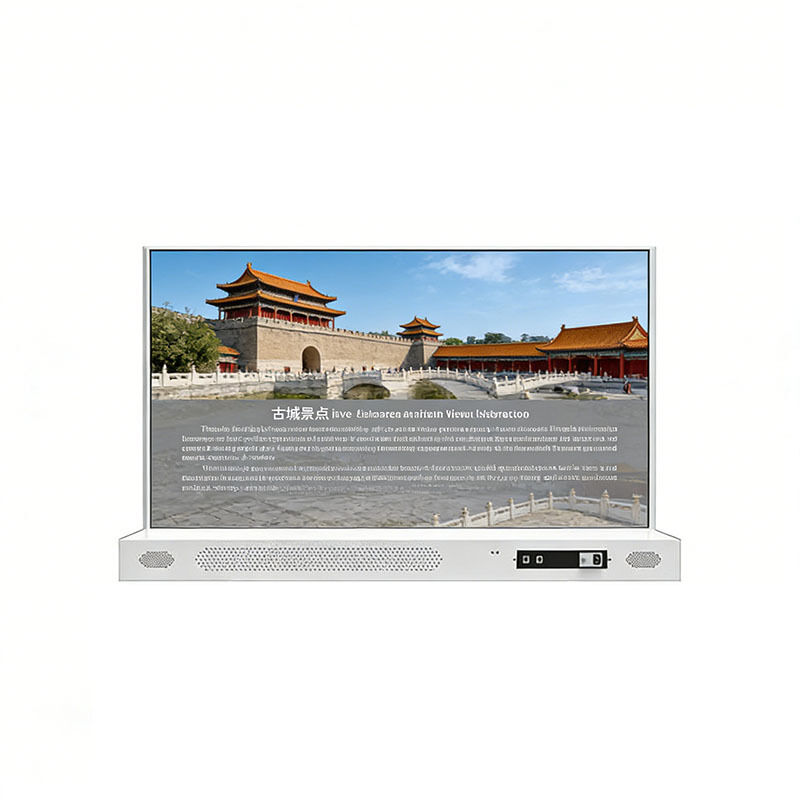

The Custom 55-Inch 1080P Transparent OLED Showcase combines a physical product with digital storytelling in one presentation space. Designed for official stores, luxury shops, flagship locations, showrooms, and branded retail environments, it allows merchandise to remain visible while graphics, animation, and product information appear across the transparent OLED surface.
Instead of asking customers to look away from the product toward a separate digital screen, the showcase brings the story directly into the product’s visual environment. The merchandise remains the subject; the OLED layer adds context, detail, movement, and atmosphere.
The strongest transparent OLED showcase does not begin with a general advertising video. It begins with a specific object or collection.
Before creating the content, define:
The physical arrangement and digital storyboard should be developed together. If merchandise changes frequently, the content template should be flexible enough to support new products without redesigning the entire experience.
A clear sequence helps the display communicate without overwhelming the product.
Begin with restrained motion, a collection name, or a short brand statement. The opening should gain attention while keeping the merchandise visible.
Avoid using a full-screen opaque background. The first impression should immediately communicate that the digital image and physical object belong together.
Present the product name and one defining idea. This might be its purpose, design inspiration, material, origin, or role within a collection.
Keep the message short enough to understand at a glance.
Use labels, animation, diagrams, or close-up media to explain selected details. Digital elements can direct attention toward materials, construction, functions, or design features.
Do not introduce every available specification. Select the information that makes the physical object more meaningful.
Connect the product with the wider brand story. This may include heritage, design philosophy, manufacturing process, collection identity, or campaign atmosphere.
The brand layer should support the product rather than replace it with unrelated promotional media.
End with a simple next step, such as:
After the final scene, the sequence should return smoothly to the opening state.
| 55-inch embedded transparent device(ZXTLCD-T55-QP6A) | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | Transparent OLED |
| Resolution | 1920*1080 |
| Brightness | 200-600cd/㎡ Automatic adjustment |
| Contrast Ratio | 135000:1 |
| Viewing angle(up/down/left/right) | 178°(H)/178°(V) |
| Onboard interface | |
| Input Interface | HDMI,DP,RS232 |
| Output interface | RS232 |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | DC 20V |
| Total System Power Consumption | <40W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 5℃~45℃ |
| Operating Humidity | 30%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 1237.5*218.6*774(mm) |
| Overall dimensions | 1378*320*905mm |
| Installation Method | Desktop base |
| Net weight / Gross weight | 35KG/45KG |
| Accessories | |
| Power cord, HDMI port, USB port, remote control, certificate of conformity and warranty card, instruction manual | |
| other | |
| After-Sales Service | 1-Year Warranty |
The physical product occupies part of the viewing area, so content should be positioned around it.
A practical composition may include:
Transparent space is an active part of the design. It allows customers to continue examining the product while the story progresses.
Content should use short text, strong contrast, controlled motion, and limited visual layers. Dense graphics can make the showcase feel like a conventional television placed in front of the merchandise.
The 1080P display format can support video, product imagery, text, and animation, but content should be prepared for the actual 55-inch presentation area.
Prioritize:
Small text that appears readable on a computer may not work over reflective glass or detailed merchandise. Review every scene on the real display whenever possible.
The screen’s appearance changes according to the object and lighting behind it. Polished metal, glass, jewelry, watches, cosmetics, electronics, and dark packaging all interact differently with transparent content.
Test the showcase using:
If content becomes difficult to read, adjust the lighting, graphic contrast, product position, or background rather than covering the whole screen.
![]()
![]()
![]()
![]()
